Volt VFL-4002-ABZ Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

VOLT® LED Floodlights

VFL-12V Series

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Low Voltage Landscape Lighting

VFL 12V Floodlights

Important: Please Read Before Installation

Important Safety Instructions

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions may

result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more

from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer)

rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that are suitable for

outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6

inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches

(152 mm)

7. If additional lengths of low voltage cable are required, please contact www.

voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage

lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

- 2 -

Package Contents

Products Model #

A. (1) Lampbody

B. (1) Stake

[email protected] • 813.978.3700

C. (1) Coupler

D. (1) Hex Nut

- 3 -

Product Dimensions

5.59”

4.25” 4.52”

Model Input

Voltage

Power

Factor Watt Input

Current Mounting

VFL-4002-ABZ

12V ≥0.95

10W 0.75A

YokeVFL-4004-ABZ 30W 2.3A

VFL-4006-ABZ 7W 0.57A

4.23”

1.89”

2.79”

0.77”

0.45”

VFL-4002-ABZ

VFL-4006-ABZ

8”

6.25” 9”

8.12”

2.67”

5.21”

0.83”

1.29”

VFL-4004-ABZ

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

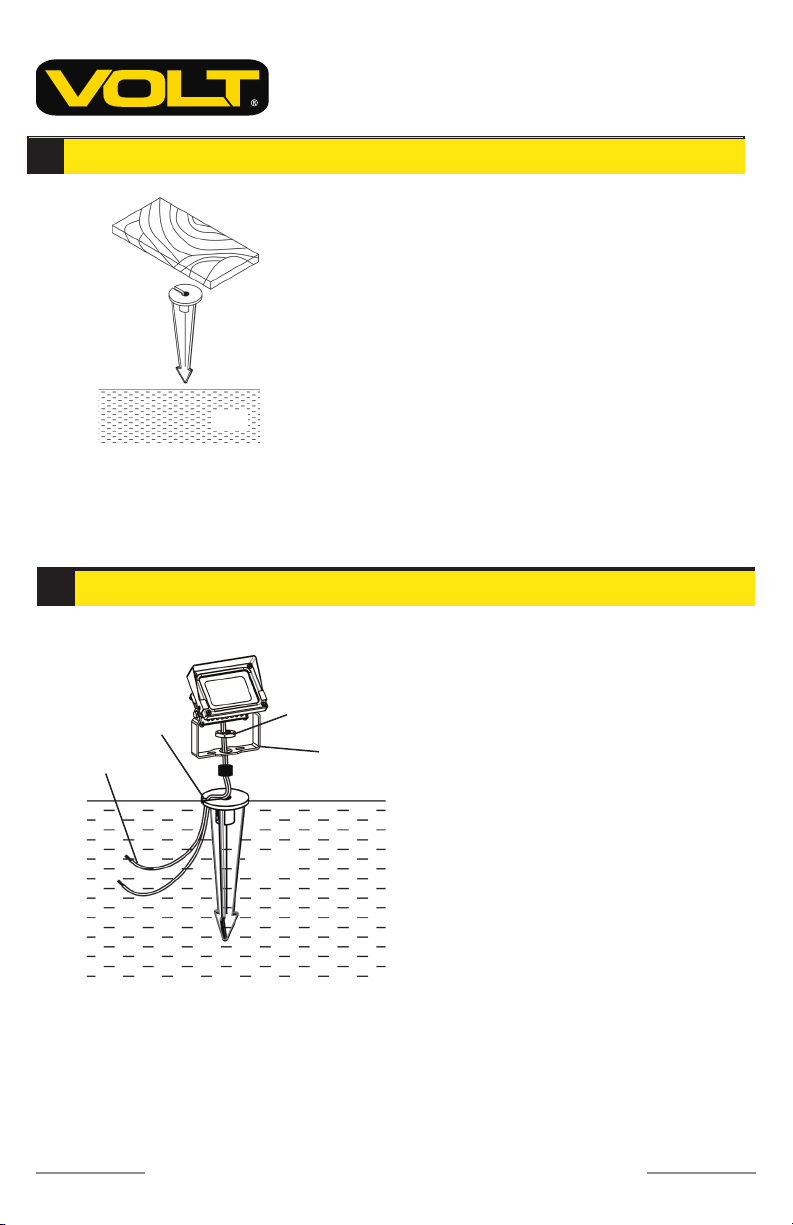

Install Fixture to Stake

VOLT®Low Voltage Landscape Lighting

VFL 12V Floodlights

Install Stake

Determine the desired location for

mounting the xture. Hammer the

stake into the ground until ange

of stake is ush to grade. To avoid

damage to the stake, place a board

on top of the stake while hammering.

NOTE: If the ground is hard and the

stake is difcult to install, make a

crosscut in the ground using a at

shovel.

Board

Stake

Soil

Ground

Fixture

Coupler

Stake

Pigtail

Wireway Slot Hex Nut

Clear away an area in the ground

at the wireway slot on top of the

stake. Pass the supply wires from

the xture through the hex nut,

yoke mount and coupler. Then, lay

the supply wires pigtail into the

wireway slot and screw the coupler

onto the stake. Place the yoke

mount onto the coupler and secure

it with the hex nut. Tighten until

snug to secure the xture.

Yoke

Mount

[email protected] • 813.978.3700

- 5 -

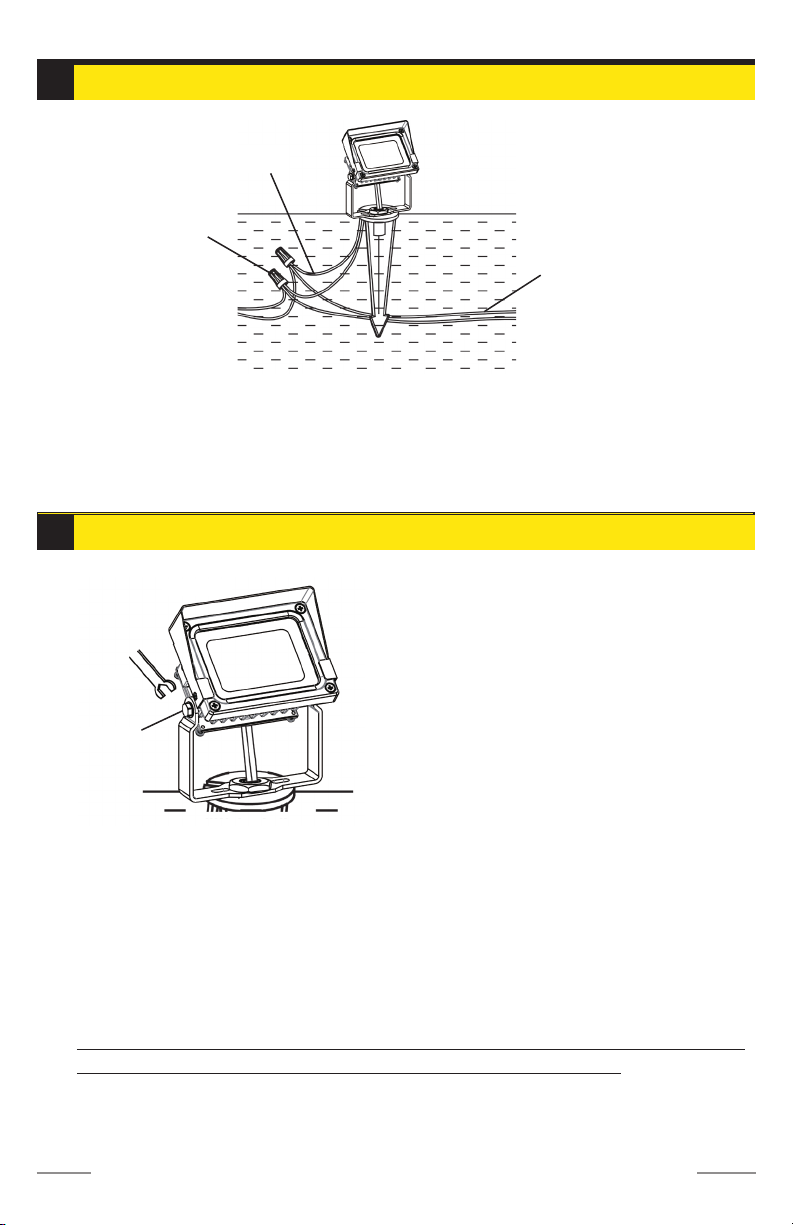

Wire Connection

Strip both leads from the luminaire pigtail. Using two wire connectors

(sold separately), connect the leads from the luminaire to the main

supply cable leads.

Pigtail

Main Supply Cable

Wire Connectors

Adjust Fixture

Adjust the xture to the desired

orientation and tighten the screws

with the spanner.

Fixture

Screw

Spanner

After installation,

A. Check whether the lighting xture is rmly xed.

B. Check whether the wires are connected correctly.

Lastly, turn on the power and check if the lighting xture works correctly.

If not, turn off the power and contact your local electrician.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

VOLT®Low Voltage Landscape Lighting

VFL 12V Floodlights

[email protected] • 813.978.3700

- 7 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

IS-VFL-12V-ver1.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 8 -
