Volt VSPL-1047-BBZ Bedienungsanleitung

INSTALLATION INSTRUCTIONS

VOLT®Low Voltage Landscape Lighting

VOLT®Solar Flame Integrated LED Brass Path Light (Bronze)

VSPL-1047-BBZ

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Important Safety Instructions

- 2 -

VOLT®Solar Flame Integrated LED Brass Path Light (Bronze)

VSPL-1047-BBZ

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

Please note that these solar xtures are equipped with built-in photocells, so

they will not turn on until it is dark enough. These xtures will also require

plenty of sunlight to function properly. It’s best to have the xture in an

area where the sun will get to it at all times throughout the day and where

no ambient lighting will aect the photocell at night. If your xture is not

functioning at night, be sure that the on/o button has been engaged. See

step one for details.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly!

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

- 3 -

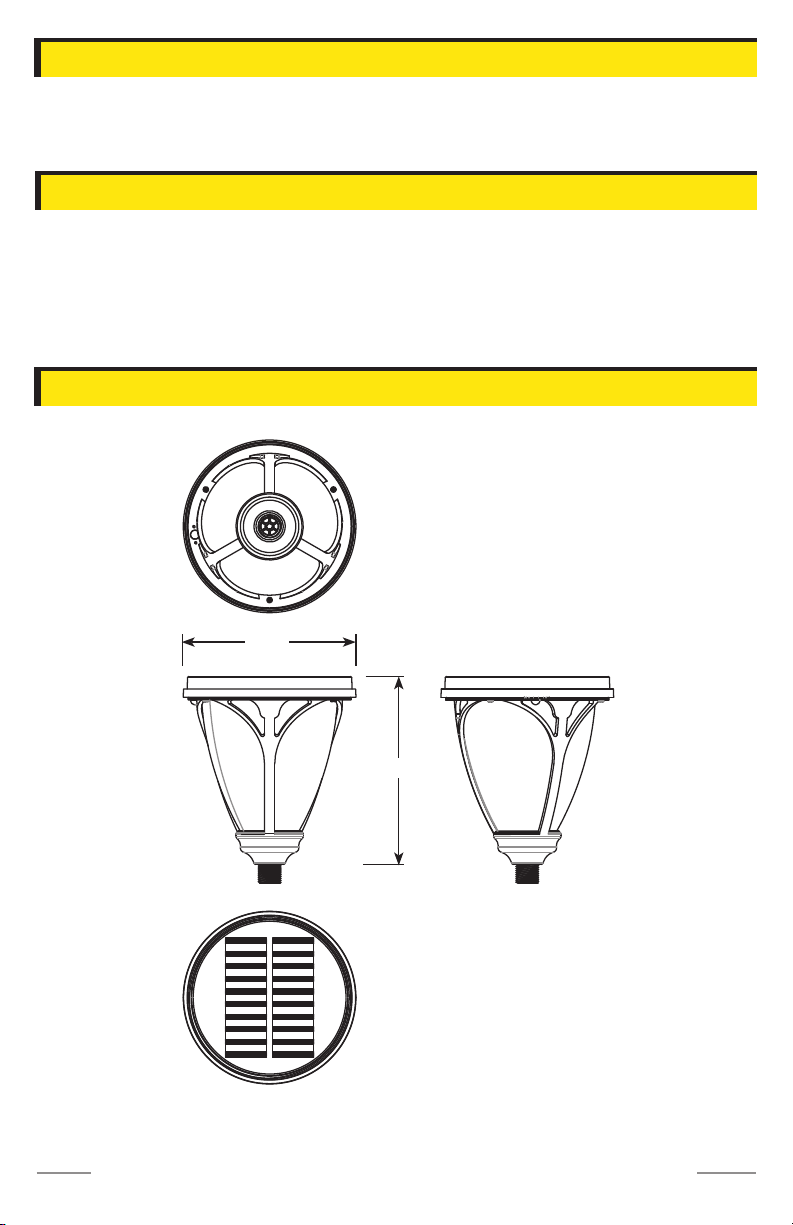

Product Dimensions

Package Contents

A. (1) Fixture Body

B. (1) Flame LED Lamp

C. (1) 12” Stem

Parts Required (Sold Separately)

A. Mounting Accessory

6.33”

6.89”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

Remove Solar Panel

VOLT®Solar Flame Integrated LED Brass Path Light (Bronze)

VSPL-1047-BBZ

Install Flame Lamp

Using a screwdriver, loosen the

screws to carefully remove the

solar panel from the xture

body to avoid disconnecting

the wires.

Screw

Solar Panel

Fixture Body

Use ame lamp with correct

wattage and type marked on

xture label.

Align the pins in the bottom

of the ame lamp to holes on

the socket and push the ame

lamp into the socket properly.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

Socket

Flame Lamp

[email protected] • 813.978.3700

- 5 -

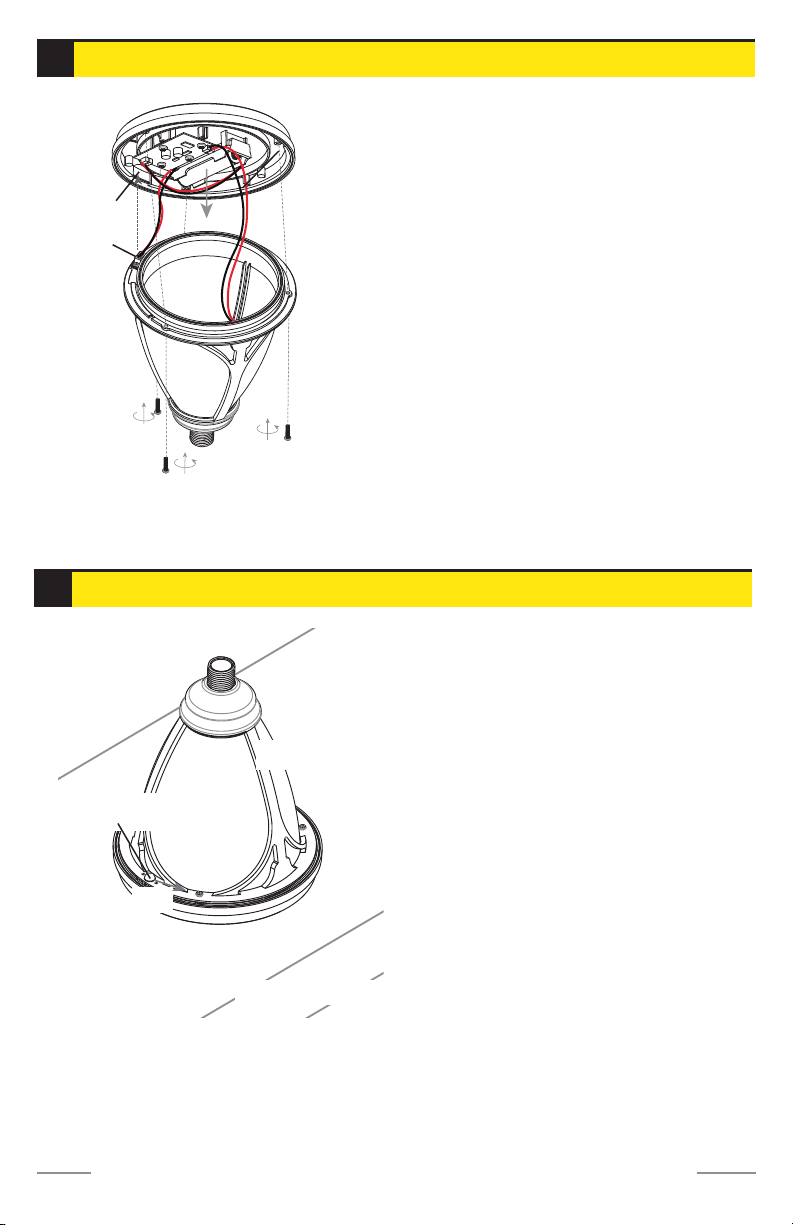

Install Solar Panel

Test Solar Light

Align the switch to the slot

on the solar panel and place

the solar panel back onto the

xture body. Secure them

together with previously

removed screws. Hand tighten

until snug with a screwdriver.

Screw

Solar Panel

Switch

Slot

Fixture Body

Place the solar panel of the

xture onto a at opaque

working surface. Push the switch

on the ange “ON” to test the

light source. The lights will turn

on while the switch is on.

Now you can proceed to the next

steps of installation knowing the

xture is in ON mode.

On/Off Switch

Fixture Body

FLAT SURFACE

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

VOLT®Solar Flame Integrated LED Brass Path Light (Bronze)

VSPL-1047-BBZ

Install Stake

Install Fixture Body

Determine the desired location

for mounting the luminaire.

Hammer the stake into the

ground until ange of stake

is ush to grade. To avoid

damage to the stake, place a

board on top of the stake while

hammering.

NOTE: If the ground is hard and

the stake is dicult to install,

make a crosscut in the ground

using a at shovel.

Board

Stake

Soil

Ground

Thread the xture body and

the stem onto the stake and

hand tighten until snug.

Ground

Stem

Fixture Body

Soil

Stake

[email protected] • 813.978.3700

- 7 -

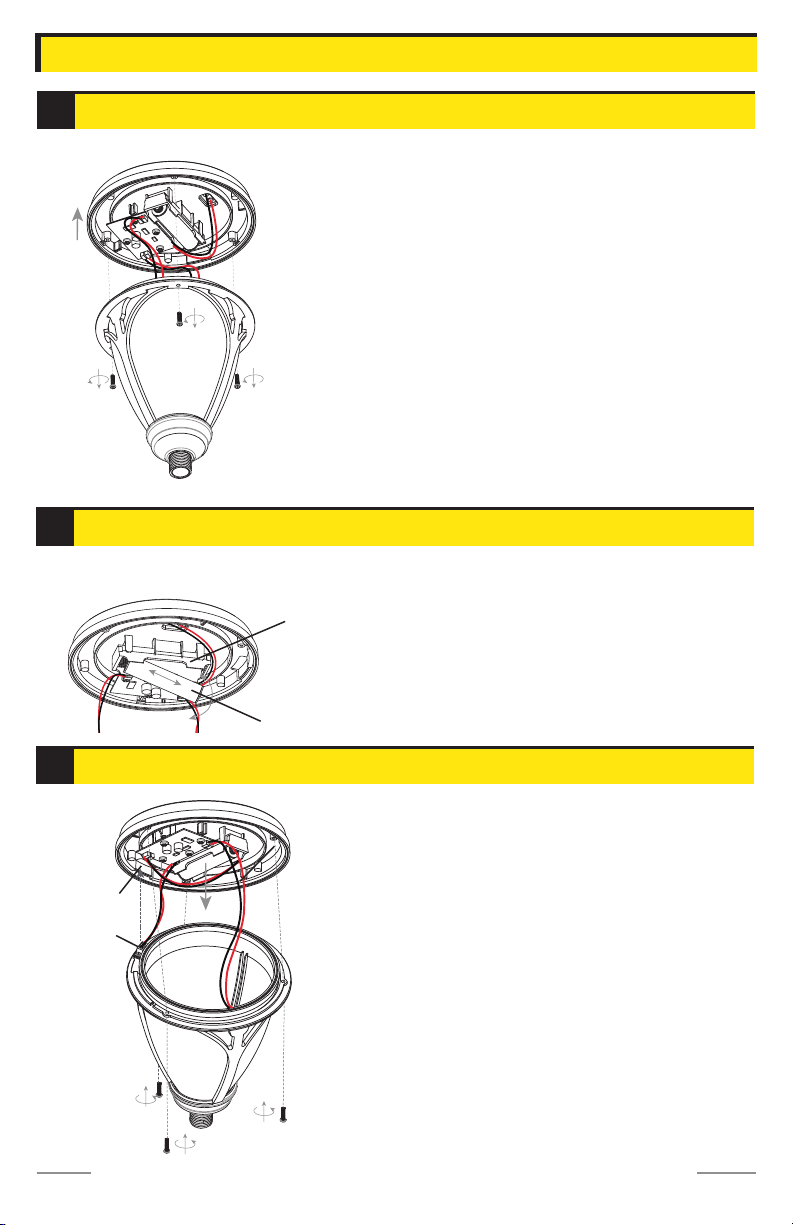

How to Replace Battery

Remove Solar Panel

Replace Battery

Using a screwdriver, loosen the

screws to carefully remove the

solar panel from the xture

body to avoid disconnecting

the wires.

Screw

Solar Panel

Fixture Body

Remove the battery out of

the battery compartment and

replace it with a new one.

Solar Panel

Battery

Compartment

Install Solar Panel

Align the switch to the slot

on the solar panel and place

the solar panel back onto the

xture body. Secure them

together with previously

removed screws. Hand tighten

until snug with a screwdriver.

Screw

Solar Panel

Switch

Slot

Fixture Body

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VSPL-1047-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
