VOLT® 120V 6-Outlet Outdoor Power Stake with Timer

VAC-STK-PWR-PGR

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

This product is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

product.

2. Mounting and installation of the product should be performed in

accordance with applicable local laws and regulations.

3. The installer is responsible for correct and safe installation.

4. CAUTION - RISK OF FIRE. Not for permanent installation. Do not install or

use this product for more than a 90-day period.

5. Use only with outdoor equipment, Christmas trees, or other seansonal

decorative lighting products having a total of 12 Ampere maximum.

6. If using Christmas tree or decorative lighting products that are not

marked with an Ampere rating, connect no more than 140 screw-base

lamps (C7 or C9) or 12 strings with midget (push-in) lamps to this

product.

7. This product shall be plugged into a GFCI-protected receptacle.

8. Do not connect or disconnect the xture under load.

9. If using an outdoor-use cord set for an extended period of time (greater

than 90 days), please consider hard wiring as a permanent outdoor-use

receptacle rated for year-round use in the area that power is needed.

Please contact a licensed electrician of proper installation of permanent

wiring. After completion of installation, the connector shall remain a

minimum of 6 inches above ground.

Package Contents

Product Dimensions

[email protected] • 813.978.3700

- 3 -

A. (1) Outlet with Timer

B. (1) Upper Stake

C. (1) Bottom Stake

8.5”

14.7”

3” 3.4”

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

Connect Stakes

Push the bottom stake into the

bottom end of the upper stake.

Bottom Stake

Upper Stake

Install Stake

Determine the desired location for

mounting the product. Insert the

stake into the ground until ange

of the bottom stake is ush to

ground.

Ground

Soil

Bottom Stake

VOLT® 120V 6-Outlet Outdoor Power Stake with Timer

VAC-STK-PWR-PGR

[email protected] • 813.978.3700

- 5 -

Thread Outlet to Upper Stake

Thread the outlet onto the upper

stake. Hand tighten until snug.

Upper Stake

Outlet

Turn On Outlet

Insert the plug of the outlet into

a GFCI-protected wall outlet. Turn

on the outlet by pressing the ON/

OFF switch on it.

Outlet

Plug

Wall Outlet

ON/OFF Switch

Set the Time

MIDNIGHT

NOON

TIME

Open the cover on the top of the outlet.

Adjust the timer to the current time by

rotating the dial of the timer clockwise

until the triangular pointer is pointing to

the actual time.

Outlet

Timer

Cover

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

Setting On/Off Periods

Timer can set up to 48 ON/OFF commands (48 pins) a day. Each pin

represents 30 minutes: 2 pins = 1 hour.

Push down pins that correspond to desired “ON” time.

Pull up pins that correspond to desired “OFF” time.

Push Down to Set “ON”

Represents timer that will come on at

7:00 PM and turn off at 11:00 PM

Pull up to Set “OFF”

MIDNIGHT

NOON

TIME

MIDNIGHT

NOON

TIME

Close Cover

IMPORTANT:

In case of loss of power (including turning the switch to "OFF" on the

power stake), the timer needs to be reset using Step 5 - Step 7.

MIDNIGHT

NOON

TIME

Close the cover on the top of the

outlet.

Outlet

Cover

VOLT® 120V 6-Outlet Outdoor Power Stake with Timer

VAC-STK-PWR-PGR

[email protected] • 813.978.3700

- 7 -

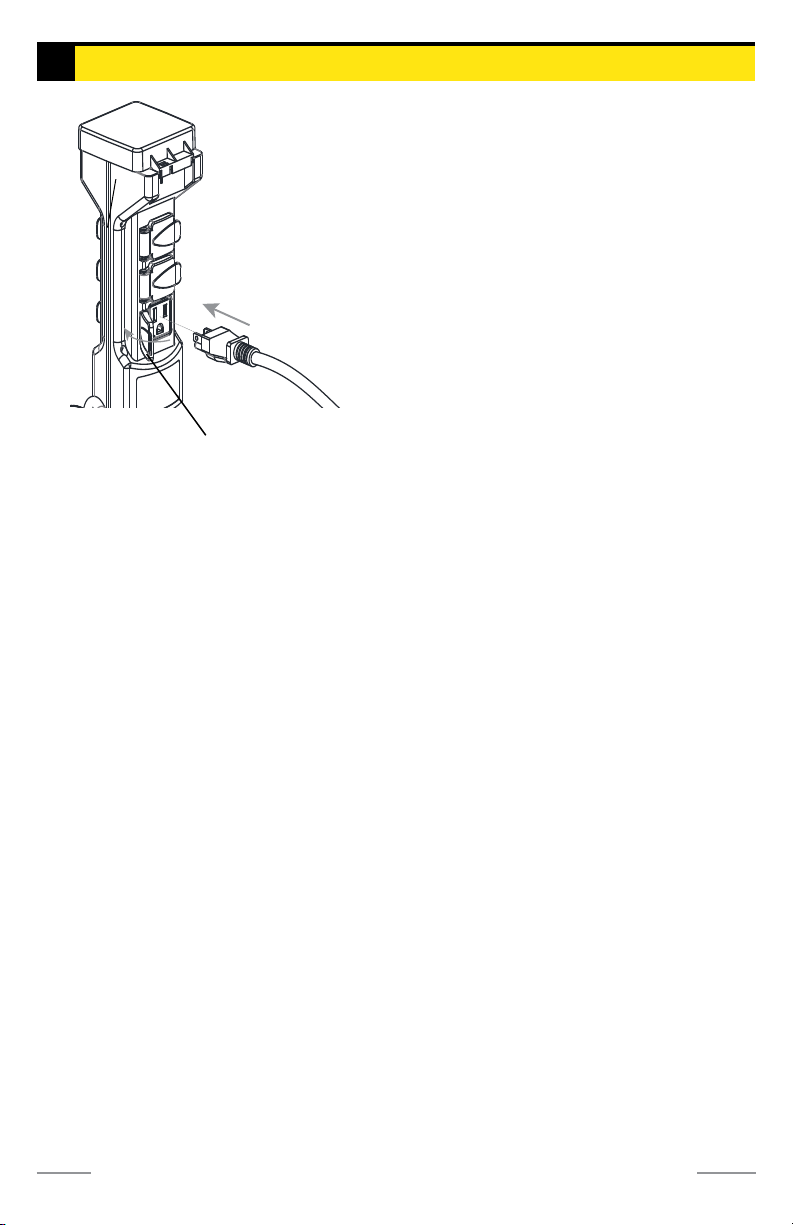

Connect Appliances to Outlet

Cord from

Appliance

Outlet

Open the cap over the outlet

and insert the cord from outdoor

equipment, Christmas trees, or other

seansonal decorative lighting into the

outlet.

Cap

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VAL-STK-PWR-PGR-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
