Wali MF002XLS Bedienungsanleitung

MF002XLS

WARNING

！！USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

Dual Monitor Desk Mount

75x75\100x100

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

RATED

(10kg/22lbs)x2

MAX 27”

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

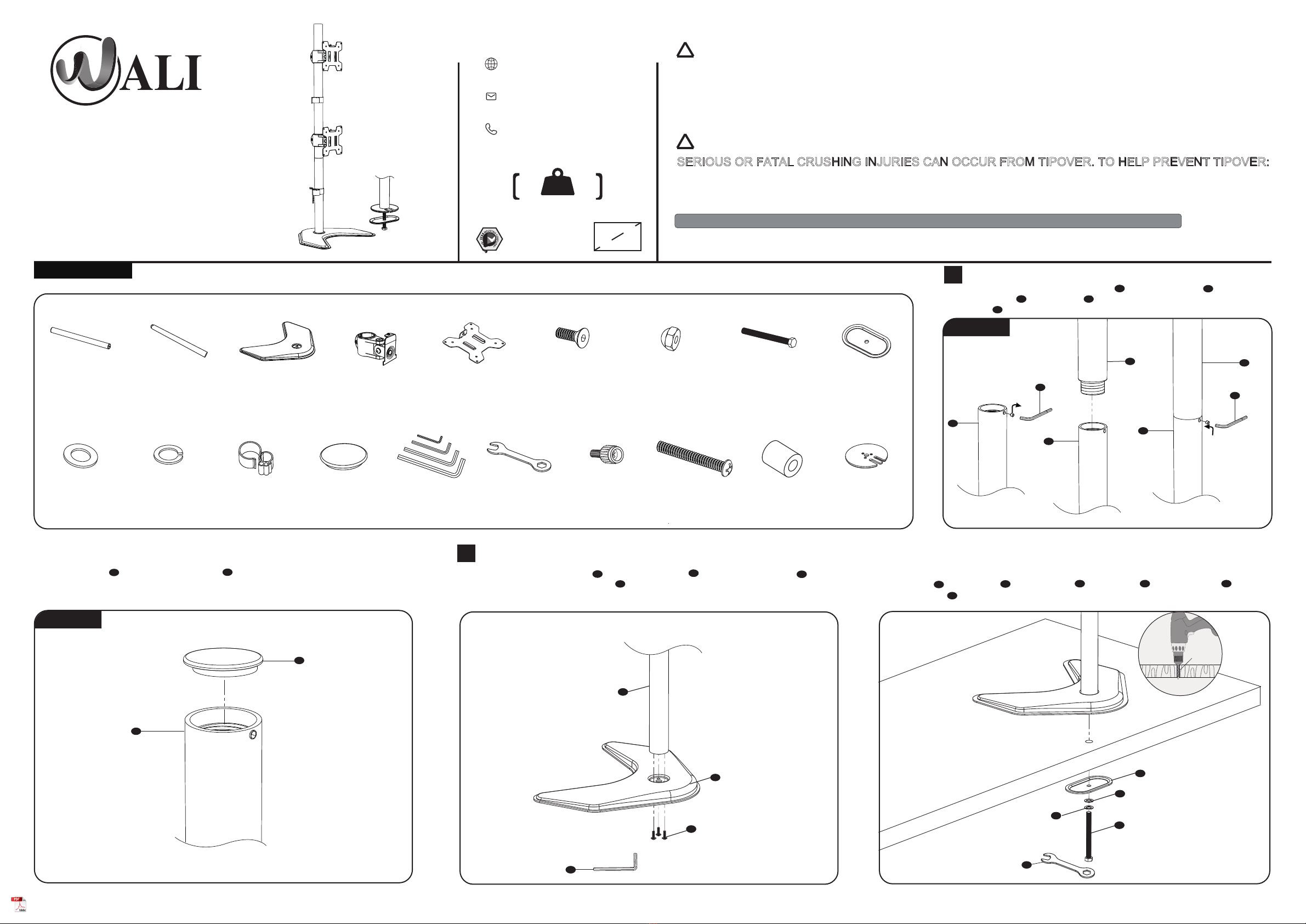

Supplied Parts List

Lower Pole

a1 (x1)

Monitor Arm

c (x2)

Weighted Base

b (x1)

VESA Plate

d (x2)

Nut

h (x2)

M5x14 Bolt

e (x3)

Support Plate

j (x1)

Spring Washer

l (x1)

M10 Washer

k (x1)

M10 Bolt

i (x1)

Grommet Base Plate

t (x1)

Wire Clip

n1 (x2)

Allen Key

o (x1)

M4 Spacer

s (x8)

M4x30 Bolt

r (x8)

Wrench

p (x1)

M4x12 Bolt

q (x8)

Upper Pole

a2 (x1)

Pole Cover

n2 (x1)

1a. Install the Lower Pole a to the weighted Base b using 3pcs M5x14 Bolts e ,

and tighten with Allen key 3mm o .

1b. Optionally, you can drill a 10mm diameter hole in your desk and secure using the

Support Plate , M10 Washer k , Spring Washer and M10 Bolt i . Fasten M10 Bolt with

provided Wrench p .

l i

a1 b

ø 10mm

(ø ")3/8

Option A : Weighted Base Installation

Option B : 16.3'' Pole Installation (Only Used For Single Monitor Mount)

Option A : 31.5'' Pole Installation

Loosen the screw on the Lower Pole a1 with Allen key 2mm o . Connect

Lower Pole a1 to Upper Pole a2 and tighten the screw with Allen key

2mm o to fix the two poles.

Press Pole Cover into the top of Lower Pole a1.

Pre-Assembly

3Put the Wire Clips n1 and Monitor Arms d through the Upper Pole a , adjust the preferred

height and tighten using Allen Key 6mm o .

7Manually swivel, tilt, and rotate the monitor for the best viewing angle.

6Guide the cable through the Wire Clips and store the Allen Keys o in the Wire Clips n1 .

Adjust the tilt angle using Allen Key 5mm n .n1 n1

45°

a1 j

2a. Existing Grommet Hole Installation

If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before

installing the desk mount. Position the Lower Pole a on the mounting surface and secure using the

Support Plate j , M10 Washer k , Spring Washer l , and M10 Bolt i . Fasten the Bolt using

the provided Wrench p .

2b. Self-drilled Grommet Hole Installation

Mark the position of the hole on your mounting surface. Drill a 3/8"(10mm) diameter hole at the

marked position through the mounting surface. Position the Lower Pole a on the mounting surface and

secure using the Support Plate j , M10 Washer k , Spring Washer l , and M10 Bolt i . Fasten the

Bolt using the provided Wrench p .

jkli

a1 a1

jkl

ø 10mm

(ø ")3/8

Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included)

Step 4.1

Select Monitor Screws

Step 4.3a

Flat Back Monitor

Step 4.3b

Curved or Recessed Back Monitor

M4x12 M4x30

Only one screw size fits your Monitor

Step 4.2

Select Spacers ( if needed )

Hand thread screws into the

threaded inserts on the back

of your Monitor to determine

which screw (M4x12 or M4x30)

to use.

5Put the assembled TV/Monitor onto the Monitor Arms d and tighten the VESA Plate e with

Nut h for stability.

Option B : Grommet Base Installation

1. Place Lower Pole a onto Grommet Base Plate m . Connect them from the bottom using M5x14

Bolt and tighten with Allen Key 3mm .

a1 t

Notice: Please make sure the security nut is installed before you rotate the monitor.
