WE-EF AFL100 Series Bedienungsanleitung

Surge Protection

This product features built-in surge protection circuitry in compliance

with applicable standards.

For comprehensive protection of a luminaire installation against lightning

and electrical surges, it is essential to cover mains supply and data input

lines at the distribution board level, by using respective primary (Type 1)

and secondary (Type 2) surge arrestors in compliance with EN61643-11/

IEC61643-1.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this document for details.

Warning

Ensure that all required surge protection measures are in place and

activated prior to luminaire installation. Also, disconnect luminaires

before operating high-power devices such as, for example, electrical

arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Post Mounted Luminaires

AFL100 series

Post Mounted Luminaires

IP66. IK08. Class I, II. Tasee table in on page 5

602

191.

653

191.

683

733

250

ø 89

250

ø 89

300

ø 89

300

ø 89

Tool required

Torx 20, 45 5 mm Allen key

ø 9 – 14 mm 1 = 2.5 mm2

Mounting height 3 – 8 m

Installation: horizontal, light output downwards

The photometric data was measured at an incline of 2.5°.

AFL110

AFL120

AFL130

480

191.5

200

ø 89

200

ø 89

561

111

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried

out by a suitably qualied and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Caution: Risk of electric shock!

Important: To clean the glass panel, we recommend isopropanol 99% diluted 1:1 with distilled water.

Installation

The product must be installed and maintained by a suitably qualied professional in compliance

with latest building/construction and/or electrical regulations and relevant legislation.

Warning: Switch o mains electrical supply prior to installing and connecting the luminaire.

Caution: Risk of electric shock!

Notice: If the luminaire is modied by anybody other than the original manufacturer, then the warranty

will no longer be valid and shall become the full responsibility of the modifying person/organisation.

Claims based on defects attributable to improper installation and/or application, and the consequences

thereof, are excluded.

Attention: The luminaire is factory-sealed and does not need to be opened during installtion.

The installation on site must comply with local and/or national health and safety regulations.

Weight kg

for AFL110 max. 4.70

for AFL120 max. 6.95

for AFL130 max. 8.60

Windage area m2

for AFL110 max. 0.092

for AFL120 max. 0.146

for AFL130 max. 0.191

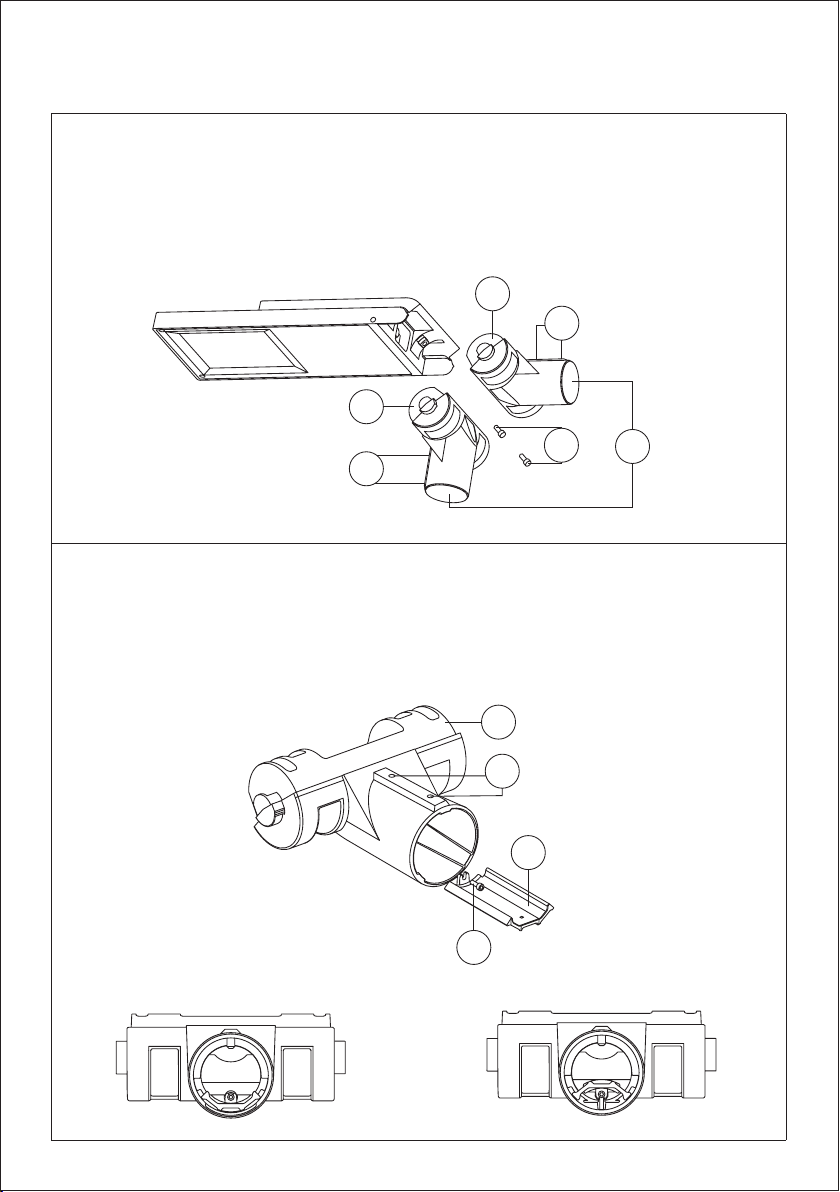

Post top and Side entry

Attachment Mcan be mounted vertically or horizontally. To change position loosen fasteners J,

rotate by 180° and refasten.

For vertical mounting, attachment can be set at 0° or 2.5° by loosening screws J. For horizontal

mounting, attachment can be set at 0°, 2.5°, 5°, 7.5°, 10°, 12.5°, and 15°.

Adaptor (to be ordered separately)

Using adaptor K, diameter can be reduced from 76 mm to 60 mm or 42 mm.

Attach adaptor Kwith the fasteners Lto M. See below for position. When using adapter K, standard

fasteners BM10x10 must be replaced with fasteners M10x20 supplied with the adapter.

Mounting Position

D = 60 mm

Mounting Position

D = 42 mm

1) Switch o mains electrical supply.

Installation Procedure

2) Pull the connecting cable through the pole. Place the luminaire on top of the pole and tighten

fasteners B, tightening to a torque of 10 Nm.

Side entry Post top

ø 40-60 x 100*

ø 76 x 100

* ø 60 x 100 adaptor Kis required

3) Trim mains cable Eto the desired length and connect the leads to their respective terminals at

the base of the pole:

a) ON/OFF (L = Phase, N = Neutral, = Earthing)

b) BASIC (L1 = Phase 1, L2 = Phase 2,N = Neutral, = Earthing)

c) DALI (L = Phase, N = Neutral, = Earthing, DA/DA = DALI control line)

4) Table of maximum temperature AFL110, AFL120 and AFL130.

AFL110 - 8 LED

Power Ta

8 W 50 °C

12 W 50 °C

16 W 50 °C

24 W 50 °C

AFL120

Power Ta

24 W 50 °C

36 W 50 °C

48 W 50 °C

72 W 45 °C

AFL130

Power Ta

48 W 50 °C

72 W 50 °C

96 W 50 °C

114 W 45 °C

AFL110 - 16 LED

Power Ta

16 W 50 °C

24 W 50 °C

32 W 50 °C

48 W 50 °C

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

[email protected]

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

[email protected]

WE-EF SWITZERLAND

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

[email protected]

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

[email protected]

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

[email protected]

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

[email protected]

TO9280W0923 © WE-EF 2023

Technical specifications are

subject to change.
