WE-EF ASP530 Bedienungsanleitung

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Post Top Luminaire

ASP530 LED

,3&ODVV,WDů&

ASP530

Post Top Luminaire

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

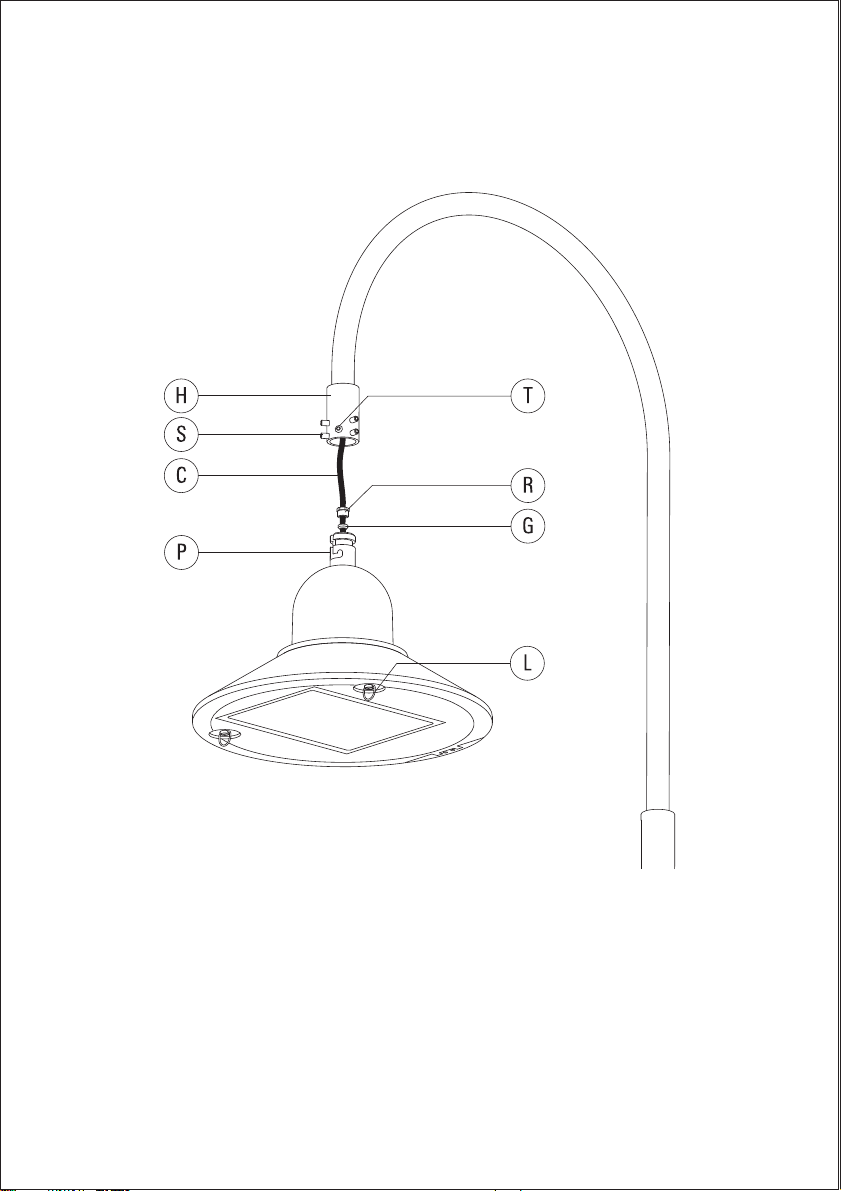

Installation Procedure

1) Switch off mains electrical supply.

2) Check that rating shown on luminaire label conforms

with mains electrical supply.

3) Loosen pressure screw Rand packing ring G. Place

pressure screw Rand packing ring Garound mains

cable C.

 3XVKDWOHDVWFPRIPDLQVFDEOH C through

spigot P. Reposition packing ring Gand tighten

pressure screw Rto secure mains cable C.

5) Loosen locking screws Sto allow insertion of

spigot P into spigot holder H. Keep support screw T

tightened.

6) Align and lock support screw Tusing spigot P

keyway.

7) Push luminaire up until spigot Pis fully recessed

into spigot holder H. Rotate luminaire counter-

clockwise and allow it to rest on locating support

screw T.

8) Tighten locking screws S, to lock luminaire in posi-

tion.

9) Open luminaire by loosening screws L. Carefully

unhook lanyard I.

/RRVHQVFUHZVJ(do not turn out). Rotate gear tray

Mcounter-clockwise and pull out gently.

11)Connect mains cable Cto terminal connector K.

12)Return gear tray Mto its original position and

tighten screws J.

13)Reconnect lanyard Iand close luminaire by tighten-

ing screws L.

www.we-ef.com

WE-EF LEUCHTEN

Germany

7HO

)D[

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

)D[

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

7HO

)D[

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

7HO

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

7HO

)D[

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel 

Fax 

info.usa@we-ef.com

72::(()

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
