WE-EF FLA441 LED Bedienungsanleitung
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Wall Luminaire Surface Mounted and
Street and Area Lighting Luminaire
FLA441 LED
FLA461 LED
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
1
Wall Luminaire Surface Mounted and
Street and Area Lighting Luminaire
FLA441
FLA461
)/$: ,3&ODVV,WDů&
)/$: ,3&ODVV,WDů&
)/$: ,3&ODVV,WDů&
)/$: ,3&ODVV,WDů&
385 295
260
145
410530
350
200
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
3
Installation
The product must be installed and maintained by a
VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and
relevant legislation.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
Attention: The housing Hcontaining the LED light
source is factory-sealed and does not need to be
opened during installation.

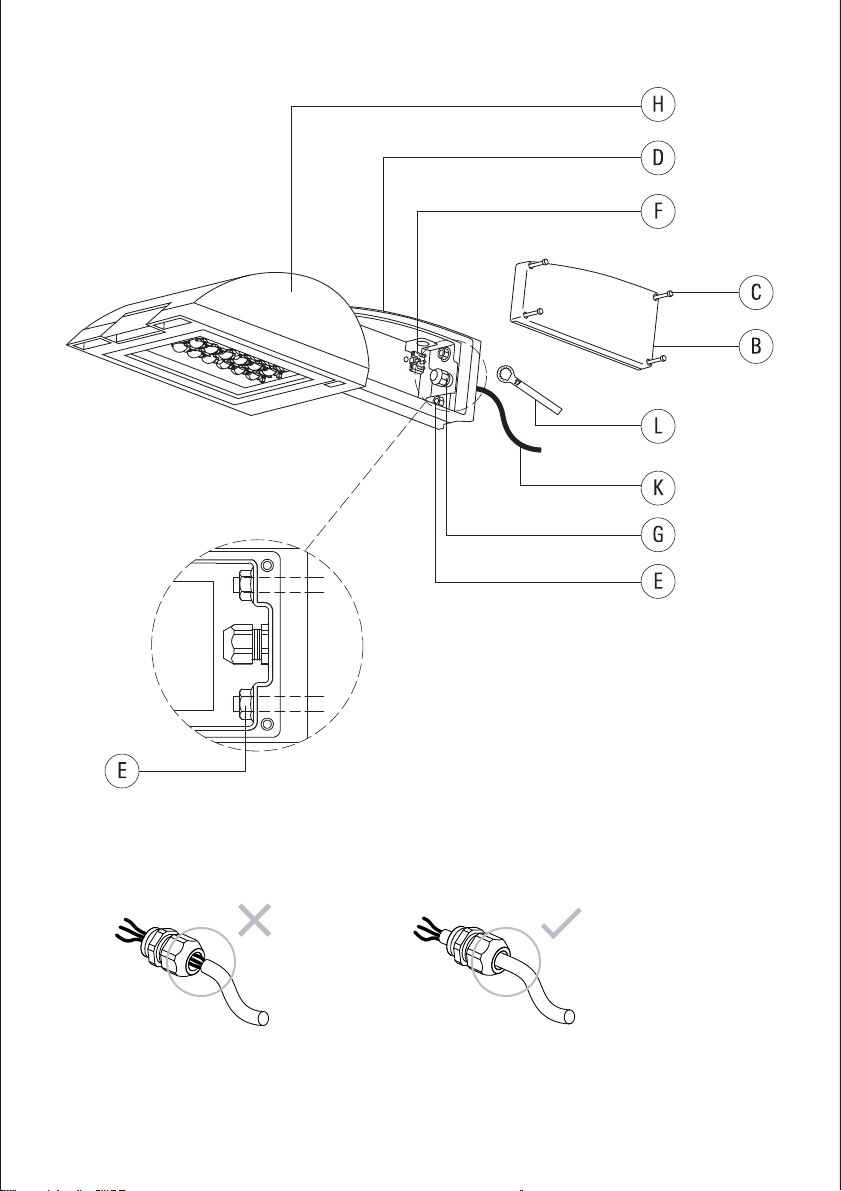

Installation Procedure
1) Switch off mains electrical supply.
2) Remove gear box cover Bby loosening screws C.
3) Check that rating shown on luminaire label conforms
with mains electrical supply.
4) Feed mains supply cable Kthrough cable gland G
(Fig. I), while attaching luminaire Dto mounting
accessory.
5) Secure luminaire by tightening sealnuts Eevenly
with tool L(17 mm ring spanner not supplied by
WE-EF).
Attention: Ensure sealnuts ESURYLGHGDUHƂWWHG
as shown with gasketed surface towards pole or
mounting bracket. Do not substitute this fastener.
6) Connect mains supply cable Kleads, and control
lines where applicable,to respective terminals in
terminal connector F:
a) ON/OFF or WE-EF Control Advanced (L = Phase,
N = Neutral, = Earthing)
b) WE-EF Control Basic (L = Phase, N = Neutral,
= Earthing, Ls = Switching Phase)
c)9'$/, orWE-EF Control Dynamic (L=Phase,
N = Neutral, = Earthing, DA/DA = DALI control
OLQH'' 9
control line).
7) Tighten cable gland G.
Reposition gear box cover Band retighten screws C.
4
Mounting Accessories
8QLYHUVDOPRXQWLQJƃDQJH D/D1
80) IRU)/$ 310-9110
80) IRU)/$ 310-9109
)DFLOLWDWHVLQVWDOODWLRQWRƃDWYHUWLFDODQGKRUL]RQWDOVXUIDFHV
Planted root – Galvanised steel.
(69 IRU)/$ 300-9100
(69 IRU)/$ 300-0824
3URYLGHVLQJURXQGVHFWLRQIRUXQLYHUVDOPRXQWLQJƃDQJHLQODQGVFDSHGDUHDV
6LQJOHFROXPQƂWWHU
(% IRU)/$ 310-9134
'RXEOHFROXPQƂWWHU
(% IRU)/$ 310-9135
6LQJOHFROXPQƂWWHU – Aluminium/wood.
(% IRU)/$ 310-9136
'RXEOHFROXPQƂWWHU– Aluminium/wood.
(% IRU)/$ 310-9137
ESV
UMF
EB1/EB2
EB1/EB2
(aluminium/wood)
5
Fig. I. Feed mains supply cable through cable gland
www.we-ef.com
72::(()
7HFKQLFDOVSHFLƂFDWLRQVDUH
subject to change.
WE-EF LEUCHTEN
Germany
7HO
)D[
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
)D[
info.france@we-ef.com
WE-EF HELVETICA
6ZLW]HUODQG
Tel +41 22 752 49 94
Fax +41 22 752 49 74
LQIRVZLW]HUODQG#ZHHIFRP
WE-EF LIGHTING
Thailand
7HO
Fax +66 2 175 2174
LQIRDVLDSDFLƂF#ZHHIFRP
WE-EF LIGHTING
Australia
7HO
)D[
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel
Fax
info.usa@we-ef.com
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

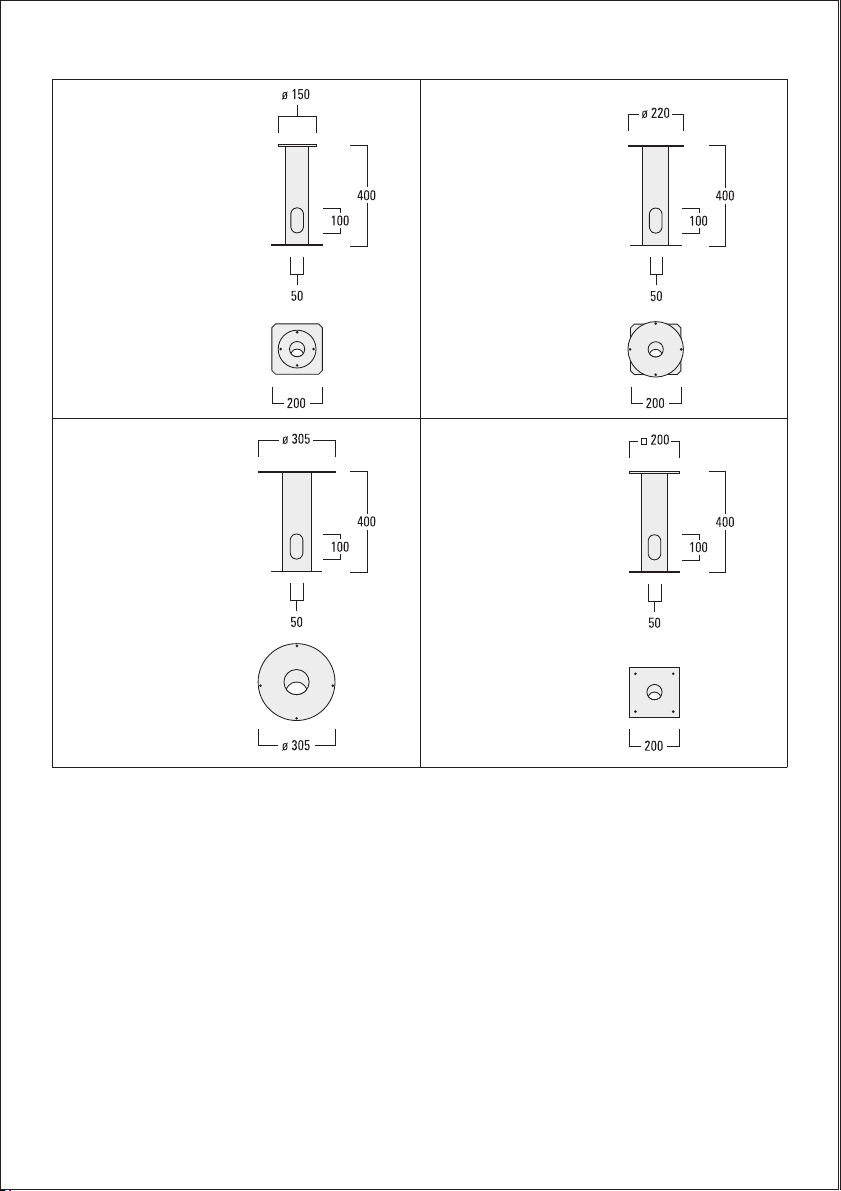

Planted Root
ESV4
ESV2
ESV6
2
Planted Root
ESV4 300-0461
ESV4 300-0586
ESV4 300-0464
ESV4 300-0459
Suitability
1. KTX234
2. KTY234
3. ZFY230
4. GRY224
5. Short post
Suitability
1. XRY334
2. XRZ334
3. RRY334
4. RRZ334
Suitability
1. CFY259
2. GRY234
3. RRY324
4. RRZ324
5. XRY324
6. XRZ324
Suitability
1. QSI254
3
Planted Root
ESV2 300-9115
ESV6 300-0824
ESV6 300-0457
Suitability
1. PSY414/424
Suitability
1. AML-C
2. FLA461
Suitability
1. LTM440
2. LTM444
3. AMW-C
4. AMF-C
5. AMF-S
6. AML-C
240
200
600
