WE-EF ESC130-FS Bedienungsanleitung

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Inground Luminaire

ESC130-FS LED

ESC140-FS LED

Inground Luminaire

ESC140-FSESC130-FS

IP67, Class I, ta = 40°C

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Minimum Distance

Ensure the minimum distance for objects to be

illuminated is correct (see illustration ------minside

luminaire).

Installation Methods

Attention: The luminaire is factory-sealed and does

not need to be opened during installation.

For proper installation, use the supplied installation

blockout.

Ensure that proper drainage is provided for the shown

installation methods:

In landscape areas, sand with gravel base (Fig. I).

In paved areas, concrete with gravel base (Fig. II).

Fig. I Fig. II

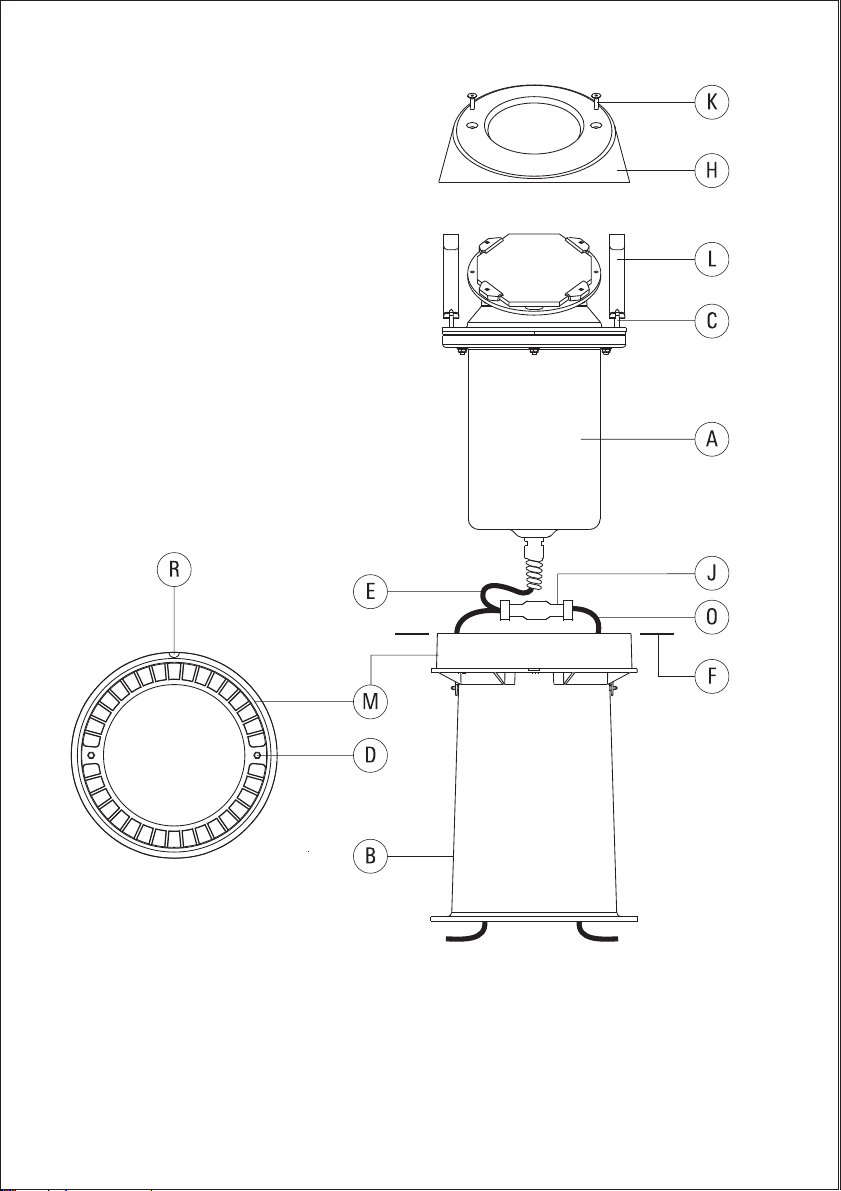

Phase One

Blockout Installation Procedure

(during earth or masonry work)

1) Ensure a suitable recess is provided to accommo-

date installation blockout/mounting ring assembly

B/M.

2) Set installation blockout/mounting ring assembly

B/Min position and ensure that:

a) Arrow Ron mounting ring Mis pointed towards

the object to be illuminated (wall, tree, column).

b) Mounting ring MLVƃXVKZLWKVXUIDFHF. If the

ƃRRUZLOOEHWLOHGRUSDYHGDIWHUZDUGVOHDYHDQ

appropriate gap.

c) Mains supply cable(s) OLVRIVXIƂFLHQWOHQJWKWR

connect sealable junction box Jwith cable Efrom

luminaire.

3) During ongoing earth and/or masonry works, do

QRWUHPRYHVWLFNHUVRQƂ[LQJWKUHDGKROHVD.

Ensure that installation blockout/mounting ring

assembly B/Mis not damaged and has maintained

its original shape. If necessary use a cover plate.

Phase Two

Luminaire Installation and Electrical Connection

4) Switch off mains electrical supply.

5) Check that rating shown on luminaire label conforms

with mains electrical supply.

6) Terminate cable Efrom luminaire housing Aand

mains supply cable O(for individual wiring) or

branch cable (for through wiring) in sealable junc-

tion box J– to connect cable(s). Follow the seal-

able junction box termination instruction included

in the packaging.

7) 3HHORIIVWLFNHUVRQƂ[LQJWKUHDGKROHVD. Set cables

and sealable junction box Jinside installation

blockout/mounting ring assembly B/M.

8) Remove hood assembly Hby loosening screws K.

9) Loosen countersunk screws C(do not turn out).

Insert mounting lever Lbetween head of counter-

sunk screws Cand cover lens. Place luminaire

housing Ainto installation blockout/mounting ring

assembly B/M(Fig. III) while aligning holes Don

mounting ring M.

Warning: When luminaire is placed inside installa-

tion blockout B, ensure there is no stress on seal-

able junction box Jor electric cables (Fig. IV).

10)Tighten countersunk screws C 'hand-tight'.

11)Reposition hood assembly Hand tighten screws K.

Fig. III

Fig. IV

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9189W0918 © WE-EF 2018

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
