X-Vision XPT600 Bedienungsanleitung
Model:
XPT600
B/W 700 TVL Colour 580 TVL,
True Day/Night Camera
Before you begin
Please unpack the box carefully and identify that all the parts are present.
Makesure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
The camera is suitable for indoor or outdoor use (when used with an optional external
housing). Please bear in mind the following points when choosing a mounting position.
The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
Model: XPT600
B/W 700 TVL Colour 580 TVL,
True Day/Night Camera
•
•
•
Thank you for purchasing this Xvision camera. Before operating this
product, please read this instruction manual carefully.
When in use please do not touch the camera body as it can get hot.
The XPT600 camera is designed for high risk applications. It offers very
high resolution images of 580 TVL in Colour mode and 700 TVL in B/W
mode,with a low lux sensitivity of 0.0003 lux. The camera accepts any
industry standard CS mount manual, fixed or auto iris lens (lens not
supplied). It features Dynamic Night View, Mechanical IR Filter, High
Light Suppression for Number Plate Recognition and Smart DNR for
disk saving. Designed for internal or external use (when used with an
optional external housing).
1. Safety Precautions
2. Product Description
2
700 TVL resolution images in B/W mode and 580 TVL in Colour.
Sony 1/3" CCD Image Sensor, Samsung DSP Chip & Xvision X4H DSP
Software
Accepts any Industry Standard CS mount manual, fixed or auto iris
lens (lens not supplied)
Dynamic Night View technology provides clear images without the
need for IR LEDs down to 0.0003 lux, this is achieved by using a
Digital Slow Shutter, please note due to the way in which this
technology works, whilst it is in operation the frames per second will
reduce. The darker the scene the lower the frames per second,
resulting in a non real time image.
Mechanical IR Filter for True Day Night
Number Plate Recognition using advanced Highlight Suppression
Technology
Smart DNR (Digital Noise Reduction) reduces the noise on the image
when viewing in low lux environments (like at night), this reduces
the size of the image when being recorded by a DVR, resulting in a
saving of disk space.
3. Features
4. Contents
3
XPT600 Camera
5. Connections
4
5.1 Using a CS mount lens
1. Remove the dust cap from the end of the camera and insert the CS
mount lens carefully to avoid damaging the screw thread.
2. If using an Auto Iris lens insert the plug on the
lens trailing lead into the conector on the side of
the camera.
3. When you have finished installing the lens, then
set up the camera to enable the lens functions. See
‘Lens Option’ in ‘SETUP Menu functions’ on Page 7.
5.2 Wiring the camera
To wire this camera we recommmend that you use a DC Fly Lead and a
12V DC Power Supply (neither supplied).
1. Connect the positive wire to the left POWER terminal on the terminal
block and the negative wire to the GROUND terminal.
2. Connect the DC jack on the fly lead to the DC plug on the power
supply and power up the camera.
Auto Iris Lens
connector
(DC Drive)
5
Rear of Camera- Connections and Controls
Toview the camera’s On Screen Display (OSD) menus connect the
camera to a monitor, via the BNC connector. To change any settings
within the OSD menu and sub menus use the push button control on
the rear of the camera.
To enter the OSD menu, press the button. See diagram below for
controls to navigate the menu and change the settings.
Button Control
Move- UP,DOWN
Move- LEFT, RIGHT
PRESS
Action
Select a menu item
Change setting
Access a sub menu
6. CameraOSD Control
Press
the button
to access
the OSD
6
7. OSD Menu Structure
LENS Option
●DC ●MANUAL
EXPOSURE
●SHUTTER ●AGC●SENS-UP●RETURN
WHITEBALANCE
●ATW●INDOOR●OUTDOOR●AWC-SET ●MANUAL
BACKLIGHT
●BLC●HLC●OFF
SDNR
●ON●OFF
DAY/NIGHT
●COLOUR●B/W●AUTO
IMAGEADJ.
●FREEZE●V-REV●H-REV
●D-ZOOM●SHARPNESS ●RETURN
SPECIAL
●CAMERAID●SYNC●MOTIONDET
●PRIVACY●DIS●LANGUAGE
●RESET ●RETURN
EXIT
SET UP MENU
7
8. SETUP Menu Functions
1LENS
<Option: DC / MANUAL>
Selects lens type.
2EXPOSURE
<Option: SHUTTER / AGC / SENS-UP / RETURN>
Adjusts exposure settings.
SHUTTER :
FLK - Flicker-less mode (FLK) reduces on-screen flickering.
ESC - Electronic Shutter Control (AUTO) adjusts brightness
level on screen.
Manual - Manual mode allows you to adjust the shutter speed
from 1/60 - 1/120,000 of a second (NTSC), or 1/50 -
1/100,000 (PAL).
AGC : Adjusts value of AGC gain. Increase the GAIN level to
brighten the picture.(noise / distortion may develop)
SENS-UP (DYNAMIC NIGHT VIEW): The Dynamic Night View function
provides clear images in very low light environments.The greater the
setting the brighter the picture will be, consequently the lower the
frame rate of the images produced will be. The picture can be
brightened from 2x to 128x in total. Please note the Dynamic Night
View function is not available when the FLK mode is On.
3WHITE BALANCE
<Option: ATC / INDOOR / OUTDOOR / AWC->SET / MANUAL>
Controls the screen colour.
ATC : Select Auto Tracking White Balance (ATW) when the colour
temp.is 1800°K - 10500°K.
8
8. SETUP Menu Functions (continued)
INDOOR : Select this when the colour temp. is 4500°K - 8500°K.
OUTDOOR : Select this when the colour temp. is 1800°K - 10500°K
(sodium light inclusion).
AWC -> SET : Point the camera towards a sheet of white paper and
press the SET button.
Manual : Allows you to increase or decrease the red or blue values
on screen.
4BACK LIGHT & NUMBER PLATE RECOGNITION SETTING
<Option: HLC / BLC / OFF>
BLC : Provides light level control to overcome severe backlighting
conditions.
HLC : High Light Suppress function for Number Plate Recognition.
This function removes highlights from the image and enables you to
view the surrounding area more clearly. This is especially useful
when viewing a vehicles number plates when the headlights are on.
5SDNR (Smart DNR)
<Option: ON / OFF>
Reduces noise/distortion on the screen. Increasing the
DNR level reduces noise but may introduce video interference.
DNR is deactivated if AGC is turned off.
6DAY/NIGHT
<Option: COLOUR / B/W / AUTO>
Displays pictures in colour or black and white.
COLOUR: The picture is always displayed in colour.
B/W: The picture is always displayed in black and white.
AUTO : The mode switches between COLOUR in a normal light
environment, and B/W mode in a low light environment.
9
8. SETUP Menu Functions (continued)
7IMAGE ADJ.
<Option: FREEZE / V-REV / H-REV / D-ZOOM / SHARPNESS / RETURN>
FREEZE: You can view still or moving pictures.
V-REV: You can flip the picture vertically on the screen.
H-REV: You can flip the picture horizontally on the screen.
D-ZOOM: You can use a digital zoom of x1-x10.
SHARPNESS: As you increase this value, the picture outline becomes
stronger and clearer. Adjust this value appropriately depending on
the sharpness of the picture.
RETURN : Save the settings and return to the SETUP menu.
In the SETUP Menu, press the menu control UP or DOWN and then
select SPECIAL.
Press the SETUP (MENU) control to access the SPECIAL MENU.
1CAMERA ID
<Option: OFF / ON>
9. SPECIAL Menu Functions
Display a name and/or
number on the monitor.
Toadd a camera title:
10

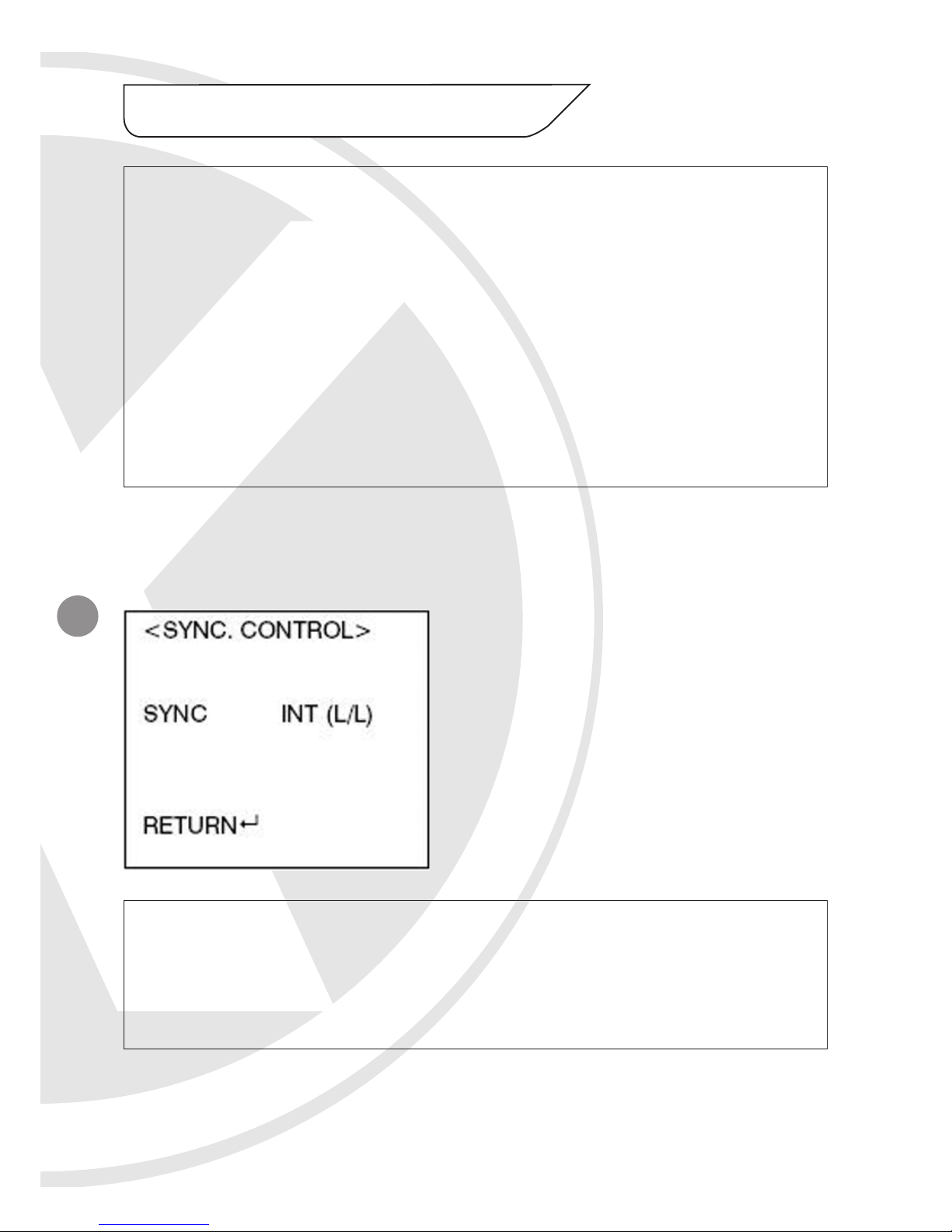

2SYNC
<Option: INT / L/L>
INTERNAL = When line lock is not required.
LINELOCK = Adjust the vertical phase (VPH) from 000 - 359 (factory
default is 0). Linelock is only available with 24V AC power.
RETURN = Press MENU to return to the SETUP menu.
9. SPECIAL Menu Functions (continued)
INT = Synchronize the vertical interval
sync pulse of your camera with other
equipment to reduce the effect of
picture roll on the monitor.
L/L (Line Lock) = Adjust the phase
from 0° - 359°.
UP, DOWN, LEFT, RIGHT menu control = Select a character, then
press (SETUP) MENU to accept it. The character is saved and the title
cursor at the bottom of the screen moves to the next position.
<- -> = Go back or forward in the title name to make changes.
CLR = Delete the entire name and start again.
POS = Position the camera title on the screen.
Press (SETUP) MENU to confirm the position.
END = Accept the new name.
