Yakima LightMate Bedienungsanleitung

9802701-Rev1.0 1/4

• Please read instructions carefully before installation.

• Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.

• Place these instructions in the vehicle’s glove box after installation is complete.

FIRST TIME INSTALLATION

KIT CONTENTS

ITEM COMPONENT QTY

1. LightMate L&R

with Plug x1

2. Steel Bracket x1

3. M6 8 mm Screw x5

4. M6 8 mm Washer x5

5. M6 8 mm Nuts x5

6. Velcro Straps x2

7. M6 14 mm Screw x4

8. M6 14 mm Washer x4

9. M6 14 mm

Dome Nut x4

10. Plastic Stopper x2

11. Cable Tie x4

®LightMate™

079YA K

LIGHTBOARD NUMBER PLATE

10 11

TOOLS REQUIRED:

• 4 mm Ball End Allen Key

9802701-Rev1.0 2/4

INSTALLATION

Assemble the

left and right

LightMate

sides together

using the

Steel Bracket,

the 5x M6 8

mm Screws,

Washers and

Nuts as shown.

Tighten all

Screws to 2

Nm using a 4

mm Ball End

Allen Key.

SECURE CABLE

Hook cable to clips

on rear of LightMate

as pictured and using

a sharp tool, break

the perforation to

allow the cable to

come through the

bottom of the light

board as shown.

THREAD VELCRO

STRAPS

Thread the Velcro

Straps through

the buckle loops on

back of LightMate

as shown.

ASSEMBLE LIGHT BOARD SIDES

9802701-Rev1.0 3/4

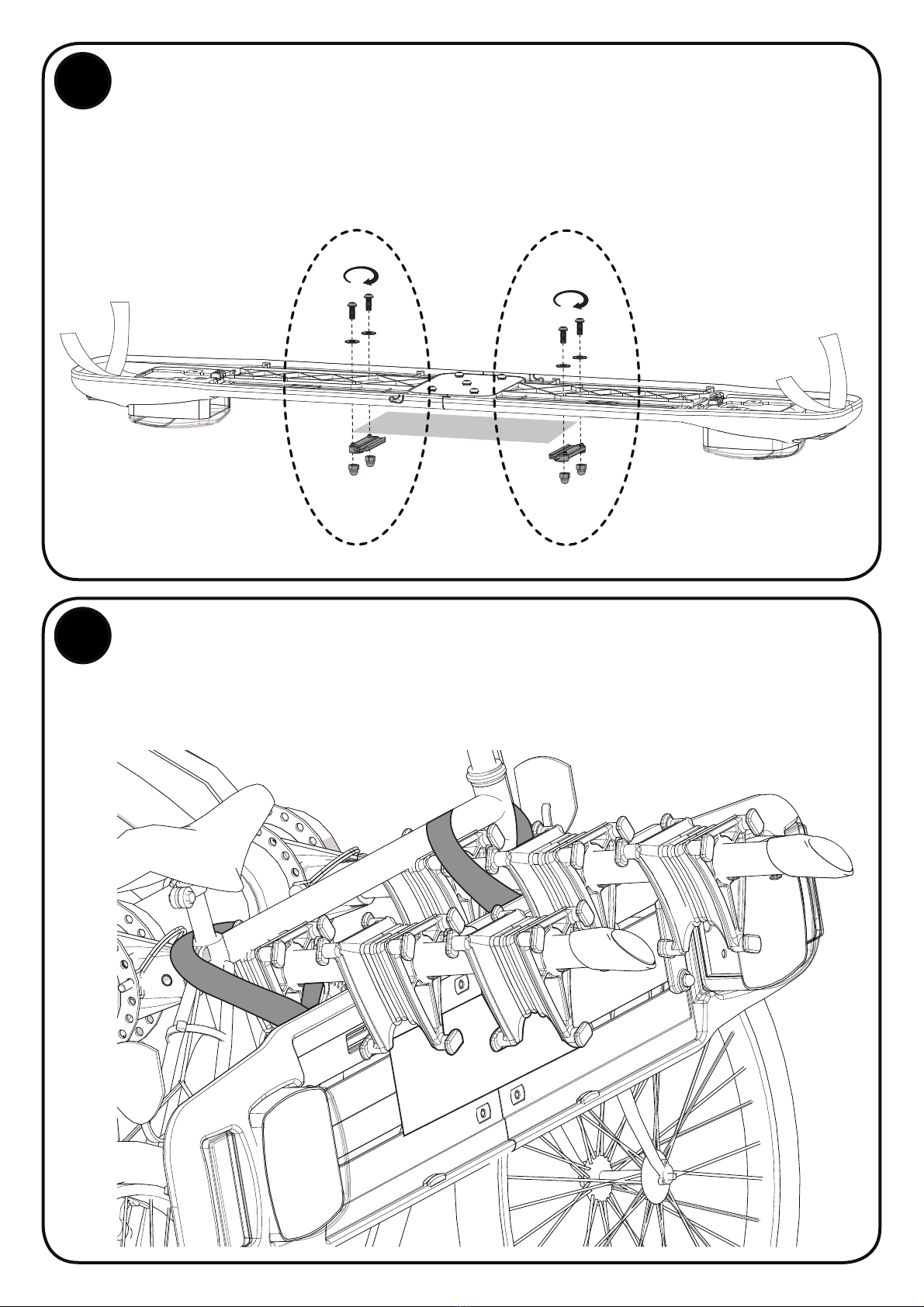

SECURE NUMBER PLATE

Checking the orientation of your number plate is correct, secure your plate using

the 2x Plastic Stoppers, the 4x M6 14 mm Screws, Washers and Dome Nuts as

shown.

Tighten all Screws to 2 Nm using a 4 mm Ball End Allen Key.

ATTACH LIGHTMATE

Secure LightMate to your bike carrier or bike frames using the Velcro Straps

as pictured.

Ensure the lights and number plate are not obstructed from view.

9802701-Rev1.0 4/4

www.yakima.com.au

www.yakima.co.nz

YAKIMA PRODUCTS, INC.

4101 Kruse Way

Lake Oswego, OR

97035-2541

USA

888 925 4621

YAKIMA AUSTRALIA PTY. LTD

17 Hinkler Court

Brendale, QLD 4500

Australia

1800 143 548

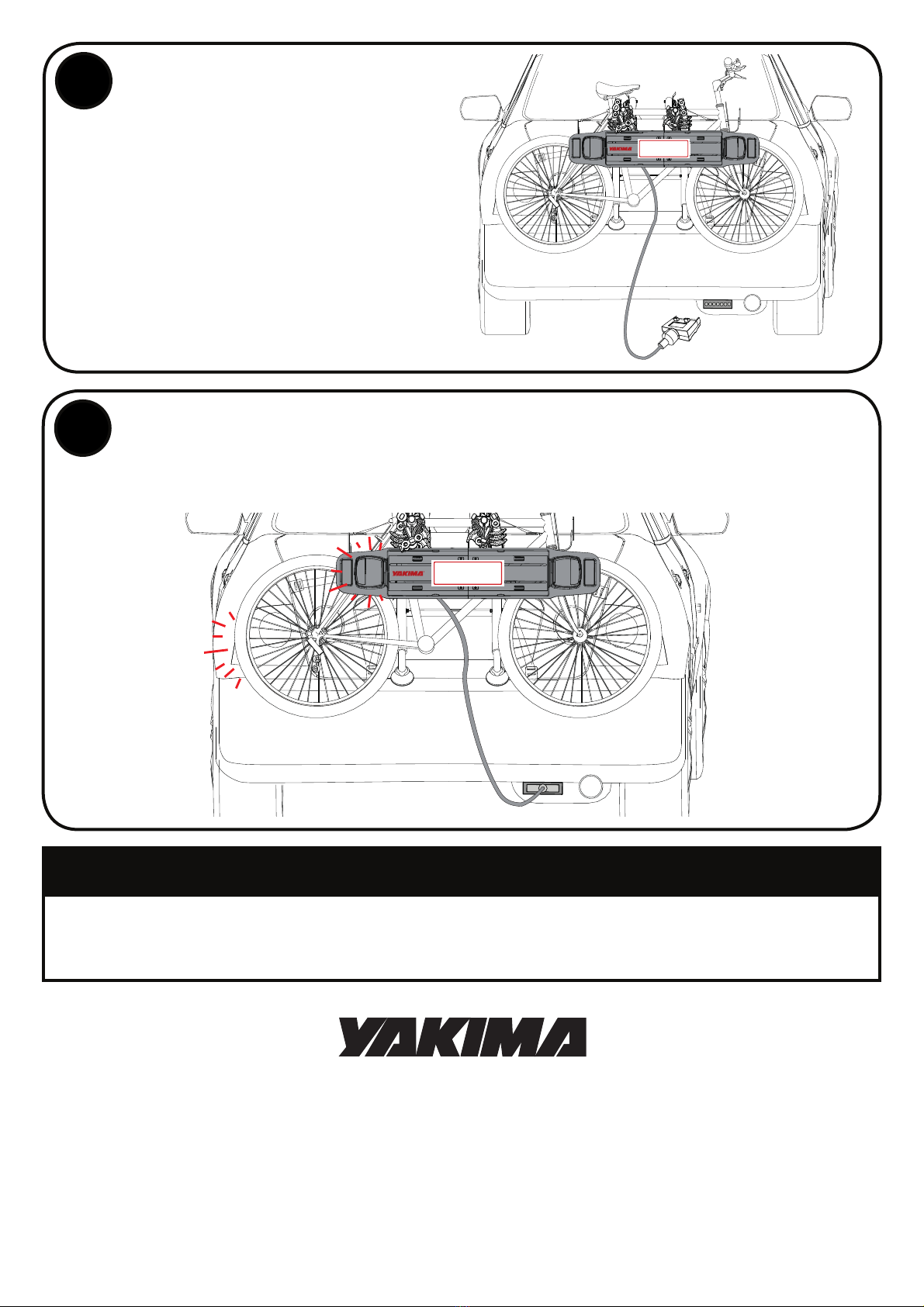

CONNECT LIGHT CABLE

Connect light cable as shown.

079YA K

LIGHTBOARD NUMBER PLATE

• Remove LightMate prior to entering a car wash.

• Replace Velcro straps if they become worn or damaged.

• Test lights are working correctly before the start of any journey.

MAINTENANCE AND SAFETY

TEST LIGHT FUNCTION

Test the vehicle’s tail light, brake, and indicator functions to ensure the equivalent

lights on LightMate illuminate.

079YA K

LIGHTBOARD NUMBER PLATE
