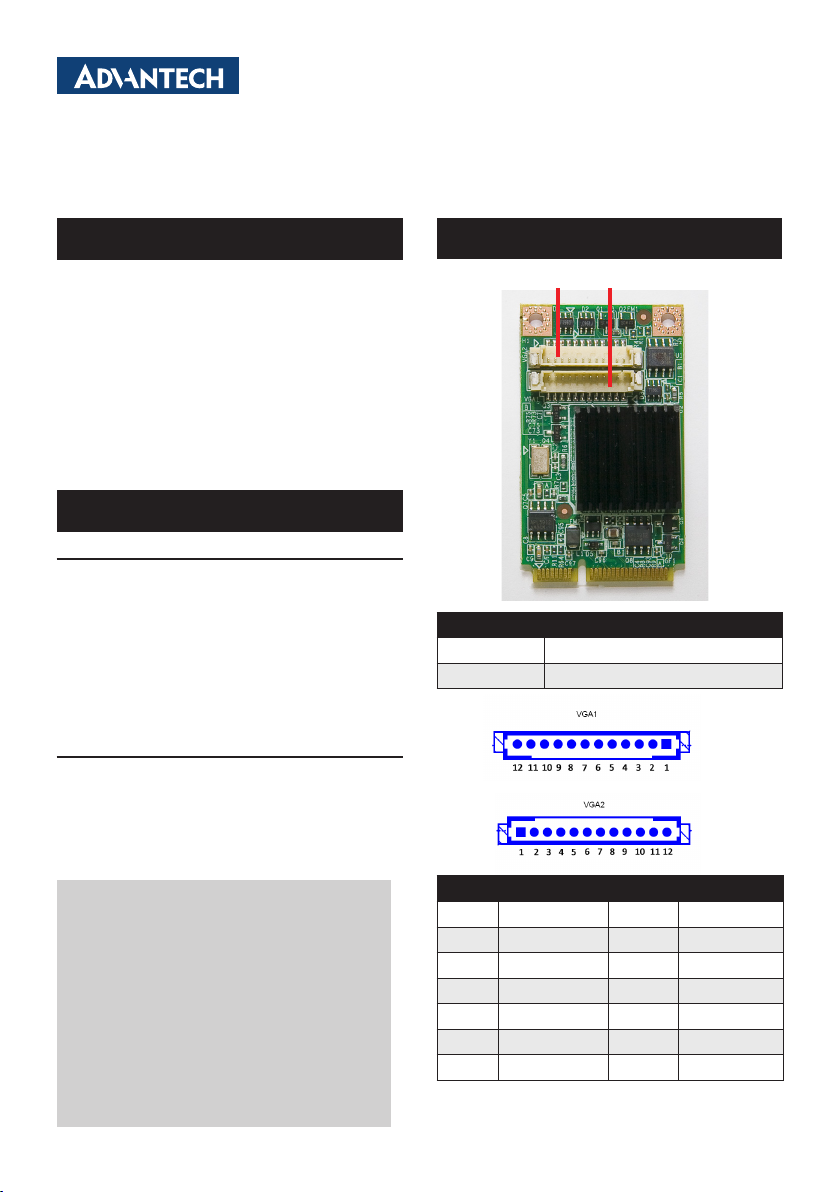

PCA-5650 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 PCA-5650 Dual VGA Output Mini PCI Express Graphic

Card

• 1 PCA-5650 Start up Manual

• 1 CD with driver

• 1 Dual VGA cable kit P/N:1700018579

• Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard Functions

•GPU: Silicon Motion SM750

•Bus: PCI Express x1 500 MB

•Memory: 32 bit, 166 MHz, 16 MB DDR SDRAM

•CRT1/CRT2 output: supports display resolution up to

1920 x 1080 and supports vertical refresh rate up to 75

•Dual display mode: CRT+CRT, supports single, clone

and dual mode

•O.S. support: Windows 7, Windows XP, Windows Server

2003, Windows Server 2008

Mechanical

•Dimensions: 64.3 mm x 67.3 mm

PCA-5650 Dual VGA Output Mini PCI Express

Graphic Card for Multimedia Applications

Startup Manual

Connectors

Label Function

VGA1/VGA2 12 pin VGA connector by pin header

VGA1/VGA2

Pin Signal Pin Signal

1 GND 2 CRT_R

3 CRT_G 4 CRT_B

5 GND 6 N/A

7 CRT_SDA 8 CRT_SCL

9 GND 10 CRTHS

11 CRTVS 12 GND

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit

our support website at:

http://www.advantech.com.tw/support

This manual is for the PCA-5650 series.

Part No. 2002565000

Printed in China

1st Edition

April 2011

Specications

Connectors

VGA2 VGA1

2 PCA-5650 Startup Manual

The CD disc contains a driver installer program that will lead

you through the installation of various device drivers needed

to take full advantage of your CPU card.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions.

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

1. Please connect the VGA1 and VGA2 connector on Mini

PCI Express VGA card with VGA cable.

2. Please connect Mini PCI Express card to connector of

host CPU board as shown below.

3. Push Mini PCI Express VGA card into the connector lock

as shown below.

Board Dimensions

Installation Guide

Software Installation

Safety Information
