Advantech MIC-3950 Bedienungsanleitung

Modular

Industrial

Computer

MIC-3950

6U CompactPCITM Dual PMC Carrier

Board

Preface and Table of Contents

PartNo.2002395000 1st Edition

Printed in Taiwan October2001

This document is copyrighted, 2001. All rights are reserved. The

original manufacturer reserves the right to make improvements to the

products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or

transmitted in any form or by any means without the prior written

permission of the original manufacturer. Information provided in this

manual is intended to be accurate and reliable. However, the original

manufacturer assumes no responsibility for its use, nor for any

infringements upon the rights of third parties which may result from its

use.

Acknowledgments

IBM, OS/2 are trademarks of International Business Machines Corpo-

ration.

Intel, Pentium, are trademarks of Intel Corporation.

Windows is a registered trademark of Microsoft Corporation.

Symbios is a trademark of Symbios Logic Corporation.

Netware is a trademark of Novell, Inc.

PICMG™,CompactPCI™ andthe PICMG™,and CompactPCI™logos

are trademarks of the PCI Industrial Computers Manufacturers Group.

All other product names or trademarks are properties of their

respective owners.

CE Notification

The MIC-3950, developed by Advantech CO., LTD., has passed the CE

test for environment specification when shielded cable are used for

external wiring. We recommend the use of shielded cables.

MIC-3950 User's Manual

Product warranty

Advantech warrants to you, the original purchaser, that each of its

products will be free from defects in materials and workmanship for

one year from the date of purchase.

This warranty does not apply to any products which have been

repaired or altered by persons other than repair personnel authorized

by Advantech, or which have been subject to misuse, abuse, accident

or improper installation. Advantech assumes no liability under the

terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous

testing, most of our customers never need to use our repair service. If

an Advantech product is defective, it will be repaired or replaced at no

charge during the warranty period. For out-of-warranty repairs, you

will be billed according to the cost of replacement materials, service

time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For

example, CPU speed, Advantech products used, other hardware

and software used, etc.) Note anything abnormal and list any on-

screen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your

manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return

merchandize authorization) number from your dealer. This allows us

to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and

Replacement Order Card and a photocopy proof of purchase date

(such as your sales receipt) in a shippable container. A product

returned without proof of the purchase date is not eligible for

warranty service.

5. Write the RMA number visibly on the outside of the package and

ship it prepaid to your dealer.

Preface and Table of Contents

Packing List

Before installing your board, ensure that the following materials have

been received:

• OneMIC-3950 CompactPCIPMC Carrierboard

• Oneutility CD-ROM disc and user'smanual(PDF file)

• One warranty certificate

• One Startup Manual

If any of these items are missing or damaged, contact your distributor

or sales representative immediately.

Technical Support and Sales Assistance

If you have any technical questions about the MIC-3950 or any other

Advantech products, please visit our support website at:

•http://www.advantech.com.tw/support

For more information about Advantech's products and sales informa-

tion, please visit:

•http://www.advantech.com

MIC-3950 User's Manual

Contents

1. General Information............................................................ 1

1.1 Introduction ................................................................................... 2

1.2 Features ....................................................................................... 2

1.3 Specifications .............................................................................. 2

1.4 Indicator and Connector ocations ............................................. 3

1.5 Safety Precautions ...................................................................... 5

2. Hardware Installation .......................................................... 7

2.1 Initial Inspection ............................................................................ 8

2.2 Card Installation .......................................................................... 9

3. in Assignments ............................................................... 13

A.1 MIC-3950 J1 connector pin assignments ................................. 14

A.2 MIC-3950 J3 connector pin assignments ................................. 15

A.3 MIC-3950 J4 Connector Pin Assignment ................................ 16

A.4 MIC-3950 J11/J21 PMC1/PMC2 - PCI Connectors

Pin Assignment ......................................................................... 17

A.5 MIC-3950 J12 PMC1-PCI Connector Pin Assignment ........... 18

A.6 MIC-3950 J14/J24 PMC1/PMC2 Rear-Panel I/O

Connectors Pin Assignment ..................................................... 19

Preface and Table of Contents

Figures

Figure 1-1: MIC-3950 indicator and connector locations ............................. 4

Figure 2-1: Intallation for MIC-3950 .............................................................. 10

Figure 2-2: MC module installation ............................................................ 11

MIC-3950 User's Manual

Tables

Table A-1: J1 connector pin assignments ................................................... 14

Table A-2: J3 connector pin assignments ................................................... 15

Table A-3: J4 Connector in Assignment .................................................... 16

Table A-4: J11/J21 MC1/ MC2 - CI Connectors in Assignment .......... 17

Table A-5: J12 MC1- CI Connector in Assignment ................................ 18

Table A-6: J14/J24 MC1/ MC2 Rear- anel I/O Connectors in

Assignment .................................................................................. 19

General Information

CHAPTER

2MIC-3950 User's Manual

1.1 Introduction

The MIC-3950 is a 6U CompactPCI carrier board which comp iant with

IEEE1386.1 PMC modu es.

It supports two sing e-width PMC mezzanie modu es and 32-bit PCI op-

eration.

Once connected, the modu es are accessed via front pane connections.

1.2 Features

•6U CompactPCI form factor

•32-bit/33MHz CompactPCI interface

•Support dua PMC modu es

•On-board PCI-to-PCI bridge

1.3 Specifications

Specifications

•Bus Interface : 32-bit/33 MHz Comp iance CompactPCI Specification PICMG

2.0 R3.0

CompactPCI PMC I/O Mapping Specification PICMG 2.3 R1.0

IEEE P1386.1 PMC Specification, R2.3

•PCI Bridge : TITM 2250 PCI-to-PCI Interface Bridge Chip

•Operating Temp: 0 ~ 60°C (32 ~ 140°F)

•Storage Temp: -20 ~ 80°C (-4 ~ 176°F)

•Humidity: 5 ~ 95% (non-condensing)

•Power Consump: 1 w @ 33 Mhz

•Board Size: 233.35 x 160 mm (6U size), 1-s ot (4 TE) wide

Chapter 1 General Informat on 3

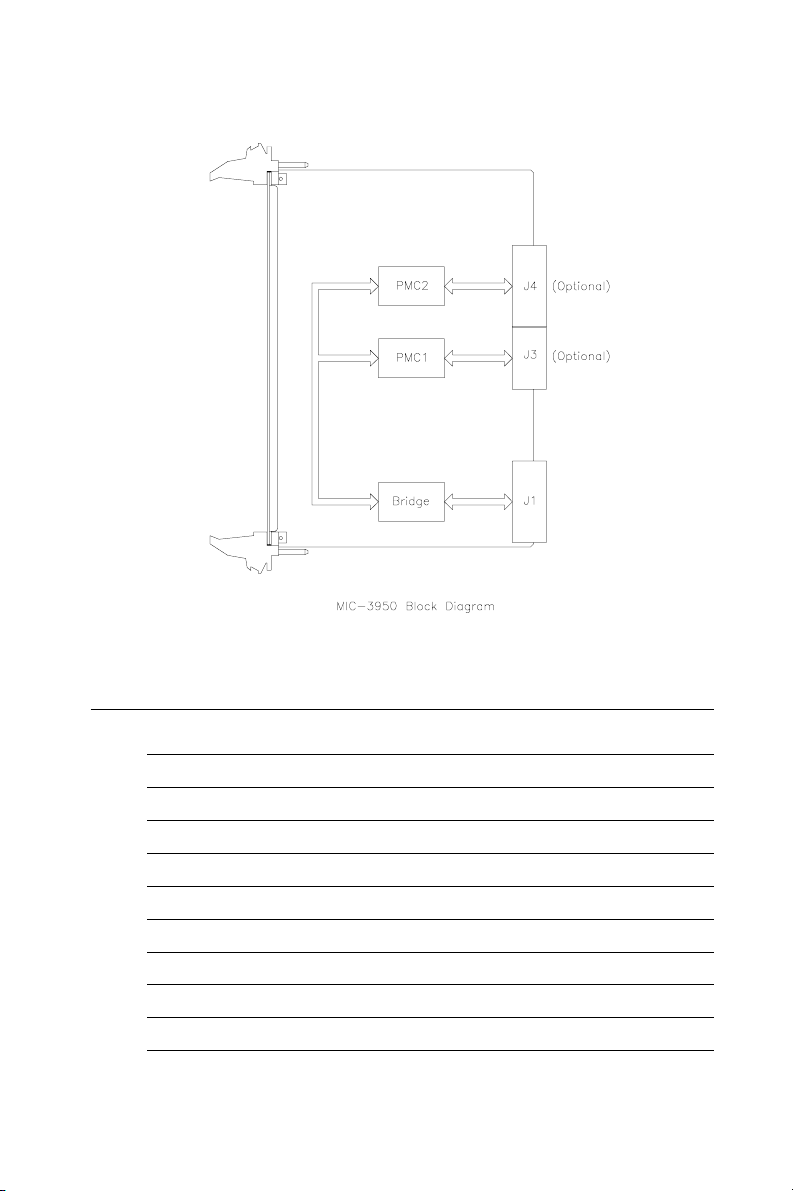

1.4 Indicator and Connector Locations

Table 1-1: MIC-3950 connector and indicator descriptions

J1 Primary CompactPCI™ bu

J3, J4 Rear I/O tran ition

J11, J12 PMC-1 32-bit PCI bu

J21, J22 PMC-2 32-bit PCI BUS

J14, J24 PMC module I/O

JP2 Internal/External Arbiter

JP3,JP4 PCI Bridge mode

JP5PVIO voltage selector

JP6SVIO voltage selector
