Airlink101 AWLC6070 Bedienungsanleitung

Rev.1.2

Package Content:

•Wireless Cardbus Adapter

•Driver&UtilityCD

•Quick Installation Guide

Section 1

Install Utility Software

Quick Installation Guide

This Quick Installation Guide only provides the basic instructions. For more

advancedfeatures, pleaserefertothe User’s Manual ontheprovided CD.

Step 1 Insert the Cardbusadapterintoanavailable Cardbus slot and turn on your

computer.

Step 2After turning on the computer, Windows will launch the Found New

Hardware Wizard.TheFound New Hardware Wizard appears differently

depending on your operating system. Click Cancel to quit the wizard and insert

theInstallationCD into your CD drive.

Note: IftheAutorunscreen doesn’t appear automatically go to Start, Run,and

type D:\Utility\Setup.exe (whereD istheletterofyourCDdrive) and click OK.

Step 3 TheAutorun screen will pop up. Select Install Driver and Utilityfrom the

menu.

Model#AWLC6070

150N Wireless Cardbus Adapter

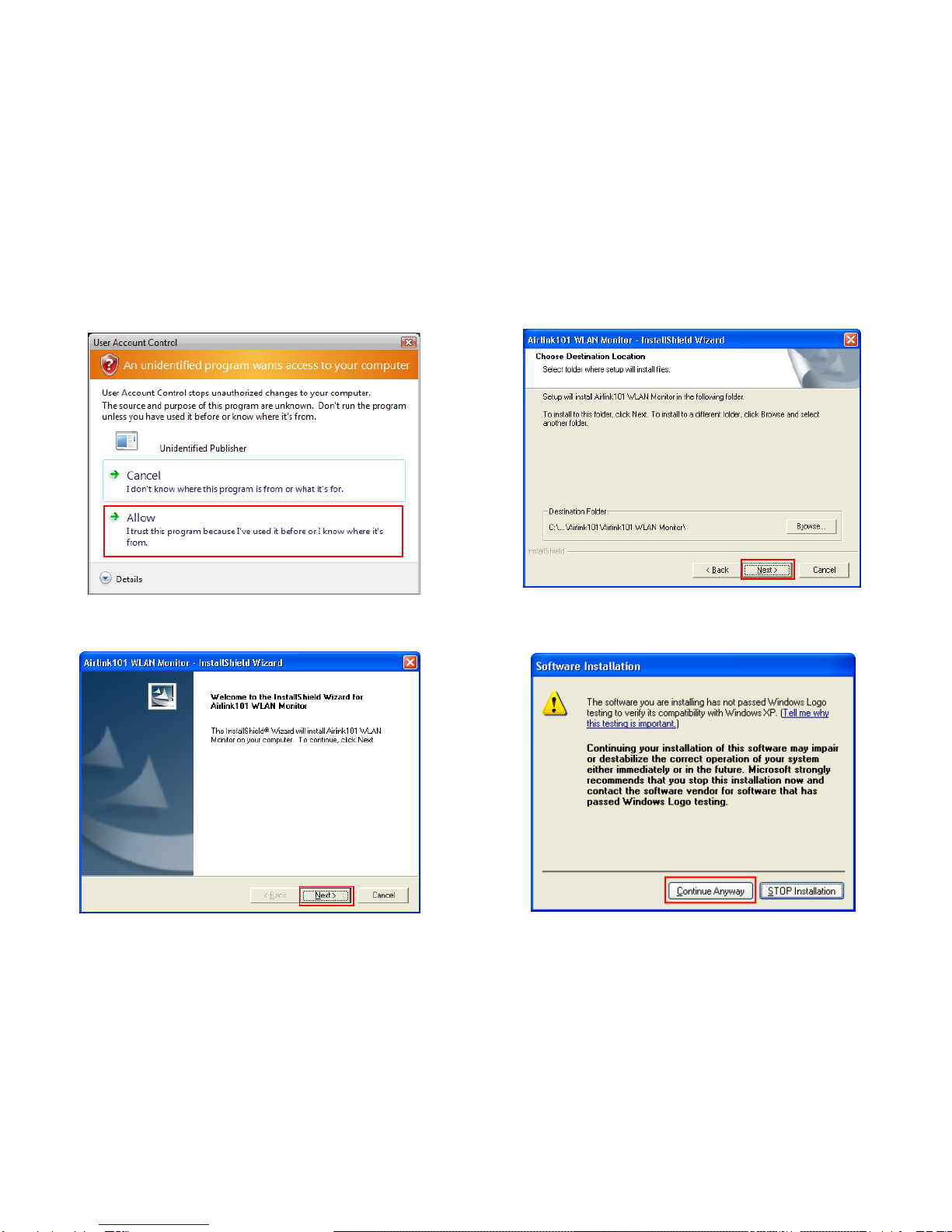

Windows Vista users: At this point, you may get a warning message like the

one below. Make sure that you click Allow to continue with the installation. Step 5 Click Next to accept the default destination folder.

Step 4 Click Next at the welcome screen. Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows

2000, click Yes at the Digital Signature Not Found prompt).

Step 7 Click Yes, I want to restart my computer now and then Finish to

restartyour computer. Step 9 Select Install the software automatically and click Next.

Step 8 After the computer is restarted, Windows will ask to connect to Windows

Update, select No, not this time and click Next. If this screen does not appear,

you can skip to section 2.

For Windows Vista, click the Install this driver software anyway button when

thesecuritywarningappears.

Step 11 Click Finish.

For Windows Vista, click the Install this driver software anyway button when

thesecuritywarningappears.

Step 10 Click Continue Anyway at the Windows Logo Screen. (For Windows

2000, click Yes at the Digital Signature Not Found prompt).

Section 2

Configuring the Wireless Adapter

Note to Windows XP Users:

You must disable the Wireless Zero Configuration Utility. Please follow the steps

below to disable XP’s wireless utility. Windows Vista users can skip the following

instructions and go to Step 1

Double-click on the Wireless Network Connection Icon in the system tray and

then click on Properties or Advanced.

Whenthe new wireless network connection properties window appears, go to the

Wireless Networks tab, uncheck the Use Windows to configure my wireless

network settings check box and click OK.

Step 1 To open the utility, double click on the Wireless Monitor icon in the

system tray at the bottom right-hand corner of your screen.

Step 2 Go to the AP List tab, select the SSID (Network Name) of the wireless

network you wish to connect to, and click Connect.

If the network you are attempting to connect to is configured for encryption, you

will see an orange lock icon next to the network.

When you click on it and click connect, a box will pop up requesting the wireless

encryption key for the router. Enter the encryption key into the box and click OK.

Step 3 You should now be connected. You should see “Connected” in the top,

right hand corner, and there will be a blue circle around the antenna icon next to

thenetworkname.

Troubleshooting: Ifyou are experiencing problems with the connection (unable

to connect, low signal strength, slow connection speed, not working, unstable

wireless connection) you will want to tune your router’s signal by changing

channels on the router or adjusting the angle its antenna(s).

You do not need to change the channel on the card, it willautomaticallypickupthe

new channel after you reboot. The only channel that you need to change is the

router’schannel.

Your router has 11 different channels to choose from for NorthAmerica. Start with

channel1andworkyourwayup. Each time you change the channel on the router,

make sure that you restart the wireless computer before trying to connect again.

Keepgoingthroughthechannels until you find one that gives you a stable connec-

tion.

For instructions on changing channels, refer to the documentation that came with

yourrouter.

Section 3

Technical Support

E-mail:[email protected]

TollFree:1-888-746-3238

WebSite:www.airlink101.com

*Theoreticalmaximum wireless signalratederivedfrom IEEE802.11gstandard andIEEE 802.11ndraftspecificationversion 2.0.Actualdata

throughputwill vary.Networkconditionsand environmentalfactors, includingvolume ofnetwork traffic,buildingmaterialsandconstruction, mix

ofwireless productsused, radio frequencyinterference (e.g.,cordless telephonesand microwaves)as wellas networkoverhead loweractual

datathroughput rate.Specifications are subjectto changewithout notice.All productsand trademarksare theproperty oftheir respective
