AJAX MotionProtect Bedienungsanleitung
Motion Protect User Manual
Motion Protect is a wireless motion detector designed for indoor use. It
can operate for up to 5 years from an in-built battery, and monitors the area
within 12-meter radius. Motion Protect ignores animals, while recognizes a
human from the first step.
Motion Protect operates within the Ajax security system, connected to
the hub via the protected Jeweller protocol. The communication range is up
to 1700 meters in the line of sight. In addition, the detector can be used as
a part of third-party security central units via the Ajax uartBridge or Ajax
ocBridge Plus integration modules.
The detector is set up via the Ajax app for iOS, Android, mac OS and
Windows. The system notifies user of all events through push notifications,
SMS and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to
the central monitoring station of a security company.

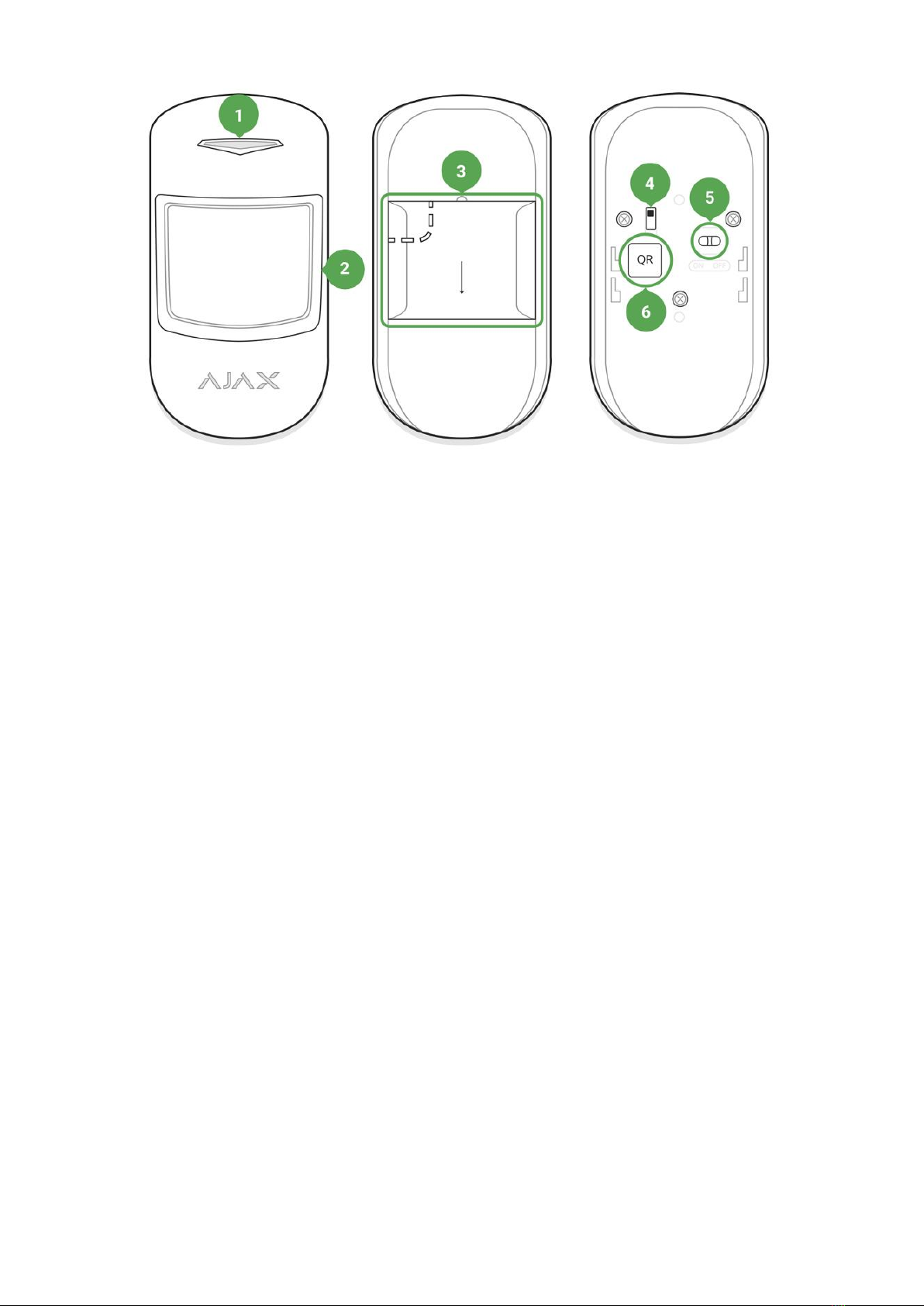

Functional Elements
1. LED indicator
2. Motion detector lens
3. Smart Bracket attachment panel (perforated part is required for actuating
the tamper in case of any attempt to dismantle the detector)
4. Tamper button
5. Device switch
6. QR code
Operating Principle
Thermal PIR sensor of Motion Protect detects intrusion into protected room
by detecting moving objects whose temperature is close to the temperature
of the human body. However, the detector can ignore domestic animals if
the suitable sensitivity has been chosen in the settings.
After actuation, the armed detector immediately transmits an alarm signal
to the hub, activating the sirens and notifying the user and Security
Company.
If before arming the system, the detector has detected motion, it will not
arm immediately, but during the next inquiry by the hub.
Connecting the Detector to the Ajax
Security System
Connecting the Detector to the hub
Before starting connection:
1. Following the hub manual recommendations, install the Ajax application.
Create an account, add the hub to the application, and create at least one
room.
2. Switch on the hub and check the internet connection (via Ethernet and/or
GSM network).
3. Make sure that the hub is disarmed and does not update by checking its
status in the app.
Only users with administrator rights can add the device to the hub
How to connect the detector to the hub:
1. Select the Add Device option in the Ajax application.
2. Name the device, scan/write manually the QR Code (located on the body
and packaging), and select the location room.
3. Select Add —the countdown will begin.
4. Switch on the device.
For detection and pairing to occur, the detector should be located within the
coverage of the wireless network of the hub (at a single protected object).
Request for connection to the hub is transmitted for a short time at the
moment of switching on the device.
If the detector failed to connect to the hub, switch off the detector for 5
seconds and retry.
The connected detector will appear in the devices list in the application.
Update of the detector statuses in the list depends on the device inquiry
time set in the hub settings (default value is 36 seconds).
Connecting the Detector to Third Party security systems
To connect the detector to a third party security central unit with
the uartBridge or ocBridge Plus integration module, follow the
recommendations in the manuals of these devices.
States
1. Devices
2. Motion Protect
Parameter
Value
Temperature
Temperature of the Detector. Measured on the processor and
changes gradually
Jeweller Signal Strength
Signal strength between the hub and the detector
Connection
Connection status between the hub and the detector
Battery Charge
Battery level of the detector, displayed in increments of 25%
Lid
The tamper mode of the detector, which reacts to the
detachment of or damage of the body
Delay when entering, sec
Delay time when entering
Delay when leaving, sec
Delay time when exiting
Routed through ReX
Displays the status of using the ReX range extender
Sensitivity
Sensitivity level of the motion sensor
Always Active
If active, the motion detector is always in the armed mode
Firmware
Detector firmware version
Device ID
Device identifier
Settings
1. Devices
2. Motion Protect
3. Settings
Setting
Value
First field
Detector name, can be edited
Room
Selecting the virtual room to which the device is assigned
Delay when entering, sec
Selecting delay time when entering
Delay when leaving, sec
Selecting delay time on exit
Delays in night mode
Delay turned on when using night mode
Arm in night mode
If active, the detector will switch to armed mode when using
night mode
Sensitivity
Choosing the sensitivity level of the motion sensor.
For Motion Protect:
•High —for premises with a minimum amount of obstacles,
motion is detected as quickly as possible
•Medium —for premises with potential obstacles (windows, air
conditioner, heating element, etc.)
•Low —ignore pets weighing up to 20 kg and up to 50 cm tall
•
Always active
If active, the detector always registers motion
Alert with a siren if motion detected
If active, Home Siren and Street Siren are activated when the
motion detected
Jeweller Signal Strength Test
Switches the detector to the signal strength test mode
Detection Zone Test
Switches the detector to the detection area test
Attenuation test
Switches the detector to the signal attenuation test mode
(available in detectors with firmware version 3.50 and later)
User Guide
Opens the User Guide
Un pair device
Disconnects the detector from the hub and deletes its settings
Before using the detector as a part of the security system, set up the
suitable sensitivity level.
Switch the Always Active if the detector is located in a room requiring 24-
hour control. Regardless of whether the system is set in the armed mode,
you will receive notices of any detected motion.
If any motion is detected, the detector activates the LED for 1 second and
transmits an alarm signal to the hub and then to the user and central
monitoring station (if it is connected).
Detector operation indication
Event
Indication
Note
Turning on the detector
Lights up green for about one
second
Detector connection to
the hub, ocBridge and ua
rtBridge
Lights up continuously for a few
seconds
Alarm / tamper activation
Lights up green for about one
second
Alarm is sent once in 5 seconds
Battery needs replacing
During the alarm, slowly lights up
and goes off green
Replacement of the detector battery is
described in the Battery
Replacement manual
Detector Testing
The Ajax security system allows conducting tests for checking the
functionality of connected devices.
The tests do not start immediately but within a period of 36 seconds when
using the standard settings. The time of the start depends on the settings of
the detector polling period (the paragraph on Jeweller settings in the hub
settings).
Device installation
Selection of the Detector Location
The controlled area and the efficiency of the security system depends on
the location of the detector.
Location of Motion Protect depends on the remoteness from the hub and
presence of any obstacles between the devices hindering the radio signal
transmission: walls, inserted floors, large-size objects located within the
room.
Check the signal level at the installation location
If the signal level is at one bar, we cannot guarantee stable operation of the
security system. Take all possible measures to improve the quality of the
signal! As a minimum, move the device –even 20 cm shift can significantly
improve the quality of reception.
If after moving the device still has a low or unstable signal strength, use
the ReX Radio signal range extender.
The direction of the detector lens should be perpendicular to the probable way of
intrusion into the room
Make sure that any furniture, domestic plants, vases, decorative or glass
structures do not block the field of view of the detector.
We recommend installing the detector at the height of 2.4 meters.
If the detector is not installed at the recommended height, this will reduce
the area of the motion detection zone and impair the operation of the
function of ignoring animals.
Installation of the Detector
Before installing the detector, make sure that you have selected the optimal location and it is in
compliance with the guidelines contained in this manual
