Installation Guide

AWMS-2-BT75-FS

Freestanding Heavy Duty

Dual Vertical Monitor Mount

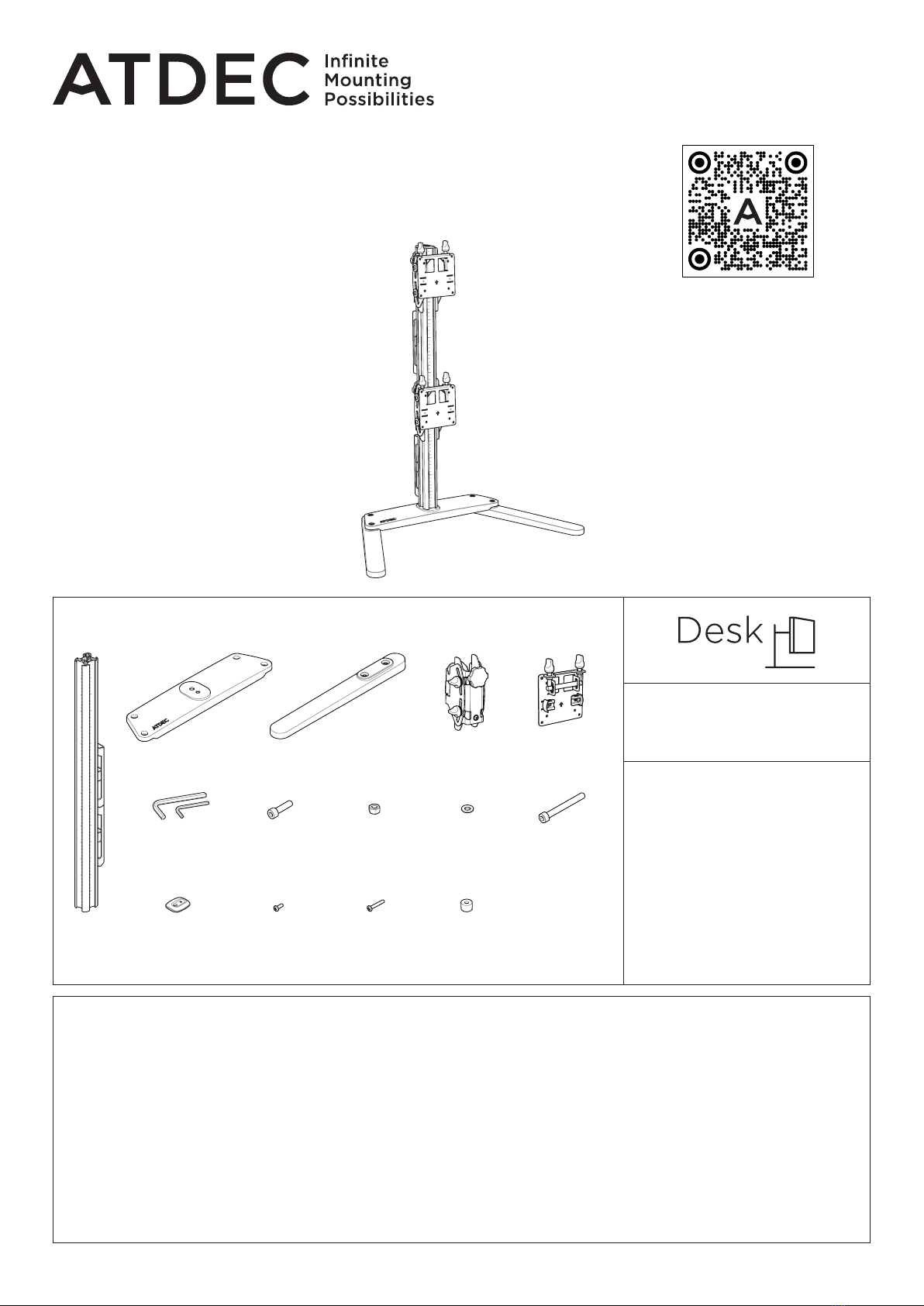

COMPONENT CHECKLIST

IMPORTANT INFORMATION

! Product should only be assembled and used as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Eachbracketsupportsamaximumweightasperabovecapacityspecication.

! Avoid applying downward load to corners of display.

! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! Do not move mount with displays attached.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that

can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec

if you would like further information.

! WARNING! Death or serious injury may occur if a child climbs on or tips product. Anchor product if applicable. Never place

product in an unstable location.

Scan to access

more information

REQUIRED TOOLS

CAPACITY (per monitor)

Flat Monitor

4.5 - 25kg (10 - 55lb)

Curved Monitor

4.5 - 18kg (10 - 40lb)

Display Size

24” - 55”

• Phillips Head Screwdriver

300mm (12”) max

overall display depth

Bridge

(x1)

Leg

(x2)

Post

(x1)

Bracket

(x2)

4mm/6mm

Hex Key

(x1 each)

VESA Plate

(x2)

M8x30mm

Cap Screw

(x4)

M8x80mm

Cap Screw

(x2)

M8 Washer

(x2)

M4x10mm

Screw (x8)

Post Cap

(x1)

M4x20mm

Screw (x8)

10mm

Spacer (8x)

M8 Nut

(x4)

AWMS-2-BT75-FS Page 2 of 4

2. Attach post to base

2.1 Insert M8x80 cap screws (x2)

through M8 washers and holes

in base then fasten to post.

Tightenrmly.

2.2 Remove clips and covers

from post by sliding up and

out or by squeezing sides.

NOTE:

Assemble with Cable Covers facing backwards

(Towards the small side of Base)

1. Assemble base

1.1 Align bridge holes and leg

holes. Use 6mm hex key.

Hold M8 nut in hexagonal

recess until M8x30 cap screw

engages. Tighten screw.

1.2 Repeat on opposite leg.

3. Attach VESA plates to displays

NOTE:

Rest short end

of bridge on a

soft surface while

fastening

3.1 VESA compatibiliy, Option A Attach VESA

plate with M4x10mm

screws.

Option B For recessed

VESA use 10mm spacers

and M4x20mm screws.

65%

SQUEEZE

to release

NOTE:

Some displays require the use of

a VESA adapter before attaching

the VESA plate. This VESA adapter

may ship in the box with the display.

Consult your display’s installation

guide for further information.

75mm

100mm

75mm

100mm

NOTE:

For 75mm VESA

unscrew 5mm to

access top holes

TOP

AWMS-2-BT75-FS Page 3 of 4

5. Attach bottom display

4. Slide brackets onto post and set height

VIEW FROM ABOVE

WARNING:

Never loosen knob

while display is on

bracket!

OPEN CLOSED

5.1 Set VESA plate

clips to open position.

Bottom display

must be attached to

bracketrst.

WARNING:

Use two people to

install display

5.3 Centre VESA plate close to

post and slowly lower until bar

on VESA plate sits in saddle in

bracket.

5.4 Set VESA plate

clips to closed

position.

5.2 Place mount on the

stable surface where it will

be used.

Lift display until

VESA plate is

above the

bracket.

Arrow side

towards user

Arrow side

towards user

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to base

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to base

TIGHTEN

BACK

FRONT

Inner guide

in rear post

channel

WARNING:

Bracket must only

be attached with

display facing the

front of base

4.1 Line up the inner guide

on rear of bracket with rear

channel on post.

4.2 Slide inner

guide into

channel, then

lower bracket.

4.4 Firmly tighten

hand knob at

chosen height.

Repeat with second

bracket and t post

cap.

4.3 Ensure height is

sufcientforscreentoclear

base once in place.

OPEN

CLOSED

WARNING:

Do not loosen

hand knob with

display attached

NOTE:

Display hangs from

the bracket like a

painting. After clips

are closed, if corners

of the screen are

pushed downwards,

rocking movement is

expected.

AWMS-2-BT75-FS Page 4 of 4

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

6. Set tilt

7.Attach top display

8. Fine adjustment

9. Cable management options

7.1 Check that distance between

brackets is equal to or greater

than the height of the display.

(see image in Step 4.3)

WARNING:

Damage to monitors may occur

if there is insufcient spacing

between brackets. Top monitor

must hang in bracket - not be

held up by the monitor below it.

After both displays are attached,

use ne adjustment to close gap

between them (see Step 8).

7.2 Repeat Step 5

& Step 6 to attach

top display and

set tilt angle.

6.1 Adjust display tilt angle by

gripping edges of screen and rolling

up or down to desired position.

6.2 Tighten tilt knobs to set.

WARNING:

Ensure clips

closed before

tilting

Clockwise = More friction

Anti-clockwise = Less friction

OPTIONAL ADJUSTMENT - TILT FRICTION

4mm hex key can be used to reduce tilt

friction (for light screen) or increase tilt

friction (for heavy screen).

TILT

KNOBS

Lower

Adjust angle

Set angle

iii

8.1 To correct horizontal angle of

display +/- 3 °:

Turnasinglenetuneadjustment

knob to adjust angle of screen.

8.2 To close small gap between

displays +/-6mm (1/4”):

Turnbothnetuneadjustment

knobs - alternating sides a few

rotations at a time.

Clockwise = Higher

Anti-clockwise = Lower

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure slide clips in

CLOSED position

Unstacked Stacked

Cables can

exit from

the side of

the cable

cover

PUSH

8.1 Load cables into

cable clip.

8.2 Insert one side

of the cable clip

into a channel on

the post, then push

in the other side.

Load cables into

cable cover

8.3

Load

cables

into

cable

cover.

8.4 Clip

the cable

cover

back

onto

rear post

channels.

WARNING:

Always

remove

displays

before

moving

mount

iii

LHS

RHS

TOP &

BOTTOM

iii

LHS

RHS

TOP &

BOTTOM
