Car-Interface CI-RL4-ELINK Bedienungsanleitung

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Video-inserter

CI-RL4-ELINK

Compatible with Renault vehicles with

Easy Link infotainment

with 7 or 9.3inch monitor

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC and PAL compatible

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors –video interface

1.4. Dip switch settings

1.4.1. 8 dip –black

1.4.1.1. Activating the front camera input (dip 1)

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.1.4. Monitor size (Dip 8)

1.4.2. 4 dip - red

2. Installation

2.1. Place of installation

2.2. Connection schema

2.3. Connection - picture signal cable

2.4. Connection –PNP Power/CAN cable

2.4.1. Connection –PNP Power/CAN cable for 8pin monitor connection

2.4.2. Connection –PNP Power/CAN cable for 8pin monitor connection

2.5. Analogue power supply

2.6. Power supply output

3. Connection –video sources

3.1. Audio insertion

3.2. After market front camera

3.3. After-market rear-view camera

3.3.1. Case 1: Interface receives the reverse gear signal

3.3.2. Case 2: Interface does not receive the reverse gear signal

3.4. Connection video-interface and keypad

3.5. Picture settings

4. Interface operation

5. Specifications

6. FAQ –Trouble Shooting-Interface functions

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Please read the manual thoroughly BEFORE starting the installation. Technical knowledge is

imperatively required. The place of installation has to be free of moisture and away from

heat sources.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page4

Compatibility

Brand

Compatible vehicles

Infotainment systems

Renault

Captur since model year 2020

Clio V since model year 2020

Espace since model year 2020

Megane since model year 2021

Talisman since model year 2021

Twingo since model year 2020

Zoe since model year 2020

and other vehicles with

Easy Link

with 7inch or 9.3inch Monitor

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory

audio-AUX-input or a FM-modulator can be used.

In case that 2 AV sources shall be connected, a desired audio

switching will require additional electronic.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-

view camera is only possible while the reverse gear is engaged. To

delay the switch-back an additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds

after disengaging the reverse gear. A manually front camera

switching is possible by external keypad.

1.2. Checking the compatibility of vehicle and accessories

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page5

1.3. Connectors –video interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page6

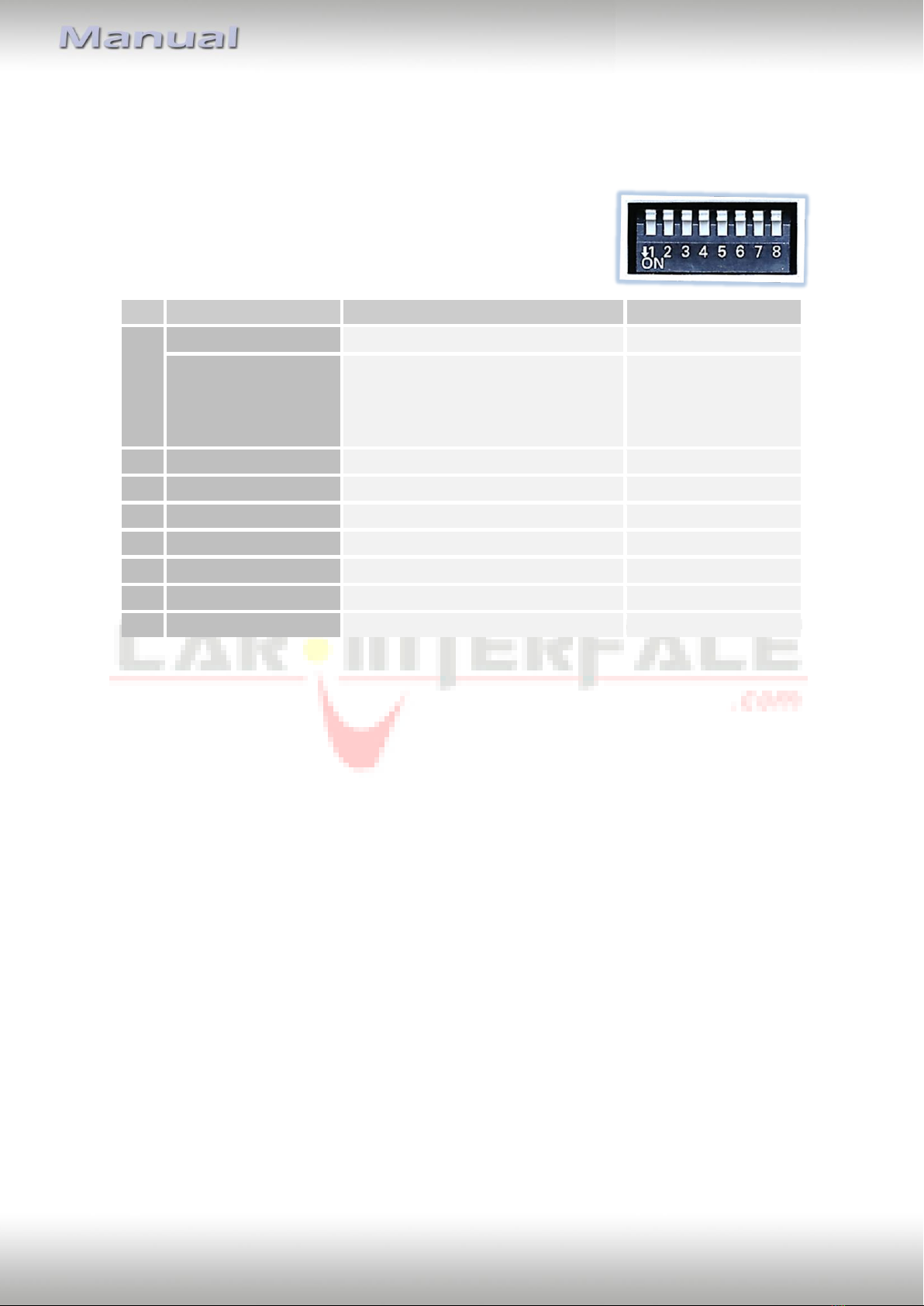

1.4. Dip-switch settings

1.4.1. 8 dip - black

Some settings have to be selected by the dip-switches on the

video interface.

Dip position down is ON and position up is OFF.

*The front camera will automatically be switched for 10 seconds after disengaging the

reverse gear.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

See the following chapters for detailed information.

Dip

Function

ON (down)

OFF (up)

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay

and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

No function

set to OFF

No function

set to OFF

Monitor size

7inch monitor

9.3inch monitor

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page7

1.4.1.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.1.2. Enabling the interface’s video inputs V1 Left und V2 Right (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It is recommended to enable only the required inputs, disabled inputs

will be skipped when switching through the video-interfaces inputs.

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera.

If set to ON, the interface switches to its rear-view camera input „V4 Reverse“ while the

reverse gear is engaged.

1.4.1.4. Monitor selection (Dip 8)

Dip 8 is used to adjust the corresponding monitor size.

If set to ON, 7 inch monitors are selected on the interface.

If set to OFF, 9.3inch monitors are selected on the interface.

Note: Dip4, 6 and 7 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page8

1.4.2. 4 dip - red

By using the Dip-switches, the vehicle can be chosen which the interface

will be connected to.

For all vehicles, all 4 dip switches must be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

The interface is designated to be connected behind the vehicle`s monitor.

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page9

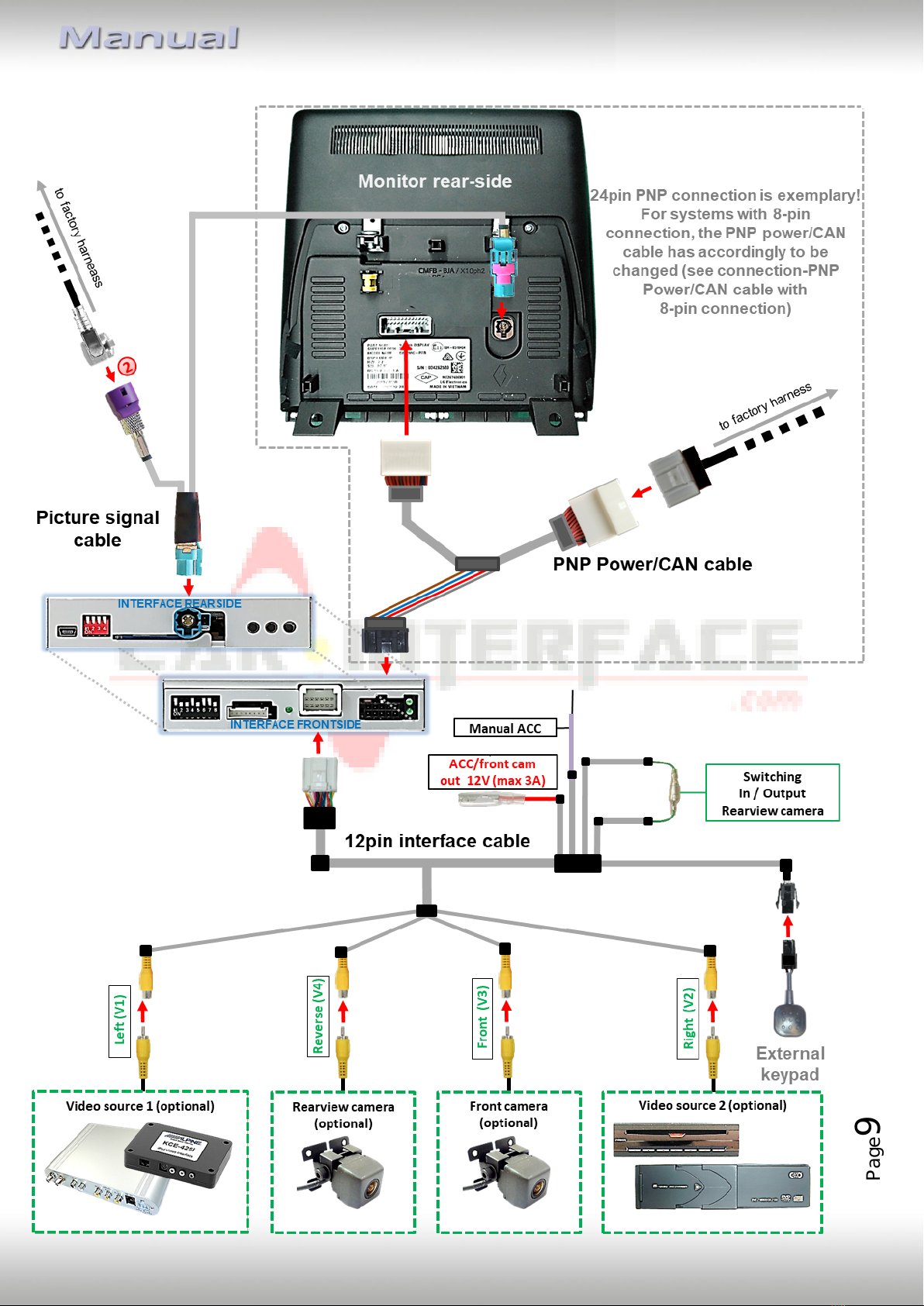

2.2. Connection schema

Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK

Page10

2.3. Connection –picture signal cable

Connect the female picture signal cable’s WATERBLUE coloured HSD+2 connector to

the male WATERBLUE coloured HSD+2 connector of the video interface.

Disconnect the female 4pin HSD connector of the factory harness at the rear side of

the monitor and connect it to the male PURPLE coloured HSD connector of the

enclosed picture cable.

Connect the female WATERBLUE coloured HSD connector of the enclosed 4pin HSD

picture signal cable to the previously become free male HSD connector at the

monitor’s rear side.

Caution: The picture signal cable has to be connected to the monitor. Connection to the

head unit may cause damage to the system!

Note: No liability for vehicle wire colours and pin definition!

Changes by the vehicle manufacturer are possible. The given information has to be verified

by the installer.
