Car-Interface CI-RL3-MIB-TT Bedienungsanleitung

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

r.LiNK Video inserter

CI-RL3-MIB-TT

Compatible with

Audi vehicles with MMI Navigation Plus and MIB II infotainment and monitor in instrument

Lamborghini vehicles with MIB infotainment and monitor in instrument

Video-inserter for one rear-view camera

and two more video inputs

Product features

Video-inserter for factory-infotainment systems

CVBS Input for one rear-view camera

2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Video-in-motion (ONLY for connected video-sources)

AV-inputs NTSC compatible

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Boxes and connectors –video interface

1.4. Settings of the 8 Dip switches (black)

1.4.1.1. Enabling the interface’s video inputs (dip 2-3)

1.4.1.2. Vehicle selection (dip 4)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.1.4. Monitor selection (Dip 6, 7,-8)

1.5. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation

2.2. Connection schema

2.3. Connection to the factory head unit

2.4. Power –and CAN connection for the video interface

2.5. Analog power supply for the video interface

2.6. Connection of video-sources

2.6.1. Audio insertion

2.6.2. After-market rear-view camera

2.6.2.1. Case 1: Interface receives the reverse gear signal

2.6.2.2. Case 2Interface does not receive the reverse gear signal

2.6.2.3. Rear-view camera –presentation in instrument

2.7. Connecting video-interface and external keypad

2.8. Picture settings

3. Interface operation by external keypad

4. Specifications

5. FAQ –Trouble Shooting-Interface functions

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

video interface’s place of installation must be free of moisture and away from heat sources.

Before the final installation in the vehicle of the video sources, we recommend a test-run

to ensure the compatibility of vehicle and interface. Due to changes in the production of

the vehicle manufacturer there’s always a possibility of incompatibility.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page4

Requirements

Brand

Compatible vehicles

Compatible systems

Audi

R8 (4S) since model year 05/2015

TT (8S) since model year 07/2014

MMI Navigation Plus - MIB II

main-Unit with monitor in

instrument

Lamborghini

Huracan since model year 2016

MIB with monitor in instrument

Limitations:

Video only The interface inserts ONLY video signals into the infotainment. For

inserting Audio signals either the possibly existing factory audio-AUX-

input or a FM-modulator can be used. If 2 audio sources shall be

connected to the infotainment, an additional electronic is necessary to

switch them.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view

camera is only possible while the reverse gear is engaged. To delay the

switch-back an additional electronic part is required.

Video input signal only NTSC compatible

1.2. Checking the compatibility of vehicle and accessories

1.3. Boxes and connectors –video interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page5

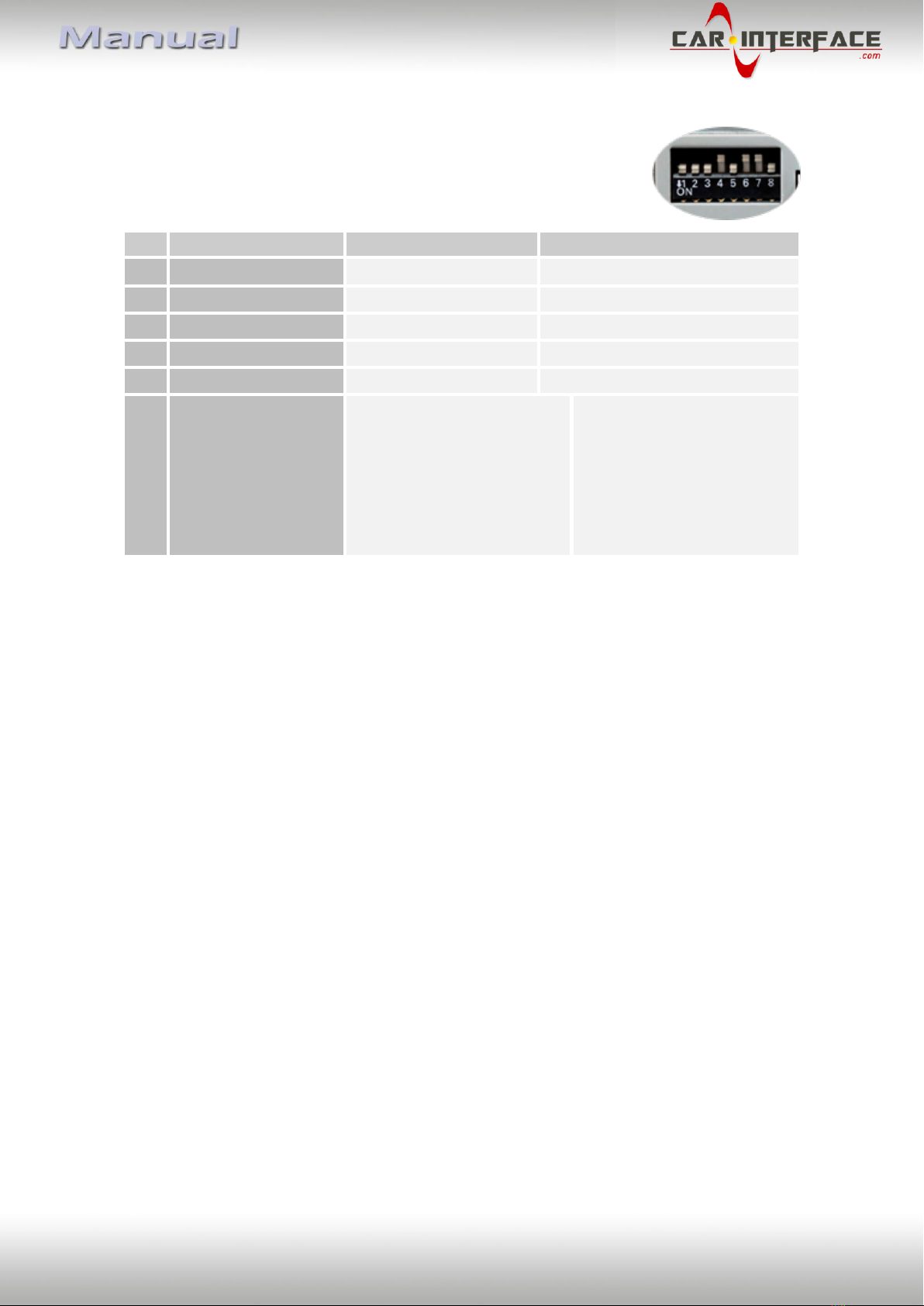

1.4. Settings of the 8 Dip switches (black)

Some settings have to be selected by the dip-switches on the

video interface. Dip position down is ON and position up is OFF.

See the following chapters for detailed information.

1.4.1.1. Enabling the interface’s video inputs (dip 2-3)

Only by dip switches enabled video inputs can be accessed by switching through the

interface’s video sources. It is recommended to enable only the required inputs. Disabled

inputs will be skipped while switching through the video interfaces inputs.

1.4.1.2. Vehicle selection (dip 4)

Dip switch setting ON = Audi vehicles

Dip switch setting OFF = Lamborghini vehicles

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

Dip

Function

ON (down)

OFF (up)

No function

set to OFF

CVBS Video 1-input

enabled

disabled

CVBS Video 2-input

enabled

disabled

Vehicle selection

Audi

Lamborghini

Rear-view cam type

after-market

factory or none

Monitor

adjustment

For Lamborghini try all 6

possible combinations of

Dips 6, 7 and 8 to receive

the best picture (quality

and size) or see chapter

“Monitor adjustment (Dip

6-8)”

For Audi set to OFF

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page6

1.4.1.4. Monitor selection (Dip 6,7,8) - only for Lamborghini vehicles

For Audi vehicles, set all 3 dips to OFF.

For Lamborghini vehicles dips 6, 7 and 8 customize the monitor-specific video settings which

sometimes even vary within head units of the same version, caused by different monitor

specifications. It is necessary to try all possible combinations while a working video source is

connected to the chosen input of the interface. One of the six combinations will show the

best picture size and quality (some may give no picture). It is possible to first hot plug

through the dip combinations. If there is no change of picture visible after trying all 6

options, retry and disconnect the 10pin plug of the Quadlock connector between every

change of the dip setting.

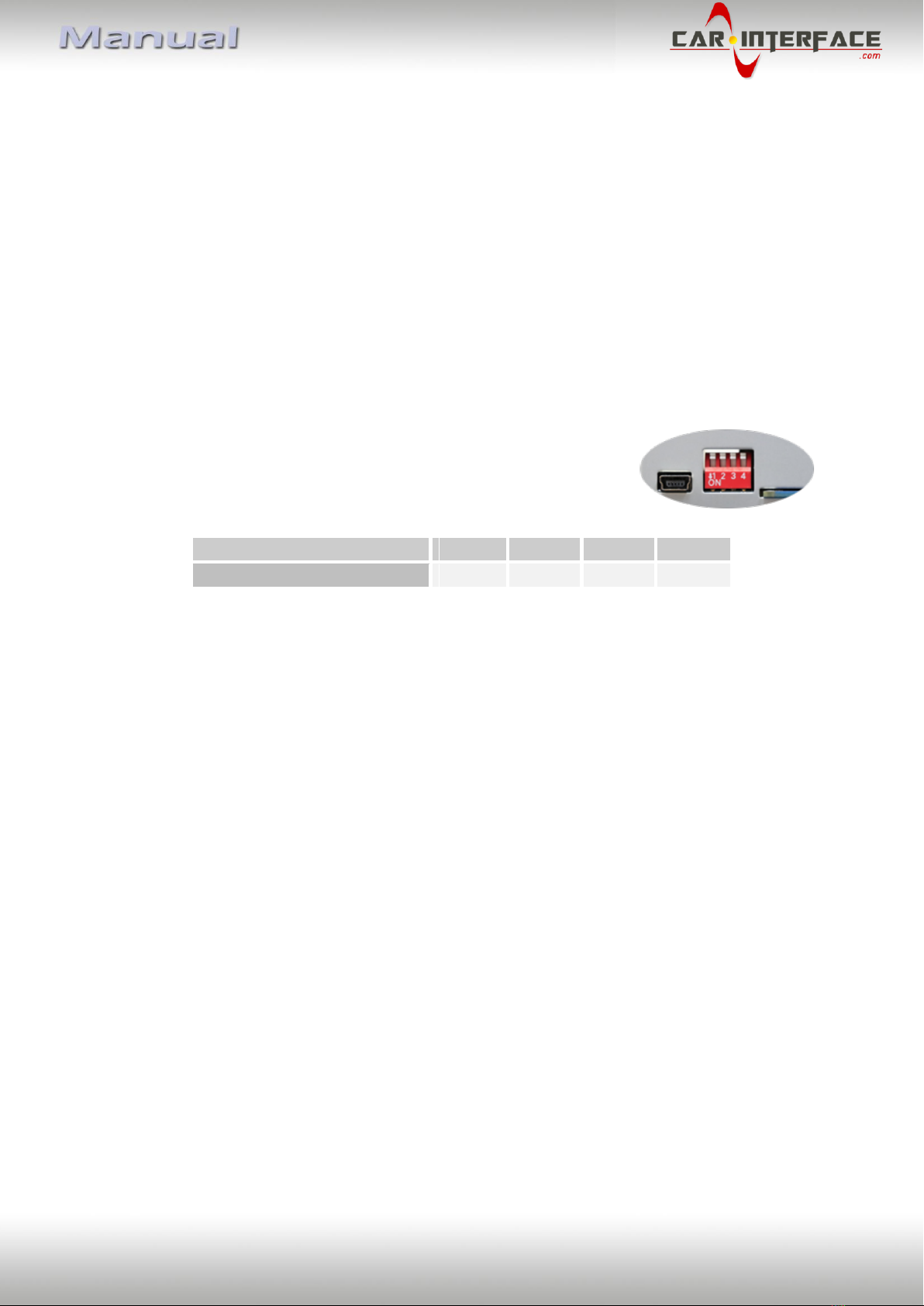

1.5. Settings of the 4 Dip switches (CAN functions –red)

All 4 dip-switches of the video interface have no function for

normal use and have to be set to OFF.

Dip position down is ON and position up is OFF.

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

After each Dip-switch-change a power-reset of the Can-box has to be performed!

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

The interface has to be installed at a suitable location behind the Radio or behind the glove

compartment, depending on the place where the vehicle’s head unit is installed.

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page7

2.2. Connection schema

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page8

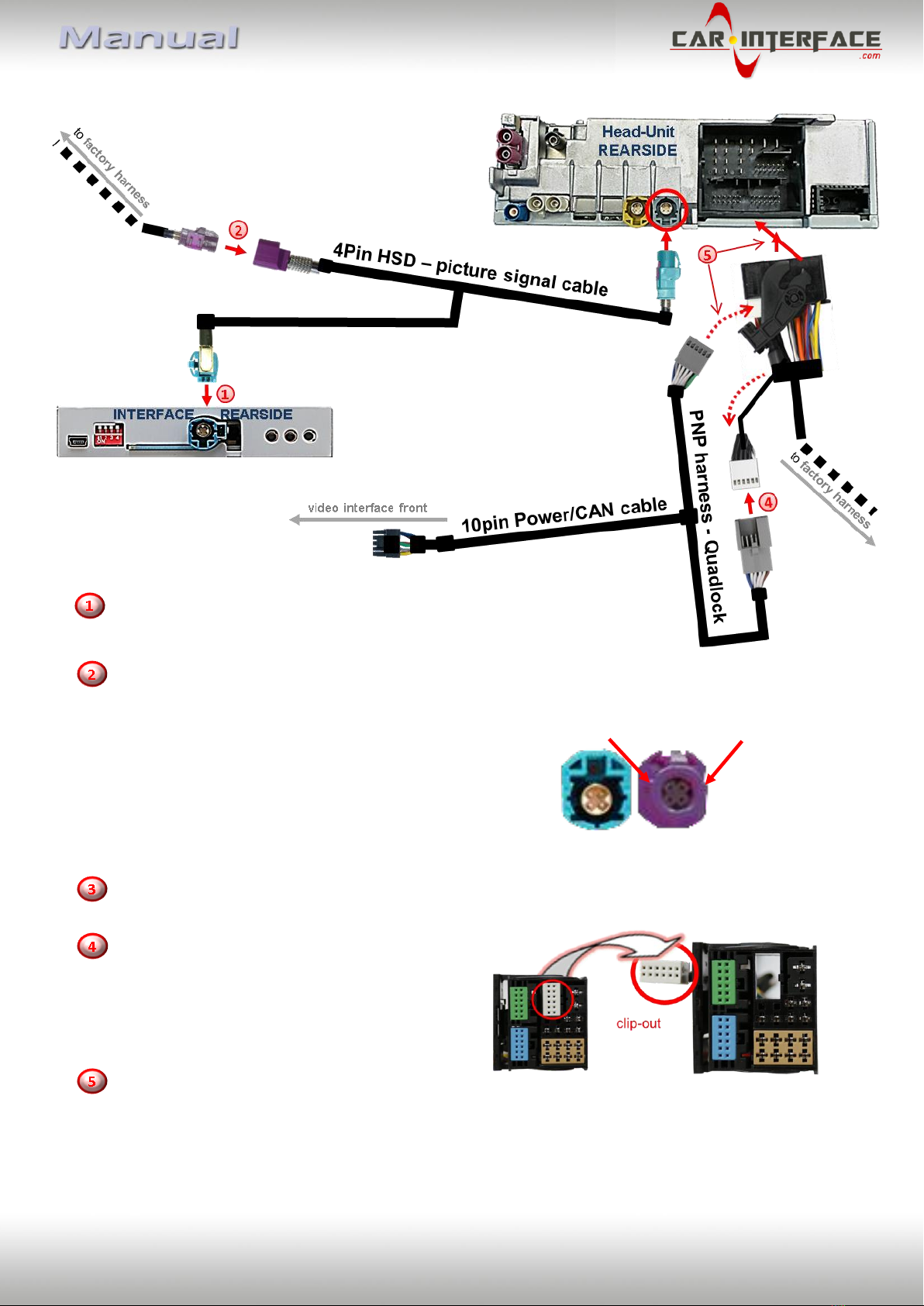

2.3. Connections to the factory head-unit

Remove the head-unit.

Connect the female HSD+2 connector of the 4pin HSD picture signal cable

to the video-interface’s male HSD+2 connector.

Disconnect the female 4pin HSD connector of the vehicle harness from the rear of the

head-unit and connect it to the male 4pin HSD connector of the 4pin HSD picture signal

cable.

Note: If required, the marked lugs of the

female 4pin HSD LVDS connector have to be

cut off! Further, the colour of the female

4pin HSD connector may vary between

pink and grey, depending on the installed monitor.

Connect the female 4pin connector of the 4pin HSD picture signal cable to the male 4pin

HSD LVDS connector of the head-unit (colours may vary!).

Remove the female Quadlock connector of the vehicle

harness from the rear of the head-unit and

connect the previously clipped out white

female 12pin connector (see graphic) to the

male 12pin connector of the PNP harness.

Clip in the female 12pin connector of the PNP

harness in the previously become free position of the female Quadlock connector before

finishing the Quadlock reconnection at the rear of the head-unit.

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page9

2.4. Power –and CAN connection for the video interface

Connect the 10pin power/CAN cable’s female 10pin connector to the 10pin

connector of the interface

Connect the single, yellow wire of the 10pin power/CAN cable to +12V permanent

and stabile power supply.

Connect the single, black wire of the 10pin power/CAN cable to the vehicle’s negative

ground.

Version 10.04.2018 HW: GD(V97)/(V33) CI-RL3-MIB-TT

Page10

2.5. Analog power supply for the video interface

If, after connecting the PNP harness, no interface LED lightens up while the ignition is

turned on, the single red wire ACC-out (max 3A) and the purple coloured wire

Manual ACC of the 12pin interface cable both have to be connected additionately to

S-contact terminal 86s +12V (e.g. glove compartment illumination).

Inhaltsverzeichnis

Andere Car-Interface Autozubehör Handbücher

Car-Interface

Car-Interface CI-RL3-SC15 Bedienungsanleitung

Car-Interface

Car-Interface c.LOGiC CI-C2-MK-CD Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-MMI3G Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MM-NP Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-R40-E Bedienungsanleitung

Car-Interface

Car-Interface RL4-NAC08 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL5-MIB-STD2 Bedienungsanleitung

Car-Interface

Car-Interface v.LiNK CI-VL2-CIC-F Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-A40 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-CCC Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MIB92 Bedienungsanleitung

Car-Interface

Car-Interface r.LiNK CI-RL2-RLINK Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-LR16-8 Bedienungsanleitung

Car-Interface

Car-Interface v.LOGiC CI-V5-CCC-PNP Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG45 Bedienungsanleitung

Car-Interface

Car-Interface RL4-MBN6 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-NAC08 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-124SPY Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-SC14 Bedienungsanleitung

Car-Interface

Car-Interface r.LiNK CI-RL2-N900 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-MTC Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-UCON8-LV Bedienungsanleitung

Car-Interface

Car-Interface CI-DAB-CAN1-SK Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MBN6 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
