Cognex DataMan 300 Series Bedienungsanleitung

DataMan®300 Series

Quick Reference Guide

04/26/2017

Version:5.7.0.361

Precautions

WARNING: LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2

LASER PRODUCT FAILURE TO FOLLOW THESE INSTRUCTIONS

MAY CAUSE SERIOUS INJURY

lCAUTION - Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation

exposure.

lDo not attempt to service or repair this product -- return it to Cognex for

service.

lDo not permit anyone other than Cognex Corporation to service, repair, or

adjust this product.

lDo not attempt to open or modify this device except as described in this

document.

lDo not direct or reflect laser light toward people or reflective objects.

lDo not operate this device if it is damaged or if the covers or seals are

missing or damaged.

lIP protection is ensured only when all connectors are attached to cables or

shielded by a sealing cap.

This Laser Product is designated as Class 2 during all procedures of operation.

Wavelength 650 nm

Laser Power for classification < 1mW

Beam Diameter < 3mm at aperture

Divergence < 1.5 mrad

Product Overview

1Laser aimer

2 Illumination LED clusters

3 External illumination mounting point

4 Mounting holes (M3 x 5mm)

5Trigger button

6Power

7Train status

8Read/no-read indicator

9Network

10 Error

11 Peak meter

12 Tuning button

13 Ethernet

14 External light control

15 Power, I/O, and RS232

DataMan 300 Accessories

LENS OPTIONS ANDCOVERS

10.3 mm M12 lens with locking (DM300-LENS-10) and 10.3 mm IR M12 lens

with locking (DM300-LENS-10-IR)

Liquid lens module and pre-focused 10.3 mm or 10.3 mm IR M12 lens with

wrench (DM300-LENS-10LL), (DM300-LENS-10LL-IR)

19 mm liquid lens module (DM300-LENS-19LL)

16 mm M12 lens with locking (DM300-LENS-16)

24 mm liquid lens module (DM360-LENS-24LL)

25 mm M12 lens with lens spacer and hex wrench (DM300-LENS-25) (also

requires Extension kit)

Extension kit (DM300-EXT)

DM500 C-Mount cover (DM500-CMTLC-000) (use with HPIA)

DM500 Lens cover extender (DM500-LNSEXT-000)

Blue (CKR-BP470), red (CKR-BP635), green (CKR-BP525), orange (CKR-

BP590) bandpass filters

Clear lens cover (DM300-CLCOV)

Clear lens cover with white LED illumination (DM300-CLCOV-WHI)

Diffuse lens cover with red LED illumination (DM300-DLCOV-RE), with blue

LED illumination (DM300-DLCOV-BL), with IR LED illumination (DM300-

DLCOV-IR), Polarizer lens cover with red LED illumination (DM300-PLCOV-

RE)

Diffuse lens cover, red illumination (assembled), ESD safe (DM300-DLCOV-

RE-ESD)

Red LED high-powered integrated light (DM360-HPIL-RE), Polarized red LED

high-powered integrated light, ESD safe (DM360-HPIL-RE-P)

C-Mount cover for C-Mount lenses (DM300-CMCOV)

Short C-Mount cover for C-Mount lenses (DM300-CMCOV-SH)

EXTERNAL LIGHTS (RED LED) ANDHIGHPOWERILLUMINATIONS

Ring Light (CLRR-R7030G1CLR)

Back light (CLRB-F100100G1)

Coaxial (DOAL) light (CLRO-K5050G1)

Spot light (CLRS-P14G1)

Dark-field light (CLRD-D120G1)

Red narrow (DM30X-HPIA-625) or wide (DM30X-HPIA-625-W)

White narrow (DM30X-HPIA-WHI) or wide (DM30X-HPIA-WHI-W)

Blue narrow (DM30X-HPIA-470) or wide (DM30X-HPIA-470-W)

Infrared narrow (DM30X-HPIA-IR) or wide (DM30X-HPIA-IR-W)

OTHER

Connection cable 24V, I/O, RS-232 (CCB-M12x12Fy-xx) (y straight/angled, xx

specifies length), and (CCBL-05-01)

Power and I/O breakout cable, M12-12 (CCB-PWRIO- xx) (straight, xx specifies

length: 5m, 10m, 15m),

(CCB-PWRIO-xxR) (angled, xx specifies length: 5m, 10m, 15m)

Connection cable RS-232 (CCB-M12xDB9Y-05)

Ethernet M12 to RJ45 cable (CCB-84901-y00x-xx) (y straight/angled, x-xx

specifies length)

External light cable (CCB-M12x4MS-xxx) (xxx specifies length)

I/O extension cable, 5m straight (CKR-200-CBL-EXT)

Laser aimer (DM300-AIMER-00) (use with HPIA)

24V power supply (ACC-24l) or (PS-KIT-1)

External light mounting brackets (DM300-ELMB-xx) (xx specifies light type)

(may get used in combination with DM500-BRKT-000 if pivoting is required)

Universal Mounting Bracket (DM100-UBRK-000)

Pivot Mounting Bracket (DM100-PIVOTM-00)

Dimensions

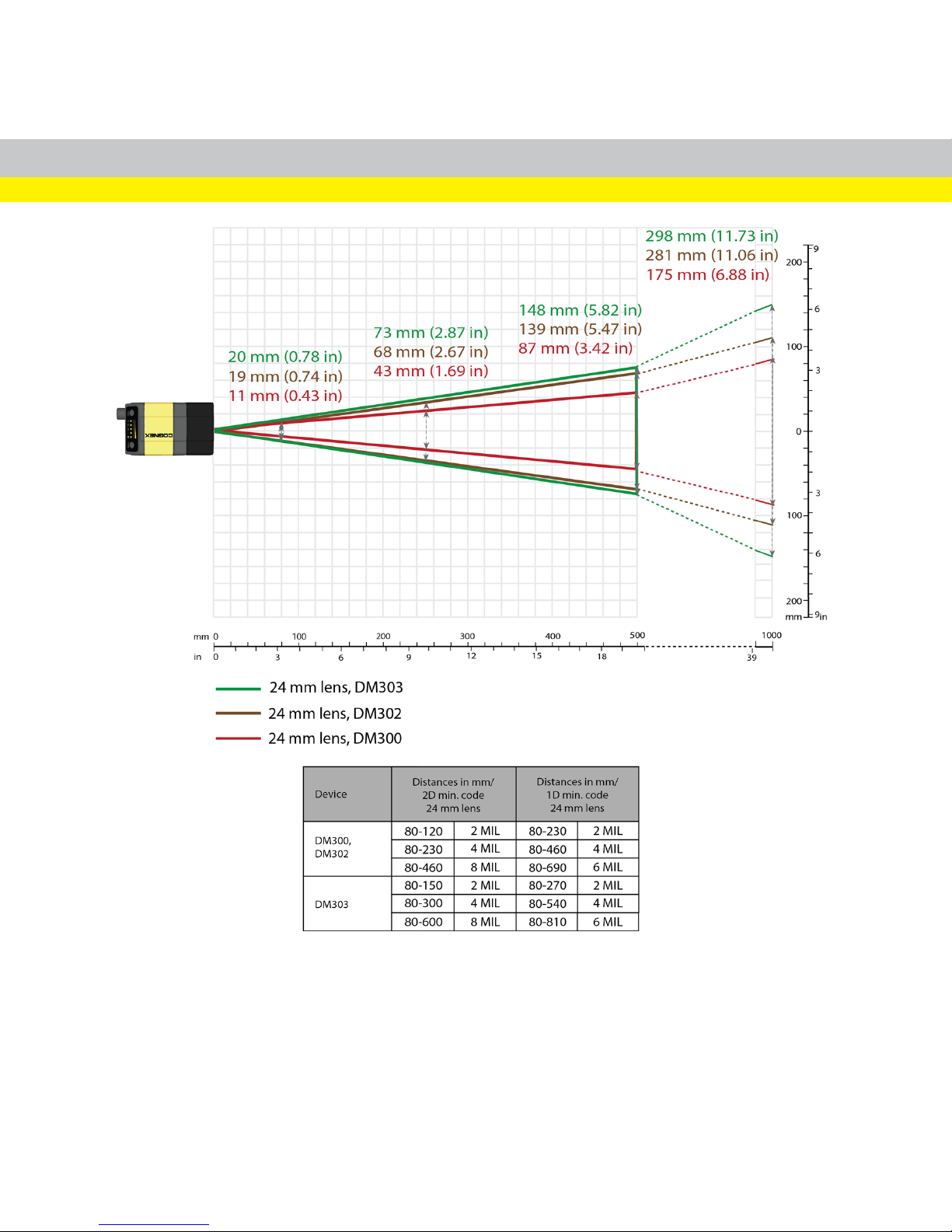

Field of View and Reading Distances
