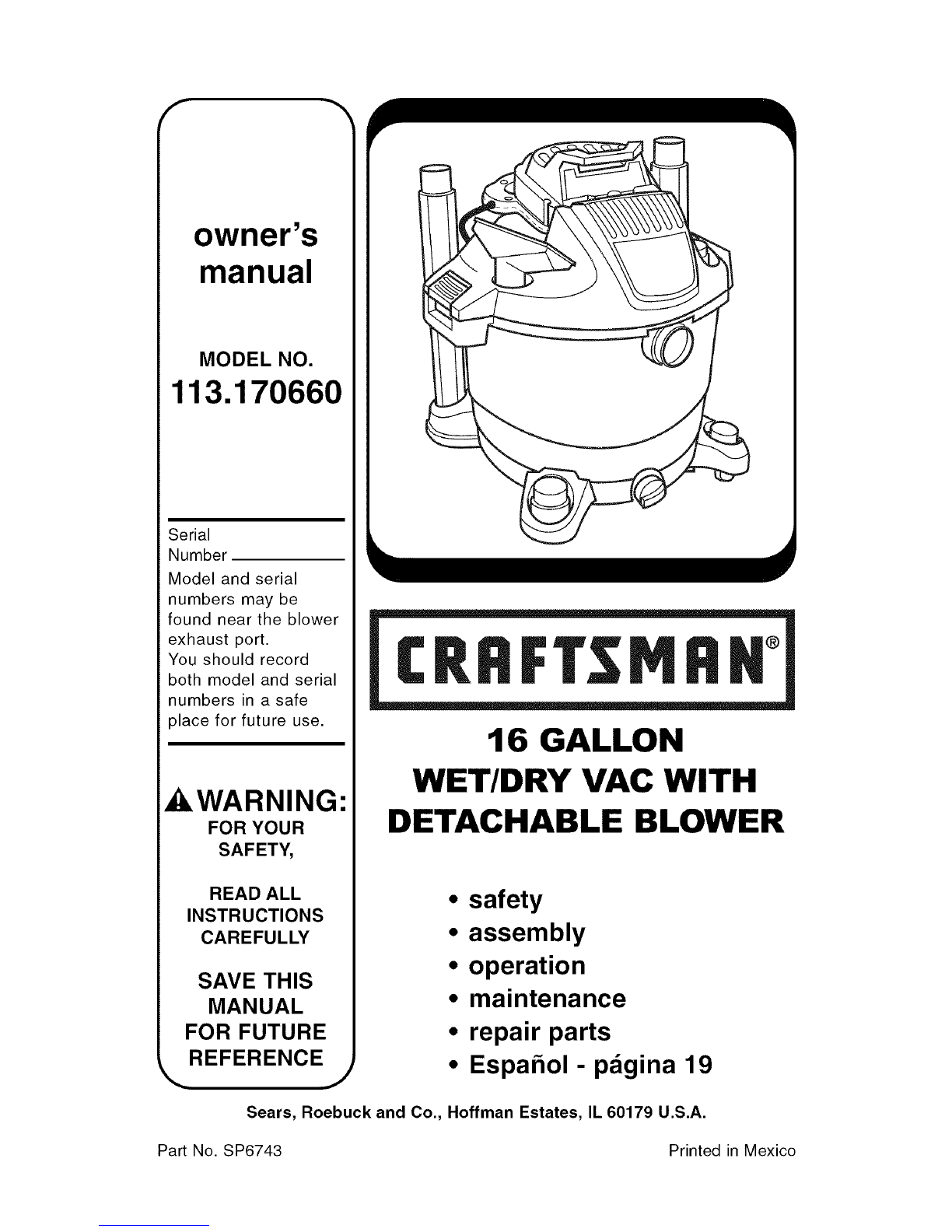

owner's

manual

MODEL NO.

113.170660

Serial

Number

Model and serial

numbers may be

found near the blower

exhaust port.

You should record

both model and serial

numbers in a safe

place for future use.

AWARNING:

FOR YOUR

SAFETY,

READ ALL

INSTRUCTIONS

CAREFULLY

SAVE THIS

MANUAL

FOR FUTURE

REFERENCE J

CRRF[$MRN °

16 GALLON

WET/DRY VAC WITH

DETACHABLE BLOWER

•safety

•assembly

•operation

•maintenance

•repair parts

•Espahol- pagina 19

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Part No. SP6743 Printed in Mexico

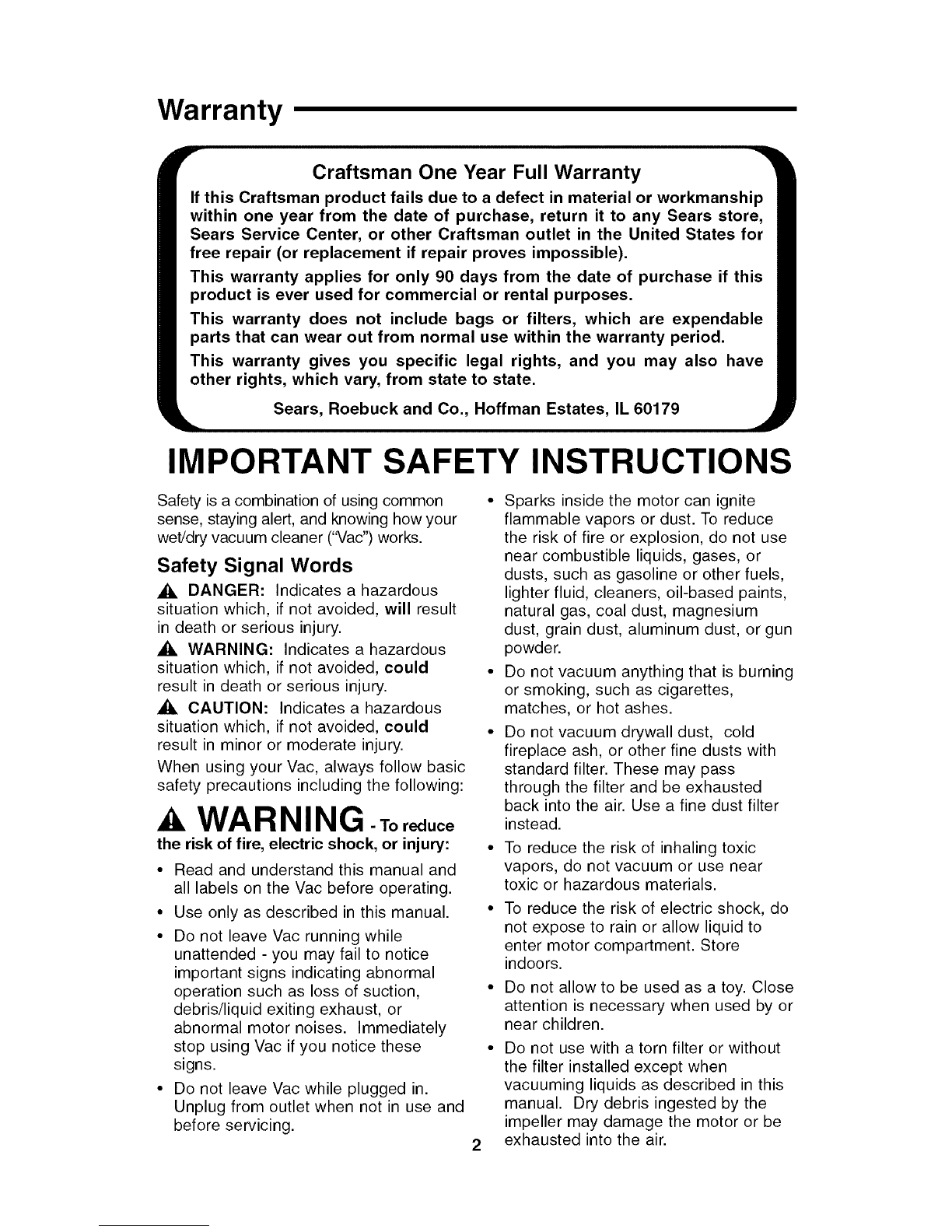

Warranty

Craftsman One Year Full Warranty

If this Craftsman product fails due to a defect in material or workmanship

within one year from the date of purchase, return it to any Sears store,

Sears Service Center, or other Craftsman outlet in the United States for

free repair (or replacement if repair proves impossible).

This warranty applies for only 90 days from the date of purchase if this

product is ever used for commercial or rental purposes.

This warranty does not include bags or filters, which are expendable

parts that can wear out from normal use within the warranty period.

This warranty gives you specific legal rights, and you may also have

other rights, which vary, from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

IMPORTANT SAFETY INSTRUCTIONS

Safety is a combination of using common

sense, staying alert, and knowing how your

wet/dry vacuum cleaner ('_/ac") works.

Safety Signal Words

_. DANGER: Indicates a hazardous

situation which, if not avoided, will result

in death or serious injury.

WARNING: Indicates a hazardous

situation which, if not avoided, could

result in death or serious injury.

_k CAUTION: Indicates a hazardous

situation which, if not avoided, could

result in minor or moderate injury.

When using your Vac, always follow basic

safety precautions including the following:

WARNING -Toreduce

• Sparks inside the motor can ignite

flammable vapors or dust. To reduce

the risk of fire or explosion, do not use

near combustible liquids, gases, or

dusts, such as gasoline or other fuels,

lighter fluid, cleaners, oil-based paints,

natural gas, coal dust, magnesium

dust, grain dust, aluminum dust, or gun

powder.

• Do not vacuum anything that is burning

or smoking, such as cigarettes,

matches, or hot ashes.

• Do not vacuum drywall dust, cold

fireplace ash, or other fine dusts with

standard filter. These may pass

through the filter and be exhausted

back into the air. Use a fine dust filter

instead.

the risk of fire, electric shock, or injury: •

• Read and understand this manual and

all labels on the Vac before operating.

• Use only as described in this manual. •

• Do not leave Vac running while

unattended - you may fail to notice

important signs indicating abnormal

operation such as loss of suction, •

debris/liquid exiting exhaust, or

abnormal motor noises. Immediately

stop using Vac if you notice these •

signs.

• Do not leave Vac while plugged in.

Unplug from outlet when not in use and

before servicing.

To reduce the risk of inhaling toxic

vapors, do not vacuum or use near

toxic or hazardous materials.

To reduce the risk of electric shock, do

not expose to rain or allow liquid to

enter motor compartment. Store

indoors.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

Do not use with a torn filter or without

the filter installed except when

vacuuming liquids as described in this

manual. Dry debris ingested by the

impeller may damage the motor or be

exhausted into the air.

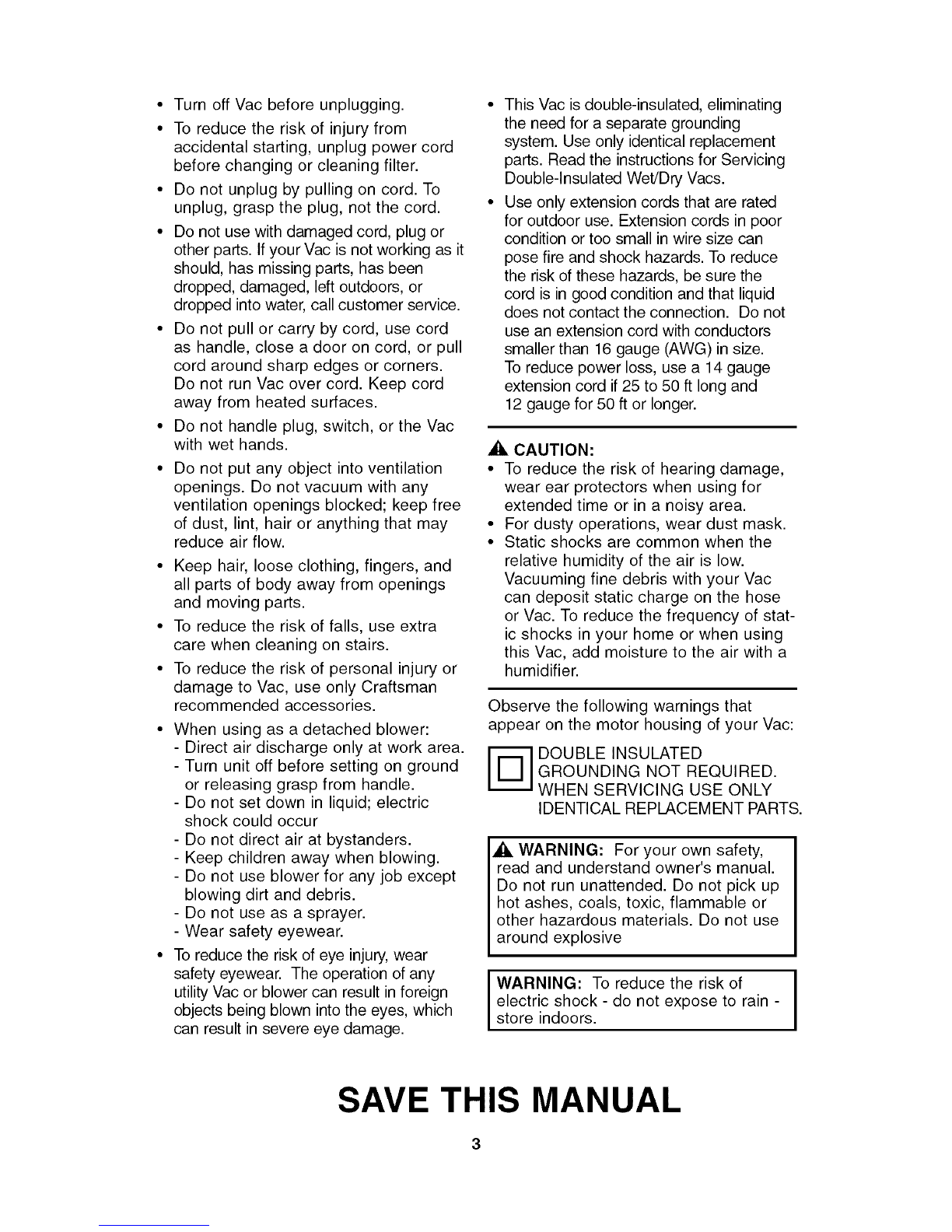

• TurnoffVacbeforeunplugging.

• Toreducetheriskofinjuryfrom

accidentalstarting,unplugpowercord

beforechangingorcleaningfilter.

• Donotunplugbypullingoncord.To

unplug,grasptheplug,notthecord.

• Donotusewithdamagedcord,plugor

otherparts.IfyourVacisnotworkingasit

should,hasmissingparts,hasbeen

dropped,damaged,leftoutdoors,or

droppedintowater,callcustomerservice.

• Donotpullorcarrybycord,usecord

ashandle,closeadooroncord,orpull

cordaroundsharpedgesorcorners.

DonotrunVacovercord.Keepcord

awayfromheatedsurfaces.

Donothandleplug,switch,ortheVac

withwethands.

Donotputanyobjectintoventilation

openings.Donotvacuumwithany

ventilationopeningsblocked;keepfree

ofdust,lint,hairoranythingthatmay

reduceairflow.

• Keephair,looseclothing,fingers,and

allpartsofbodyawayfromopenings

andmovingparts.

• Toreducetheriskoffalls,useextra

carewhencleaningonstairs.

• Toreducetheriskofpersonalinjuryor

damagetoVac,useonlyCraftsman

recommendedaccessories.

• Whenusingasadetachedblower:

-Directairdischargeonlyatworkarea.

-Turnunitoffbeforesettingonground

orreleasinggraspfromhandle.

-Donotsetdowninliquid;electric

shockcouldoccur

-Donotdirectairatbystanders.

-Keepchildrenawaywhenblowing.

-Donotuseblowerforanyjobexcept

blowingdirtanddebris.

-Donotuseasasprayer.

-Wearsafetyeyewear.

• Toreducetheriskofeyeinjury,wear

safetyeyewear.Theoperationofany

utilityVacorblowercanresultinforeign

objectsbeingblownintotheeyes,which

canresultinsevereeyedamage.

ThisVacisdouble-insulated,eliminating

theneedforaseparategrounding

system.Useonlyidenticalreplacement

parts.ReadtheinstructionsforServicing

Double-InsulatedWet/DryVacs.

Useonlyextensioncordsthatarerated

foroutdooruse.Extensioncordsinpoor

conditionortoosmallinwiresizecan

posefireandshockhazards.Toreduce

theriskofthesehazards,besurethe

cordisingoodconditionandthatliquid

doesnotcontacttheconnection.Donot

useanextensioncordwithconductors

smallerthan16gauge(AWG)insize.

Toreducepowerloss,usea14gauge

extensioncordif25to50ftlongand

12gaugefor50ftorlonger.

_, CAUTION:

• To reduce the risk of hearing damage,

wear ear protectors when using for

extended time or in a noisy area.

• For dusty operations, wear dust mask.

• Static shocks are common when the

relative humidity of the air is low.

Vacuuming fine debris with your Vac

can deposit static charge on the hose

or Vac. To reduce the frequency of stat-

ic shocks in your home or when using

this Vac, add moisture to the air with a

humidifier.

Observe the following warnings that

appear on the motor housing of your Vac:

'I OUBLE INSULATED

GROUNDING NOT REQUIRED.

WHEN SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS.

_, WARNING: For your own safety,

read and understand owner's manual.

Do not run unattended. Do not pick up

hot ashes, coals, toxic, flammable or

other hazardous materials. Do not use

around explosive

WARNING: To reduce the risk of

electric shock - do not expose to rain -

store indoors.

SAVE THIS MANUAL

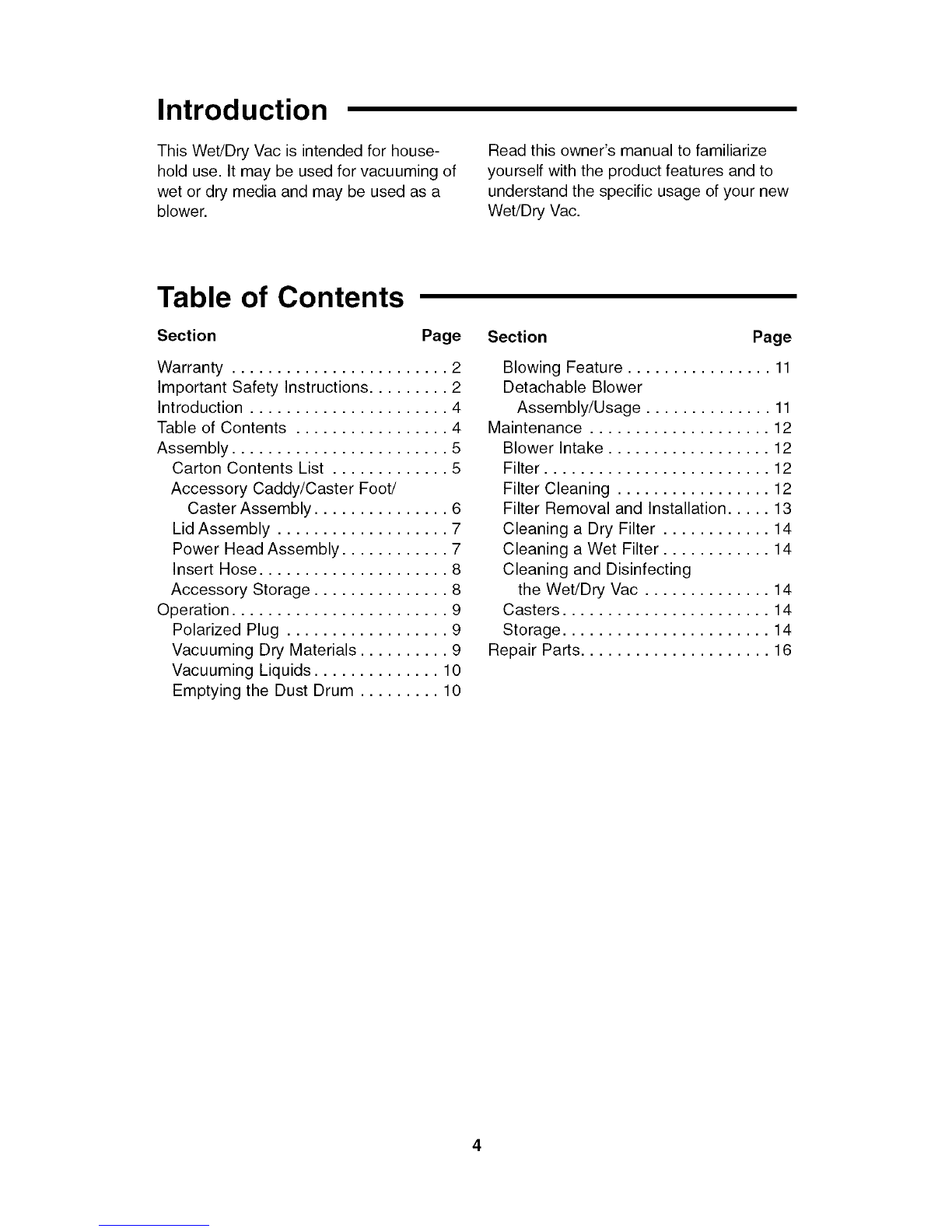

Introduction

This Wet/Dry Vac is intended for house-

hold use. It may be used for vacuuming of

wet or dry media and may be used as a

blower.

Read this owner's manual to familiarize

yourself with the product features and to

understand the specific usage of your new

Wet/Dry Vac.

Table of Contents

Section Page

Warranty ........................ 2

Important Safety Instructions ......... 2

Introduction ...................... 4

Table of Contents ................. 4

Assembly ........................ 5

Carton Contents List ............. 5

Accessory Caddy/Caster Foot/

Caster Assembly ............... 6

Lid Assembly ................... 7

Power Head Assembly ............ 7

Insert Hose ..................... 8

Accessory Storage ............... 8

Operation ........................ 9

Polarized Plug .................. 9

Vacuuming Dry Materials .......... 9

Vacuuming Liquids .............. 10

Emptying the Dust Drum ......... 10

Section Page

Blowing Feature ................ 11

Detachable Blower

Assembly/Usage .............. 11

Maintenance .................... 12

Blower Intake .................. 12

Filter ......................... 12

Filter Cleaning ................. 12

Filter Removal and Installation ..... 13

Cleaning a Dry Filter ............ 14

Cleaning a Wet Filter ............ 14

Cleaning and Disinfecting

the Wet/Dry Vac .............. 14

Casters ....................... 14

Storage ....................... 14

Repair Parts ..................... 16

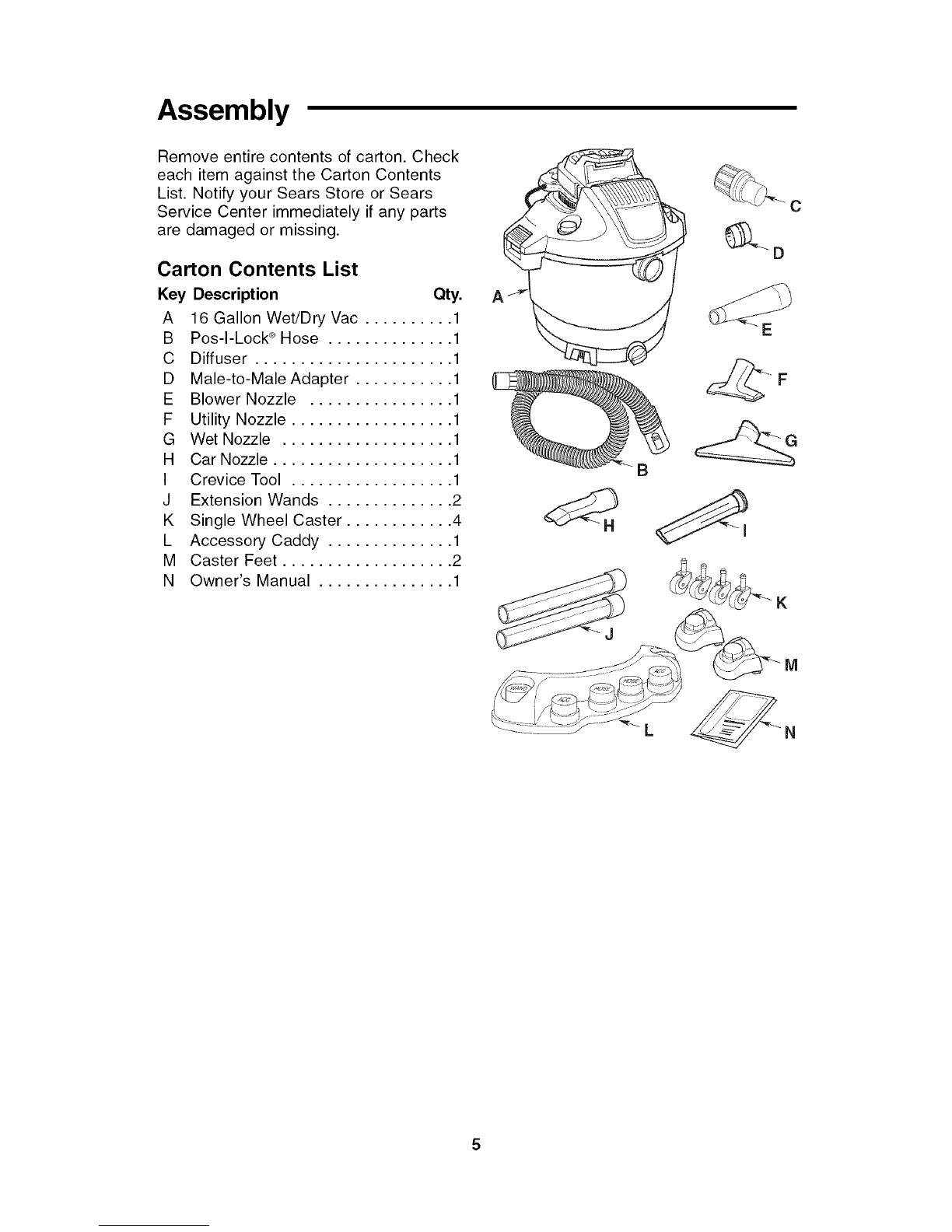

Assembly

Remove entire contents of carton. Check

each item against the Carton Contents

List. Notify your Sears Store or Sears

Service Center immediately if any parts

are damaged or missing.

Carton Contents List

Key Description

Qty.

16 Gallon Wet/Dry Vac .......... 1

Pos-I-Lock ®Hose .............. 1

Diffuser ...................... 1

Male-to-Male Adapter ........... 1

Blower Nozzle ................ 1

Utility Nozzle .................. 1

Wet Nozzle ................... 1

Car Nozzle .................... 1

Crevice Tool .................. 1

Extension Wands .............. 2

Single Wheel Caster ............ 4

Accessory Caddy .............. 1

Caster Feet ................... 2

Owner's Manual ............... 1

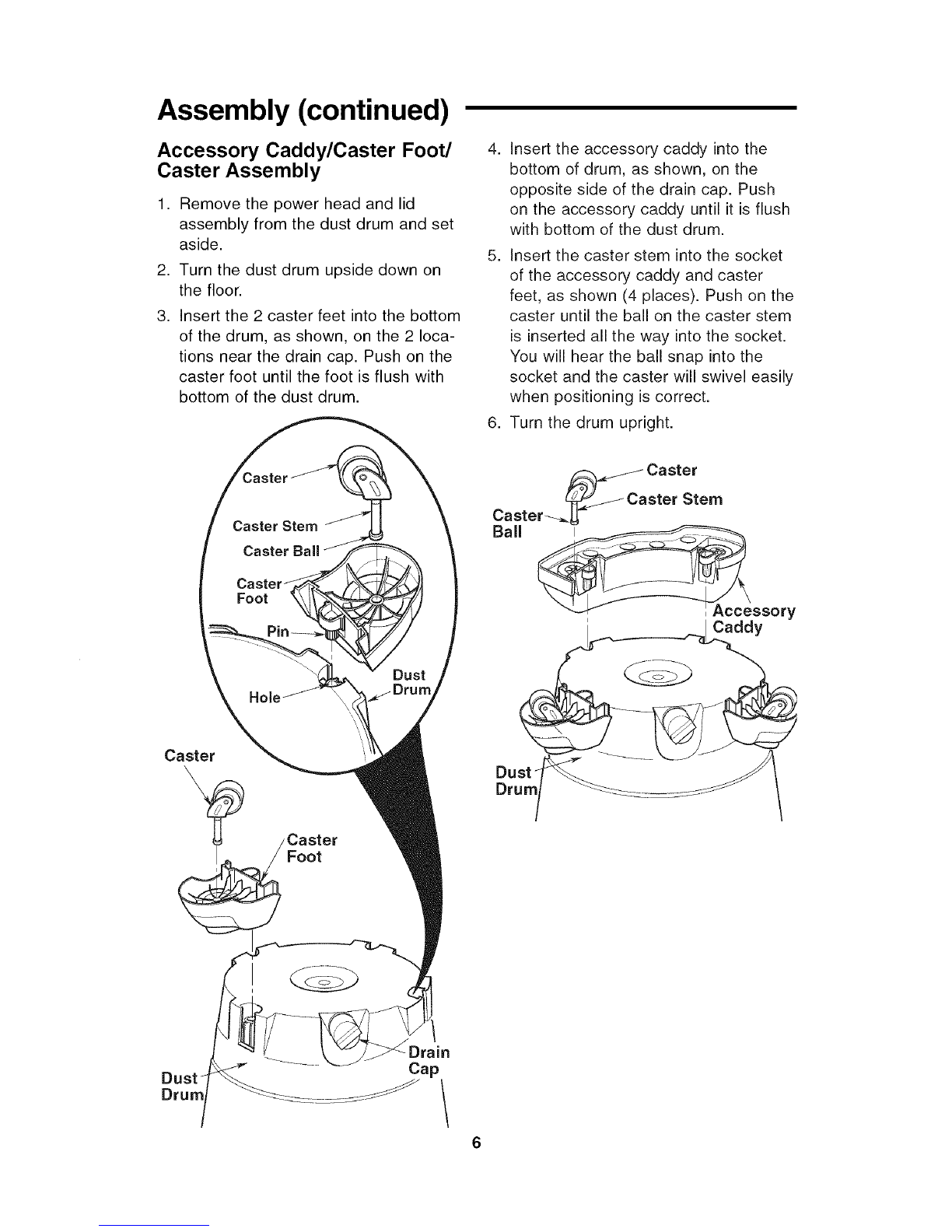

Assembly (continued)

Accessory Caddy/Caster Foot/

Caster Assembly

1. Remove the power head and lid

assembly from the dust drum and set

aside.

2. Turn the dust drum upside down on

the floor.

3. Insert the 2 caster feet into the bottom

of the drum, as shown, on the 2 loca-

tions near the drain cap. Push on the

caster foot until the foot is flush with

bottom of the dust drum.

4. Insert the accessory caddy into the

bottom of drum, as shown, on the

opposite side of the drain cap. Push

on the accessory caddy until it is flush

with bottom of the dust drum.

5. Insert the caster stem into the socket

of the accessory caddy and caster

feet, as shown (4 places). Push on the

caster until the ball on the caster stem

is inserted all the way into the socket.

You will hear the ball snap into the

socket and the caster will swivel easily

when positioning is correct.

6. Turn the drum upright.

Drum

Drain

Dust _ Cap

Drum /

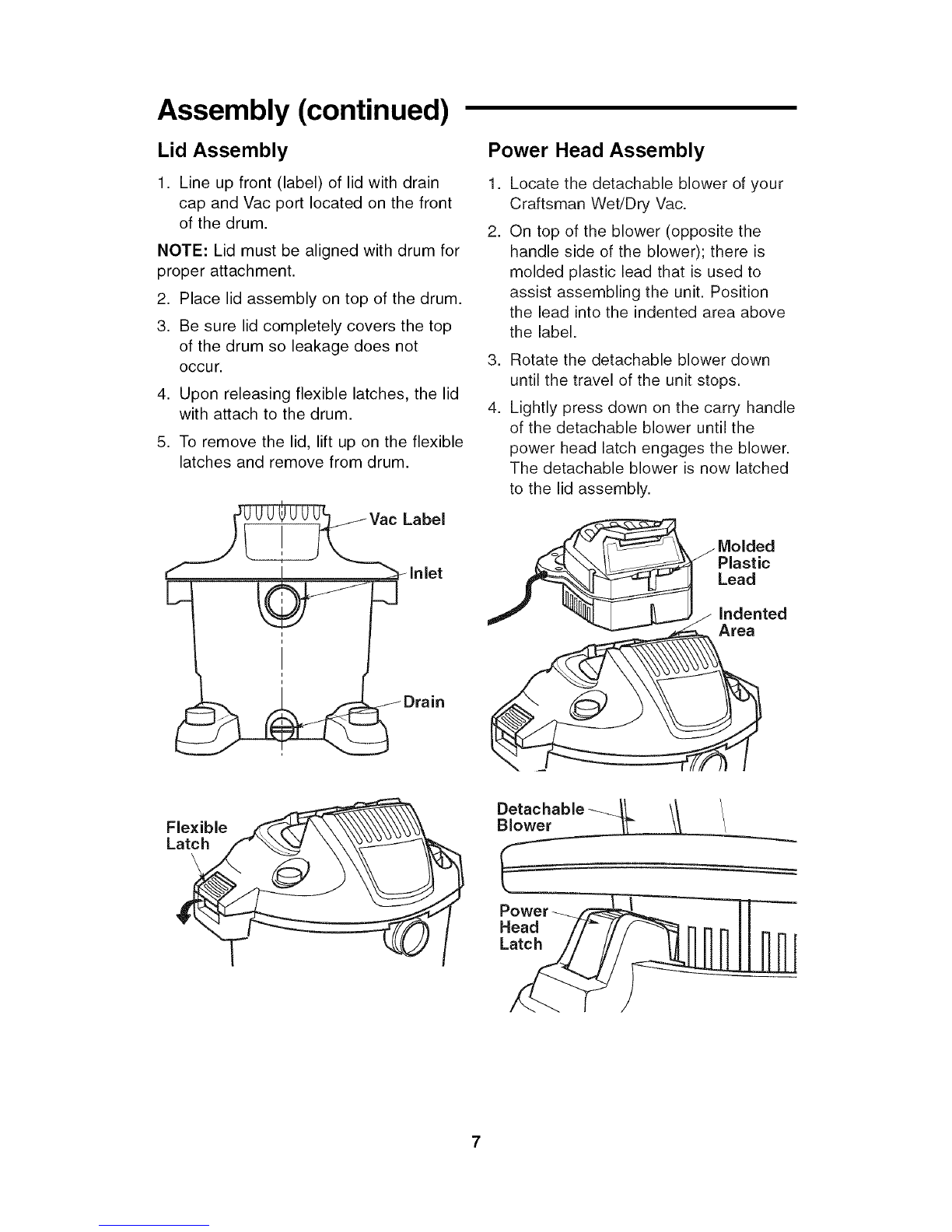

Assembly (continued)

Lid Assembly

1. Line up front (label) of lid with drain

cap and Vac port located on the front

of the drum.

NOTE: Lid must be aligned with drum for

proper attachment.

2. Place lid assembly on top of the drum.

3. Be sure lid completely covers the top

of the drum so leakage does not

OCCUr.

4. Upon releasing flexible latches, the lid

with attach to the drum.

5. To remove the lid, lift up on the flexible

latches and remove from drum.

c Label

....................................................................................___t J_lniet

: Drain

Power Head Assembly

Locate the detachable blower of your

Craftsman Wet/Dry Vac.

On top of the blower (opposite the

handle side of the blower); there is

molded plastic lead that is used to

assist assembling the unit. Position

the lead into the indented area above

the label.

Rotate the detachable blower down

until the travel of the unit stops.

Lightly press down on the carry handle

of the detachable blower until the

power head latch engages the blower.

The detachable blower is now latched

to the lid assembly.

Plastic

Lead

indented

Area

Flexible

LPower

Latch

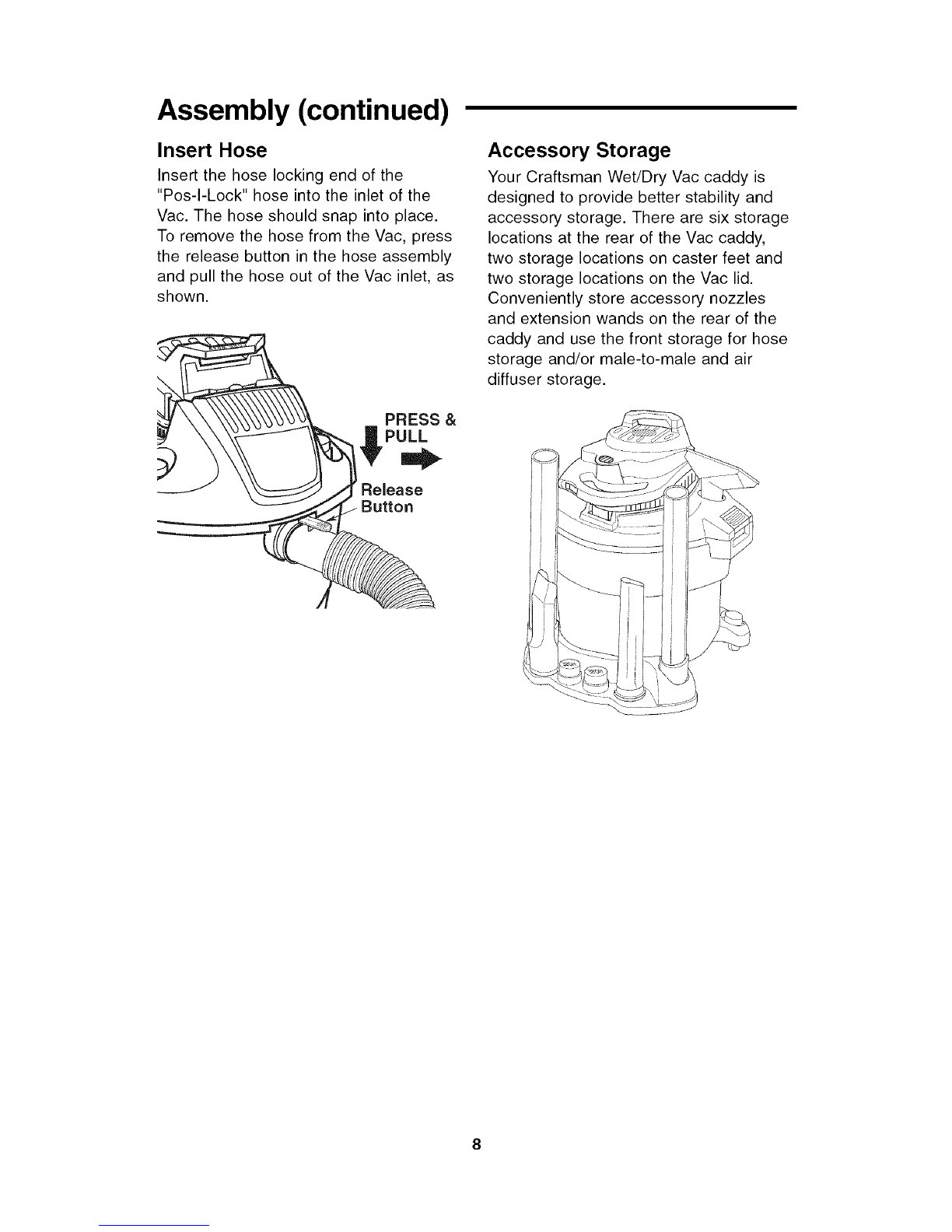

Assembly (continued)

Insert Hose

Insert the hose locking end of the

"Pos-I-Lock" hose into the inlet of the

Vac. The hose should snap into place.

To remove the hose from the Vac, press

the release button in the hose assembly

and pull the hose out of the Vac inlet, as

shown.

PRESS &

PULL

Release

Button

Accessory Storage

Your Craftsman Wet/Dry Vac caddy is

designed to provide better stability and

accessory storage. There are six storage

locations at the rear of the Vac caddy,

two storage locations on caster feet and

two storage locations on the Vac lid.

Conveniently store accessory nozzles

and extension wands on the rear of the

caddy and use the front storage for hose

storage and/or male-to-male and air

diffuser storage.

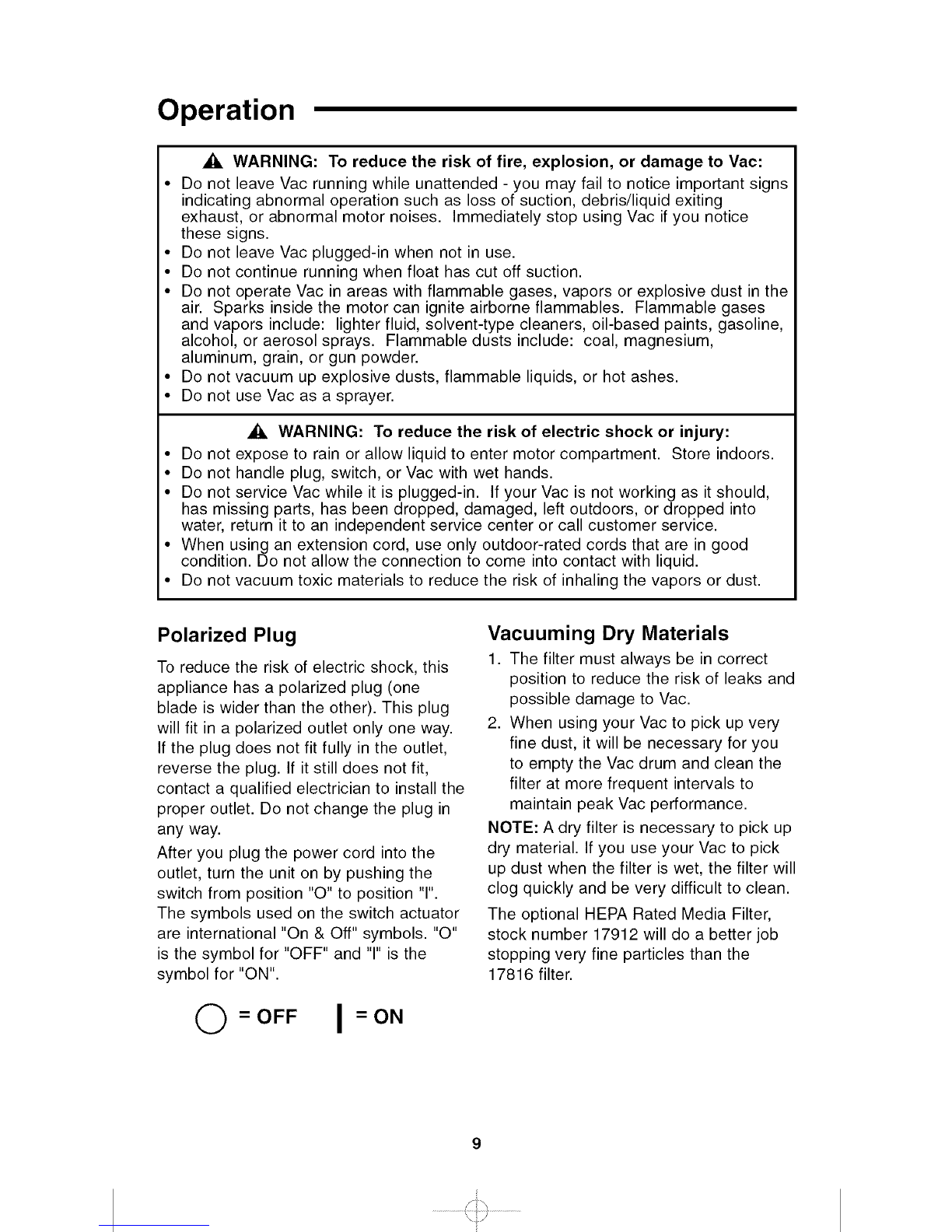

Operation

_, WARNING: To reduce the risk of fire, explosion, or damage to Vac:

• Do not leave Vac running while unattended - you may fail to notice important signs

indicating abnormal operation such as loss of suction, debris/liquid exiting

exhaust, or abnormal motor noises. Immediately stop using Vac if you notice

these signs.

• Do not leave Vac plugged-in when not in use.

• Do not continue running when float has cut off suction.

• Do not operate Vac in areas with flammable gases, vapors or explosive dust in the

air. Sparks inside the motor can ignite airborne flammables. Flammable gases

and vapors include: lighter fluid, solvent-type cleaners, oil-based paints, gasoline,

alcohol, or aerosol sprays. Flammable dusts include: coal, magnesium,

aluminum, grain, or gun powder.

• Do not vacuum up explosive dusts, flammable liquids, or hot ashes.

• Do not use Vac as a sprayer.

A WARNING: To reduce the risk of electric shock or injury:

• Do not expose to rain or allow liquid to enter motor compartment. Store indoors.

• Do not handle plug, switch, or Vac with wet hands.

• Do not service Vac while it is plugged-in. If your Vac is not working as it should,

has missing parts, has been dropped, damaged, left outdoors, or dropped into

water, return it to an independent service center or call customer service.

• When using an extension cord, use only outdoor-rated cords that are in good

condition. Do not allow the connection to come into contact with liquid.

• Do not vacuum toxic materials to reduce the risk of inhaling the vapors or dust.

Polarized Plug

To reduce the risk of electric shock, this

appliance has a polarized plug (one

blade is wider than the other). This plug

will fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit,

contact a qualified electrician to install the

proper outlet. Do not change the plug in

any way.

After you plug the power cord into the

outlet, turn the unit on by pushing the

switch from position "0" to position "1".

The symbols used on the switch actuator

are international "On & Off" symbols. "0"

is the symbol for "OFF" and "1"is the

symbol for "ON".

=OFF I=ON

Vacuuming Dry Materials

1. The filter must always be in correct

position to reduce the risk of leaks and

possible damage to Vac.

2. When using your Vac to pick up very

fine dust, it will be necessary for you

to empty the Vac drum and clean the

filter at more frequent intervals to

maintain peak Vac performance.

NOTE: A dry filter is necessary to pick up

dry material. If you use your Vac to pick

up dust when the filter is wet, the filter will

clog quickly and be very difficult to clean.

The optional HEPA Rated Media Filter,

stock number 17912 will do a better job

stopping very fine particles than the

17816 filter.

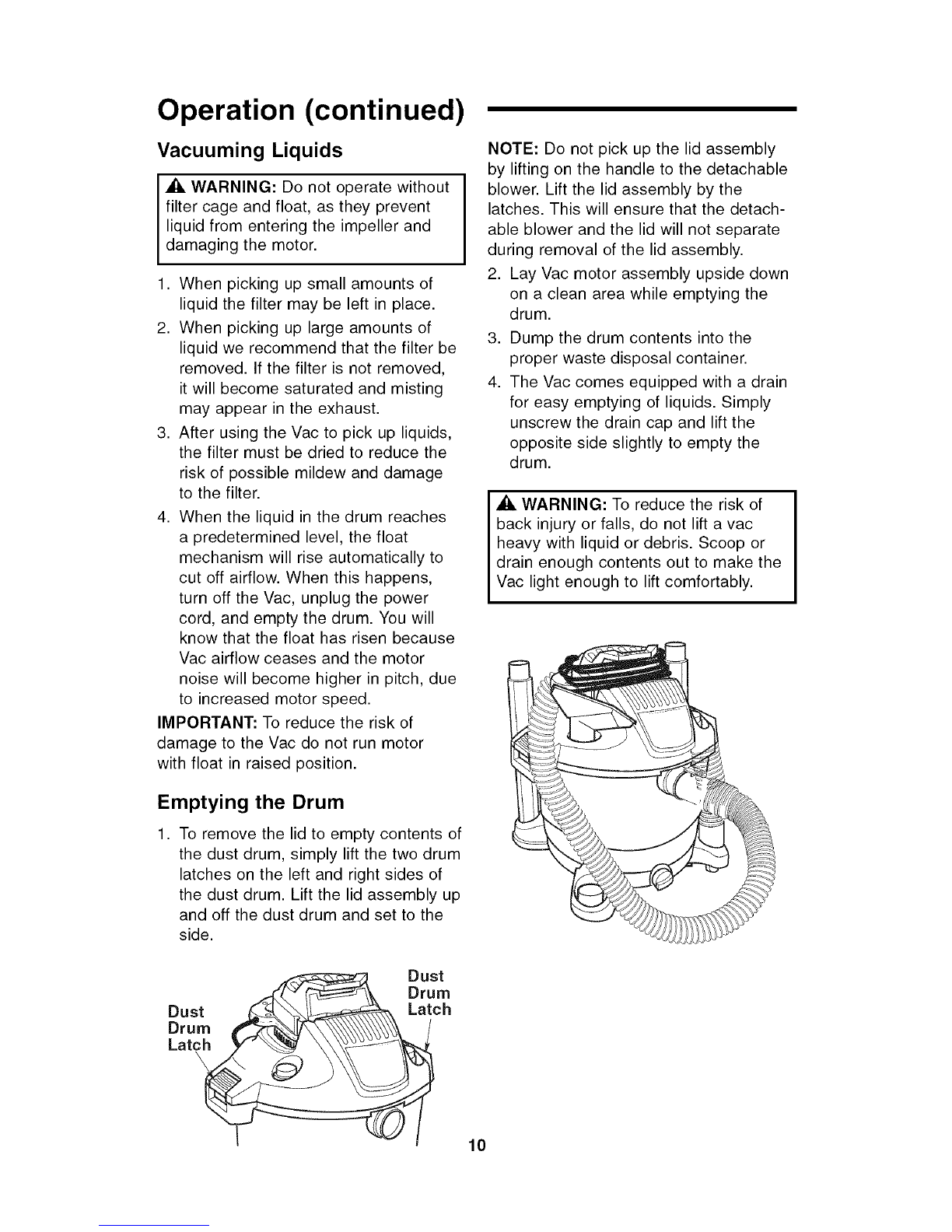

Operation (continued)

Vacuuming Liquids

AWARNING: Do not operate without

filter cage and float, as they prevent

liquid from entering the impeller and

damaging the motor.

1. When picking up small amounts of

liquid the filter may be left in place.

2. When picking up large amounts of

liquid we recommend that the filter be

removed. If the filter is not removed,

it will become saturated and misting

may appear in the exhaust.

3. After using the Vac to pick up liquids,

the filter must be dried to reduce the

risk of possible mildew and damage

to the filter.

4. When the liquid in the drum reaches

a predetermined level, the float

mechanism will rise automatically to

cut off airflow. When this happens,

turn off the Vac, unplug the power

cord, and empty the drum. You will

know that the float has risen because

Vac airflow ceases and the motor

noise will become higher in pitch, due

to increased motor speed.

IMPORTANT: To reduce the risk of

damage to the Vac do not run motor

with float in raised position.

Emptying the Drum

1. To remove the lid to empty contents of

the dust drum, simply lift the two drum

latches on the left and right sides of

the dust drum. Lift the lid assembly up

and off the dust drum and set to the

side.

NOTE: Do not pick up the lid assembly

by lifting on the handle to the detachable

blower. Lift the lid assembly by the

latches. This will ensure that the detach-

able blower and the lid will not separate

during removal of the lid assembly.

2. Lay Vac motor assembly upside down

on a clean area while emptying the

drum.

3. Dump the drum contents into the

proper waste disposal container.

4. The Vac comes equipped with a drain

for easy emptying of liquids. Simply

unscrew the drain cap and lift the

opposite side slightly to empty the

drum.

WARNING: To reduce the risk of

back injury or falls, do not lift a vac

heavy with liquid or debris. Scoop or

drain enough contents out to make the

Vac light enough to lift comfortably.

Dust

_w _& Drum

Dust _'_"_,. _ Latch

Drum /

Andere Handbücher für 113.170660

Inhaltsverzeichnis

Sprachen:

Andere Craftsman Staubsauger Handbücher

Craftsman

Craftsman 113.177745 Bedienungsanleitung

Craftsman

Craftsman 125.12002 Bedienungsanleitung

Craftsman

Craftsman 113.177980 Bedienungsanleitung

Craftsman

Craftsman CMXEVBCV430L Bedienungsanleitung

Craftsman

Craftsman 315.177500 Bedienungsanleitung

Craftsman

Craftsman CMCVS001BOGOHP Bedienungsanleitung

Craftsman

Craftsman 125.12007 Bedienungsanleitung

Craftsman

Craftsman CMXEVBE176120 Bedienungsanleitung

Craftsman

Craftsman 113.177000 Bedienungsanleitung

Craftsman

Craftsman 125.12009 Bedienungsanleitung

Craftsman

Craftsman 113.170170 Bedienungsanleitung

Craftsman

Craftsman 125.12009 Bedienungsanleitung

Craftsman

Craftsman 113.170660 Bedienungsanleitung

Craftsman

Craftsman 315.115710 Bedienungsanleitung

Craftsman

Craftsman 113.177135 Bedienungsanleitung

Craftsman

Craftsman 113.178060 Bedienungsanleitung

Craftsman

Craftsman 113.177145 Bedienungsanleitung

Craftsman

Craftsman 113.179715 Bedienungsanleitung

Craftsman

Craftsman CMXEVXA18115 Bedienungsanleitung

Craftsman

Craftsman 113.177621 Bedienungsanleitung

Craftsman

Craftsman 17761 - 16 Gal. Wet-Dry VAC Bedienungsanleitung

Craftsman

Craftsman 17741 - 6 Gal. Wet-Dry VAC Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJF910 Bedienungsanleitung

Craftsman

Craftsman 125.38907 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
