CYP PU-8H8HBTPL Bedienungsanleitung
PU-8H8HBTPL
8 x 8 HDMI HDBaseT™ LITE Matrix with PoC
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 29/01/13 First Release
v1.01 31/07/13 Added USB Power Cable information
v1.02 16/08/13 Corrected Package Contents
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 Side Panel ...................................................10
6.4 Remote Control........................................10
6.5 IR Cable Pin Assignment .......................11
6.6 RS-232 Pin Assignment..........................12
6.7 RS-232 and Telnet Commands............13
6.8 Telnet Control............................................14
6.9 Web GUI Control ......................................16
8. Specications...................................... 20
9. Acronyms............................................. 22
6
1. INTRODUCTION
The PU-8H8HBTL is an 8x8 HDMI HDBaseT™ Lite Matrix. Installers can
switch and distribute up to 8 HDMI sources, and 2-Way IR to lengths of up
to 60m using CAT5e/6/7 cable infrastructure. Control of the matrix is via
IP, RS-232, IR remote, or manual selection buttons. This single box solution
will enable an installer to condently integrate an eight zone multi-room
AV system.
The PU-8H8HBTL is designed to be used with the PU-514L-RX Receiver
which enables the use of 2-Way IR control feature. Utilise the USB power
output from a TV as an optional way of powering the PU-514L-RX receiver
unit alternative to a mains power supply.
2. APPLICATIONS
HDMI Matrix System
Video/TV wall display and control
Security surveillance and control
Commercial advertising, display and control
University lecture hall, display and control
Retail sales and demonstration
3. PACKAGE CONTENTS
HDBaseT™ Lite 8×8 HDMI Matrix
9×IR Emitter
1×24V/6.25 A DC Power Adaptor
1×IR Remote Control
1×Set of Rack Ears (REARS-08)
Operation Manual
7
4. SYSTEM REQUIREMENTS
HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
Industry standard CAT5e/6/7 cables
HDBaseT™ Lite Receivers (i.e PU-514L-RX)
5. FEATURES
Supports all v1.4 HDMI resolutions
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,
1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP and DVI complaint
High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM (up to 192kHz)
Uncompressed data transfer over single CAT cable (60m via CAT5e/6/7)
Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.
Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC
control pass through
Selectable EDID settings - TV (downstream) and STD (xed).
Compact 2U Rack mount design
Supports IP control
Supports 3D signals
Choose to power the PU-514L-RX via the USB output from a TV (Cable
available separately - ADC-USB): * Please note the performance and
consistency of USB power outputs from TV's can vary and cannot be
guaranteed by CYP.
Note:
1. Do not connect the CONTROL port to CAT outputs of this device.
8
6. OPERATION CONTROLS AND FUNCTIONS

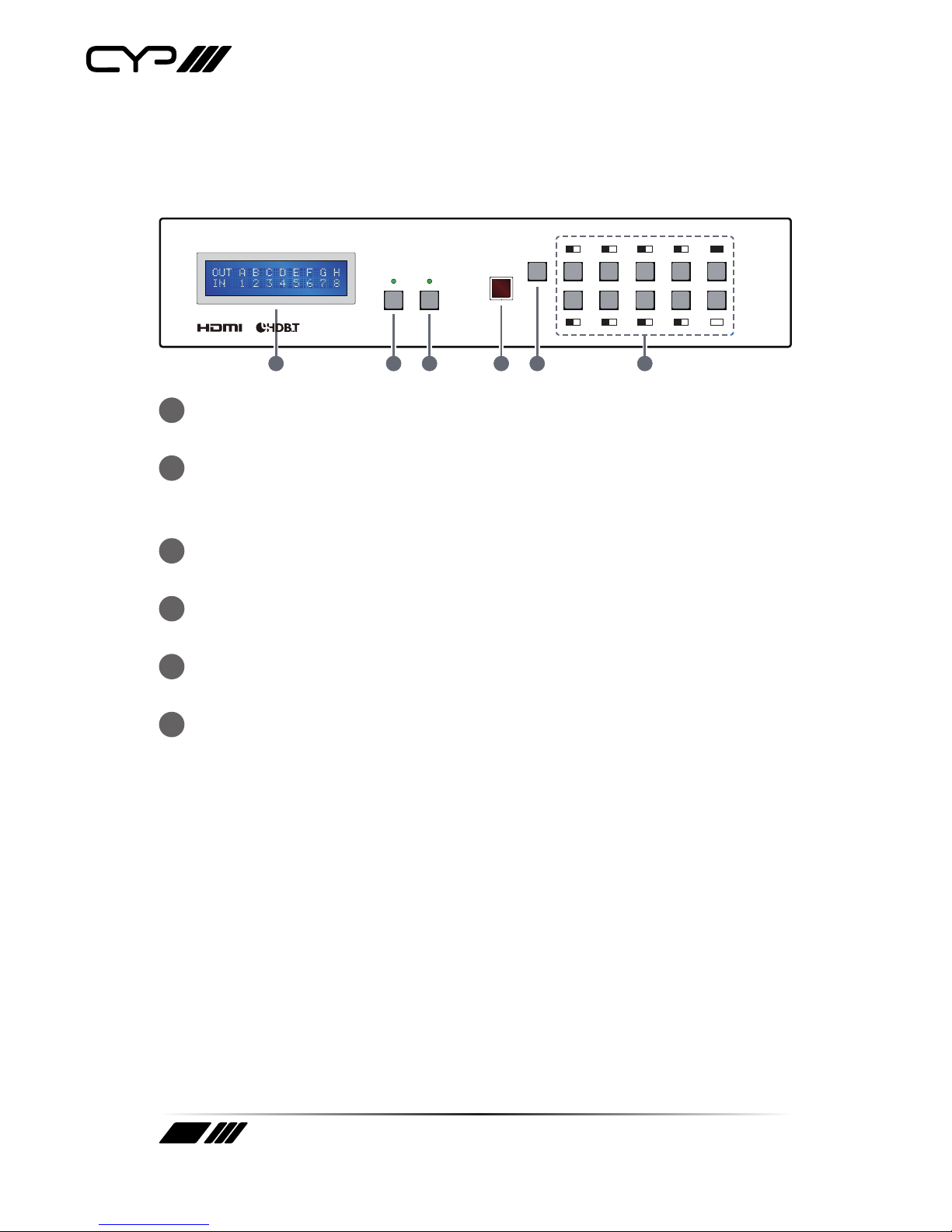

6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
2 3 4 5 61
1
LCM: Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/o. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from here
EDID settings can be managed and IP system settings are displayed.
6
A~H/1~8 and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button to
make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of button
presses need to be performed:
Press: OUTABCDIN1MENU,
and then press: OUTEFGHIN2MENU.
Note: If the MENU button is not pressed the selection will not be changed.
9

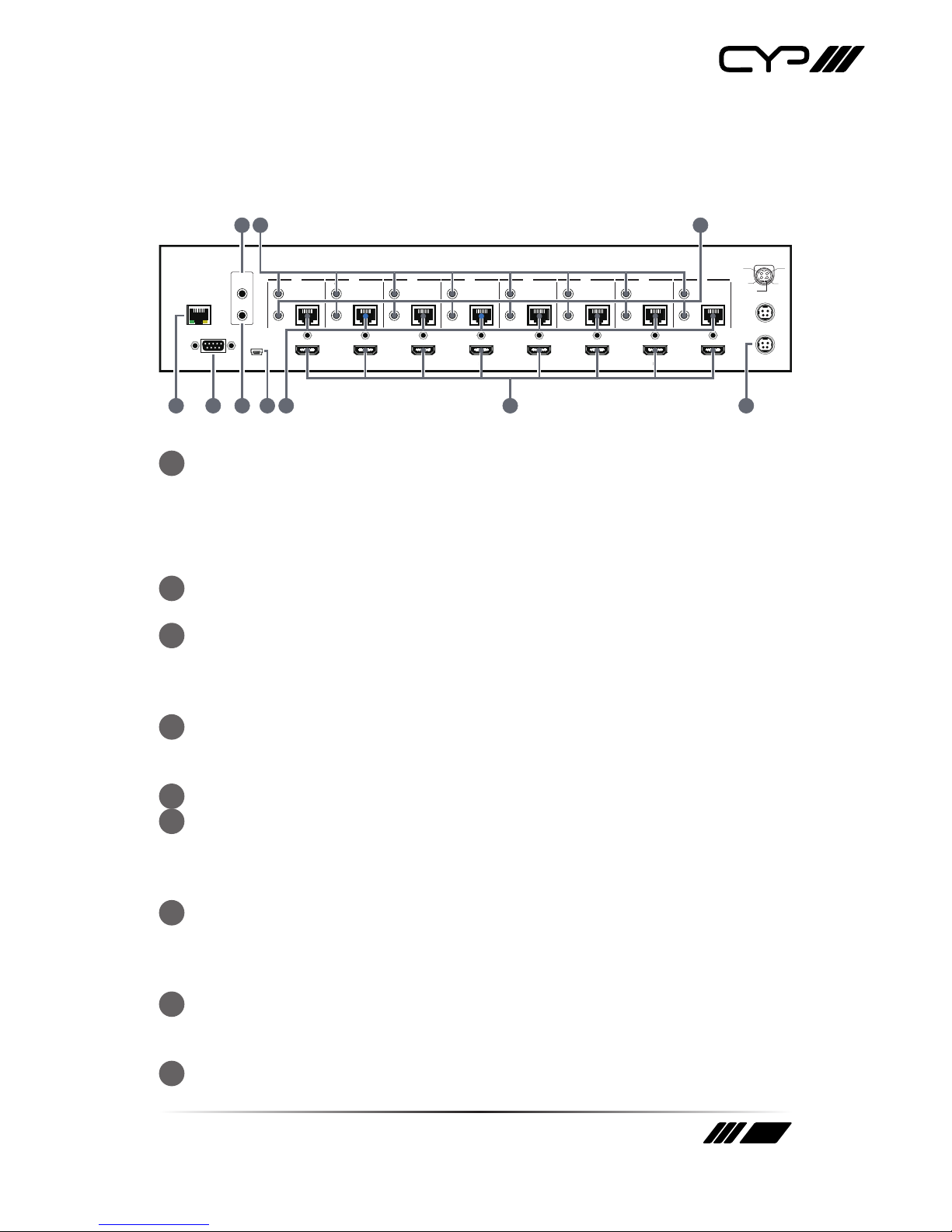

6.2 Rear Panel
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
DC 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
CONTROL
2 4
3
5101
6
8
7
9
POE 24V
1
CONTROL: This port is the link for Telnet or Web GUI controls, connect to
an active Ethernet link with an RJ45 terminated cable (for further details,
please refer to section 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop as the
Telnet function will not work.
2
RS-232: Connect to a PC or control system with D-Sub 9-pin cable for
RS-232 control.
3
ALL IR OUT: Connect to the IR blaster for IR signal transmission to the
source side. Place the IR blaster in direct line-of-sight of the equipment
to be controlled. It will transmit all signals received from the IR IN at
the receiver locations.
4
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure that
remote being used is within the direct line-of-sight of the IR extender
for it will send out the signal to all receiver's IR OUT.
5
SERVICE: Manufacturer use only.
6
IR OUT A~H: Connect to the IR blasters for IR signal transmission. Place
the IR blaster in direct line-of-sight of the equipment to be controlled.
It will transmit the IR signal received from the receiver side choosen by
input selection.
7
IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's IR
OUT.
8
CAT5e/6/7 OUT A~H: Connect from these CAT outputs to the CAT input
port of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/
Video and IR control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD
player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
10
DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's CONTROL port.
6.3 Side Panel
1
1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space around
the unit for air circulation.
6.4 Remote Control
1
POWER: Press this button to
switch on the device or set it to
standby mode.
2
IN: Input ports selection 1~8.
3
OUT: Output ports selection A~H.
1
23
