CYP CA-USBST Bedienungsanleitung

Operation Manual

CA-USBST & CA-USBS100R

USB over single CAT5e/6 Transmitter and Receiver

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version VR1.0 November 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 04/02/12 Preliminary release

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents .................................. 1

4. System Requirements.............................. 1

5. Features....................................................1

6. Operation Controls and Functions......... 2

6.1 Front Panel ..........................................2

6.2 Front Panel ..........................................3

6.3 Rear Panel...........................................4

7. Connection and Installation................... 5

8. Specications .......................................... 7

1. INTRODUCTION

With USB being the standard connection for consumer electronic

products, there has long been a need for something to let us operate

our many devices over long distances. The USB over CAT5e/6

transmitter and receiver boxes developed for this purpose as they

can operate in both the home and commercial markets. These

devices allow most of the USB host to send data bidirectional within

a 100-meter distance while offering up to 4 USB outputs, giving this

product the ability to act like a USB hub. In addition, this product can

also access data from the output port devices even when there’s 100

meters separating the devices or using ethernet hub in between to

extend the distance double up to 200 meters. The USB over CAT5e/6

transmitter and receiver boxes are the ideal choice for your USB

extension needs.

2. APPLICATIONS

• USB Extension over CAT5/6 up to 100M or 200M throu Hub

• Control devices from far away

• Host device information sharing and control

3. PACKAGE CONTENTS

•USB over CAT5e/6 Transmitter x1

•USB over CAT5e/6 Receiver x1

•5V / 3A DC Power Supply x2

•Operation Manual x1

4. SYSTEM REQUIREMENTS

PC or laptop with USB and CAT5e/6 cables and USB devices.

5. FEATURES

• Support USB 2.0 high-speed devices

• Operate with USB 2.0 high speed host controllers

• True plug and play without any driver installation required

• Supports all major Operating Systems including Windows®, MAC

OS®, and Linux

• Tested CAT5e/6 cable distance of up to 100 meters

• Simple set up with easy to use

• LED indicators for easy viewing

• Each USB output port contains 500 mA of power

6. OPERATION CONTROLS AND FUNCTIONS

TRANSMITTER

6.1 Front Panel

1 2 3 4 5 6 7

1USB Link

This LED will illuminate when the transmitter has linked with

receiver’s USB signal.

2Power LED

This LED will illuminate when the device is plugged with

power supply.

3DC 5V

Plug the 5V DC power supply into the unit and connect the

adaptor to an AC outlet.

4Link Pair Select

This dip switch allows user with multi-pairs setting for link up to 16

pairs of the devices with single IP router. Each pair must have the

same dip switch setting in order to pair to the right device setting.

The factory default setting is at 0000.

Note: To activate the setting a re-power on is required after

each new setting.

5Link On/Off button

Press this button to allow the receiver to be link up or unlink

with the transmitter’s USB input.

Note: To activate the link a re-power on is required after each

button pressed.

6USB In

This slot is to connect with PC/Laptop for input source signal with

USB B type cable.

7CAT5e/6 Out

This slot is to connect with CAT5e/6 cable with receiver

side’s CAT5e/6 input. When both transmitter and receiver is

connected the green LED will illuminate. When the data is

sending the yellow LED will be blinking.

RECEIVER

6.2 Front Panel

1 2 3 4 5 6

1USB Link

This LED will illuminate when the transmitter has linked with

receiver’s USB signal. User are only able to control the USB in

(the source device) when this LED is not illuminated.

2Power LED

This LED will illuminate when the device is plugged with

power supply.

3DC 5V

Plug the 5V DC power supply into the unit and connect the

adaptor to an AC outlet.

4Link Pair Select

This dip switch allows user with multi-pair setting for link up to 16

pairs of the devices with single IP router. Each pair must have the

same dip switch setting in order to pair to the right device setting.

The factory default setting is at 0000. (This function is not available

yet with the rst generation of the product)

Note: To activate the setting a re-power on is required after each

new setting.

5USB Link button

Press this button to allow the receiver to be link up or unlink

with the transmitter’s USB input.

Note: To activate the link a re-power on is required after each

button pressed.

6CAT5e/6 Out

This slot is to connect with CAT5e/6 cable with receiver side’s

CAT5e/6 input. When both transmitter and receiver is connected

the green LED will illuminate. When the data is sending the yellow

LED will be blinking.

6.3 Rear Panel

1USB 1~4

These slots are where you connect your devices, such as keyboard,

mouse, USB storage device or etc with USB cables.

7. CONNECTION AND INSTALLATION

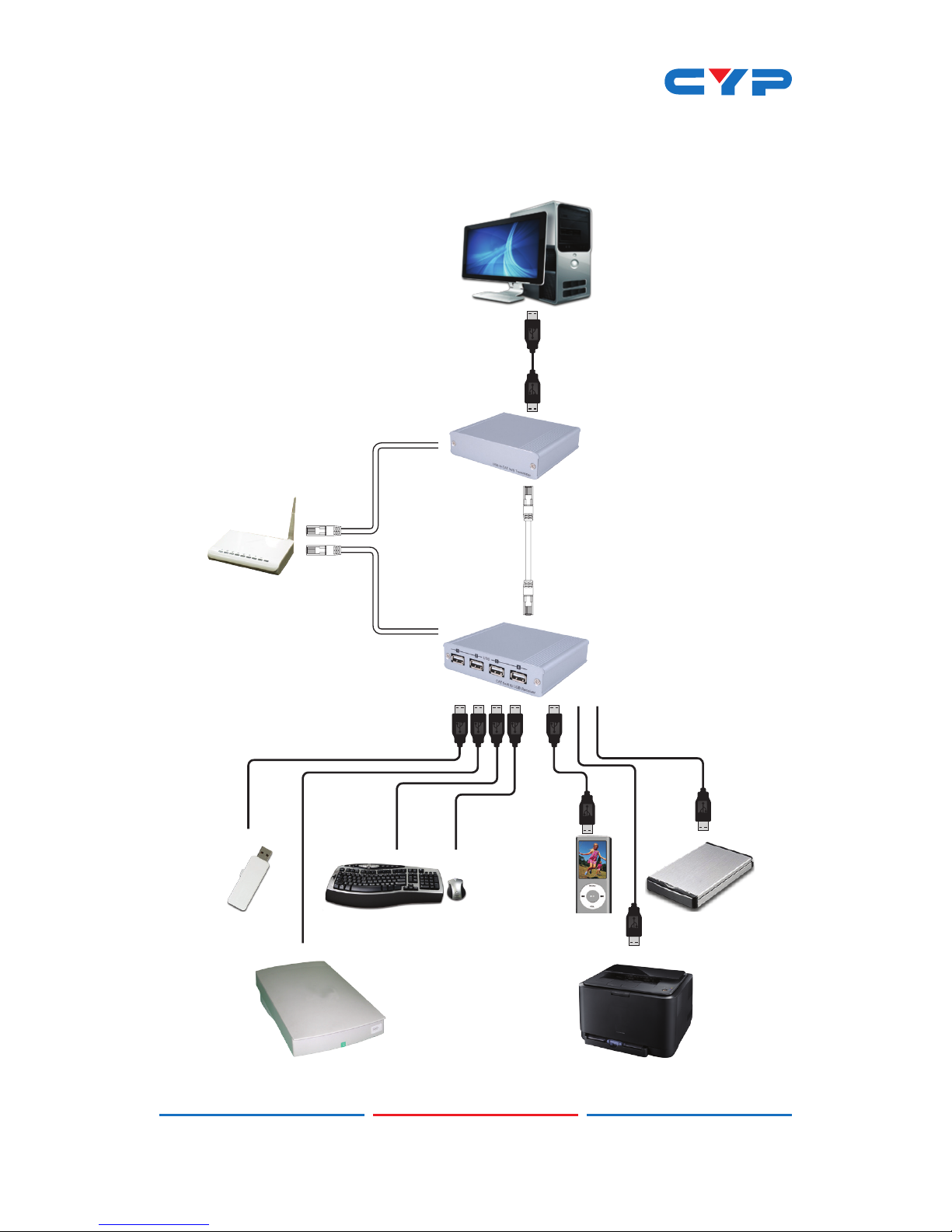

Flash MP4Keyboard Mouse hard drive

Scanner Printer

Receiver

Transmitter

CAT5e/6 100m

Internet Hub

USB

Example 1

Flash

Keyboard

HUB

Scanner

USB

Example 2

Transmitter X 16

Receiver X 16

Mouse

CAT5e/6 100mCAT5e/6 100m
