S/M NO : RC3714F010

OCTOBER. 2002

Service Manual

VACUUM CLEANER

DAEWOO

MODEL : RC-371BC

DAEWOO ELECTRONICS CORP.

CONTENTS

Page

1. SPECIFICATIONS ----------------------------------------------

2. EXTERNAL VIEWS ---------------------------------------------

2-1. ASSEMBLY ---- 3

3. DIAGRAM ---------------------------------------------------------

3-1. WIRING DIAGRAM -------------------------------------------------

3-2. CIRCUIT DIAGRAM ------------------------------------------------

4. TROUBLE SHOOTING GUIDE ------------------------------ 6

5. DISASSEMBLING AND TREATMENT --------------------

5-1. CLEANER ASSEMBLY -------------------------------------------- 8

5-2. BODY ASSEMBLY -------------------------------------------------

5-3. MOTOR ASSEMBLY -----------------------------------------------

5-4. CORDREEL ASSEMBLY -----------------------------------------

5-5. PCB ASSEMBLY ---------------------------------------------------- 14

5-6. HOSE ASSEMBLY -------------------------------------------------

5-7. BRUSH ASSEMBLY -----------------------------------------------

6. EXPLODED VIEW AND PARTS LIST ---------------------

6-1. CLEANER ASSEMBLY -------------------------------------------- 17

6-2. BODY ASSEMBLY ----------------------------------------------- 19

6-3. COVER ASSEMBLY -----------------------------------------------

6-4. MOTOR ASSEMBLY -----------------------------------------------

6-5. CORDREEL ASSEMBLY -----------------------------------------

6-6. PCB ASSEMBLY ---------------------------------------------------- 26

6-7. HOSE ASSEMBLY -------------------------------------------------27

6-8. PIPE ASSEMBLY ------------------------------------- 28

6-9. BRUSH ASSEMBLY ----------------------------------------------- 29

1. SPECIFICATIONS

MODEL

Rated Voltage/Frequency

Input Watt

Suction Power

Weight (Body)

Dimension (LXHXD)

Cord Length 5.4m

376 X 278 X 257 mm

Nozzle Crevice Nozzle

RC-371BC

1400W

250W

3.5Kg

AC 230V, 50Hz

2. EXTERNAL VIEWS

PART NAME MODEL

A - HOSE HANDLE RC-371BC

B - BODY HANDLE RC-371BC

C - CORD REWIND BUTTON RC-371BC

D - SWITCH BUTTON RC-371BC

E - DUST COVER RC-371BC

F - DUST METER RC-371BC

G- ADAPTER RC-371BC

H- HOSE RC-371BC

I- POWER CORD RC-371BC

J- BRUSH RC-371BC

2-1. ASSEMBLY

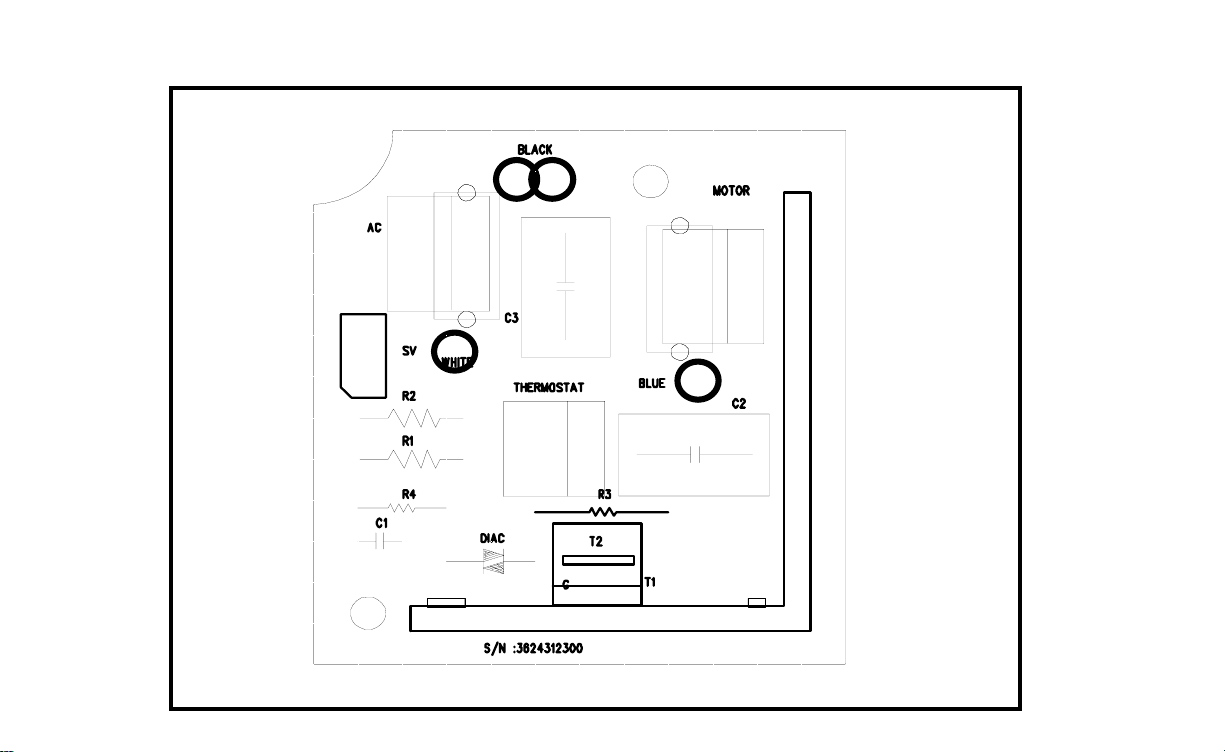

3. DIAGRAM

1) MODEL RC-3714F

3. DIAGRAM. 3-1. WIRING DIAGRAM MODEL RC-371BC

3-1. WIRING DIAGRAM

CordReel

Motor

Switch

PCB

CordReel

PCB

Volume PCB

Motor

Switch

1) MODEL RC-3714F

3-2. CIRCUIT DIAGRAM MODEL RC-371BC

3-2. CIRCUIT DIAGRAM

4. TROUBLE SHOOTING GUIDE

TROUBLE CAUSE COUNTERMEASURE

SUCTION POWER FILTER BAG(PAPER) IS FULL CHANGE IT WITH NEW ONE (See 5-2)

IS WEAK WITH DUST

FILTER PRE IS CLOGGY WITH DUST REMOVE THE DUST (See 5-2)

CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE

OR REPLACE THE HOSE (See 5-6)

DEFECTIVE MOTOR REPLACE THE MOTOR (See 5-3)

THE OPENING IN BRUSH IS CLOGGY REMOVE THE DUST (See 5-7)

WITH DUST

CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER CORD (See5-4

)

NOT WORK (AT BLADE TIP OR ROOT OF PLUG)

BREAKING OF CONNECTIONS REPAIR (See 5-6)

IN HOSE ASSEMBLY

DEFECTIVE SLIDE VOLUME REPLACE IT (See 5-6)

LOCATED IN HOSE HANDLE

DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

BREAKING OF CONNECTIONS REPAIR (See 5-4)

OR POOR CONTACTS IN

CORD REEL ASSEMBLY

DEFECTIVE MOTOR REPLACE IT (See 5-3)

BREAKING OF CONNECTIONS REPAIR (See 5-2)

IN BODY ASSEMBLY

BREAKING IN A FUSE REPLACE IT (See 5-5)

MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

STOP EVEN IF

SWITCH

TROUBLE CAUSE COUNTERMEASURE

BROKEN REEL SPRING REPLACE IT (See 5-4)

OF CORD REEL

POWER CORD BROKE AWAY REPAIR (See 5-4)

FROM THE BOBBIN

ABRASION OF THE ROLLER BRAKE REPLACE THE ROLLER

OF CORD REEL BRAKE (See 5-4)

LEVER SPRING BROKE AWAY REPAIR (See 5-4)

FROM THE CORD REEL BRACKET

POWER CORD DOES

NOT STOP AT AN

ARBITRARY POSITION

POWER CORD IS

NOT WOUND UP

BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE

REELSPRING

MAY SPRING OUT OF THE SPRING COVER.

CAUTION

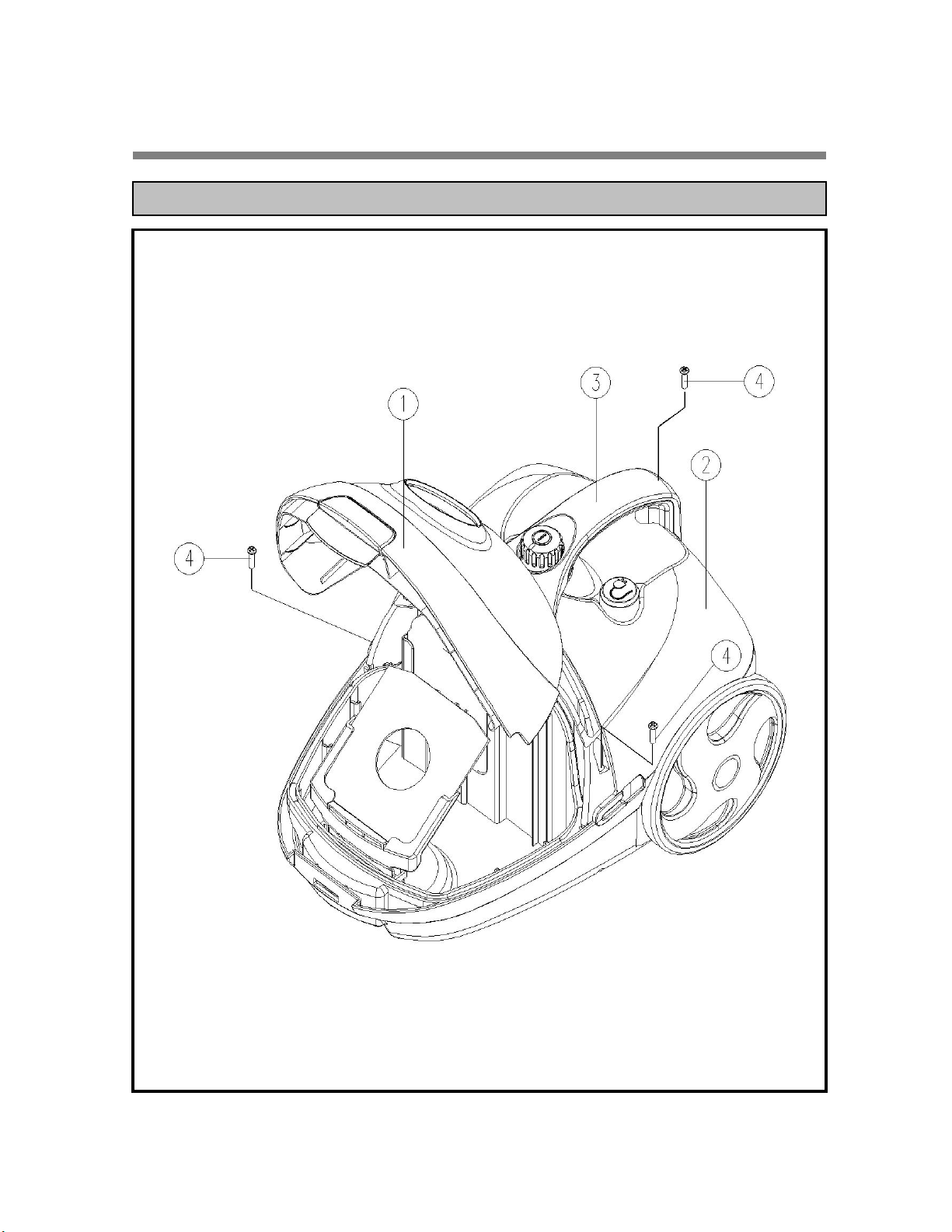

5. DISASSEMBLING AND TREATMENT

THE COVER ASSEMBLY(2) UP FROM THE BODY ASSEMBLY.

5-1. CLEANER ASSEMBLY

2) LIFT THE MOTOR ASSEMBLY(2), PCB ASSEMBLY(3), CORDREEL ASSEMBLY(4) UP

FROM THE BODY ASSEMBLY(1).
