■ Read the instruction manual carefully before using this vacuum

cleaner!

■ To protect environment, Please don't throw away this unit with

daily rubbish together.

Model: RC-230

VACUUM CLEANER

INSTRUCTION MANUAL

FEATURES

■Streamline mold-making and original design, representing modern fashionable life.

■With strong suction power

1600W motors, strong suction power.

■Multi-filter to avoid the second air pollution

Using the multi-filter system ensures cleaning out all the dust, and keep the air clean from

the outlet.

■One appliance fit with various suction nozzles for multi-purpose

Various suction nozzles are used to suck up dust on carpet or hard floor but also to remove

dust on wall, ceiling, couch, bed and all home electric appliance.

■Pedal on/off buttons for easy operation

Pedal on/off buttons can release you from stooping for easy operation.

■Suction power with freely regulation

To regulate the suction power on the air flow handle and unit.

■Dust bag full indicator function

When the dust bag or the air filter is full of dust, the dust full indicator on top of the body will

be covered by red indications. This shows that you need to empty the dust bag or clean the

air filter.

Warning:

This appliance is for household use only, It is only used indoors

for dust,

but not applied for industrial or decorating areas. It can not

suck in water.

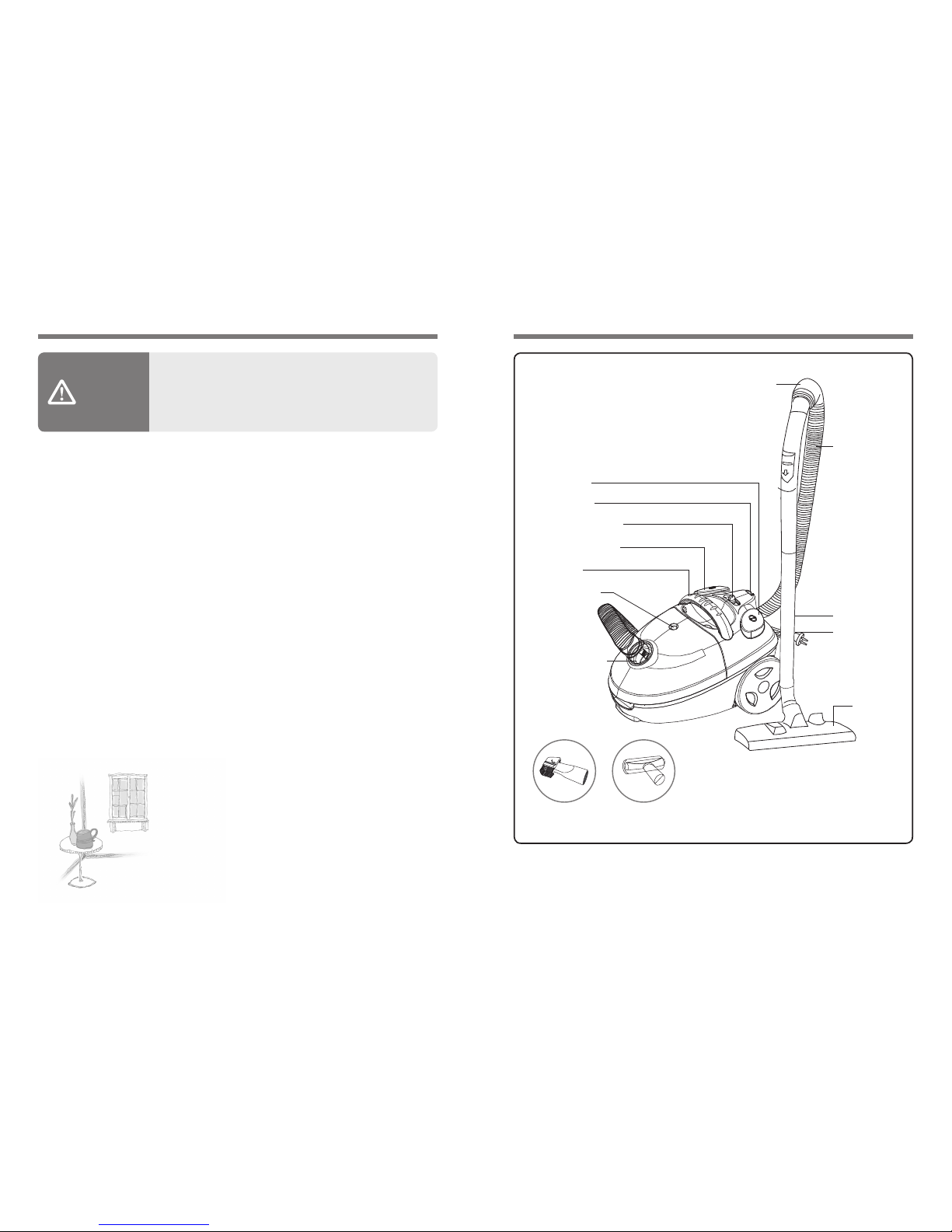

DESCRIPTION OF THE PARTS

Combi

crevice nozzle

Suction tybe head

Cord rewinding button

Speed regulation knob

Air flow handle

Hose

Connecting tube

Power cord

Floor brush

Parking holder

On/Off button

Dust ful indicator

Handle

Sofa brush

PRECAUTIONS HOW TO ASSEMBLE

■ Before using, please make sure the network voltage coincides with the product rated voltage.

■

When in use, do not block or shelter the rear outlet cover to avoid influencing normal air

exhaustion. Otherwise, the motor will be damage by overheat.

■

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualified person in order to avoid a hazard.

■

Keep the appliance away from stove or any other high temperature objects so as not to

influence its operation by deforming its plastic parts.

■ Do not bend, pedal, pull or carry by the flexible hose. Stop using the broken or

damaged hose.

■

When you need to clean or repair your appliance or stop operation, unplug from the

power outlet. To unplug, be sure to hold the plug, but not pull or carry by the power

cord.

■

To use the appliance, take care to place dust bag in good place, Do not use it without

dust bag in its position.

■

When sucking, do not suck up such particles as mud, paste and wall ashes, otherwise it

may result in obstruction to the dust bag or air filter or damage to the motor. If sucking

up these particles, please immediately clean the dust bag and air flow filter.

■

When in use, do not suck up suck hair rolls, large paper rolls or other objects which may

easily lead to block the suction hole or suction tube or hose. Otherwise it may cause

breakdown or deforming of body cover. If any block occur to the suction, immediately

stop operation by unplugging from the outlet for cleaning.

■

When cleaning the appliance, wet cloth soaked with water or neutral detergent shall be

used instead of gasoline or banana water. Otherwise it may lead to breakage of fade

ness of the body cover.

■

Press the button on top of the

plastic suction tube head and

then push it in the direction of

air inlet hole till locked

■

When discharge the hose,

press the button on top of the

plastic suction tube head and

then pull it back out towards

you.

■

How to use connecting tubes

and curved wand?

When connecting, insert the

bigger end of the connecting

tube into air flow handle and

then swivel it to firm connection.

■

Connection of the tubes. Refer

to the above said.

■

Connection of connecting tube

with floor brush. For connection,

insert the smaller end of

connecting tube into the tube on

the floor brush, and then swivel

it to firm connection.

■

Regarding the connection of

connecting tubes with crevice

nozzle, refer to the above said.

TO START OPERATION HOW TO USE

■

Pull out the power cord

The power cord can be pulled out as long as it is marked with yellow color. It is

forbidden to exceed the red mark

■

Cord rewinding button

When not in use, unplug from the electrical power outlet and then press the

cordrewinding button to feed back the power cord.

■

On/off button

After plugging into electrical power outlet, press the power button on the body cover to

control start and stop.

■

Cleaning dust bag and replacing parts.

When the cleaner indicator on top of the body is filled with red indications,it means the

dustbag is full of dust. You need to replace paper dustbag and clean the air filter when

dogged.

■

Speed regulation

When the power button is on, move the speed button on the middle of rear cover so

that the suction power can be controlled by stepless speed regulation.

If without speed control, the suction power is fixed.

■ Replacing the dust bag

1) Lift up by the front cover clamp to open the front cover (fig.1)

2) Take the dust bag holder with dust bag out from the dust compartment.(fig.2)

3) If you use a paper dust bag , replace it with a new one. If a cloth dust bag, take out the clip and open the

dust bag to empty dust then insert it back to its position for further use by sealing the bag well with the

clip.(fig.3)

4) Assembling the dust bag, you should press the clamp button on the bag holder, and insert the dust bag

into the two slots, then release the button to clip the dust bag.(fig 4)

5) If the dust bag is broken, replace it immediately.

■

Regulation of suction power

You can control suction power not only by speed regulation knob but also by air flow

regulator on handle.

■

For corner or crevice place, you can use combi nozzle

■

For couch, curtain or decoration surfaces, the sofa brush should be used. And the floor

brush is used for blanket and floor.

■

For storage

Insert the plastic holder of the brush into the unit base or holder hook on the backunit.

■

For cleaning

Pull the connecting tube out of the holder concave.

(fig.1) (fig.2) (fig.3) (fig.4)

Warning:

The dust bag must be assembled properly.

1. Replacing the front cover and turn the dust bag holder over to take out the

filter for cleaning or replace a new one.(fig.5)

2. Replacing the air outlet filter

Press the clamp position of the air outlet cover to discharge the air outlet

cover for clean up or a new replacement.(fig.6)

3. Cleaning the air inlet and outlet filter.(fig.7)

1) Put the filter into running water for rinsing.

2) Remove some water by patting the filter with towel, then dry it in cool place.

3) Dry the filter in a ventilation place, take care not to bake it so as to avoid

being deformed by high temperature.

Warning: wash the filter in a washing machine nor dry it with a hair dryer.

(fig.5)

(fig.6)

(fig.7)

8 9

TROUBLE SHOOTING GUIDE

■

Please check the following details before you have your appliance repaired in an authorized

servicing department.

Problem

Motor does

not work

1.Check if the power plug is firmly

inserted into the outlet.

2.Check if the power switch of the

appliance is on.

3.Check if the heat sensitive thermostat

be off due to overheating.

1.Insert the plug back again into the outlet to

secure it is switched on.

2.And then turn the power switch on.

3.After the motor be cool off,the unit will

restart working automatically.

Suction power

becomes

weak

1. Check if the hose, floor brush or

connecting tube is clogged.

2. Check if the dust is full;

3. Check if the air filter is clogged, the

connecting tube is correctly attached.

1.Immediately remove the obstruction.

2. empty dust.

3.Clean the dust bag for reassembly of

connecting tubes.

Power cord

will not fully

feed back

■

Check if the power cord is twisted. Pull out the power cord at its certain length

and rewind it.

Power cord

can not be

taken out

■

The power cord may be twisted.

Rewind or pull the cord in or out for several

times by pressing the power cord rewind

button.

Power cord

rewinds itself

■

The inertial rewinding by the cord

rewinder device may lead to be out

of control.

Pull the power cord out in for 4-5 times. If

still rewinds itself, ask for an authorized

servicing department for repair.

No speed

regulation

■

The speed regulation device may be

out of control

Restart the appliance for reuse at several

times, if it is exactly out of control, ask for

an authorized servicing department.

Front cover

can't be

closed

■

Check if no dust bag is put inside or

the front cover deformd without dust

bag in good position.

Put the dust bag in good position and then

take the appliance to the authorized

servicing department.

Dust full

indicator is

covered by red

indications

■

Check if the floor brush, the hose or

the long connecting tube is blocked.

See if the dust bag is full and the air

filter is clogged.

Immediately remove obstructions away.

Clean or replace the dust bag. Clean the air

inlet filter.

Possible reason Solution

Model No. RC-230

Rating voltage AC230V~50Hz

Power 1600W

TECHNICAL SPECIFICATIONS
