VISION 250

CAUTION!

Keepthis device awayfromrainand moisture!

Unplugmains lead beforeopeningthehousing!

FORYOUROWNSAFETY,PLEASEREADTHISUSERMANUALCAREFULLY

BEFOREYOUINITIALSTART-UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

-bequalilfied

- follow the instructions of this manual

CAUTION!

Becarefulwithyouroperations.Withahighvoltage youcansuffer

adangerous electric shockwhentouching the wires!

Thisdevicehasleftourpremisesinabsolutelyperfectcondition.Inordertomaintain this condition and to ensure

asafeoperation,itisabsolutelynecessaryfortheusertofollowthesafety instructions and warning notes written

in this manual.

Important:

Themanufacturerwillnotacceptliabilityfor any resulting damages caused by thenon-observanceofthismanual

or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

Neverletthepower-cordcomeintocontact with other cables! Handle thepower-cordandallconnectionswiththe

mains with particular caution!

Always plug in the power plug least. The power-plug has to be accessable after installing the device.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-

cord from time to time.

Alwaysdisconnectfromthemains, when the deviceisnotinuseorbefore cleaning it. Onlyhandlethepower-cord

by the plug. Never pull out the plug by tugging the power-cord.

This device falls under protection class I.Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.

During the initial start-up some smoke or smell may arise.This is a normal process and does not necessarily

mean that the device is defective.

Donot touch the device’s housing barehands duringitsoperation(housingbecomeshot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION! EYEDAMAGES!

Avoidlooking directlyinto the light source

(meantespecially for epileptics)!

2. Operating determinations

This device was designed for indoor use only.

If the device has been exposed to drastic temperature fluctuation (e.g.after transportation), do not switch it on

immediately.Thearisingcondensationwatermightdamageyourdevice.Leavethedeviceswitched off until it has

reachedroomtemperature.

When taking the device into operation, please make sure that the housing is closed firmly with all the necessary

screwstightenedup.

Never run the device without lamp!

Do not shake the device.Avoid brute force when installing or operating the device.

Whenchoosingthe installation-spot, please make sure that the device is notexposedtoextreme heat, moisture

or dust.There should not be any cables lying around.You endanger your own and the safety of others!

The minimum distance between light-output and the illuminated surface must be more than 0,8 m.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety-rope.Fix the safety-rope at the correct holes only.

Onlyoperatethefixtureafterhavingcheckedthatthehousingisfirmlyclosedand all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may

explose and emit a high ultraviolet radiation, which may cause burns.

Themaximumambienttemperature

=45°C must never be exceeded. Otherwise, the lamp is switched off and

the fixture is out of operation for 5 minutes.

CAUTION!

Thelenshas to be replacedwhenitisobviously damaged,

sothatits function is impaired, e. g.duetocracksor deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualifiedforoperatingthe device. Most damages are the result of unprofessional operation!

CAUTION!

Thelamphas to be replaced whenitisdamaged

ordeformedduetotheheat!

Wait at least 15 minutes before remowing the lamp.

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

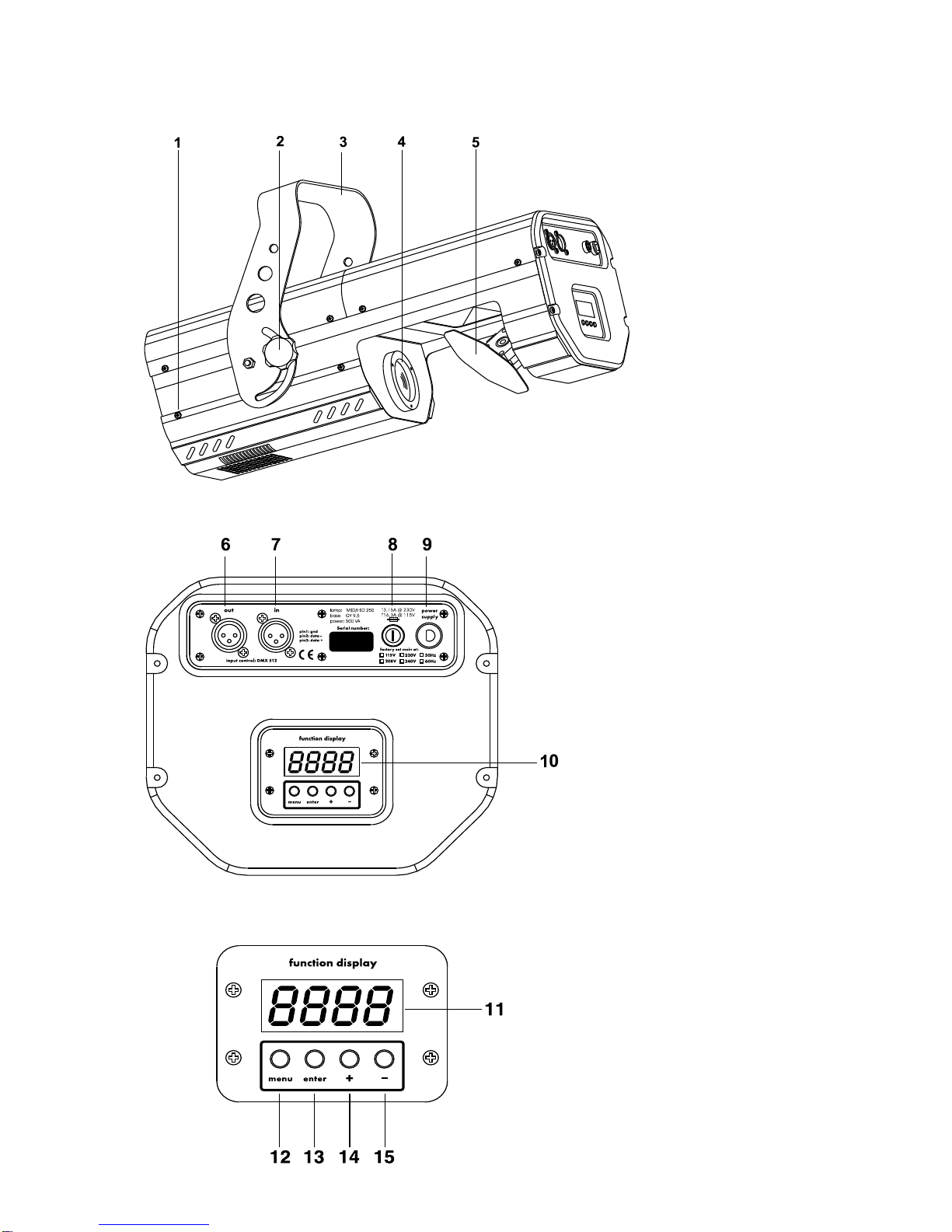

3. Description of the device

1- Fastening screws

2 - Fixation screw for bracket

3 - Bracket

4- Objective

5-Mirror

Front panel:

6- DMX Output

7- DMX Input

8-Fuseholder

9-Powercord

10 -Controlboard

Control board:

11 - Display

12-Menu-button

13 -Enter-button

14-Up-button

15 -Down-button

4. Installation

4.1Fitting the lamp

DANGER!

Installthelamps with the deviceswitchedoff only.

Unplugfrommains before !

To insert the lamp (MSD/HSD 250 or MSD250/2) open the cover by loosening the fastening screws at the sides

of the cover.

Donotinstallalampwith a higher wattage!A lamp likethisgeneratestemperaturesthe deviceisnotdesigned for.

Damagescausedbynon-observancearenotsubjecttowarranty.

Insert the lamp now.Do not touch the glass bulb with bare hands during the installation! Please follow the lamp

manufacturer‘snotes!

Before you close the cover again, make sure that the lamp is installed tightly into the lampholder system.

Adjusttheoptimaldistance 1-1.5 mmfromthelensbyturning the screw"A" (seethedrawings"Lampadjustment"

below)onthe rear panel of the fixture.

Reclose the housing and tighten the fastening screws.

Beforestrikingthelamp,resetthe"LAti" counterinthemainmenuofthecontrolboard,bypressingthe"+ " and

"-" buttons at the same time and then confirming with the "Enter"-button.

Donot operate this fixturewithopenedhousing-cover!

Lamp adjustment:

Correct Incorrect

The lampholder is aligned at the factory.Due to differences between lamps, fine adjustment may improve light

performance.

Strike the lamp, cancel all effects, open the shutter and set the dimmer intensity onto 100 % and focus the light

on a flat surface (wall).As the optimum distance of the lamp from lens was adjusted during the installing or

changing the lamp (by turning the screw "A"), it is necessary to adjust only the second position by turning the

screw "B", in order to center the hot-spot (the brightest part of the beam).

If the hot spot seems to be toobright, youcanloweritsintensity bymovingthelampclosertothereflector.Do so

by turning the srew "A" until the light is evenly distributed.

Ifthelightontheedgeseemstobebrighterasinthecenter, the lamp is too close at the reflector.Inthiscase,you

need to move the lamp away from the reflector until the light is evenly distributed and the beam appears bright

enough.

optimum distance

1-1,5 mm

Keep optimum distance to

the lens

Screw"B" Screw"A"

4.2 Installation of an optional lens

Thedeviceisdeliveredwitha15°-standardlens.If youwishtoinsertanoptional12° or 18°-lens (it is not standard

part of delivery,only for request), please follow the instructions below:

Optional 12°-lens:

Remove the the 15°-objective by loosening the 3 fastening screws with an appropriate screwdriver.Fix the tube

with the 3 screws and then screw the flange with 12°-lens .

Optional 18°-lens:

1.Openthecoverbylooseningthefasteningscrewsatthesidesofthecover.Unscrewthe knurled-headscrewon

the plate of the light-output.Install the optional 18°-lens holder.

2.Fix the 18°-lens holder with the knurled-head screw.Close the cover and tighten the fastening screws at the

sides of the cover.

standard15°-objectivetube

flangewith12°-lens

standard15°-objective

knurled-headscrew

18°-lensholder

fasteningscrews

4.3 Inserting/Exchanging rotating gobos

DANGER!

Installthegobos with the deviceswitchedoff only.

Unplugfrom mainsbefore!

Open the cover by loosening the fastening screws at the sides of the cover.

If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be exchanged, remove

the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the fixation-ring

together and insert it in the front of the gobo.

CAUTION!

Neverunscrew the screws oftherotatinggobo

asthe ball bearing willotherwisebeopened!

4.4 Rigging the fixture

Dangeroffire!

Wheninstalling the device,makesurethere is nohighlyinflammable

material(decorationarticles, etc.) in betweenadistanceof min. 0,5 m.

TheVISION 250 can be installed in any position without altering its operation characteristics

Install a safety wire that can hold at least 10 times the weight of the fixture. Never use the carrying handles for

secondaryattachment.

Makesurethatthedevice is fixed properly! Ensure that the structure

towhichyou are attaching the projectors issecure.

For fixing the projectors use the hole provided in the bracket.The hole in the adjustable mounting bracket has a

diameter of 10 mm.

For overhead use, fit a safety chain or cord.

4.5 Connection to the mains

Connect the fixture to the mains with the enclosed power-plug.

The earth has to be connected!

The occupation of the connection-cables is as follows:

Cable Pin International

Brown Live L

Lightblue Neutral N

Yellow/Green Earth

4.6 DMX-512 connection/connection between fixtures

Thewiresmustnot come intocontactwitheachother,otherwise

thefixtureswill not workat all,or will not workproperly.

Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the

fixture or one fixture with another.

Occupation of the XLR-connection:

DMX - output DMX-input

XLR mounting-socket: XLR mounting-plug:

IfyouareusingthestandardDMX-controllers,youcanconnecttheDMX-outputofthecontrollerdirectlywiththe

DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,

youneedtouseadapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always

connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Wresistor

between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

1-Ground

2 - Signal (-)

3 - Signal (+)

1-Ground

2 - Signal (-)

3-Signal(+)

5. DMX PROTOCOL

Channel Channel Value Function Type of control

16 bit 8 bit

1 1 Pan

0-255 Coarsecontrol ofthepanmovement proportional

2 2 Tilt

0-255 Coarse control of the tilt movement proportional

3 Pan fine

0-255 Fine control of the pan movement proportional

4 Tilt fine

0-255 Fine control of the tilt movement proportional

5 3 Speed of PAN/TILT movement

0 Max.speed step

249 Min. speed proportional

250-255 Max.speed,black-out while PAN,TILT moving step

6 4 Lamp on/off,reset,fan speed control

0-127 From max.speed of fan to min.speed of fan proportional

128-139 Lampon,reset step

140-229 No function step

230-239 Lamp off after 3 sec step

240-255 No function step

7 5 Colours

0 Open/white proportional

10 Turquoise proportional

21 Red proportional

32 Cyan proportional

42 Green proportional

53 Magenta proportional

64 Lightblue proportional

74 Yellow proportional

85 Green proportional

96 Pink proportional

106 Blue proportional

117 Orange proportional

128-190 Forwards rainbow effect from fast to slow proportional

191-192 Norotation step

193-255 Backwards rainbow effect from slow to fast proportional

8 6 No function

9 7 Frost,cor.filters,3-facet prism

0-95 Openposition(hole) step

96-103 Frost filter step

104-135 3-facet prism step

136-143 3200 K correction filter step

144-151 5600 K correction filter step

152-159 UV filter step

160-255 Prism/gobo macros step

160-167 Macro1 step

168-175 Macro2 step

176-183 Macro3 step

184-191 Macro4 step

192-199 Macro5 step

Andere Handbücher für VISION 250

Inhaltsverzeichnis

Andere Elation Scheinwerfer Handbücher

Elation

Elation POWER SPOT 700CMY II Bedienungsanleitung

Elation

Elation Color Tone 50 Montageanleitung

Elation

Elation CMY Zoom 250 Bedienungsanleitung

Elation

Elation RAYZOR BEAM 2R Bedienungsanleitung

Elation

Elation WW PROFILE Bedienungsanleitung

Elation

Elation ARENA PAR ZOOM Bedienungsanleitung

Elation

Elation Professional SIXPAR 200IP Bedienungsanleitung

Elation

Elation TVL2000 II Bedienungsanleitung

Elation

Elation KL FRESNEL 4 Bedienungsanleitung

Elation

Elation VOLT Q5E SIX PACK Bedienungsanleitung

Elation

Elation DLED Par Zoom Bedienungsanleitung

Elation

Elation DLED 12 BRICK Bedienungsanleitung

Elation

Elation Design LED 108IP Bedienungsanleitung

Elation

Elation Event Brick W System Bedienungsanleitung

Elation

Elation ELARQUADBAR Bedienungsanleitung

Elation

Elation KLF832 Bedienungsanleitung

Elation

Elation SIXPAR 300IP Bedienungsanleitung

Elation

Elation STAGE SETTER-24 Bedienungsanleitung

Elation

Elation Design LED 108IP Bedienungsanleitung

Elation

Elation Active Scan 250 Bedienungsanleitung

Elation

Elation ARENA ZOOM Q7IP Bedienungsanleitung

Elation

Elation Arena Par CW Bedienungsanleitung

Elation

Elation Waterfall 250 Bedienungsanleitung

Elation

Elation EVC MH LED Bedienungsanleitung

Beliebte Scheinwerfer Handbücher anderer Marken

VIZULO

VIZULO Micro Martin Benutzerhandbuch

EuroLite

EuroLite LED IP FL-100 SMD Bedienungsanleitung

Cooper Wheelock

Cooper Wheelock XB12 Bedienungsanleitung

Allen + Roth

Allen + Roth 17624-000 Bedienungsanleitung

ADJ

ADJ 4 STAGE PAK Bedienungsanleitung

Cooper Lighting

Cooper Lighting EGL91SW233 Bedienungsanleitung

Max

Max 37496 Bedienungsanleitung

BEGA

BEGA 85 143 Bedienungsanleitung

Beamz

Beamz 151.226 Bedienungsanleitung

EuroLite

EuroLite LED IP FL-8 Bedienungsanleitung

Ledj

Ledj PERFORMER 36 RGB Bedienungsanleitung

Perel

Perel ELS3 Bedienungsanleitung

Perel

Perel ELS3WD Bedienungsanleitung

LumX

LumX LM 36130 Bedienungsanleitung

Xtricity

Xtricity 4-80053 Bedienungsanleitung

Stahl

Stahl 6521/4 Series Bedienungsanleitung

Ecosense

Ecosense EcoSpec Bedienungsanleitung

Ayrton

Ayrton minipanel FX Bedienungsanleitung
