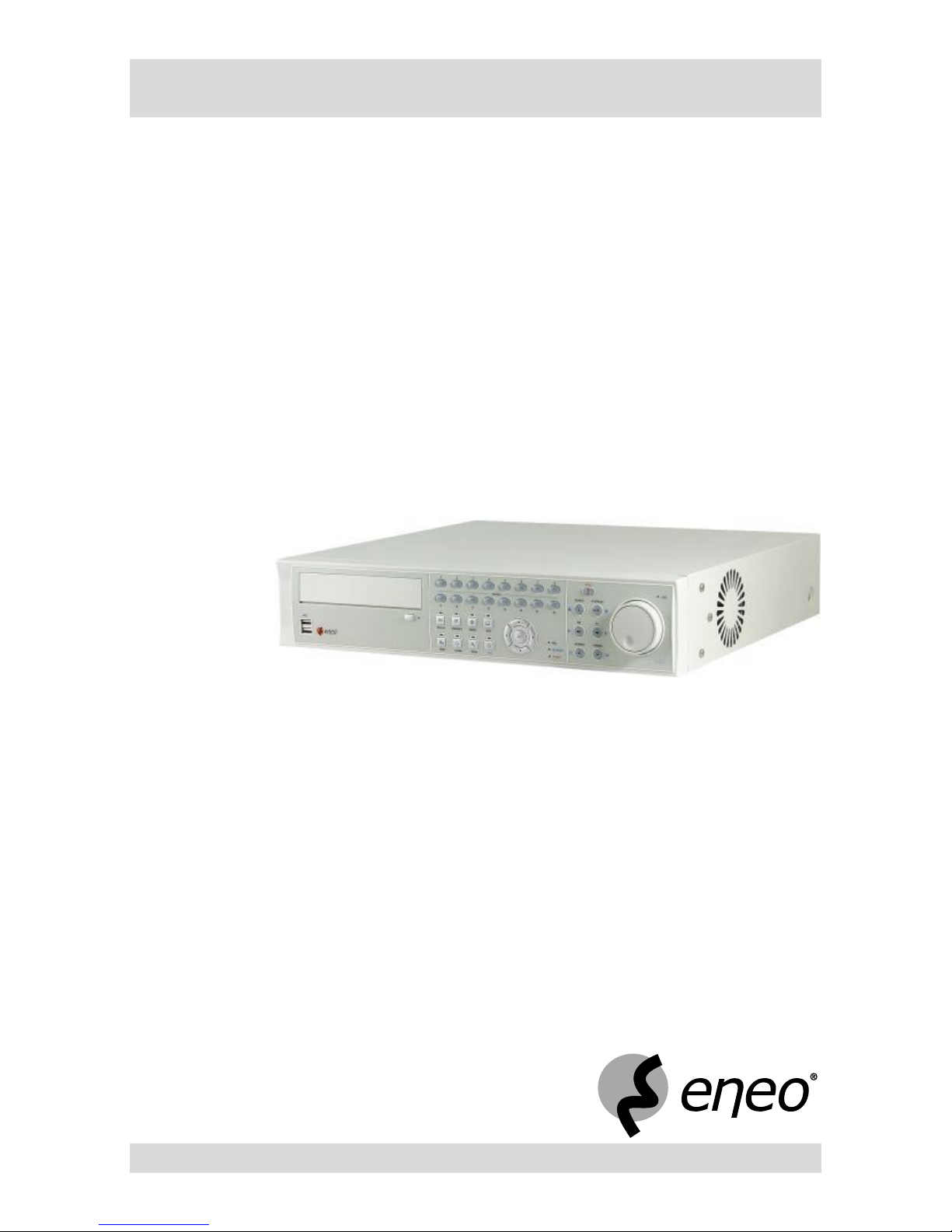

Eneo Eneo DTR-6008/500CD Bedienungsanleitung

Operating Instructions

Digital Video Recorder

Models: DTR-6008/250CD, DTR-6016/250CD,

DTR-6008/500CD, DTR-6016/500CD,

DTR-6008/750CD DTR-6016/750CD

DTR-60XX

Safety instructions

EMC class

This video recorder (DVR) is a class A device in accordance with EN 55022.

This device may cause interference to other equipment in domestic use. In such cases the persons opera-

ting the DVR are required to provide appropriate countermeasures, for which they themselves bear the cost.

►

Importance of these Operating Instructions

Please read the safety instructions and the other information contained in the Operating Instructions before

connecting up and operating the DVR.

The Operating Instructions should be kept in a safe place for later reference.

►

Ambient conditions for the DVR

The DVR should be protected against excessive heat, dust, damp and vibration.

The DVR may only be operated at temperatures between +5°C and +40°C, and up to a maximum air

humidity of 90%.

The DVR may only be operated indoors, and must be protected against incursion of water and damp.

►

Care of the DVR

Never switch on the DVR when damp has penetrated it. In such cases, have the DVR checked by a qualied

service engineer.

Do not place any heavy objects on the DVR.

Never cover over the DVR's vents.

Never insert metal objects or any other items into the vents. This may permanently damage the DVR.

The housing may only be opened by authorised persons. Repairs may only be carried out by qualied

service personnel.

The DVR must be disconnected from the power supply before its housing is opened.

►

Getting started with the DVR

When laying the connecting cables, make sure no weight is placed on them, that they are not kinked or

damaged, and that no damp can penetrate them.

►

Cleaning the DVR

The housing of the DVR may only be cleaned with a damp (not wet) cloth,

Use only a mild detergent. Do not use solvent-containing detergents or petrol. This could permanently

damage the surface nish.

►

Spare parts

Use only original spare parts from Videor Technical GmbH.►

DTR-60XX

Table of contents

Overview 7

Package contents 7

Basic functions 7

Features 7

Requirements for operation 7

Control options 7

Connections on the rear 8

Front panel controls 9

Key to controls 10

Function buttons 10

PTZ camera functions 10

Playback functions 10

Remote control functions 11

Playback functions 11

Menu overview 12

Accessing the menus 14

Accessing the Display menu 14

Accessing the PTZ menu 14

Accessing the Setup menu 15

Accessing the Search menu 15

Getting started 16

Checklist for DVR operation 16

Connecting the remote control and DVR 16

Switching on the DVR 17

Switching off the DVR 17

Administration 18

Saving your system setup 18

Loading your system setup 18

Deleting recordings 18

Downloading software updates 19

Hiding from specic users 19

Restoring factory defaults 19

Mirroring of hard disks 20

Determining the memory requirement of a recording 21

Searching for recordings 22

Using calendar search 23

Using event log search 24

Using text-in search 25

Using motion search 26

Copying recordings 27

6DTR-60XX

Table of contents

Menu descriptions – Setup menu 28

System – Information 29

System – Date/Time 30

System – Storage 31

System – User 33

System – Shutdown 34

System – Log out user1... 34

Network – Network 34

Network – Notication 37

Devices – Camera 38

Devices – Audio 39

Devices – Alarm-Out 40

Devices – Display 41

Devices – Remote Control 42

Record – Record 43

Record – Schedule 44

Record – Pre-Event 45

Record – Archive 46

Event – Alarm-In 47

Event – Motion Detection 49

Event – Video Loss 51

Event – Text-In 53

Event – System Event 55

Event – Event Status 57

WebGuard – WebWatch controls 58

WebGuard – WebSearch controls 59

Using WebGuard 60

Specications DTR-6008 61

Specications DTR-6016 63

Accessories 65

Supported PTZ cameras 66

Index 67

Notes on disposal 70

DTR-60XX

Overview

Package contents

Digital video recorder (DVR)

Mains power cord

Operating instructions

RAS (Remote Administration System) software on CD

Operating instructions for RAS software on paper and CD

Mounting kit for cabinet installation

Screws for attaching SCSI Connector

Mounting screws and guides for installation of hard disk drives

Infrared remote control

Basic functions

Record video images using multiple cameras

Even-based recording start

Video playback

Search for specic video sequences

Features

MPEG-4 compression / triplex mode

8 or 16 loop-through inputs / VGA, S-VHS/FBAS outputs

Audio and alarm inputs / outputs

Max. recording speed: 400 eld images per sec (PAL)

Memory capacity 250 GB / 500 GB / 750 GB

Maximum video resolution 720 x 576 pixels

SCSI port for archiving / memory expansion

Various recording criteria possible

Archiving/image transfer via USB and CD-RW

ATM/POS text display / 2x to 4x digital zoom

Telemetry control functions via RS-485 port

Network port (Ethernet) / IR remote control

Requirements for operation

Digital video recorder DTR connected

At least 1 camera connected

At least 1 monitor connected

Mouse connected, if DVR is to be controlled by mouse

Control options

Front panel

Remote Control

Mouse

WebGuard

RAS program

●

8DTR-60XX

Connections on the rear

Note: Connections optionally for NTSC or PAL operation.

AUDIO IN 1 AUDIO IN 2 AUDIO IN 3 AUDIO IN 4 AUDIO OIT

VIDEO IN

LOOP

SPOT 1 SPOT 2

SPOT 3 SPOT 4

VIDEO OUT

SVHS OUT

NETWORKUSB RS-232C VGA SCSI

RS-485

ARI GNDNC COM NO AO2 AO4 AO5 AO6 AO7

AO8 AO12 GND

GND

AO10AO9 AO11 AO13 AO14 AO15 AO16

AO3

AI1 AI2 AI3 AI4 AI5 AI6 AI7 AI8

GND GND GND

AI9

AI11AI10 AI12 AI13 AI14 AI15 AI16

GND

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

1 2 3 4 5 6

14 13 11121819 17 1516 910 8 7

No. Designation Functions/connections Example devices

1 VIDEO IN 1-16 Max. 16 video channels Cameras

2 LOOP 1-16 Max. 16 loop-through video channels Cameras

3 SVHS OUT S-VHS output Monitors

4 VIDEO OUT Video output Monitors

5 SPOT1 - SPOT4 Max. 4 video outputs Spot monitors

6 RS-485 External interface Keyboard, PTZ camera

7 NETWORK Network Network cable

8 ARI/GND Reset alarm with external signal Switch

9 SCSI External storage media Hard disk

10 AO2 - AO16 Alarm outputs for external devices Siren, ashing light

11 VGA PC monitor PC monitor

12 NC, COM, NO Relay alarm output for external device Siren, ashing light

13 RS-232C External interface Modem

14 USB External interface Drive, mouse

15 Reset switch Reset to factory defaults -

16 AI1 - AI16 Alarm inputs for external devices Sensors

17 AUDIO OUT Audio output Amplier, speakers

18 AUDIO IN 1

- AUDIO IN 4 Max. 4 Audio inputs Microphone

19 Power supply Mains power connection -

DTR-60XX

Front panel controls

The following diagram and table set out the controls on the front panel of the DVR:

CAMERA PLAY/PAUSE

FFRW

FORWARD

BACKWARD

PANIC

HDD

NETWORK

POWER

JOG

DISPLAY

SEQUENCE

ALARM

SPOT

ZOOM

FREEZE

PTZ

1 32 4 5 6

14 13 1011 9 712 8

No. Designation Function

1 USB ports

2 Open built-in CD-RW writer

3 1 to 16 Select cameras

Enter passwords

●

4 Menu navigation Navigation and selection within the menu

5 PANIC Start/end panic recording

6 Shuttle ring Innitely adjust playback speed

7 Jog dial

Change size of frame in picture-in-picture mode

Change numerical values in Setup menu

Frame-by-frame playback in Play mode

●

8Playback functions (primary assignment)

PTZ camera functions (secondary assignment)

9 POWER Power-on indicator when DVR is in operation

10 NETWORK Indicates Ethernet or modem connection

11 HDD Indicates hard disk operation

DISPLAY, SEQUENCE,

FREEZE, SPOT, ZOOM,

PTZ

Function buttons

13 ALARM Reset alarm

View event list

●

14 MENU Open/quit menu structure

10 DTR-60XX

Key to controls

Function buttons

Element Function

Change display mode

Sequence On/Off

Freeze On/Off

Copying recordings in Search menu by pressing and holding down button

●

Spot monitor assignments

PTZ camera functions On/Off

Zoom On/Off

PTZ camera functions

Element Function

Zoom in

Close-up

Wide-angle

Save preset

Load preset

Playback functions

Element Function

Select Search/Play function

Stop playback

●

Start/pause playback

Fast rewind

Fast forward

Frame-by-frame rewind

Frame-by-frame forward
