Installation and Operating Instructions

Digital Video Recorder, Almira R-01

property of their respective holders. No part of this documentation may be reproduced in any form or by

any means or used to make any derivative work, without written permission from the copyright holder,

details of whom can be obtained from Videor Technical. This document is subject to change without

written prior notice. Whilst Videor Technical makes every effort to ensure the accuracy and reliability of

the information contained in this document, its employees and agents will not be responsible for any

loss, however arising, from the use of, or reliance on, this information.

Legal Notice: Parts of this product are protected by patents.

Recorder Installation Manual v3.14 Page 2

Electromagnetic Compatibility (EMC)

Warning

This is a Class A product. In a domestic environment this product may cause radio interference, in

which case the user may be required to take adequate measures.

Manufacturer’s Declaration Of Conformance

A Declaration of Conformity in accordance with the following EU standards has been made and is kept

on file at the address shown on the last page.

The manufacturer declares that the product supplied with this document is compliant with

the provisions of the EMC Directive 89/336, the Low Voltage Directive LVD 73/23, the CE

Marking Directive 93/68 EEC and all associated amendments.

Specifications subject to change without notice.

Recorder Installation Manual v3.14 Page 3

BEFORE YOU BEGIN

Read these instructions carefully before installing or operating this product.

Note: This equipment should be installed by a qualified service person and should conform to local and

national regulations.

This manual provides installation and operation information. To use this document you must have the

following minimum qualifications:

•a basic knowledge of CCTV systems and components

•a basic knowledge of electrical wiring and low-voltage electrical connections.

INTENDED USE

Use this product only for the purpose for which it was designed, as described in this manual and in the

Eneo Almira user manual.

ENVIRONMENTAL CONDITIONS

Storage: –10° to +60°C, 14 to 140°F. The recorder should be allowed to acclimatize to its operational

temperature range before power is supplied. Additionally, if the recorder is moved from a colder area to

a warmer area, precautions should be taken to ensure that condensation is prevented.

Operational: 5° to 35°C, 41 to 95°F. If a constant source of air flow is supplied to the product (e.g. fan

blowing cool air over the unit) then the operational temperature range is increased to 5°C to 40°C, 41°F

to 104°F.

Recorder Installation Manual v3.14 Page 4

CONTENTS

1PREFACE ...............................................................................................................6

1.1 ABOUT THIS MANUAL ..................................................................................6

1.2 CONVENTIONS USED IN THIS MANUAL ..........................................................6

1.3 TRADEMARKS.............................................................................................6

2INSTALLATION........................................................................................................7

2.1 REQUIREMENTS .........................................................................................7

2.2 BEFORE INSTALLING THE RECORDER...........................................................7

2.3 RECORDER INSTALLATION CHECKLIST .........................................................8

2.4 INSTALLING THE RECORDER........................................................................9

2.4.1 Wiring and installing the recorder....................................................9

2.5 DISCONNECTING THE RECORDER ..............................................................11

2.6 CONFIGURING THE RECORDER..................................................................11

2.7 VERSIONS................................................................................................11

3RECORDER SPECIFICATION...................................................................................12

Recorder Installation Manual v3.14 Page 5

1 PREFACE

1.1 ABOUT THIS MANUAL

This manual includes safety and installation instructions for installers, and should be used in conjunction

with the separate user manual supplied with the camera.

This document is intended to provide accurate information. However, the information it contains is

subject to change without notice. Videor Technical, in keeping pace with technological advances, is a

company of product innovation. This makes it difficult to ensure that all the information provided here is

entirely accurate and up-to-date. Videor Technical accepts no responsibility for any inaccuracies or

omissions, and specifically disclaims any liabilities, loss, or risk, personal or otherwise, which is incurred

as a consequence, directly or indirectly, of the use and/or application of any of the contents of this

document.

1.2 CONVENTIONS USED IN THIS MANUAL

WARNING statements identify potential hazards and problems that can occur if the equipment is

handled improperly.

WARNING:

Improper use of this equipment can cause severe bodily injury or equipment damage.

*this symbol indicates electrical warnings and cautions

CAUTION statements identify issues that can cause problems with the normal operation of the

equipment.

CAUTION:

Ensure recorder has sufficient clearance when installed.

**this symbol indicates non-electrical warnings and cautions.

TIP statements offer useful advice about operating the equipment.

***

TIP:

This setting can be individually controlled on each of your two video outputs.

***this symbol indicates important information.

Notes: contain important information about a product or procedure.

1.3 TRADEMARKS

All trademarks and registered trademarks that appear in this document, including (but not limited to)

IMTERA™ are the property of their respective owners, details of which can be supplied by Videor

Technical.

Recorder Installation Manual v3.14 Page 6

2 INSTALLATION

This chapter gives you a step-by-step guide to installing the recorder.

2.1 REQUIREMENTS

Operation requirements

The recorder is designed to work in tandem with a “recorder-ready” camera.

Cable requirements

The recorder requires a power cable and a dedicated interconnection cable (which is supplied with the

unit).

•The 24V AC/DC cable powers the recorder

•The 3m/9ft 10” interconnection cable is for connecting the recorder to the camera

Note: The recorder will also require an Ethernet cable if you intend to connect it to your local network to

use such features as an NTP time server.

WARNING

Do not replace the interconnection cable, or use any other cable in its place: doing

so could damage the recorder and/or the camera and will invalidate the warranty.

Power requirements

For optimal performance the recorder should be powered from an isolated 24V AC/DC source (using a

cable less than 10m/33ft long), capable of providing 2 amps at 24V.

WARNING

Do not connect the recorder directly to the mains: this will damage the recorder and

could result in severe injury.

2.2 BEFORE INSTALLING THE RECORDER

•Check the components supplied with your recorder against the list below. Be sure nothing is

missing.

•Make sure you have all the tools needed for the installation (not supplied, but listed below).

Recorder Installation Manual v3.14 Page 7

2.3 RECORDER INSTALLATION CHECKLIST

Inside the box you will find:

Quantity Item

1 Recorder

1 Plastic support bracket

3 M5 x 6mm/0.24” Pan Head Pozidriv screws (for support

bracket)

3 M5 shakeproof washers

1 Plastic connector cover

2 M3 x 6mm/0.24” Pan Head Pozidriv screws (for the

connector cover)

1 3m/9ft 10” interconnection cable

2 Ferrites

1 Installation manual

You will also need:

1 Power supply unit

1 Pozidriv screwdriver

1 Lanyard

1 Ground cable and set of fixings

Recorder Installation Manual v3.14 Page 8

2.4 INSTALLING THE RECORDER

CAUTION: Recorder Orientation

The recorder must be installed vertically upright on a surface adequate to bear its full

weight.

Failure to comply with these instructions will invalidate the warranty.

CAUTION: Ventilation Clearance

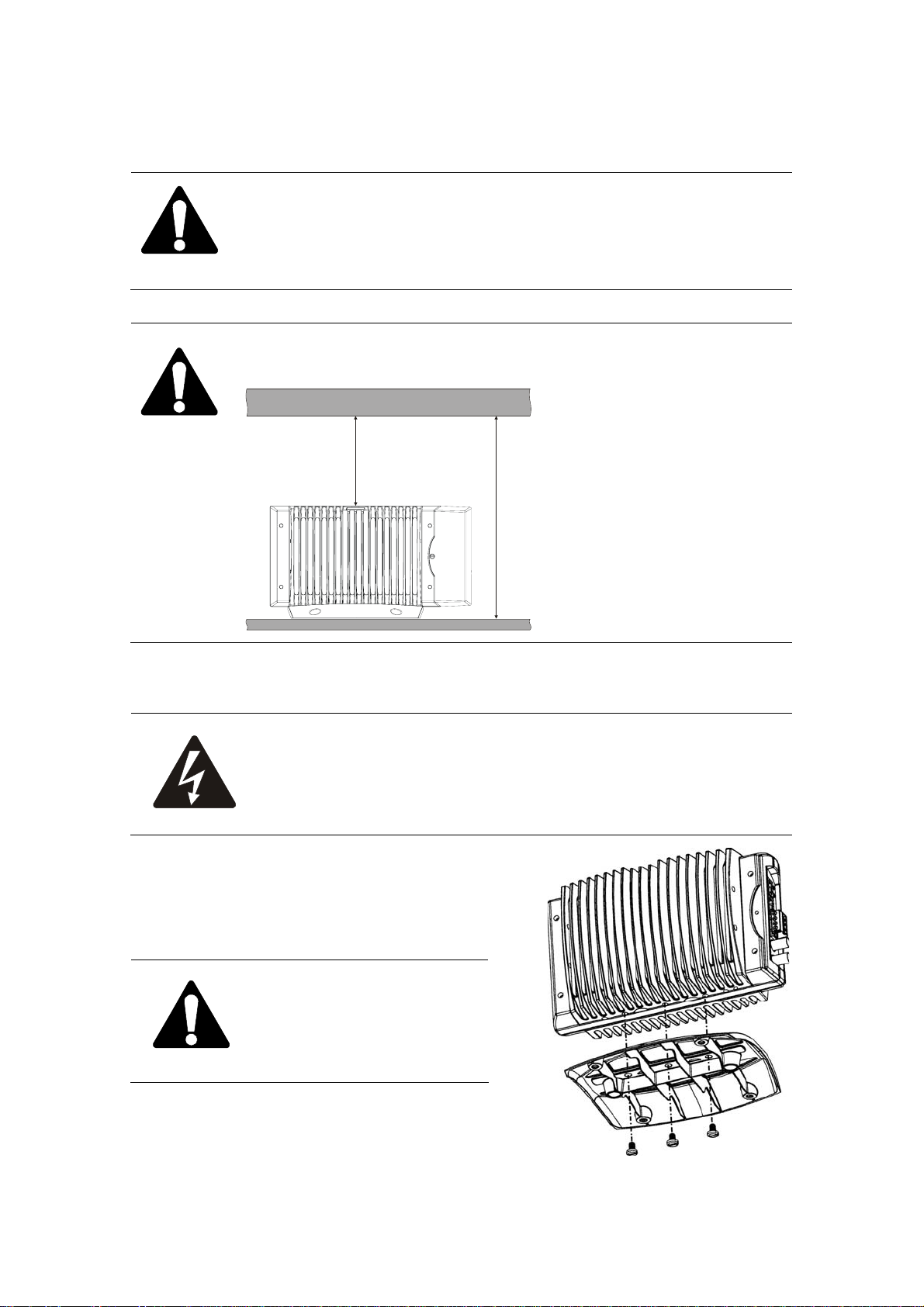

Ensure recorder has sufficient clearance when installed. Refer to Fig. 2.1)

200mm / 7.90”

347mm / 13.70”

Fig. 2.1) Ventilation

clearances.

Keep 200mm / 8” clear

above the recorder for

ventilation purposes.

2.4.1 WIRING AND INSTALLING THE RECORDER

WARNING:

You must complete steps 1) to 5) of this installation before supplying power to the

unit. The recorder requires a 24V AC or DC power supply – this is not the same as

the camera, which requires a 12V DC supply. Applying the wrong voltage to the

recorder may damage it and will also invalidate the warranty.

Refer to Fig. 2.2 for step 1)

1) Attach the plastic support bracket to the body of the

recorder using the three screws supplied. Use only these

screws and be sure to fit all three screws.

CAUTION:

Take care when handling the

recorder: the device is heavy.

Fig. 2.2) Connecting the plastic support bracket

to the base of the recorder

Recorder Installation Manual v3.14 Page 9

2) Use screws or other suitable fastenings to fix the recorder in its final position through the four holes

in the plastic support bracket. To prevent ground loops and resulting picture interference, we

recommend that you ground the recorder to a suitable building earth point.

CAUTION:

Ensure the recorder is stable in its final position, and that the unit itself stands

vertically upright. Mounting the device in any other way will invalidate the

warranty.

3) You must fit a safety wire or lanyard (not supplied) or fix the device physically in some way. You

can do this by looping the wire through an attachment point in the ceiling and through the hole

provided on the body of the recorder, to the right of the connector panel.

CAUTION:

The recorder must be securely fixed: failure to do so will invalidate the warranty.

Fig. 2.3)

Connection panel

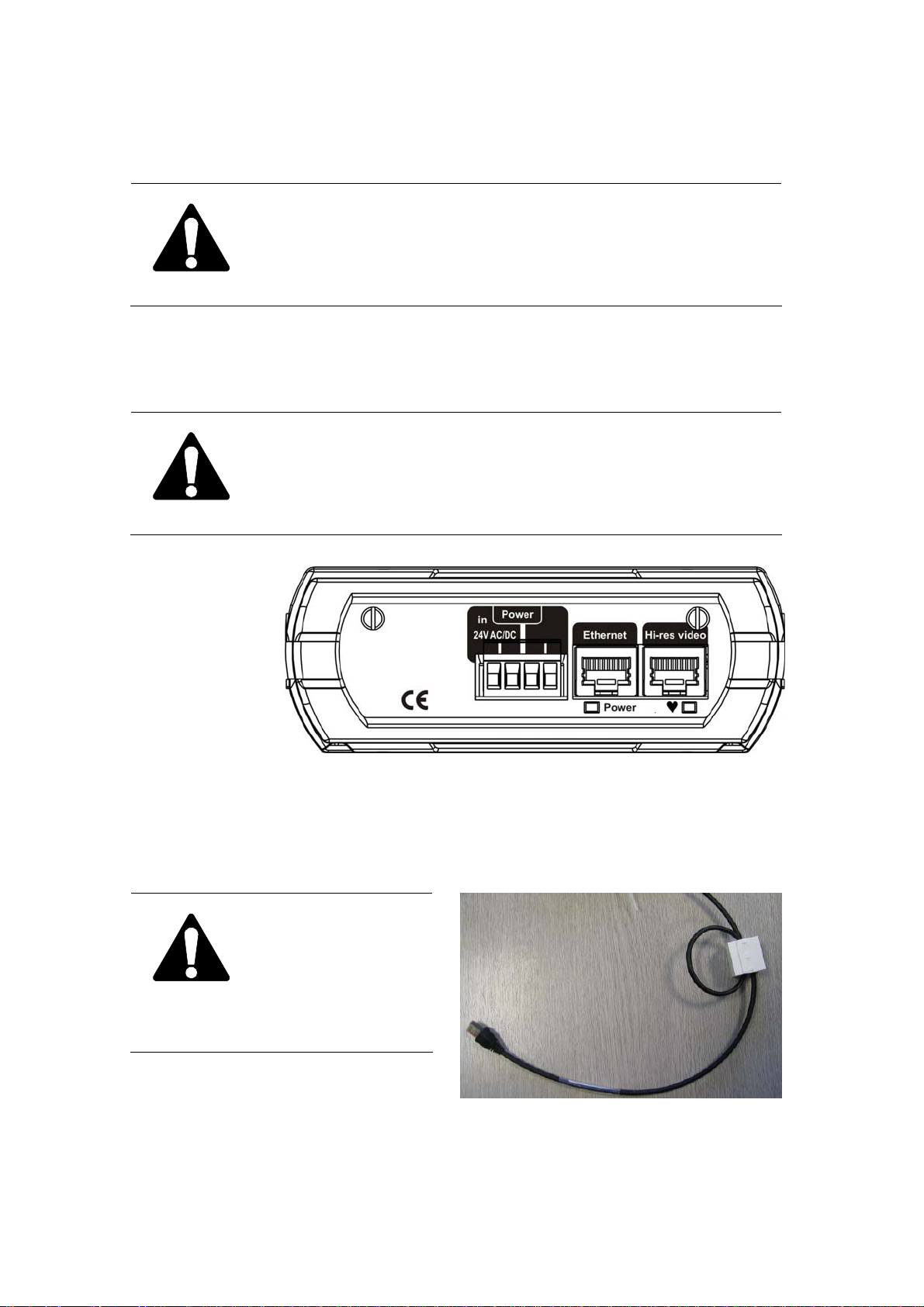

4) Connect the recorder to the camera using the cable supplied. Be sure to connect the cable to the

port marked Hi-res video (see Fig. 2.3)). Clip one of the ferrites around the cable as shown below,

leaving enough room between the ferrite and the end of the cable to allow the end of the cable to fit

inside the connector cover (fitted below). 30-50cm (12”-20”) from the end of the cable should be

sufficient. The looped part should have a diameter of at least 4cm / 2”.

CAUTION:

Do not use any other

cable than the one

supplied; doing so will

damage the recorder and

will also invalidate the

warranty.

5) If you wish, connect the recorder to your network using an Ethernet cable connected to the Ethernet

port (Fig. 2.3)). Clip the remaining ferrite around the Ethernet cable as shown in the step above.

6) Connect the power cable to the recorder – remember that it requires 24V AC/DC, 2 Amps.

Recorder Installation Manual v3.14 Page 10
