FIBARO WALL PLUG

Type G

FGWPG-111

OPERATING

MANUAL EN

v1.0

Important safety information

Read this manual before attempting to install the device!

Failure to observe recommendations included in this manual

may be dangerous or cause a violation of the law. The manufacturer,

Fibar Group S.A. will not be held responsible for any loss or damage

resulting from not following the instructions of operating manual.

General information about

the FIBARO System

FIBARO is a wireless smart home automation system, based on the

Z-Wave protocol. All of available devices can be controlled through

a computer (PC or Mac), smartphone or tablet. Z-Wave devices are

not only receivers, but can also repeat the signal, increasing the

Z-Wave network’s range. It gives advantage over traditional wireless

systems that require direct link between transmitter and receiver, as

a result the construction of the building could aect network’s range

negatively.

Every Z-Wave network has its unique identication number (home

ID). Multiple independent networks can exist in the building without

interfering. Transmission security of FIBARO System is comparable to

wired systems.

Z-Wave technology is the leading solution in smart home automation.

There is a wide range of Z-Wave devices that are mutually

compatible, independently of manufacturer. It gives the system the

ability to evolve and expand over time. For more information visit:

www.baro.com.

This product is intended for indoor use only in dry locations.

Do not use in damp or wet locations, near a bathtub, sink,

shower, swimming pool, or anywhere else where water or moisture

are present.

Caution!

To avoid risk of electrical shock, do not operate the device with

wet or moist hands.

This product is not a toy. Keep away from children and animals!

DESCRIPTION AND FEATURES

Main features of FIBARO Wall Plug:

• Compatible with type G sockets and plugs.

• Compatible with any Z-Wave or Z-Wave+ Controller.

• Supports Z-Wave network Security Modes: S0 with AES-128

encryption and S2 with PRNG-based encryption.

• Extremely easy installation - simply plug the device into the mains

socket.

• Works as a Z-Wave signal repeater.

• Current value of the load and operating mode are indicated by the

multi-colour LED frame.

FIBARO Wall Plug is a remotely controlled plug-in switch with the

ability to measure power and energy consumption.

It uses a LED frame to visualize the current load and operating mode

with colour changing illumination.

Our smart plug makes it possible to control electrical devices in a

convenient and maintenance-free way.

#1: Description and features

FIBARO Wall Plug is a fully

compatible Z-Wave PLUS device.

NOTE

This device may be

used with all devices

certied with Z-Wave

Plus certicate and

should be compatible

with such devices pro-

duced by other manu-

facturers.

NOTE

Z-Wave Controller

must support Z-Wave

Security Mode in or-

der to fully utilize the

product.

BASIC ACTIVATION

#2: Basic activation

1. Plug the device into a socket nearby the main Z-Wave controller.

2. Set the main controller in (Security/non-Security Mode) add mode

(see the controller’s manual).

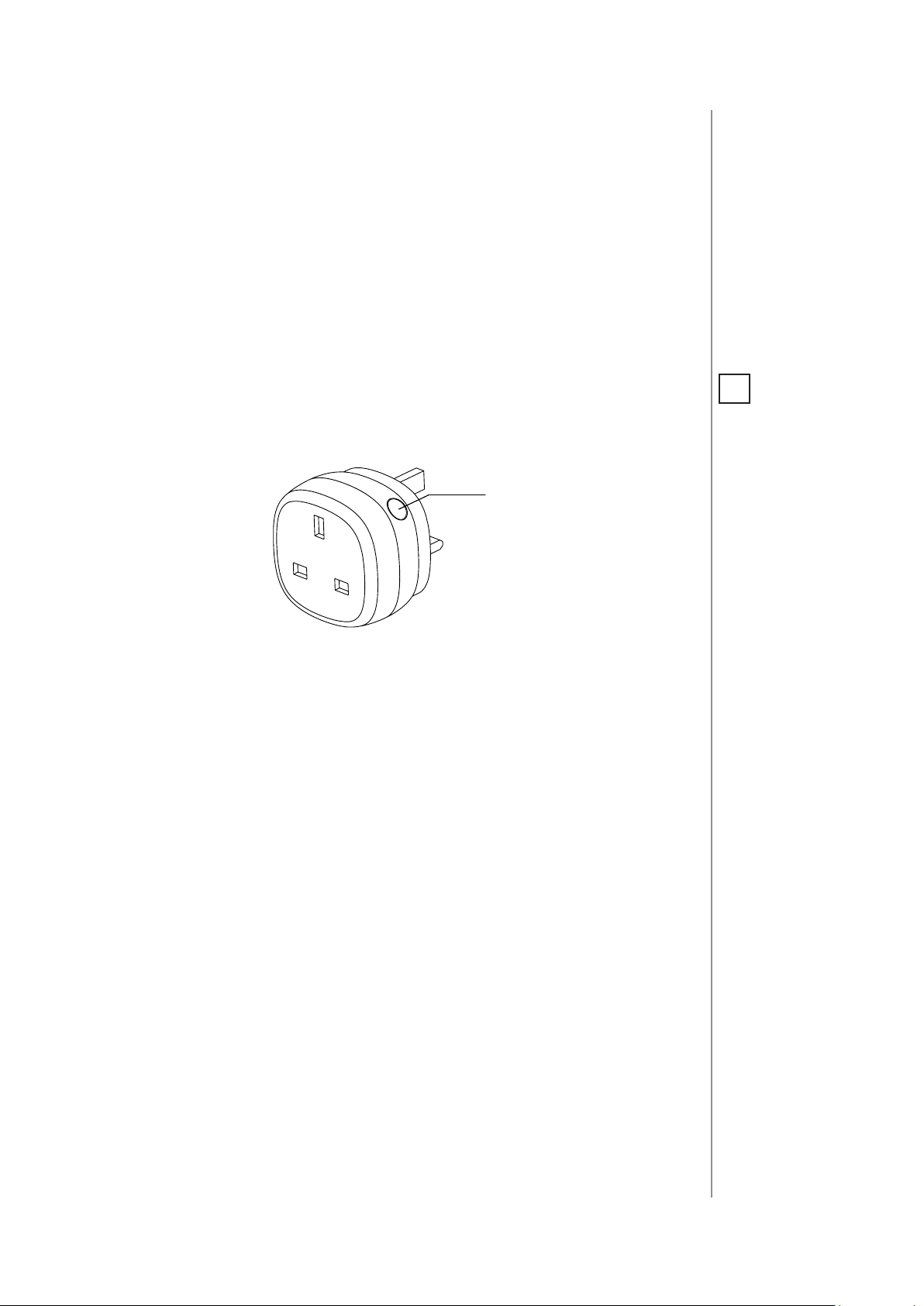

3. Quickly, triple click the button located on the casing.

4. Wait for the device to be added to the system.

5. Successful adding will be conrmed by the controller.

6. Plug a device you want to control into the Wall Plug.

7. Test the device by turning it on and o using the button.

NOTE

When powered, the

device will indicate

Z-Wave status with

colour of LED frame:

• Green - the device is

already added to the

Z-Wave network.

• Red - the device is

not added to any

Z-Wave network.

Button

ADDING THE DEVICE

#3: Adding the device

Adding (Inclusion) - Z-Wave device learning mode, allowing to add

the device to existing Z-Wave network.

To add the device to the Z-Wave network:

1. Plug the device into a socket nearby the main Z-Wave controller.

2. The LED frame will glow red signalling not being added (reset or

remove the device otherwise).

3. Set the main controller in (Security/non-Security Mode) add mode

(see the controller’s manual).

4. Quickly, triple click the button located on the casing.

5. If you are adding in S2 authenticated mode, type in the device pin

code (underlined part of the public key available on the device or

in the manual).

6. Wait for the adding process to end.

7. Successful adding will be conrmed by the Z-Wave controller’s

message.

NOTE

In case of problems

with adding the de-

vice, please reset the

device and repeat the

adding procedure.

Button

REMOVING THE DEVICE

Removing (Exclusion) - Z-Wave device learning mode, allowing to

remove the device from existing Z-Wave network.

To remove the device from the Z-Wave network:

1. Plug the device into a socket nearby the main Z-Wave controller.

2. The LED frame will glow green signalling being added (removing

is not necessary otherwise).

3. Set the main controller into remove mode (see the controller’s

manual).

4. Quickly, triple click the button located on the casing.

5. Wait for the removing process to end.

6. Successful removing will be conrmed by the Z-Wave controller’s

message.

NOTE

Removing the Wall Plug

from the Z-Wave net-

work restores all the

default parameters of

the device.

#4: Removing the device

Button

OPERATING THE DEVICE

#5: Operating the device

Controlling the Wall Plug using the button:

Wall Plug is equipped with a button, which allows to use the menu

and additionally perform the following actions:

1x click: turn controlled device ON/OFF, conrm selected menu op-

tion (if menu is active)

3x click: add/remove the device to/from a Z-Wave network

Hold: enter/navigate through the menu

Visual indications:

The Wall Plug is equipped with a LED frame, signalling sensor’s oper-

ating modes and current active power consumption. In addition the

visual indicator may inform of the Z-Wave network range.

Visual indicator frame signalling modes:

Active power consumption – by default, when the device is

turned ON, the colour will vary depending on the current power.

Z-Wave network inclusion status – once plugged into a mains sock-

et the device signals it with blink (green - added, red - not added).

Range of the Z-Wave network – signalled with colour depending

on type of communication or the lack of it (only in range tester

mode)

Menu position – signalled with colour assigned to position.

Ongoing software update – signalled with cyan blinking.

Hardware fault state – error in communication with radio chip,

device secured, plug the device out and back into the socket.

Menu allows to perform Z-Wave network actions. In order to use the

menu:

1. Press and hold the button.

2. Wait for the device to indicate desired position with a colour:

• GREEN - erase energy consumption memory

• VIOLET - Z-Wave network’s range test

• YELLOW - device reset

3. Release the button.

4. Click the button to conrm selection.

NOTE

Menu is preceded by

white ashes of the

LED frame - release

the button if you want

to disable/enable the

LED frame.

CAUTION

To avoid risk of electri-

cal shock, do not op-

erate the device with

wet or moist hands.

OPERATING THE DEVICE

Resetting the device to factory defaults:

Reset procedure allows to restore the device back to its factory set-

tings, which means all information about the Z-Wave controller and

user conguration will be deleted.

1. Make sure the device is powered.

2. Press and hold the button.

3. Wait for the LED frame to glow yellow (3rd menu position).

4. Release the button.

5. Click the button once to conrm selection.

6. After few seconds the device will restart with factory settings,

which is signalled with the red frame colour.

NOTE

Resetting the device is

not the recommend-

ed way of removing

the device from the

Z-Wave network. Use

reset procedure only

if the primary con-

troller is missing or

inoperable. Certain

device removal can

be achieved by the

procedure of remov-

ing described in “Add-

ing the device” on

page 5.

Controlling the Wall Plug with FIBARO Home Center controller:

The Wall Plug after successful adding is represented in the

Home Center interface with two icons. Device allows to turn on and

o the device and displays current active power and cumulative en-

ergy consumption.

Disabling visual indicator:

Visual indication frame may be turned o for status signalling (turned

ON/OFF, power consumption). That means each status change will

be signalled by a short white blink of the frame. Disabling it will not

change operation of the device. To disable the LED frame:

1. Insert the Wall Plug in a socket.

2. Press and hold the button for about 3 seconds.

3. Release the button after LED frame starts pulsing white.

To restore visual indications perform above procedure again.

NOTE

Disabling the LED

frame indications will

also aect alarm sig-

nalization.

POWER AND ENERGY CONSUMPTION

#6: Power and energy

consumption

The Wall Plug allows to monitor the active power and energy con-

sumption. Data is sent to the main Z-Wave controller, e.g. Home

Center.

Measuring is carried out by the most advanced micro-controller tech-

nology, assuring maximum accuracy and precision (+/- 1% for loads

greater than 5W).

Power and energy are reported according to parameters 11-15.

For loads under 5W power is reported for every 0.2W change.

Electric active power - power that energy receiver is changing into a

work or a heat. The unit of active power is Watt [W].

Electric energy - energy consumed by a device through a time

period. Consumers of electricity in households are billed by sup-

pliers on the basis of active power used in given unit of time. Most

commonly measured in kilowatt-hour [kWh]. One kilowatt-hour is

equal to one kilowatt of power consumed over period of one hour,

1kWh = 1000Wh.

Resetting consumption memory:

Wall Plug allows to erase stored consumption data (turning it o/on

or removing it from the socket will not erase consumption):

1. Make sure the device is powered.

2. Press and hold the button.

3. Release the button when the LED frame glows green (1st menu

position).

4. Press the button briey.

ASSOCIATION

#7: Association

The Wall Plug provides the association of three groups:

1st Association Group – “Lifeline” reports the device status and al-

lows for assigning single device only (main controller by default).

2nd Association Group – “On/O (Button)” devices in this group

will be switched on or o when relay status is changed using the but-

ton (uses Basic command class).

3rd Association Group – “On/O (Plug power)” devices in this

group will be switched on or o depending on the current load of

plugged device (uses Basic command class).

NOTE

Association ensures

direct transfer of

control commands

between devices, is

performed without

participation of the

main controller.

The Wall Plug in 2nd and 3rd group allows to control

up to 5 regular or multichannel devices per an association group.

“LifeLine” group is reserved solely for the controller and hence only 1

node can be assigned.

Association (linking devices) - direct control of other devices within

the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter

or scene (may be controlled only through a Z-Wave controller).

NOTE

2nd association group

commands are sent

only in case of manual

operation through the

button.

3rd association group

commands are sent

automatically, de-

pending on parame-

ters 21 to 27.

To add an association (using the Home Center controller):

1. Go to the device options by clicking the icon:

2. Select the„Advanced” tab.

3. Click the “Setting Association” button.

4. Specify to which group and what devices are to be associated.

5. Save the changes.

6. Wait for the conguration process to end.

NOTE

Meter Report [0x02] in

Lifeline Group reports

energy by default.

Andere Handbücher für FGWPG-111

Inhaltsverzeichnis

Andere FIBARO Zubehör Handbücher

FIBARO

FIBARO FIBEFGMS-001-ZW5 Bedienungsanleitung

FIBARO

FIBARO FGBHFS-101 Bedienungsanleitung

FIBARO

FIBARO FGBHFS-101 Bedienungsanleitung

FIBARO

FIBARO FGMS-001 Bedienungsanleitung

FIBARO

FIBARO FGBHDW-002 Bedienungsanleitung

FIBARO

FIBARO FGBHFS-001 Bedienungsanleitung

FIBARO

FIBARO FGK-10x Bedienungsanleitung

FIBARO

FIBARO FGSS-001-EN-A-v1.00 Bedienungsanleitung

FIBARO

FIBARO FGFS-101 Bedienungsanleitung

FIBARO

FIBARO FGMS-001 Bedienungsanleitung

FIBARO

FIBARO FGBHDW-002 Bedienungsanleitung

FIBARO

FIBARO FGBHMS-001 Installationsanleitung

FIBARO

FIBARO FGFS-001 Bedienungsanleitung

FIBARO

FIBARO Flood Sensor Bedienungsanleitung

FIBARO

FIBARO FGBHDW-002 Bedienungsanleitung

FIBARO

FIBARO FGWOE-011 Bedienungsanleitung

FIBARO

FIBARO FGDW-002 Bedienungsanleitung

FIBARO

FIBARO FGBHMS-001 Bedienungsanleitung

FIBARO

FIBARO FGWPG-111 Bedienungsanleitung

FIBARO

FIBARO FGBHCD-001 Bedienungsanleitung

FIBARO

FIBARO CO Sensor FGCD-001 Bedienungsanleitung

FIBARO

FIBARO FGWPB-111 Bedienungsanleitung

FIBARO

FIBARO Walli Outlet E Bedienungsanleitung

FIBARO

FIBARO FGMS-001-USA-A-V1.01 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
