FIBARO FGBHDW-002 Bedienungsanleitung
FIBARO DOOR/WINDOW SENSOR
FGBHDW-002
CONTENTS
#1: Description and features 3
#2: Powering the accessory 4
#3: Pairing the accessory 5
#4: Physical installation 6
#5: Reset 7
#6: Functionalities 8
#7: Congurable parameters 9
#8: Specications 10
#9: Regulations 11
OPERATING
MANUAL EN
v1.1
2
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
!
HomeKit technology
Apple HomeKit technology provides an easy, secure way to control
HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod
touch.
After installing your FIBARO Door/Window Sensor, congure it from
a compatible app with just a few simple steps.
You can even create your own custom scenes to control your home
settings. For example, you can create a scene to automatically turn
o the lights, lock your doors, close the garage door, and set the
thermostat to the desired temperature in just one step.
To control this HomeKit-enabled accessory, iOS 9.3.5 or later is
recommended.
Controlling this HomeKit-enabled accessory automatically and
away from home requires an Apple TV with tvOS 9.2 or later or
an iPad with iOS 9.3 or later set up as a home hub.
i
3
DESCRIPTION AND FEATURES
Main features of FIBARO Door/Window Sensor:
• compatible with Apple HomeKit technology
• Bluetooth® low energy technology for wireless communication
• detects opening/closing using Hall eect sensor
• measures ambient temperature
• detects tampering
• easily mounted on doors, windows, garage gates and roller blinds
• battery powered
• indicates state using LED diode
• 7 color variations
FIBARO Door/Window Sensor is a HomeKit-enabled Hall eect
sensor using Bluetooth® low energy technology.
Along with detecting opening/closing, the accessory measures the
ambient temperature.
Opening is detected by separating the sensor’s body and the magnet.
Tampering is detected whenever the accessory is detached from the
surface or casing is opened.
#1: Description and features
4
POWERING THE ACCESSORY
#2: Powering the accessory

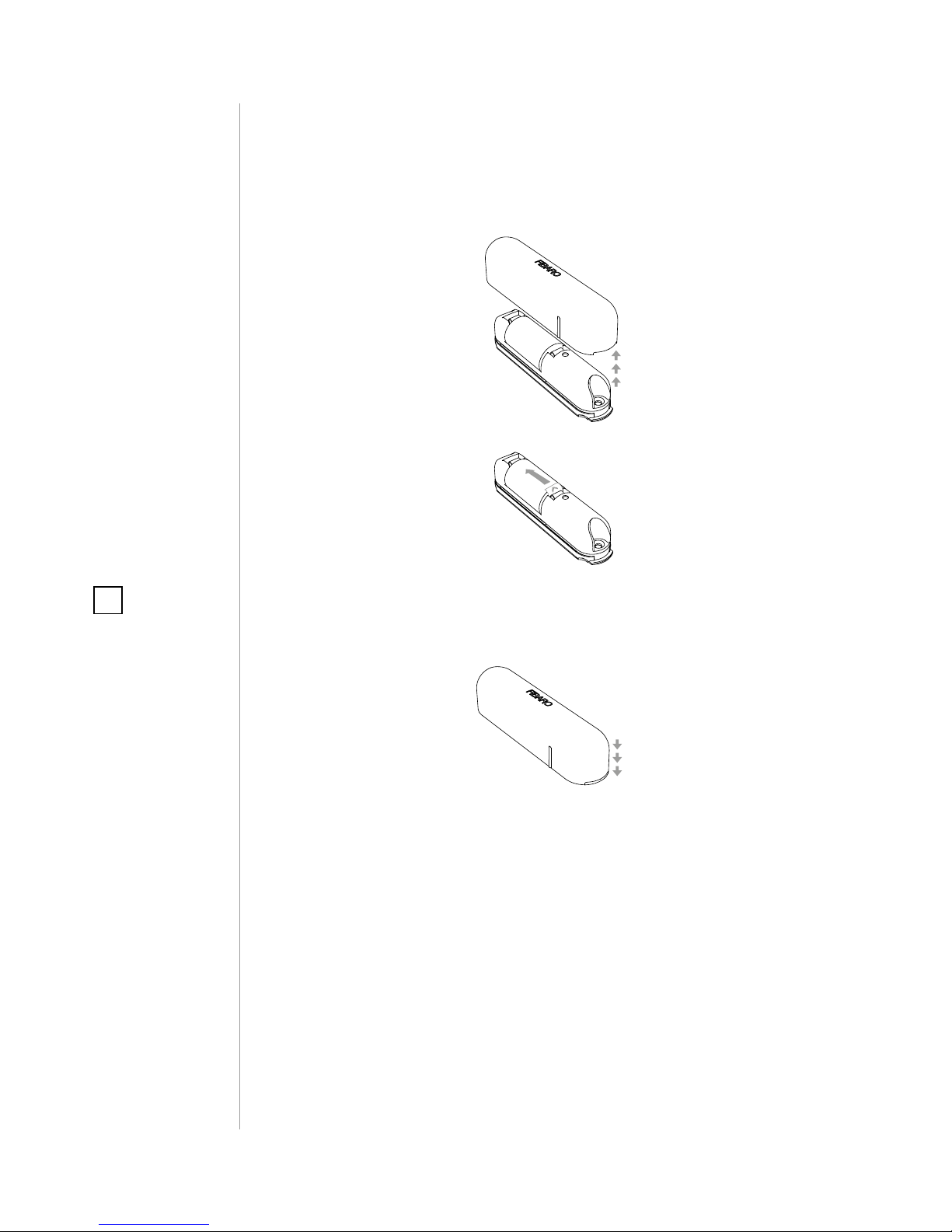

1. Open the cover.
2. Remove the battery blocker.
3. The accessory will glow blue for 1.5 seconds – it is ready to be
paired.
4. Close the cover paying attention to the correct orientation of the
cover and sensor’s body.
NOTE
If after powering ac-
cessory blinks three
times, it is already
paired and has to be
reset to pair again.
i
5
PAIRING THE ACCESSORY
#3: Pairing the accessory
1. Open the Settings app on your iOS device.
2. Go to the Bluetooth® section and turn the Bluetooth® on.
3. Place the accessory next to your iOS device.
4. Open a HomeKit compatible app of your choosing on your iOS
device.
5. Open pairing window in your HomeKit app to detect available
accessories.
6. Choose the Door/Window Sensor you wish to pair.
7. You can identify it - the Door/Window Sensor will triple blink blue
3 times.
8. Find HomeKit Setup Code on the last page of Quick Start Guide
included in the box that looks like this:
9. Start pairing with your HomeKit app.
10. Point your iOS device’s camera at the Setup Code to scan it or en-
ter the Setup Code manually.
11. If entered Setup Code is valid, the device will complete the setup
process.
12. Follow instructions displayed in the application.
XXX-XX-XXX
NOTE
Remember to keep
your HomeKit Setup
Code in safe place. You
may need it in case of
re-pairing.
i
6
PHYSICAL INSTALLATION
#4: Physical installation
To install the Door/Window Sensor:
1. Peel o the protective layer from the sticker on the accessory.
2. Stick the accessory onto the door/window frame.
3. Peel o the protective layer from the sticker on the magnet.
4. Stick the magnet onto the moving part of the door/window, no
further than 5mm from the sensor.
Correct positioning of the magnet in relation to the Sensor:
(vertical line marks should align)
Positioning of the Sensor and the magnet:
max. 5 mm
7
RESET
Resetting the Door/Window Sensor to factory defaults:
Reset procedure allows to restore the accessory back to its factory
settings including HomeKit pairing.
1. Open the cover.
2. Press the button 3 times then press and hold the button.
3. Wait for the LED indicator to glow.
4. Release the button.
5. Click the button to conrm.
6. Accessory will glow blue for 1.5 seconds to conrm reset.
7. Delete the accessory from the app before pairing it again.
#5: Reset
Button
8
FUNCTIONALITIES
#6: Functionalities
Opening/closing detection:
The Door/Window Sensor detects opening/closing using Hall eect
sensor and reports it to your iOS device.
Opening is detected by separating the sensor’s body and the magnet.
Changing the state is indicated with one blink.
Tamper detection:
The Door/Window Sensor detects tampering whenever the accesso-
ry is detached from the surface or casing is opened and reports it to
your iOS device. Tampering is indicated with two blinks.
Temperature measuring:
The Door/Window Sensor measures ambient temperature every 10
minutes. If the measured temperature diers from previously reported
by at least 1°C (1.8°F), accessory reports it to your iOS device.
Battery level measuring:
The Door/Window Sensor measures battery level every 24 hours and
reports it to your iOS device. Additionally, if battery level is below 15%,
the accessory will report low level battery status to your iOS device.
9
CONFIGURABLE PARAMETERS
#7: Congurable parameters
1. Opening/closing detection – LED indication
This parameter allows choose if opening/closing is indicated by the
built-in LED diode.
Available settings: 0– indications disabled
1– indications enabled
Default setting: 1 (indications enabled)
2. Door/window state
This parameter allows to set in what state is door/window when the
magnet is close to the sensor.
Available settings: 0– closed when magnet near
1– opened when magnet near
Default setting: 0 (closed when magnet near)
10
SPECIFICATIONS
Power supply:
Battery type:
EU directives compliance:
Radio protocol:
Radio frequency:
Range:
Operating temperature:
Temperature measuring
range:
Temperature measuring
accuracy:
Dimensions (L x W x H):
3.6V DC battery
ER14250 ½ AA
RoHS 2011/65/EU
RED 2014/53/EU
Bluetooth® low energy
2.4 GHz
up to 50m (free range)
(164 feet)
0-40°C (32-104°F)
0-40°C (32-104°F)
±0.5°C (±0.9°F)
71 x 18 x 18 mm
(2.8 x 0.7 x 0.7 inch)
#8: Specications
CAUTION
Using batteries other
than specied may
result in explosion.
Dispose of properly,
observing environ-
mental protection
rules.
!
