Front Runner GOFR001 Bedienungsanleitung

ENG

30 min

GRAB-ON

FLUSH RAIL FEET

IMPORTANT WARNING!

Thank you for purchasing Front Runner Grab-On Flush Rail Feet.

Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

GOFR001

READ ME !

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

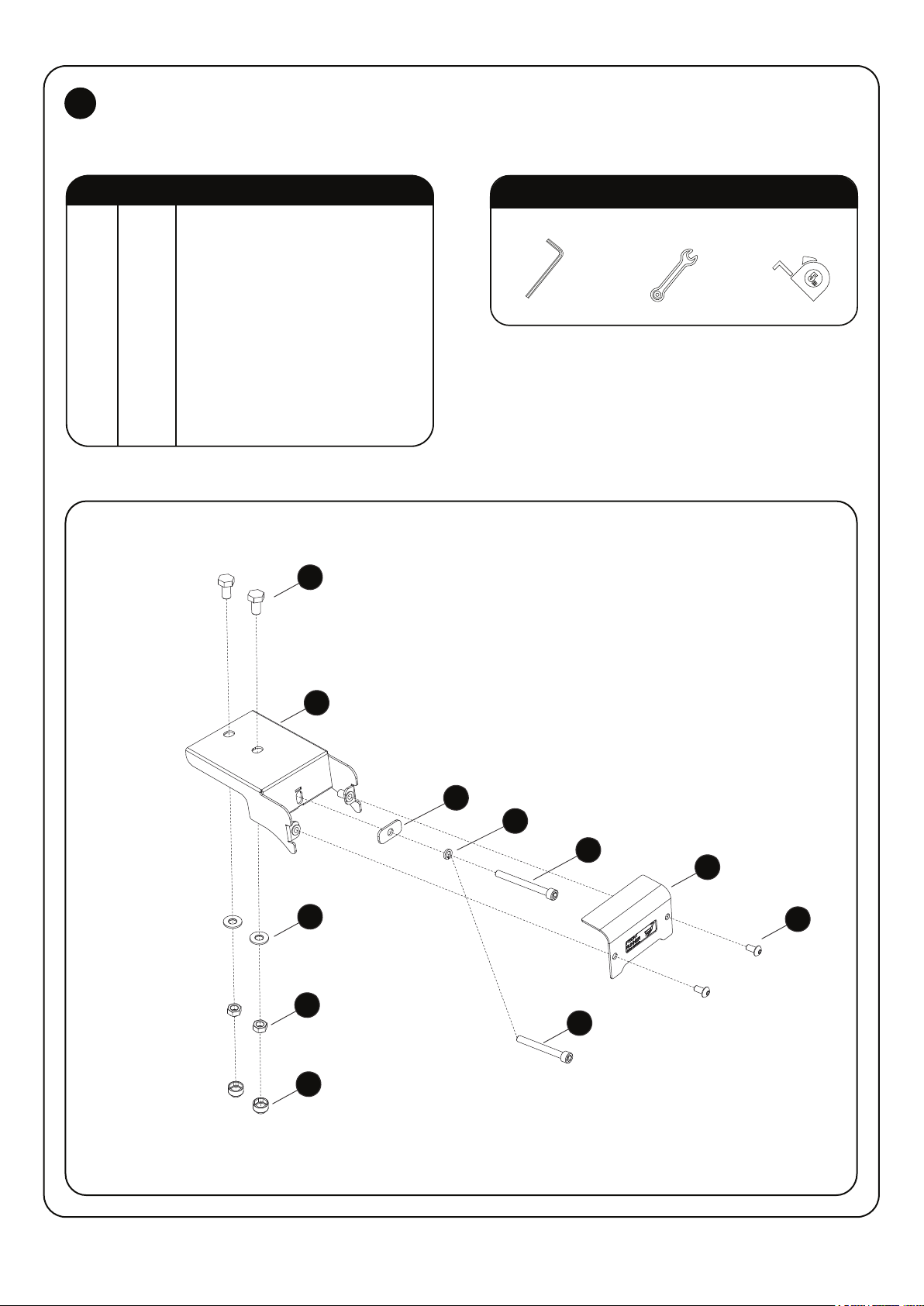

IN THE BOX

FIGURE 1.1

1 4 X M8 x 16 Hex Bolt

2 2 X Grab-On Foot

3 4 X M8x19x2ss Flat Washer

4 4 X M8 Nyloc Nut

5 4 X M8 Nut Cap

6 2 X Cap Screw Washer

7 2 X M6 Spring Washer

8 2 X M6 x 60 Cap Screw

9 2 X Front Cover Plate

10 4 X M5 x 10 Button Head

11 2 X M6 x 50 Cap Screw

IN THE BOX TOOLS NEEDED

IN THE BOX

3mm

5mm 13MM

1GET ORGANIZED

Here is what you are looking at for

GOFR001

FIT AND SECURE

2.2

2.3

2.4

2.1

2.2

2.3

Place your Front Runner Roof Rack onto

your vehicles Flush Rails and ﬁnd the best

position. The Rack should sit level to the

ground, not the vehicles roof line.

Or slanting slightly down toward the front.

Find the best position for the Feet, using the

ﬁrst or second Slat.

Flip the Rack so that the bottom of the

Rack faces up. Insert two M8 x 16 Hex Bolts

(Item 1) into the Slats mashined slots that

you have identiﬁed.

13MM

Fit the Grab-on Foot assembly (Item 2) to

the slat by loosley fastening it with two

M8 Flat Washers (Item 3) and two

M8 Nyloc Nuts (Item 4).

Repeat this step for the other Feet.

Remove the Front Covers (Item 9) from all

the Grab-On Feet (Item 2) by loosening the

two M5 x 10 Button Head Screw (Item 10).

Loosen and remove (Item 8, 7 & 6) and

keep in a safe place as this will be used

in the next step to ﬁt the Flush Rail Gripss.

3MM

5MM

FIT AND SECURE

2.2

2.3

2.4

2.1

2.4

2.5

2.6

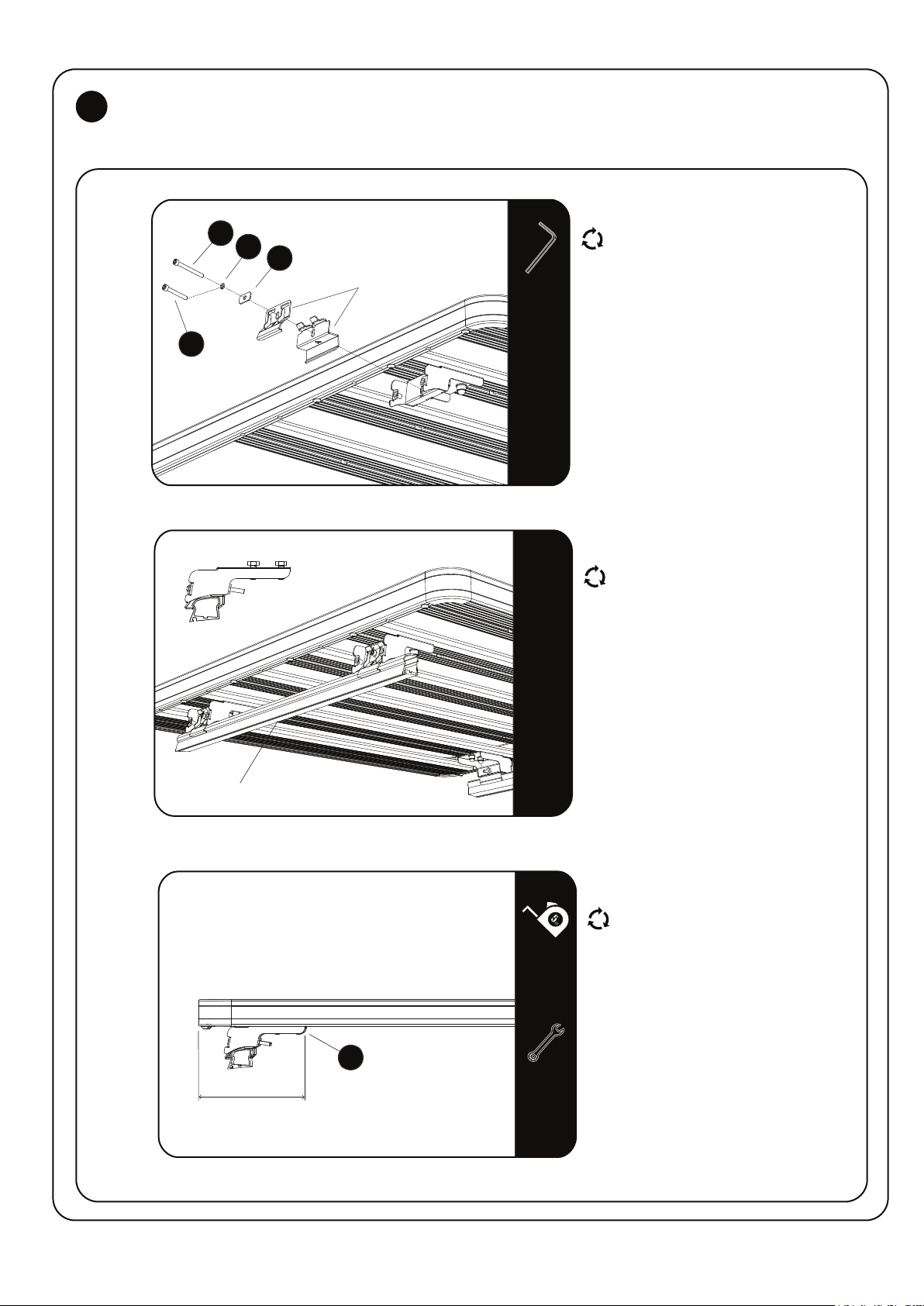

Depending on the width of the Flush Rail,

Use an M6 x 60 or M6 x 50 Allen Cap Screw

(Item 8 or 11), M6 Spring Washers and Cap

Screw Washer (Items 7 & 6) and loosely ﬁt

the Flush Rail Grips (GOFR Grips)

to the Grab-On Flush Rail Foot (Item 2).

Repeat this step on the other Grab-On Flush

Rail Feet.

13MM

Place your Rack back onto the vehicle.

Position all the feet so that they rest on top

of the Flush Rails as shown.

With a Measuring tape, center your

Roof Rack.

Fully Tighten all the M8 Nyloc Nuts (Item 4)

and cover each of them with M8 Nut Caps

(Item 5).

5MM

L = R

Flush Rail

GOFR (GRIPS)

COMPLETION

3.1

Congratulations. You did it. Take a step back and admire your work!

4MM

FIT AND SECURE

2.4

2.1

2.7

Fully tighten all the M6 x 50 / M6 x 60 Cap

Srews (Item 8) to clamp the rack securely

ontothe ﬂush rails. Take care not to

over tighten.

Reﬁt the Front Cover Plate (Item 9)

with two M5 x 10 Butten Heads (Item 10).

5MM

3MM

Tightening Torque 6Nm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:
