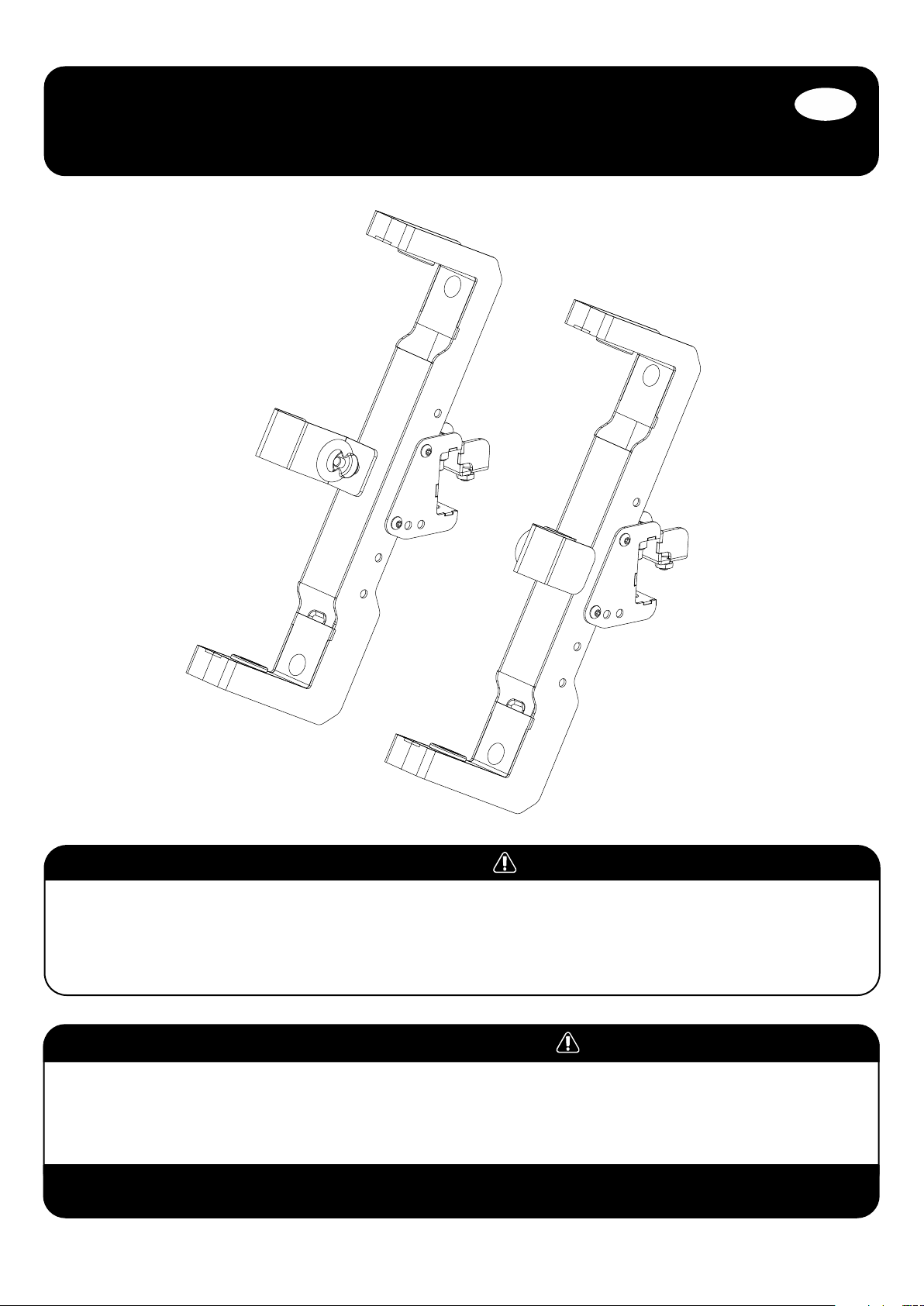

Front Runner RRAC269 Bedienungsanleitung

front runner

RRAC269

ENG

Thank you for purchasing a Front Runner Rack Ladder Side Mount Bracket.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

Rack Ladder Side Mount Bracket

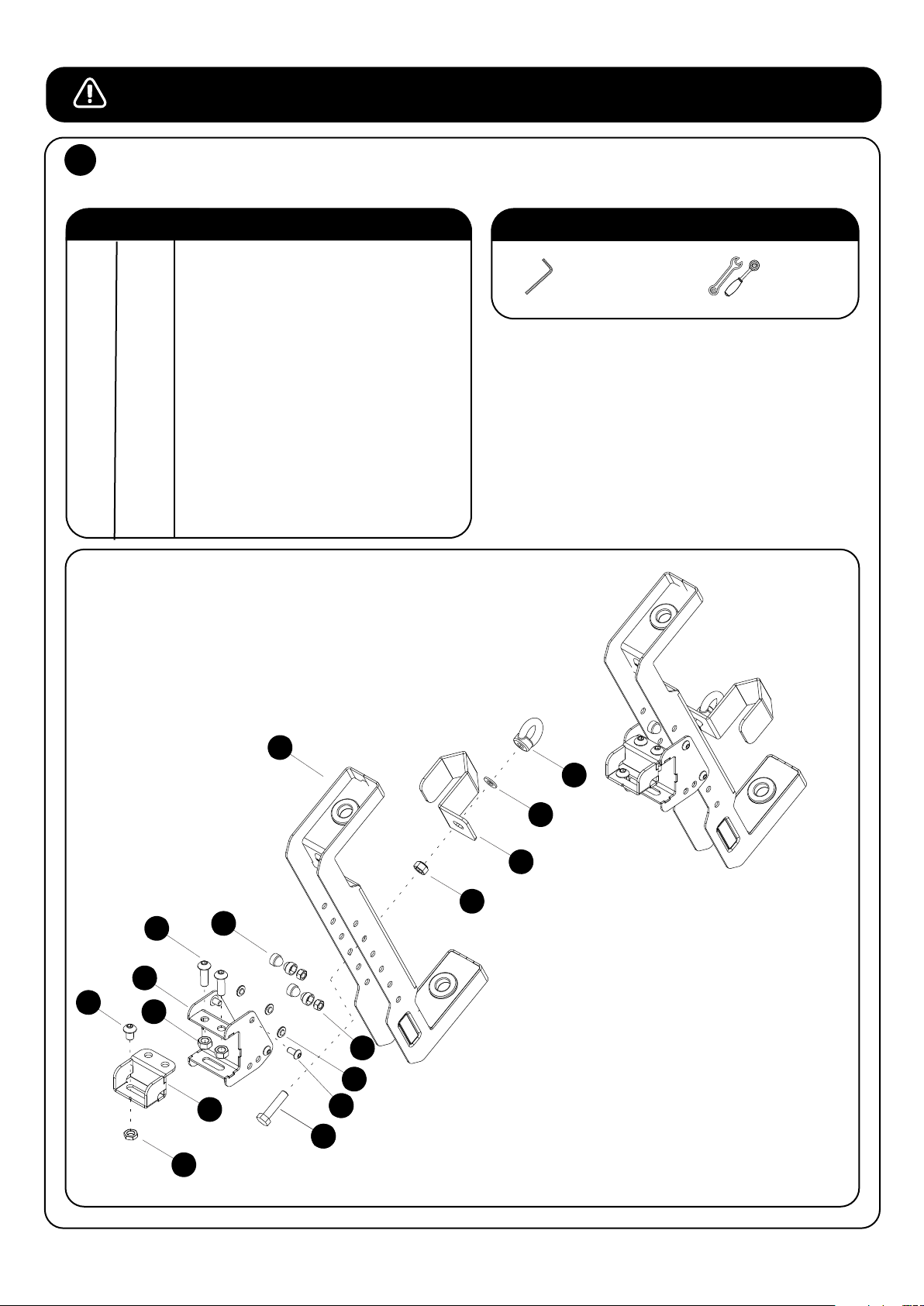

TOOLS NEEDED

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

IN THE BOX

5mm

4mm

1111

1 2 X Holder

2 2 X Rack Mount

3 2 X Support

4 2 X Clamp

5 2 X M8 Eye Nut

6 2 X M8 Nylon Washer

7 6 X M8 Nyloc Nut

8 8 X M6 Nyloc Nut

9 8 X M6 Nut Cap

10 8 X M6 Nylon Washer

11 2 X M8 x 35 Hex Bolt

12 8 X M6 x 16 Button Head Bolts

13 4 X M8 x 25 Button Head Bolt

14 2 X M8 x 12 Button Head Bolt

15 2 X M8 Thin Nut

10mm

13mm

A(1:1)

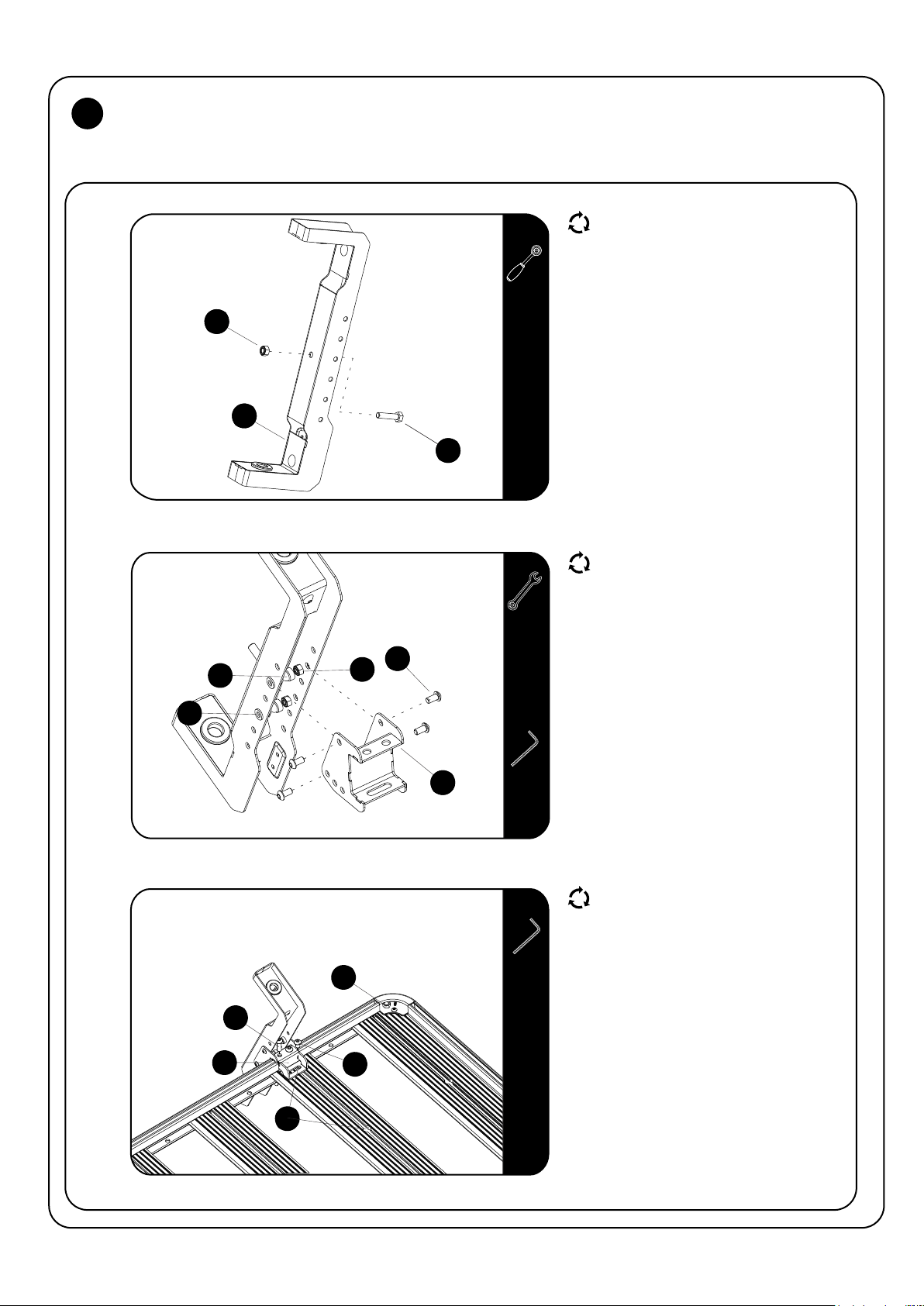

FIT AND SECURE2

2.1

2.2

2.3

13mm

Secure M8 x 35 Hex Bolts (Item 12) to each

of the Holders (Item1) using M8 Nyloc Nuts

(Item 7) as shown.

Assemble the Rack Mount (Item 2) To the

Holder (Item 1) using M6 x 16 Button Head

Bolts, M6 Nylon Washers and M6 Nyloc Nuts

(Items 8, 10 & 11).

Place M6 Nut Caps (Item 9) on the the Nyloc

Nuts.

Choose a suitable location for the ladder.

See 2.4 for positioning. Leave 2 slats open

between the two Holder assemblies.

Loosely assemble the Holder assemblies

together with the Support Brackets (Item 3)

to the side proﬁle and two slats using M8 x

25, Button Head Bolts, M8 x 12 Button Head

Bolts, M8 Thin Nuts and M8 Nyloc Nuts

(Items 7, 13, 14 & 15).

Tip: Insert the Nyloc Nut behind the rack

corner and slide it into the side proﬁle.

Insert the M8 Thin Nuts into the machined

slot of the slat.

10mm

4mm

5mm

1112

117

111

1111

112

Loremipsum

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

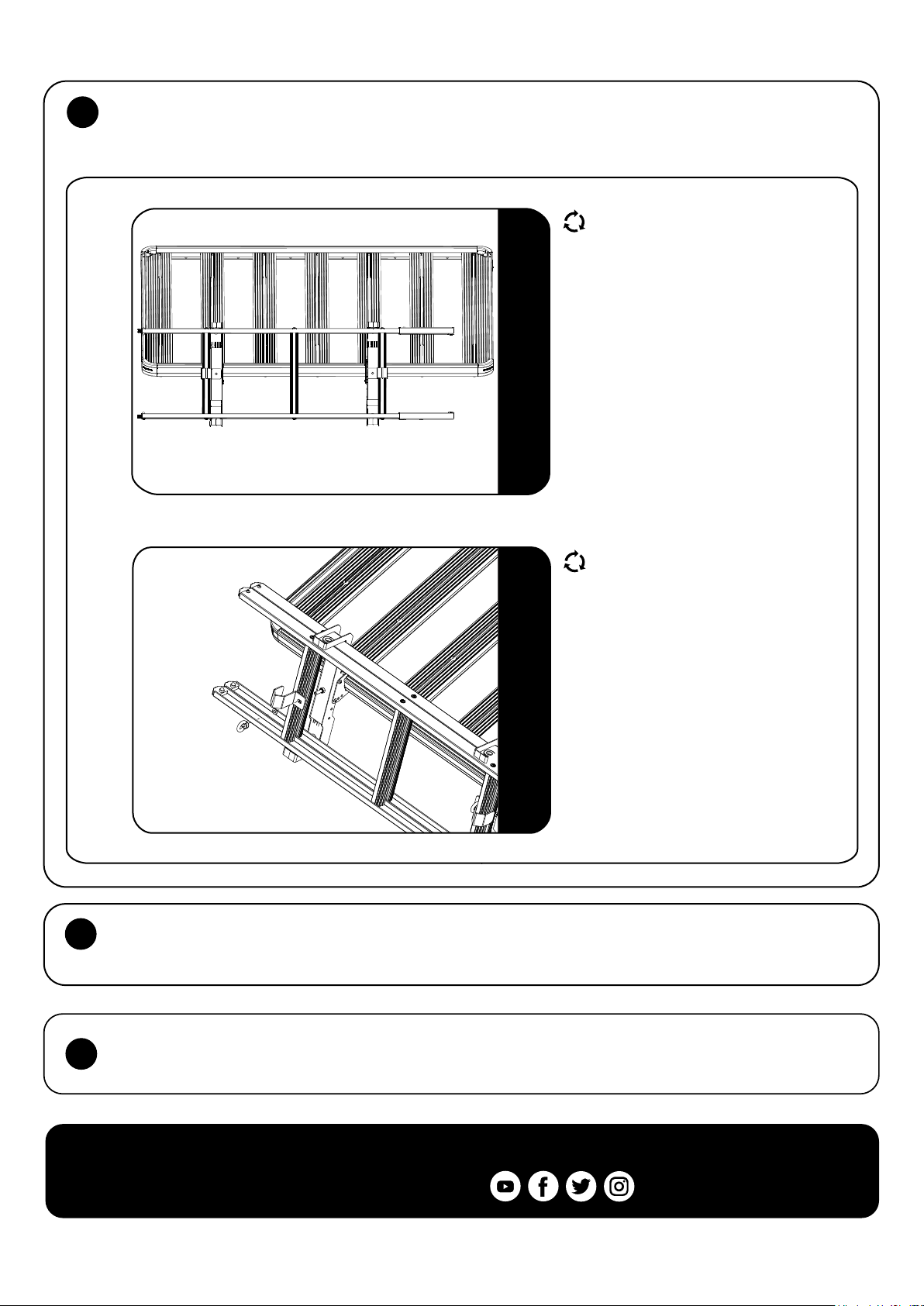

FIT AND SECURE2

2.4

2.5

Add Text
