Front Runner LAMG002 Bedienungsanleitung

front runner

LAMG002

ENG

Thank you for purchasing Front Runner Mercedes Gelandewagen G Class (1979-2018) Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

MERCEDES GELANDEWAGEN

G CLASS (1979-2018)

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1 1 X Ladder Top Clamp LH

2 1 X Gutter Clamp LH

3 1 X Ladder Top Clamp RH

4 1 X Gutter Clamp RH

5 1 X Ladder Side LH

6 8 X M6 x 12 Button Head Screw

7 1 X Bump Stop Plate

8 1 X M5 x 16 Button Head Screw

9 1 X Bump Stop

10 2 X M5 x 10 Button Head Screw

11 3 X M5 Flat Washer

12 3 X M5 Nyloc Nut

13 3 X M5 Nut Cap

14 10 X M6 x 16 Button Head Screw

15 1 X Bottom Support

16 1 X Ladder Rung - MG2

17 14 X M6 Nut Cap

18 18 X M6 Nyloc Nut

19 20 X M6 Flat Washer

IN THE BOX

20 2 X Ladder Rung - MG1

21 1 X Ladder Side RH

22 2 X M6 x 60 Cap Screw

23 4 X M6 Spring Washer

24 2 X M6 x 19 x 1SS Flat Washer

25 2 X M6 x 16 Hex Head Bolt

26 2 X M6 Black Nylon Flat Washer

1918

3mm

4mm

5mm

8mm

10mm Denatured

Alcohol

FIT AND SECURE2

2.1

2.2

2.3

The door opening side will determine which

side the ladder will be installed.

If the rear door opens to the right hand side,

the ladder must be installed on the left hand

side of the vehicle as shown.

Identify the Ladder Top Clamp and Gutter

Clamp you will use during the ladder

assembly.

L = Left Hand Side identiﬁer

Use the Ladder Top Mount LH (Item 1) with

the Gutter Clamp LH (Item 2) for a left hand

side installation.

R = Right Hand Side identiﬁer

Use the Ladder Top Mount RH (Item 3) with

the Gutter Clamp RH (Item 4) for a right hand

side installation.

For the purpose of this ﬁtment guide a left

hand assembly and installation will be

shown.

Assemble the Gutter Clamp LH (Item 2) to

the Ladder Top Clamp LH (Item 1) using

two M6x16 Hex Head Bolts, two M6 Spring

Washers and two M6 Flat Washers (Item

25, 23 & 19). Insure to insert two M6 Black

Nylon Washers (Item 26) between the Gutter

Clamp tabs and the holes provided in the

the Ladder Top Clamp.

Left Hand Side Right Hand Side

A B

23 19

25 23

19 26

Tab

10mm

FIT AND SECURE2

2.4

2.5

2.6

Assemble the two Ladder Rungs (Item 20)

to the Ladder Side RH (Item 21) and then

assemble Ladder Side LH (Item 5) as shown,

using eight M6x12 Button Head Screws,

eight M6 Flat Washers and eight M6 Nyloc

Nuts (Item 6, 19 & 18). Finish off by placing

eight M6 Nut Caps (Item 17) on the M6 Nyloc

Nuts.

Assemble the Bottom Support (Item 15) and

the Ladder Rung (Item 16) to the assembly

in 2.4 using six M6x16 Button Head Screws,

six M6 Flat Washers and six M6 Nyloc Nuts

(Item 14, 19 & 18). Finish off by placing six

M6 Nut Caps (Item 17) on the M6 Nyloc Nuts.

Assemble the Ladder Top in 2.3 to the

assembly in 2.5 using four M6x16 Button

Head Screw, four M6 Flat Washers and four

M6 Nyloc Nuts (Item 14, 19 & 18)

1718

4mm

10mm

4mm

10mm

4mm

10mm

FIT AND SECURE2

2.7

2.8

2.9

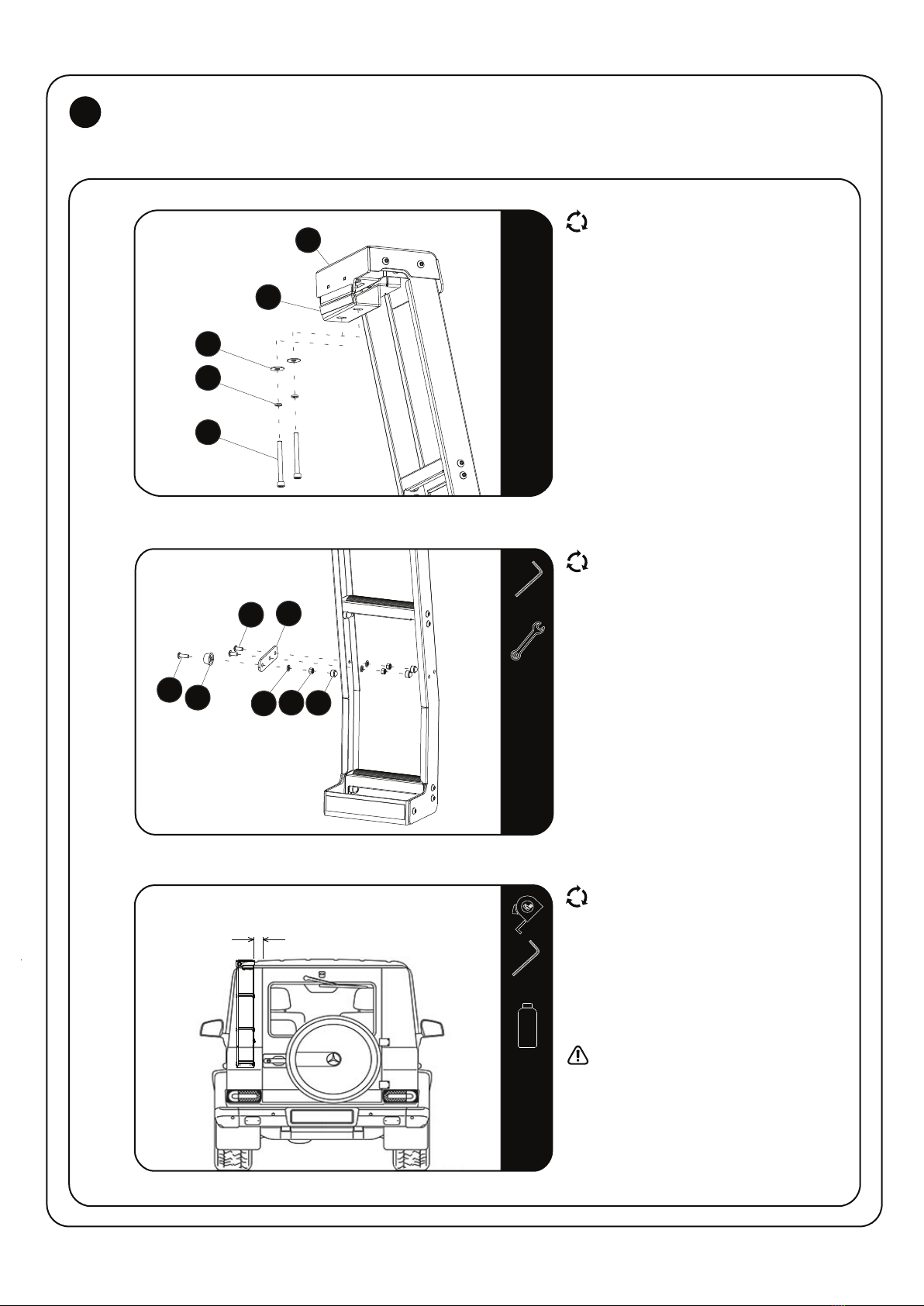

Loosely insert two M6x60 Cap Screws with

two M6 Spring Washers and two M6x19x1SS

Flat Washers (Item 22, 23 & 24) through the

Gutter Clamp LH (Item 2) into the Ladder Top

Clamp LH (Item 1) as shown.

Assemble the Bump Stop (Item 9) to the

Bump Stop Plate (Item 7) using the M5x16

Button Head Screw, one M5 Flat Washer

and one M5 Nyloc Nut (Item 8, 11 & 12).

Assemble the Bump Stop assembly to

the right hand side (left hand side for RH

installation) of the ladder using two M5x10

Button Head Screws, two M5 Flat Washers

and two M5 Nyloc Nuts (Item 10, 11& 12).

Finishing off placing three M5 Nut Caps

(Item 13) on the M5 Nyloc Nuts.

Swing open the Gutter Clamp. Fit the top

assembly into vehicle's gutter and let the

Bottom Support rest against the vehicle.

Align and space the Ladder Side at the top

and the Ladder Side at the bottom, 70mm

away from door frame edge.

Fully tighten the two M6 x 60 Cap Screws,

clamping the Ladder to the gutter.

Clean the surface area where the Double

Sided Tape rests against the vehicle with

Denatured Alcohol.

Make sure the spacing at the top and bottom

is 70mm from the Door Frame Edge.

Remove the backing tape from the Double

Sided Tape and ﬁrmly push and secure the

bottom of the ladder against the vehicle.

8911 12 13

70mm

Door Frame Edge

Ladder Side

3mm

8mm

5mm

Denatured

Alcohol

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
