GRAPHTEC CE7000-130AP Bedienungsanleitung

USER’S MANUAL

MANUAL NO.CE70AP-UM-151

CE7000-130AP

CUTTING PLOTTER

Preface

Thank you for choosing a Graphtec CE7000-130AP Cutting Plotter.

The CE7000-130AP Cutting Plotters employ a digital servo drive system to achieve high-speed and high-precision

cutting.

In addition to cutting with any perforation pattern, the CE7000-130AP plotter can also be used as a pen plotter.

To ensure high cutting quality and optimal productivity, be sure to read this User's Manual thoroughly prior to use.

Notes on this Manual

(1) No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, without the prior written permission of Graphtec Corporation.

(2) The product specications and other information in this manual are subject to change without notice.

(3) While every effort has been made to provide complete and accurate information, please contact your sales

representative or nearest Graphtec vendor if you nd any unclear or erroneous information or wish to make

other comments or suggestions.

(4) Not with standing the stipulations in the preceding paragraph, Graphtec Corporation assumes no liability for

damages resulting from either the use of the information contained herein or the use of the product.

Registered Trademarks

All names of companies, brands, logotypes, and products appearing in this manual are the trademarks or

registered trademarks of their respective companies.

This User's Manual is copyrighted by Graphtec Corporation.

About the words and phrases in this text

•In this instruction manual, the word "plot" refers to operating the machine and using either the plotting pen or the

cutter pen to cut.

• In this instruction manual, the word "media" refers to paper, roll media, sheet media, or marking lm.

Prior to use

•Be sure to read the attached TO ENSURE SAFE AND CORRECT USE prior to use. Otherwise, it may cause an

unexpected accident or re.

III

Special Precautions on Handling Blades

Sharp cutter blades are used with this plotter. Handle the cutter blades and holders with care to prevent bodily

injury.

Cutter Blades

Cutter blades are very sharp. While handling a cutter blade or cutter pen, be careful to avoid cutting your ngers

or other parts of your body. Promptly return used blades to the cutter case provided.

Blade tip

For the used blade, put it in the supplied cutter blade case and discard them in accordance with the local

regulations.

Cutter plungers

The tip consists of a sharp blade. Be sure not to extend it too far. Moreover, when you are not using the cutter

plungers, make sure that the blade is fully retracted.

Cutter blade

After Mounting the Cutter Plungers

After the power has been turned on, and during operation, do not touch the pen tip. It is dangerous.

After Turning on the Plotter

During the course of turning on the plotter, be sure to observe the following precautions. The tool carriage and

loaded media may suddenly move during the cutting operation, immediately afterward and when setting the

plotter's functions. Keep hands, hair, clothing and other objects out of the vicinity of the tool carriage, grit rollers

and loaded media. To prevent operator injury and poor cutting results, be careful not to allow hands, hair, clothing

or other foreign objects to become entangled with the tool carriage or loaded media while the plotter is operating.

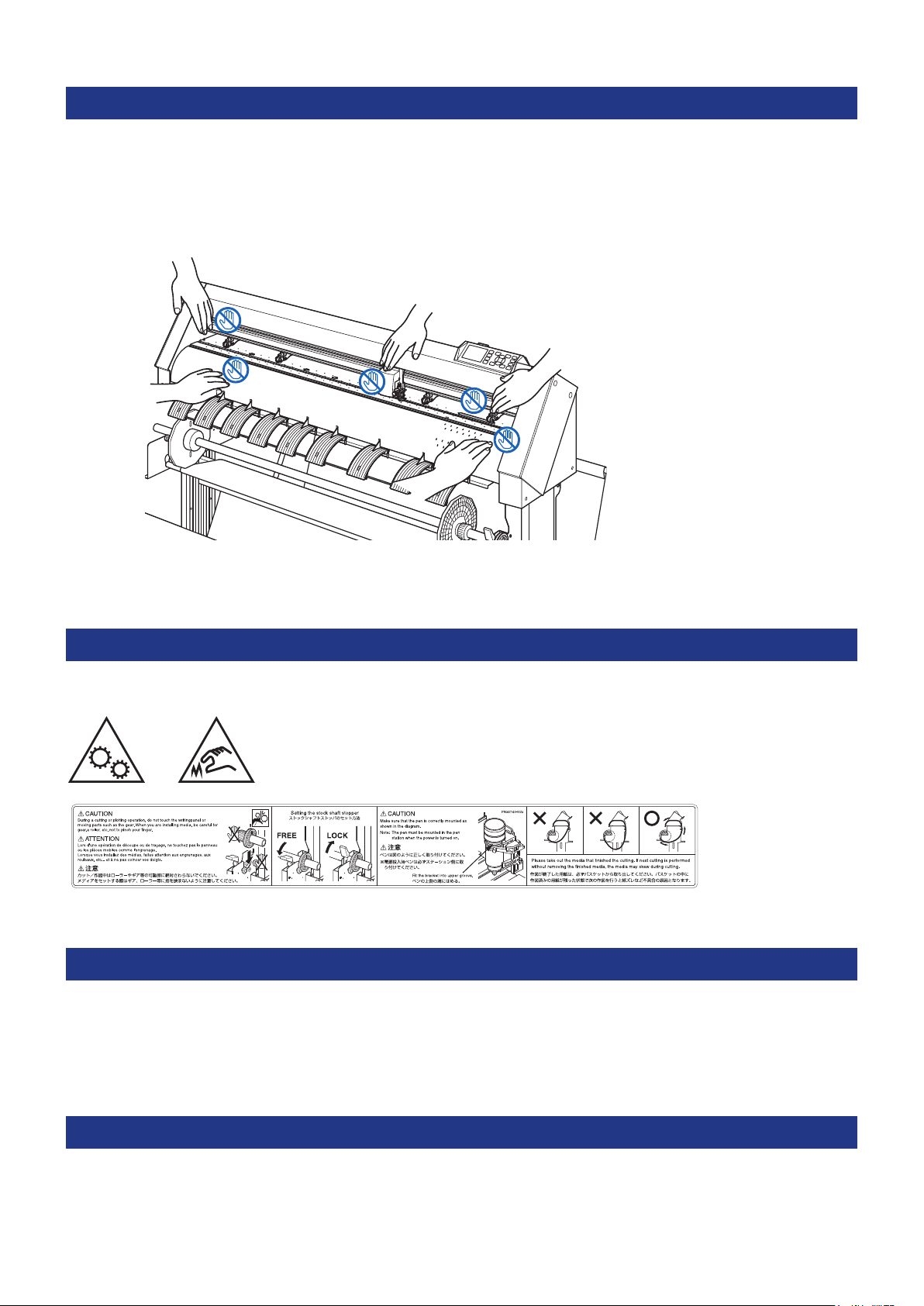

Machine Caution Label

The Caution Label is located on the machine. Be sure to observe all the cautions on the label.

Notes on the Stand

Be sure to use only the stand designed for the CE7000-130AP with your CE7000-130AP plotter. The use of a

different stand may cause a plotter malfunction or bodily injury.

Notes on the basket

If the supplied basket is not used, problems in cutting quality may occur. Be sure to use the basket.

Notes on the paper (media)

Please use the paper (media) in accordance with the following precautions.

•The paper is sensitive to temperature and humidity, and can start to stretch or contract immediately upon

removal from the roll. Cutting/plotting the media immediately after taking it off causes it to stretch and may blur

or cause deviations in the images.

•Please make sure to store the paper at the same environment (temperature/humidity) as this machine.

•Please always line up the edge of the paper.

Misalignment may cause paper skewing and cutting deviations.

Paper skewing can cause plotting deviation and cutoffs.

•About the end of the roll media and the paper roll:

The cutting or plotting may differ depending on how the roll media ended or how the paper roll was stopped.

•About the paper roll:

This machine uses rolls with an internal diameter of 3 inches, or 76.2 mm. Cutting or plotting deviations may

occur if the paper roll is warped or has a larger internal diameter.

•Please make sure to use the Paper Exposure Time and Number of Pre Feeds settings. (When setting AP mode)

The media can start to stretch or contract after it is taken off the roll.

Changes in temperature and/or humidity affect the paper’s contractile and saturation time, and may cause

deviations of cutting or plotting.

In order to reduce this effect, be sure to try this function on media to be used.

To prevent this from occurring, this machine is preset for Paper Exposure Time at 180 seconds, and Number of

Pre Feeds at 2. For details on how to change these settings, see “Setting Paper Exposure Time” and “Setting

the Number of Pre Feeds” in Section 4.

•About the use of thin media (70 g /m2or less)

If the cutting speed is fast, there may be paper skewing. In that case, please lower the cutting speed.

Especially when using in low humidity environment, please use lower cutting speed.

Precautions when using the curled media

• Especially upward curl will cause media jam even with weak curl.

•Please use uncurled media, or rework to make it curl weak downward to the extent that follows the plotter.

Operating environment

With regard to changes in the operating environment, we guarantee the precision of our products under the

following conditions:

•The paper used is Graphtec brand for this machine.

•The Paper Ready Time and Number of Pre Feeds are the manufactures settings of 180 seconds and 2

times.

•There are no changes in the storage temperature and humidity levels.

•If there are changes, the repeatable accuracy is equivalent to 0.1 mm per degree Celsius or 0.3 mm per

10% Relative humidity.

•The paper is re-set after 5 consecutive page cuts.

•Each page is removed from the basket after cutting.

•Connection of a ground wire is required.

* When the ground wire is not connected, the machine may be affected by static electricity.

When using the machine without connecting a ground wire, there may be adversely affected in the cutting

results. Make sure that the machine is grounded.

WARNING

The United States Federal Communications Commission has specied that the following notice must be

brought to the attention of users of this product.

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

USE SHIELDED CABLES

To comply with FCC Class A requirements, all external data interface cables and connectors must be

properly shielded and grounded. Proper cables and connectors are available from GRAPHTEC’s authorized

dealers or manufacturers of computers or peripherals. GRAPHTEC is not responsible for any interference

caused by using cables and connectors other than those recommended or by unauthorized changes or

modications to this equipment. Unauthorized changes or modications could void the user’s authority to

operate the equipment.

VII

Installation space

Please secure a space for installation as according to the below illustration.

CAUTION

Frontward and backward the machine, please take enough space for operation.

100 mm

500 mm

600 mm 600 mm

Frontward

Top view

VIII

Selecting a power cable

Be sure to refer to the following tables if you wish to use a cable other than the one supplied as an

accessory.

Table 1. 100 V to 120 V Power Supply Voltage Range

Plug Conguration Plug Type Supply Voltage

Selector Settings

Reference

Standards Power Cable

North America

125 V

10 A

100/120 V

ANSI C73.11

NEMA 5-15

UL498/817/62

CSA22.2

NO.42/21/49

UL Listed

Type SJT

No.18AWG × 3

300 V, 10 A

Table 2. 200 V to 240 V Power Supply Voltage Range

Plug Conguration Plug Type Supply Voltage

Selector Settings

Reference

Standards Power Cable

Europe

250 V

10 A

200 V

CEE(7)VII

IEC320

CEE13

TYPE: H05VV-F

3 × 1.0 mm2

250 V

5 A

200 V

BS1363

BS4491

BS6500

TYPE: H05VV-F

3 × 1.0 mm2

Australia

250 V

10 A

200 V

AS3112

AS3109

AS3191

TYPE: OD3CFC

3 × 1.0 mm2

North America

250 V

15 A

200 V

ANSI C73.20

NEMA 6-15

UL 198.6

UL Listed

Type SJT

No.18AWG × 3

300 V, 10 A

Switzerland

250 V

6 A

200 V

SEV1011

SEV1004

SEV1012

TYPE: H05VV-F

3 × 0.75 mm2

China

250 V

6 A

200 V

GB15934

GB2099.1

GB1002

GB/T 5023.5

TYPE: H05VV-F

3 × 1.0 mm2
