Heath Zenith Motion Sensor Entryway Light SL-5610/15 Bedienungsanleitung

Motion Sensor

Entryway Light

Models SL-5610/15

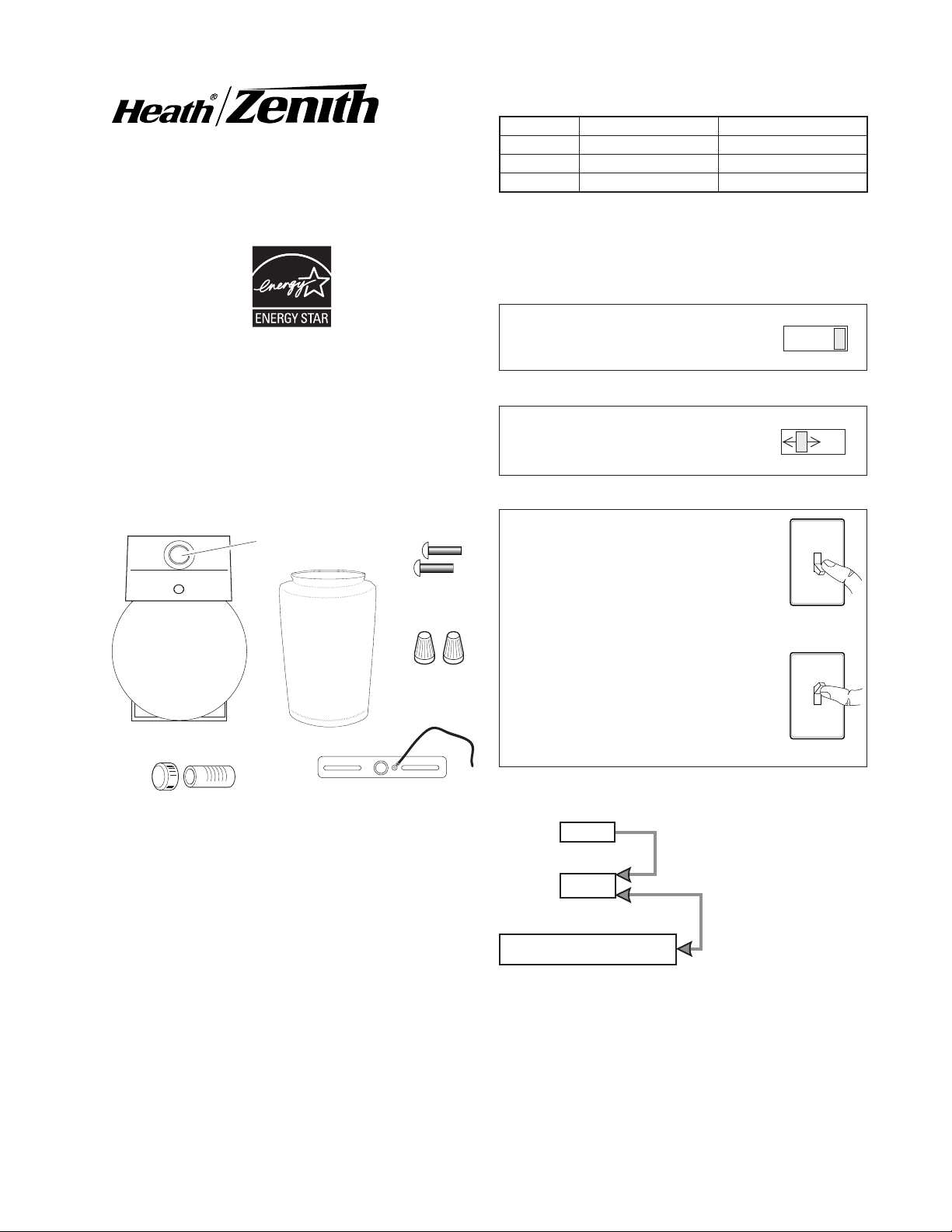

The Heath®/Zenith Motion Sensor Entryway Light turns

on up to 60 watts of incandescent light when motion

is detected and then, after a selectable time period,

automatically turns the light off. The built-in photocell

keeps the light off during daylight hours.

Sensor

Entryway Light

Mounting Nut and Stem

2 Wire

Connectors

2 Screws

Mounting Strap and

Grounding Wire

globe

(SL-5615) or jar

(SL-5610)

Requirements

• The Entryway Light requires 120-volts AC.

• If you want to use Manual Override, the light must be

wired through a switch.

• Some codes require installation by a qualiﬁed

electrician.

This package includes:

OPERATION

* resets to Auto Mode at dawn.

Note: When ﬁrst turned on wait about 1 1/2minutes for

the circuitry to calibrate.

MANUAL MODE

ON-TIME

10 5 1 TEST

ON-TIME

TEST

... back on.

AUTO

1 Second

OFF then...

Put the ON-TIME switch in the 1, 5,

or 10 minute position.

Put the ON-TIME switch on the bottom

of the sensor in the TEST position.

Manual mode only works at night

because daylight returns the sensor

to AUTO.

Flip the light switch off for one second

thenbackontotogglebetweenAUTO

and MANUAL MODE.

Manual mode works only with the

ON-TIME switch in the 1, 5, or 10

position.

Move ON-TIME Switch to

1, 5, or 10 minutes

Mode Switching Summary

Flip light switch off

for one second then

back on*

MANUAL MODE

AUTO

TEST

* If you get confused while switching modes, turn the

power off for one minute, then back on. After the cali-

bration time the control will be in the AUTO mode.

Mode: On-Time Works: Day Night

Test 5 Seconds x x

Auto 1, 5, or 10 Min x

Manual Until Dawn* x

595-5498-09

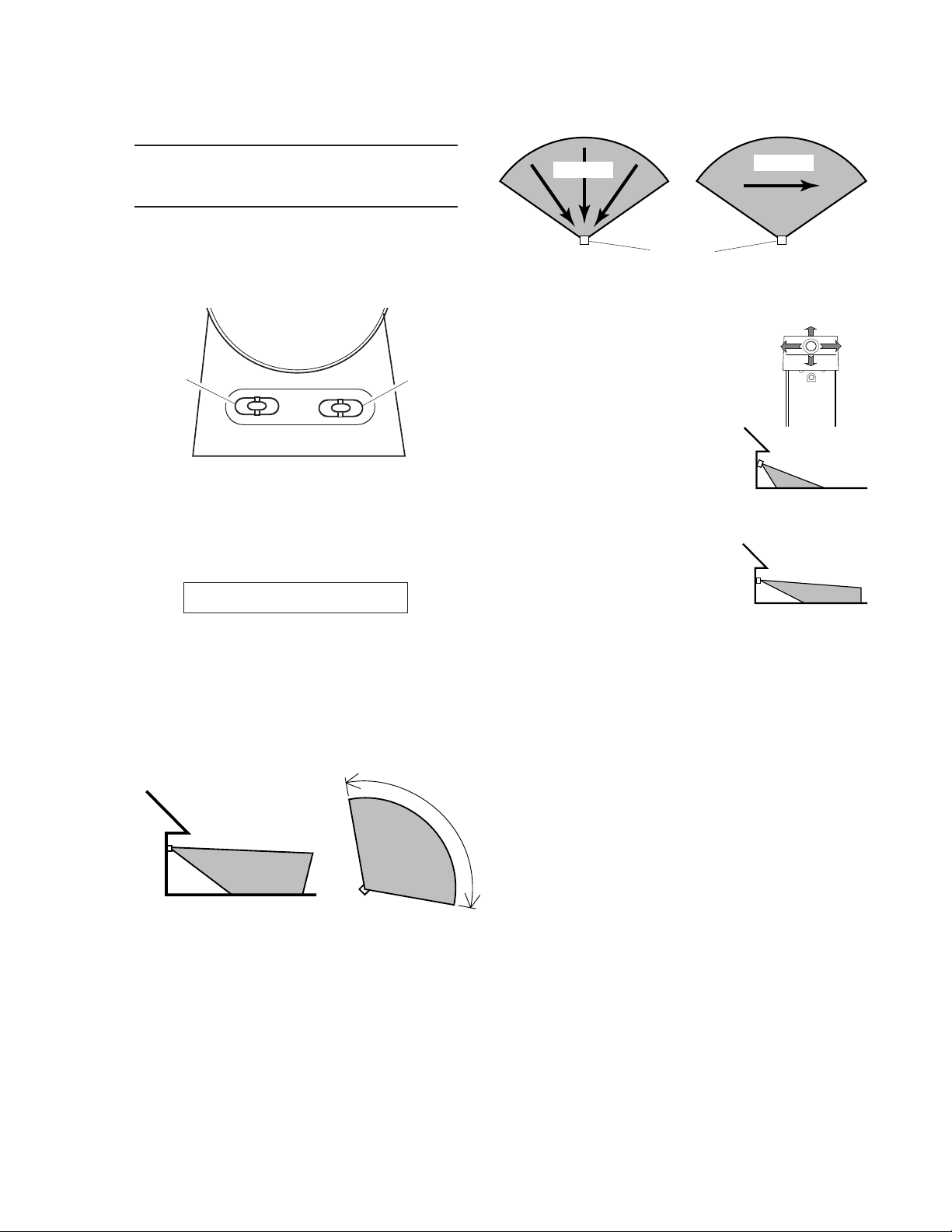

TEST AND ADJUSTMENT

❒Turn on the circuit breaker and light switch.

Avoid aiming the control at:

• Objectsthatchangetemperaturerapidly,suchasheat-

ing vents or air conditioners. These heat sources

could cause false triggering.

• Areas where pets or trafﬁc may trigger the control.

• Nearby large, light-colored objects reﬂecting light

may trigger the shut-off feature. Do not point other

lights at the sensor.

110°

30 ft (9.1m)

The detector is less sensitive to motion directly towards

it and more sensitive to across motion.

7ft

(2.1 m)

Maximum Range Maximum

Coverage Angle

❒Rotate the sensor base left

and right to aim the sensor.

Adjust the sensor eye up

and down to obtain desired

coverage range.

❒Walk through the coverage

area noting where you are

whenthelights turn on.Move

the sensor head up, down,

or sideways to change the

coverage area.

❒SetSENSITIVITYasneeded.

Too much sensitivity may

increase false triggering.

❒

Set the amount of TIME the

lightsstayonaftermotionisde-

tected (1, 5, or 10 minutes).

In the test position shown above, the light will turn

on for 5 seconds each time motion is detected dur-

ing both daylight and darkness.

SPECIFICATIONS

Range . . . . . . . . . . . . . . Up to30 ft(9.1 m) [varies with

surrounding temperature].

Sensing Angle . . . . . . . . Up to 110°

Electrical Load. . . . . . . . Up to 60 Watt Maximum In-

candescent

Power Requirements . . . 120 VAC, 60 Hz

Operating Modes. . . . . . TEST, AUTO and MANUAL

OVERRIDE

Time Delay . . . . . . . . . . 1, 5, 10 minutes

Sensitivity . . . . . . . . . . . Adjustable

HeathCo LLC reserves the right to discontinue prod-

ucts and to change speciﬁcations at any time without

incurring any obligation to incorporate new features in

products previously sold.

ON-TIME SENS

TEST 1 5 10 MIN MAX

Bottom of Sensor

Least Sensitive Most Sensitive

Sensor

Motion

NOTE: Sensor has a 1 1/2minute calibration period

before it will detect motion. When ﬁrst turned

on, wait 1 1/2minutes.

Aim Sensor

Down for Short

Coverage

Aim Sensor

Higher for Long

Coverage

❒For aiming, turn the SENSITIVITY (SENS) control

to the mid position and the ON-TIME control to the

TEST position.
