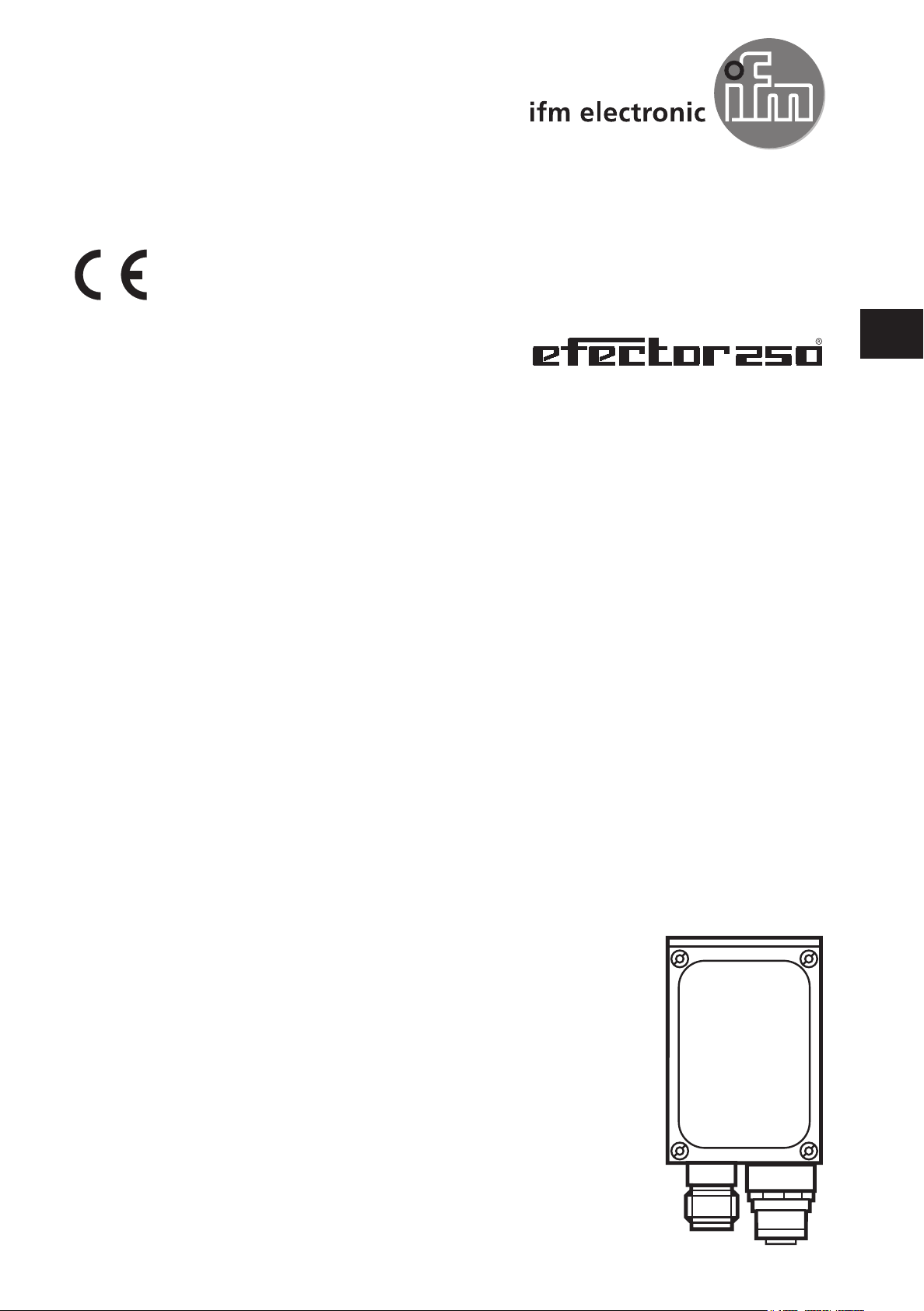

IFM Electronic efector 250 Bedienungsanleitung
Operating instructions
Object recognition sensor
O2D22x
704435 / 00 08 / 2008
UK
Object recognition sensor O2D22x
2
Contents
1 Preliminary note.................................................. 4
1.1 Symbols used.................................................. 4
2 Safety instructions ................................................ 4
3 Items supplied4
3.1 Accessories 4
4 Functions and features ............................................ 4
5 Installation 5
5.1 Mounting accessories............................................ 5
5.2 Mounting dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.3 Installation location.............................................. 6
6 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.1 Wiring 7
6.2 Wiring diagram ................................................. 7
6.3 External illumination ............................................. 8
6.4 External trigger source ........................................... 8
6.4.1 Timing diagram inputs/outputs.................................... 8
7 Operating and display elements .....................................11
7.1 LED display 11
7.2 Display 12
7.2.1 Operation indication........................................... 12
7.2.2 Connection via operating program ............................... 13
7.2.3 Error messages .............................................. 13
7.3 Pushbuttons 13
8 Set-up 13
8.1 Parameter setting on the device................................... 14
8.2 Verify and set the IP address on the unit ............................ 14
8.3 Adjustable parameters .......................................... 15
8.3.1 Parameter structure........................................... 16
8.4 Lock / unlock the sensor......................................... 17
8.4.1 Reset device to factory settings.................................. 17
8.5 Parameter setting via PC operating program ......................... 17
9. Operation 17
9.1 Evaluation mode (normal operating mode) .......................... 17
10 Scale drawing ................................................. 18
11 Technical data ................................................. 19
11.1 Operating distance L........................................... 19
11.2 Factory settings .............................................. 19
12 Process data protocol ........................................... 20
12.1 Establishing TCP/IP connection .................................. 20
12.2 Basic communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
UK
Object recognition sensor O2D22x
3
12.3 Protocol version .............................................. 21
12.4 Type of commands ............................................ 21
12.5 Requesting the trigger pulse..................................... 21
12.6 Select the protocol version ...................................... 22
12.7 Select the application .......................................... 22
12.8 Activate/deactivate the result output............................... 22
12.9 Transmit the image to the device for evaluation...................... 23
12.10 Transmit the application data set to the device ..................... 23
12.11 Request the assignment of the application data from the device ........ 23
12.12 Request the statistics from the device ............................ 24
12.13 Request the error code from the device ........................... 24
12.14 Request the last image from the device ........................... 24
12.15 Request the last result from the device ........................... 25
12.16 Release trigger, evaluate the image and result output via process interface if
output is active 25
12.17 Request the protocol version ................................... 25
12.18 Request the device information ................................. 26
12.19 Request the last "bad" image from the device ...................... 26
12.20 Result message ............................................. 27
12.21 Error codes from the device .................................... 28
13 Maintenance, repair and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
14 Approvals / standards ........................................... 30
15 Note regarding the software ...................................... 30
Object recognition sensor O2D22x
4
1 Preliminary note
1.1 Symbols used
► Instruction
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
Reference to the kind and source of a hazard
Instruction to avoid a hazard
→ Target,reference
2 Safety instructions
These instructions are part of the device. They contain texts and drawings
concerning the correct handling of the device and must be read before installation
or use.
Observe the operating instructions.
Non-observance of the instructions, operation which is not in accordance with use
as prescribed below, wrong installation or handling can affect the safety of people
and machinery.
The installation and connection must comply with the applicable national and
international standards.
Responsibility lies with the person installing the unit.
Only the signals indicated in the technical data or on the device label may be
supplied to the connections or wires.
3 Items supplied
object recognition sensor O2D22x●
operating instructions "object recognition sensor O2D22x“, ident no.: 704435●
The device is supplied without installation/connection accessories and software.
3.1 Accessories
www.ifm.com
→Datasheetdirect→e.g.O2D220→Accessories
4 Functions and features
The sensor uses incident light or backlight to detect the contours of an object and
compares them with the contours of one or several models in a reference image.
Depending on the degree of conformity the output can indicate if a model was
found or which one was found.
UK
Object recognition sensor O2D22x
5
5 Installation
5.1 Mounting accessories
The device is compatible with the mounting accessories of ifm's photoelectric
sensors for the O2Ixxx (multicode reader), O2Mxxx (EthernetCamera) series etc.
Example mounting with clamp and bracket
Use the mounting accessory E2D101.►
focal setter1.
mounting accessory2.
object to be recognised3.
field of view size W X H4.
operating distance L5.
Depending on the intended location and type of mounting the following mounting
accessories are available:
Description Art. no.
Mounting set for shaft Ø 12 mm
(clamp and bracket for types O2Dxxx, O2Mxxx, O2Ixxx)
E2D110
Shaft, straight Ø 12 mm, length 130 mm, M10 E20938
Shaft, angled Ø 12 mm, length 200 mm, M10 E20940
Mounting set for shaft Ø 14 mm
(clamp and bracket for types O2Dxxx, O2Mxxx, O2Ixxx)
E2D112
Object recognition sensor O2D22x
6
Description Art. no.
Shaft, straight Ø 14 mm, length 130 mm, M12 E20939
Shaft, angled Ø 14 mm, length 200 mm, M12 E20941
You can find more information about the available accessories at
www.ifm.com
→Datasheetdirect→e.g.O2D220→Accessories
or directly
www.ifm.com
→Datasheetdirect→z.B.E2D110
5.2 Mounting dimensions
The device is mounted using the mounting accessories or 2 M4 screws and nuts.
Holedimensions→chapter10Scaledrawing.
5.3 Installation location
Mount the sensor in front of or above the area to be monitored. The detectable►
fieldofviewsizedependsontheoperatingdistance→chapter11.1Technical
Data.
Back light or scattered light situations and continuously changing light►
conditions are to be avoided.
Do not position room lights directly facing the camera lens.►
Position the optional external illumination (e.g. O2D909) opposite the camera►
lens.
To avoid adverse effects on the image detection, avoid installation in heavily►
polluting areas of the machine.
The connected cables must be provided with a strain relief.►
6 Electrical connection
NOTE
The unit must be connected by a qualified electrician. Disconnect power before
connecting the unit.
UK
Object recognition sensor O2D22x
7
6.1 Wiring
Process interface (1)
M12 connector, A-coded, 8 poles
1 U+
2 trigger input
3 0V
4 switching output / trigger output
5 switching output (ready)
6 switching output (OUT)
7 switching output / input 1
8 switching output / input 2
Parameter/process interface (2)
M12 socket, D-coded, 4 poles
1 Ethernet TD +
2 Ethernet RD +
3 Ethernet TD -
4 Ethernet RD -
S Shield
6.2 Wiring diagram
CB
D
A
A
process interface (M12 connector, A-coded, 8 poles)
B
controller e.g. PLC
C
external trigger
D
external lighting (optional)
Object recognition sensor O2D22x
8
Pin Use (factory setting)
5
Output signal "READY" provides the status of the sensor:
"1" after the evaluation has been carried out.
"0" as long as the evaluation is being carried out, a different application is being selected or in
case of an internal error (trigger signals are ignored).
6
Output signal "OUT" provides the result of the evaluation:
”0“ no matching model
”1“ matching model
6.3 External illumination
Connect external illumination to the trigger output of the device.►
Example Art. no.
Illumination unit, transmitter red light 630 nm O2D909
For information about the a.-m. example see:
www.ifm.com
→Datasheetdirect→O2D909
6.4 External trigger source
Connect an external trigger source (e.g. a diffuse reflection sensor) to the►
trigger input of the device.
If you use an external trigger source (e.g. a diffuse reflection sensor),
connect the trigger signal to the trigger input of the sensor. If you use
external illumination, it must be controlled via the trigger output of the
sensor. Depending on the device setting, one of four configuration
files saved in the sensor can be selected via two switching inputs.
Information about the test result is provided via switching outputs.
6.4.1 Timing diagram inputs/outputs
��
��
3
5
2
4
1
6
7
8
1: triggering on positive edge 2: trigger input 3: output READY
4: output OUT 5: error 6: ok 7: OUT invalid 8: OUT valid
UK
Object recognition sensor O2D22x
9
The evaluation time tAdepends on
the size of the field of view selected●
the model size●
the smoothing degree●
the sensitivity●
the orientation●
the number of models●
Typical evaluation times are between 50 and 800 ms.
With the corresponding unit configuration the first four applications can be selected
via the switching inputs.
Object recognition sensor O2D22x
10
Input Application no.
2 1
0 0 1
0 1 2
1 0 3
1 1 4
1
2
3
4
5
1: selection of the application
2: switching input 1
3: switching input 2
4: output READY
5: trigger input
A trigger enabled
B trigger disabled
Depending on the application the trigger disable time tPis 3...10 s.
Andere Handbücher für efector 250
3
Inhaltsverzeichnis
Andere IFM Electronic Zubehör Handbücher
IFM Electronic
IFM Electronic efector150 Bedienungsanleitung
IFM Electronic
IFM Electronic efector300 SU9004 Bedienungsanleitung
IFM Electronic
IFM Electronic efector 300 SU7000 Bedienungsanleitung
IFM Electronic
IFM Electronic efector 200 OJ51 Series Bedienungsanleitung
IFM Electronic
IFM Electronic Efector 100 series Bedienungsanleitung
IFM Electronic
IFM Electronic efector150 Bedienungsanleitung
IFM Electronic
IFM Electronic efector500 PI20 Bedienungsanleitung
IFM Electronic
IFM Electronic efector 250 Bedienungsanleitung
IFM Electronic
IFM Electronic LR2750 Bedienungsanleitung
IFM Electronic
IFM Electronic LK7 Bedienungsanleitung
IFM Electronic
IFM Electronic Efector 500 PL2058 Bedienungsanleitung
IFM Electronic
IFM Electronic Efector 200 OL Series Bedienungsanleitung
IFM Electronic
IFM Electronic Efector 300 Bedienungsanleitung
IFM Electronic
IFM Electronic efector 500 PI00 A Series Bedienungsanleitung
IFM Electronic
IFM Electronic efector500 PQ08 Series Bedienungsanleitung
IFM Electronic
IFM Electronic efector 300 SU8200 Bedienungsanleitung
IFM Electronic
IFM Electronic efector160 LR7000 Bedienungsanleitung
IFM Electronic
IFM Electronic efector200 OW Series Bedienungsanleitung
IFM Electronic
IFM Electronic Efectror 200 OGE2 Series Bedienungsanleitung
IFM Electronic
IFM Electronic O1D102 Bedienungsanleitung
Beliebte Zubehör Handbücher anderer Marken
Panasonic
Panasonic HG-T Series Bedienungsanleitung
DigiDesign
DigiDesign 888/24 I/O Bedienungsanleitung
PROZIS
PROZIS QUAY Bedienungsanleitung
patagonia
patagonia PSI Vest Bedienungsanleitung
SFC Energy
SFC Energy EFOY GO! Bedienungsanleitung
Axminster
Axminster Tooling Stylus Tip Ballpoint Pen Kit Bedienungsanleitung
