IFM Electronic Efector 300 SM6004 Bedienungsanleitung

Operating instructions

Magnetic-inductive flow sensor

SM6004

SM7004

SM8004

80003223 / 00 05 / 2014

Contents

1 Preliminary note ��3

1�1 Symbols used ��3

2 Safety instructions ��4

3 Functions and features ��5

4 Function��5

4�1 Processing of the measured signals��5

4�2 Volumetric flow monitoring��5

4�3 Monitoring of temperatures��5

4�4 Volumetric flow or temperature monitoring / analogue function ��6

5 Installation��6

5�1 Installation location ��6

5�2 Installation in pipes ��9

6 Electrical connection��10

7 Operating and display elements �� 11

8 Menu��12

8�1 Menu structure��12

8�2 Explanation of the menu��13

9 Parameter setting ��14

9�1 General parameter setting��14

9�2 Scaling of the analogue value for temperature��16

9�3 Scaling of the analogue value for volumetric flow ��16

9�4 User settings (optional)��16

9�4�1 Determine the standard unit of measurement for volumetric flow ��16

9�4�2 Determine the standard unit of measurement for temperature��16

9�4�3 Configuration of the standard display ��16

9�4�4 Setting the damping of the measured values ��16

9�4�5 Setting the error behaviour of OUT1 / OUT2��17

9�5 Service functions ��17

9�5�1 Reading the min�/max� values for volumetric flow ��17

9�5�2 Reading the min�/max� values for temperature��17

9�5�3 Reset all parameters to the factory setting ��17

10 Operation��18

10�1 Read the set parameters ��18

10�2 Changing the display unit in the Run mode��18

10�3 Error indication ��19

11 Technical data and scale drawing ��19

12 Factory setting ��19

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of buttons, switches or indications

→Cross-reference

Important note

Non-compliance can result in malfunctions or interference�

2 Safety instructions

• Please read this document prior to installing the unit� Ensure that the product is

suitable for your application without any restrictions�

• Improper or non-intended use may lead to malfunctions of the unit or to unwan-

ted effects in your application� That is why installation, electrical connection,

set-up, operation and maintenance of the unit must be carried out by qualified

personnel authorised by the plant operator�

• Inallapplicationstestthecompatibilityoftheproductmaterials(→11Technical

data and scale drawing) with the media to be measured�

• In order to guarantee the correct condition of the device for the operating time it

is necessary to use the device only for media to which the wetted materials are

sufficientlyresistant(→Technicaldata).

• The responsibility whether the measurement devices are suitable for the

respective application lies with the operator� The manufacturer assumes no

liability for consequences of misuse by the operator� Improper installation and

use of the measurement devices results in a loss of the warranty claims�

CAUTION

For medium temperatures above 50 °C some parts of the housing can heat up

to over 65 °C�

►In this case do not touch the unit�

►Protect the housing against contact with flammable substances and uninten-

tional contact�

►Do not press the pushbuttons manually; instead use another object (e�g�

ballpoint pen)�

3 Functions and features

The unit monitors liquids�

It detects the process categories volumetric flow and medium temperature�

Application area

Conductive liquids with the following properties:

• conductivity:≥20µS/cm

• viscosity: < 70 mm2/s at 40 °C (< 70 cSt at 104 °F)�

4 Function

4.1 Processing of the measured signals

• The unit displays the current process values�

• It generates 2 output signals according to the parameter setting�

- OUT1: analogue signal for temperature�

- OUT2: analogue signal for volumetric flow�

4.2 Volumetric flow monitoring

The medium flows through a magnetic field� It generates a signal voltage which is

directly proportional to the volumetric flow�

• An analogue signal proportional to the volumetric flow (4��20 mA) is provided

onoutput2.Fortheanaloguefunctions→4.4.

In addition to the flow velocity, the unit also detects the flow direction� The positive

flowdirectionismarkedontheunitbyanarrow(“flowdirection”→5.2).

• Flow = “flow direction”: process value and display positive�

• Flow against the “flow direction”: process value and display negative�

Only positive process values are processed for the signal output��

4.3 Monitoring of temperatures

• An analogue signal proportional to the temperature (4��20 mA) is provided on

output1.Fortheanaloguefunctions→4.4.

4.4 Volumetric flow or temperature monitoring / analogue

function

• The analogue start point [ASP] determines at which measured value the output

signal is 4 mA�

• The analogue end point [AEP] determines at which measured value the output

signal is 20 mA�

• Minimum distance between [ASP] and [AEP] = 20 % of the final value of the

measuring range�

Example volumetric flow monitoring

Factory setting Measuring range scaled

I [mA]

0 MEW Q

I [mA]

0 MEWAEPASP Q

MEW = final value of the measuring range

In the set measuring range the output signal is between 4 and 20 mA�

It is also indicated:

Volumetric flow above the measuring range: output signal > 20 mA�

5 Installation

5.1 Installation location

►Install the unit so that the measuring pipe is always completely filled�

►Arrange for inlet and outlet pipe lengths� Disturbances caused by bends,

valves, reductions, etc� are compensated for� It applies in particular: no shut-off

and control devices are allowed directly in front of the unit�

















S = disturbance; D = pipe diameter; F = flow direction

►Install in front of or in a rising pipe�









F = flow direction

►Avoid the following installation locations:

- Directly in front of a falling pipe�

- In a falling pipe�









F = flow direction

- At the highest point of the pipe system�

- Directly in front of the spout of a pipe�









F = flow direction

The unit can be installed independently of the orientation if the following is

ensured:

- No air bubbles can form in the pipe system�

- The pipes are always completely filled�

• On the suction side of a pump�





F = flow direction

If installed in an ungrounded pipe system (e�g� plastic pipes) the unit must

be grounded�



Ground brackets for the thread are available as accessories�

A = cable lug (not included in the scope of supply)�

5.2 Installation in pipes

The unit is installed in the pipe using adapters� Adapters have to be ordered sepa-

rately as accessories�





 





1� Screw the adapter (B) into the pipe (A)�

2� Place the seals (C) and install the unit according to the marked flow direction�

3� Screw the adapter (B) with the threads (D) until it is hand-tight�

4� Tighten the two adapters in opposite direction (tightening torque: 30 Nm)�

For SM6004:

The unit can also be used in G¾

fittings�

►To do so, first screw an adapter G½

- G¾ (B) with O-ring (C) on both

threads (D) of the unit�

►Place the seals (A) and install the

unit according to the marked flow

direction�



 

After installation air bubbles in the system can affect the measurement� Help:

►Rinse the system after installation for ventilation (rinsing quantity > 3 l/min� /

1 gpm)�

In cases of horizontal installation: As a result of design requirements a small

quantity of the medium always remains in the measuring channel after switching

off the pump�

►

6 Electrical connection

The unit must be connected by a qualified electrician�

The national and international regulations for the installation of electrical

equipment must be adhered to�

Voltage supply to EN 50178, SELV, PELV�

►Disconnect power�

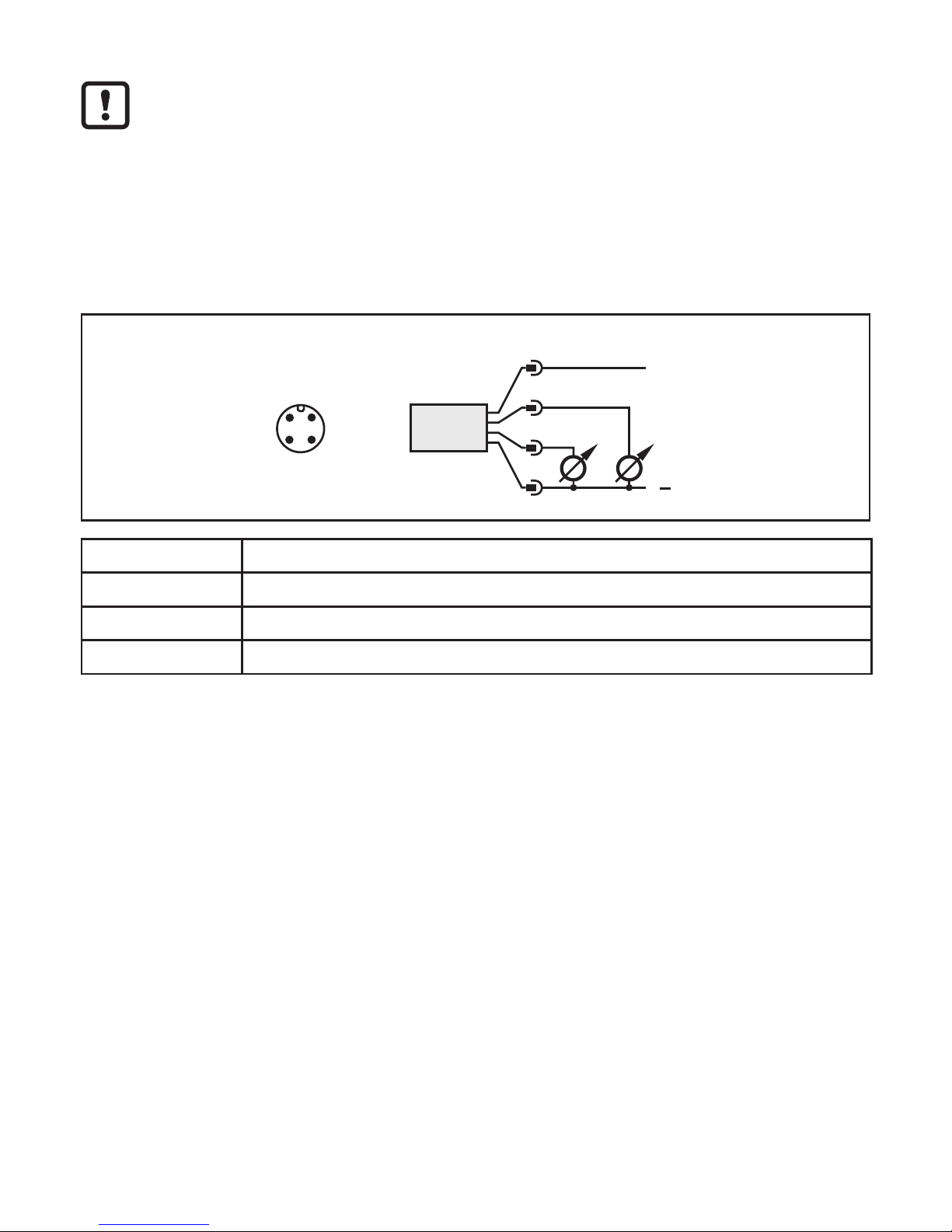

►Connect the unit as follows:

L+

OUT1

OUT2

2 1

Pin1 Ub+

Pin3 Ub-

Pin4 (OUT1) Analogue signal for temperature�

Pin2 (OUT2) Analogue signal for volumetric flow�
