Inspur NF5468M5 Bedienungsanleitung

4U Rack-Mounted Server

Installation Guide

V1.0

15kg

30kg

50kg

Please keep this document for future reference.

Warnings!

●When installing 4U or bigger servers, at least 4 people are needed.

●During the installation process, please do not block the vents on the server, especially

the vents on the front and rear of the server.

●Please remove the protective film from the server surface before using.

●Please leave a minimum of 15cm clearance on the front and rear sides of the server

for proper ventilation.

●Please install air baffles in place prior to device installation, to make sure that the

server can get enough air flow, and to avoid air turbulence in the server room.

●Servers are high-power electrical appliances, and they should be installed into

dedicated cabinets with vents or professional water-cooled cabinets, to prevent

system failures caused by overheating.

●If it needs to install more than one device, please load them from the bottom to the

top, and load the heaviest items first.

●Please note the cabinet’s load-bearing capacity, power supply capacity and heat

dissipation capacity, be sure not to install devices beyond the cabinet’s threshold

capacity.

●For the convenience of using the front and rear ports of the server and cabling, leave

a minimum clearance of 70mm between the front end of the server and the inner side

of the cabinet’s front door, and 150mm between the rear end of the server and the

inner side of the cabinet’s rear door.

The cabinet, chassis or guide rails may cause serious

scratches, please be careful while handling.

When installing new servers into the cabinet in use, please be

aware of electric shock.

If the device is more than 15kg, at least 2 people are needed.

If the device is more than 30kg, at least 3 people are needed.

If the device is more than 50kg, at least 4 people are needed.

4U Rack-Mounted Server Installation Guide V1.0

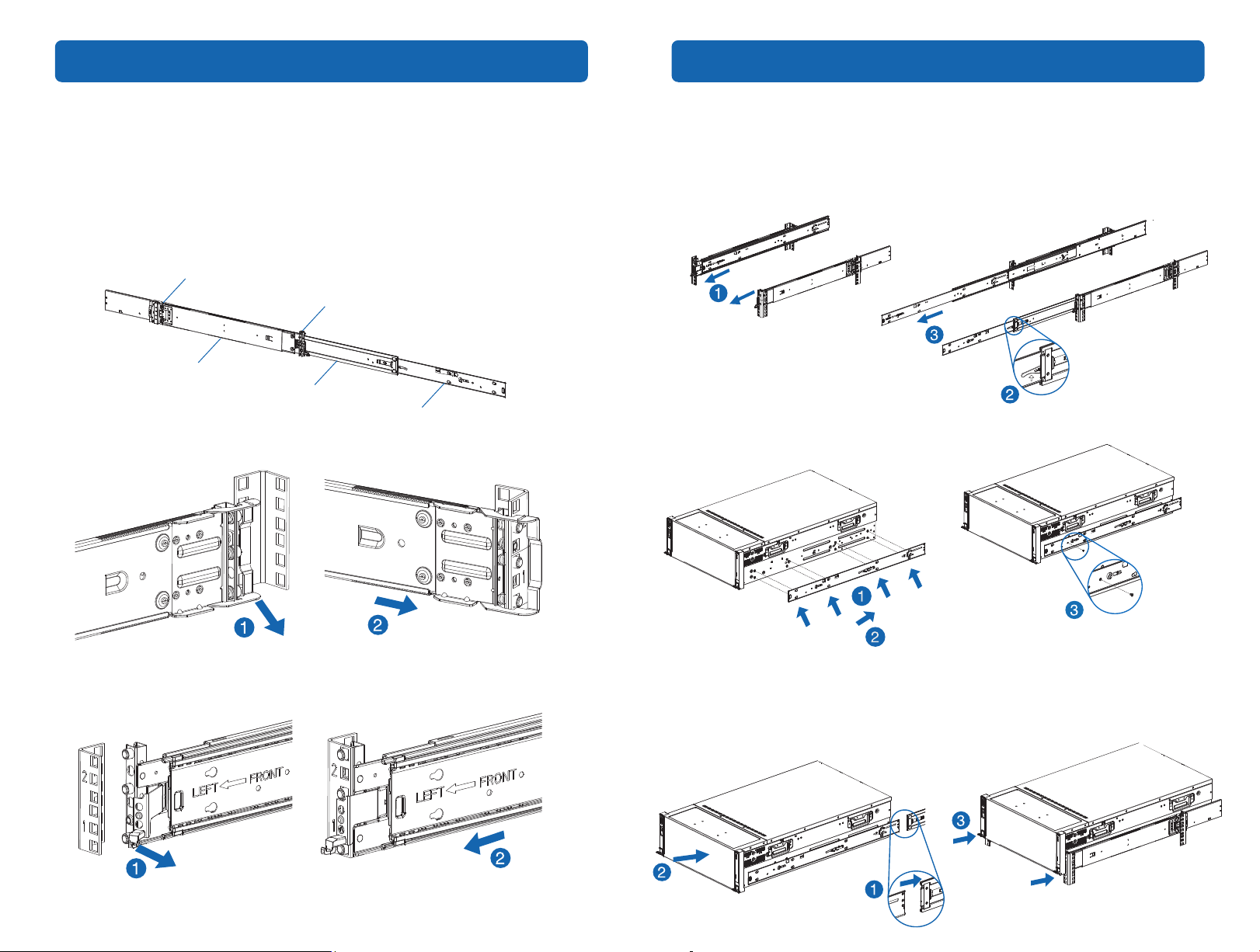

Rail Kit Installation Guide

Chassis Installation Guide

Pull out the inner rail.

①Extend the inner rail. ②Press the latch, and remove the inner rail.

Install the inner rail to the server.

①② Install the inner rail to the server. ③Use a screw to fix it.

Install the server into the cabinet.

①② Align the inner rails with the middle rails, and push the server into the cabinet.

③Tighten the screws within the left and right handles of the server.

Repeat steps 1 and 2 to install the other inner rail to the server.

Identify the rail kit contents.

Rail Kit is assembled by inner rail, middle rail and outer rail.

Screw: M4×5.5 (2)

Install the rear side of the rail into the cabinet.

Position the rear bracket. ①Press the rear bracket. ②Push the rail into the

cabinet until the rear pins are fully seated on the post holes.

Install the front side of the rail into the cabinet.

Position the front bracket. Keep the front and rear brackets in the same 2U space.

①Press the front bracket. ②Push the rail into the cabinet until the front pins are

fully seated on the post holes.

Repeat steps 2 and 3 to install the other rail, and make sure that the left and right

rails are on the same level.

Rear bracket

Outer rail

Middle rail

Inner rail

Front bracket

This rail kit is suitable for 9.2 * 9.2mm, 9.5 * 9.5mm square-hole cabinets and

Ø7.1mm round-hole cabinets.
