TM50

ESD Earthing Wristband

INSTRUCTION MANUAL

Packing List

The following items are included:

Manual ................................................. 1 unit

Ref. 0031824

This manual corresponds to the following reference:

TM50

Application

To equip an EPA (Electrostatic Protected Area) workplace, it is necessary to use, among other items,

an ESD earthing wristband.

These components help to protect static-sensitive components from electrostatic discharge by

dissipating charge from objects placed on their surface. This prevents sensitive components from being

damaged by electrostatic discharges.

ESD

Earthing Wristband .................................. 1 unit

Features

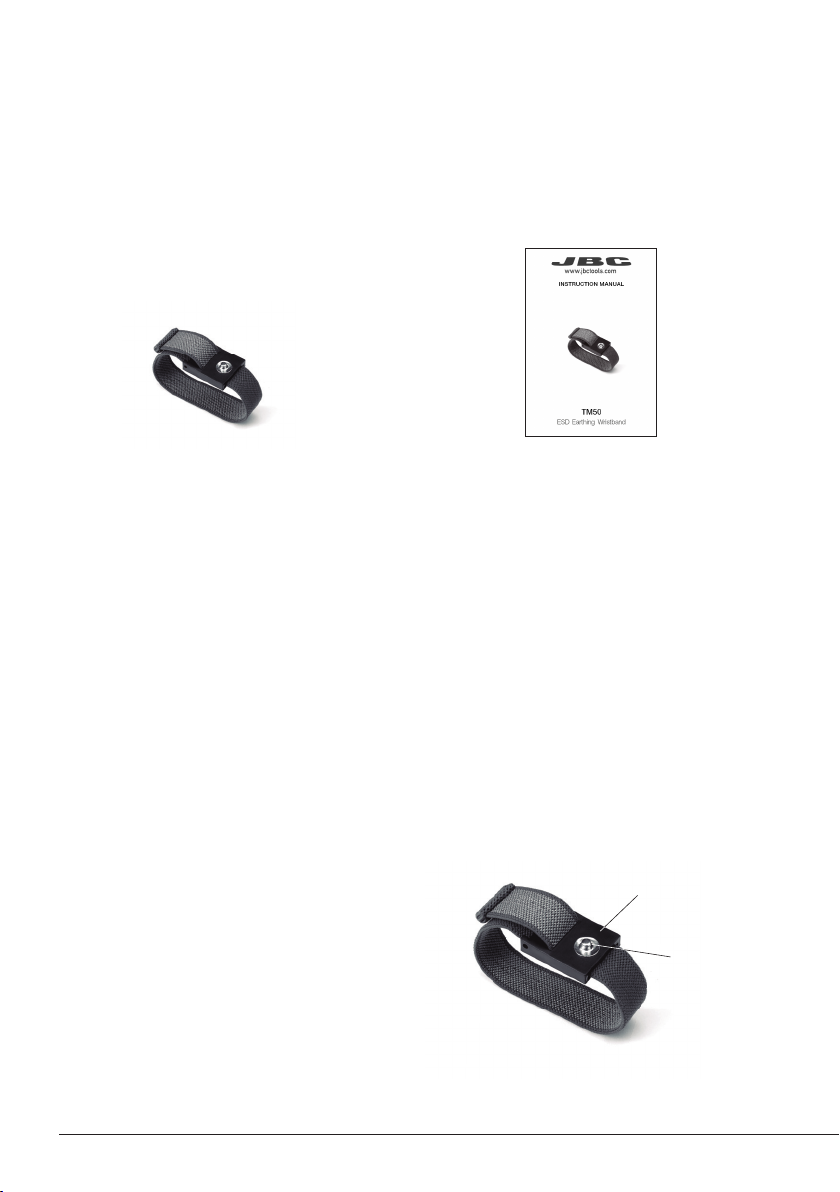

The earthing wristband has a length of

220mm/8.66in and comes with a clasp that

allows to adjust the length of the strap and

incorporates a ø3mm snap fastener.

The wristband is antiallergic and and is made

out of silver and carbon. Its fabric comes in red

color and can be washed.

The earthing wristband is tested according to

BGI 818: 2001.

Snap Fastener

ø3mm

Clasp for Length

Adjustment

2

* not included, sold separately

TMS or

TMB

Table Mat ESD

TM21

Earthing Cable

TM20

ESD Spiral

Earthing Cable

TM50

ESD Earthing Wristband

ø10mm

Snap Fastener

Connection

ø3mm

Snap Fastener

Connection

Eyelet

Connection

ø10mm

Snap Fastener

Connection

Earth Connection or

Grounded Common

Point

TM10

ESD

Earting Plug

Alternative

Connection

*

*

In order to function correctly, the wrist band must be connected to an ESD table mat or to a groundet

common point.

The following matching accessories are sold separately: an ESD table mat, an ESD spiral earthing

cable, an ESD earthing cable and an ESD earthing plug.

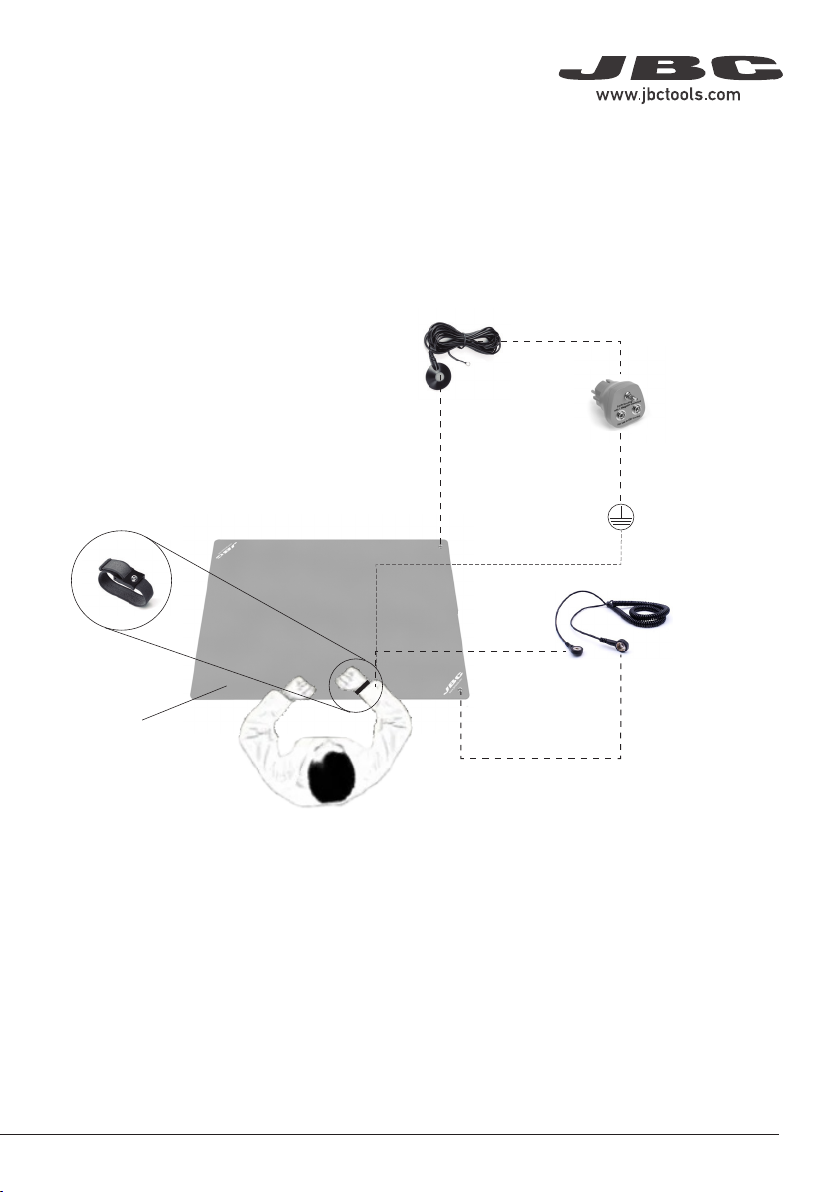

Workplace Connection Example

*

*

*

3

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

0031824-270923

TM50

ESD Earthing Wrist Band

Ref.: TM50

- Tested according to: BGI 818: 2001

- Connection: ø3mm snap fastener

- Length: 220 mm / 8.66in

- Strap: Color: Red, easily adjustable

- Strap Material: Washable, silver and carbon processed, antiallergic

- Total Net Weight: 15 g / 0.03 lb

- Package Dimensions/Weight: 81 x 43 x 114mm / 34 g

(L x W x H) 3.19 x 169 x 4.49in / 0.07 lb

Complies with CE standards.

ESD Safe.

Specifications
