Johnson 40-6527 Bedienungsanleitung

Self-Leveling Rotary Laser

Model No. 40-6527, 40-6532 & 40-6539

Instruction Manual

Congratulations on your choice of this Self-Leveling Rotary Laser. We

suggest you read this instruction manual thoroughly before using the

instrument. Save this instruction manual for future use.

This tool emits one rotating laser beam plus one plumb beam and is

ideal for laying out indoor and outdoor construction projects.

This is a Class IIIa laser tool and is manufactured to comply with CRF 21,

parts 1040.10 and 1040.11 as well as international safety rule IEC 285.

1625i-English_Manuals 12/28/16 9:41 AM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and Handling

12. Product Warranty

13. Warranty Registration

14. Accessories

15. Troubleshooting

1. Kit Contents

Description for Model 40-6527 ty.

Self-Leveling Rotary Laser

Tinted Glasses 1

Alkaline Battery Compartment 1

“C” Alkaline Batteries 4

Instruction Manual 1

Soft-Sided Carrying Case 1

Description for Model 40-6532 & 40-6539 ty.

Self-Leveling Rotary Laser

Ni-MH Rechargeable Battery Pack 1

6.4V Battery Charger 1

Alkaline Battery Compartment (batteries not included) 1

Detector with Clamp and 9V Battery 1

Remote Control with 9V Battery 1

Tinted Glasses 1

Instruction Manual 1

Hard-Shell Carrying Case 1

1625i-English_Manuals 12/28/16 9:41 AM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

DANGER!

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 625-645nm

THIS TOOL EMITS LASER RADIATION.

DO NOT STARE INTO BEAM.

AVOID DIRECT EYE EXPOSURE.

2. Features and Functions

• Self leveling in the horizontal plane

• Locking mechanism protects inner pendulum during transportation

• Manual leveling in the vertical plane with 90º split beam

• Range-scan modes include dot and two adjustable line lengths

• Visual and audible alarms when beyond leveling range

• Dust and rain resistant

1625i-English_Manuals 12/28/16 9:41 AM Page 3

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original ohnson®parts and accessories purchased from your ohnson®

authorized dealer. Use of non- ohnson®parts and accessories will void warranty.

4. Location/Content of Warning Labels

1625i-English_Manuals 12/28/16 9:41 AM Page 4

5. Location of Part/Components

Laser output

window

Battery-case

locking screw

Remote control

Receivers

Keypad

Vertical adjustment knob

Battery case

5/8"-11 thread holes

Transportation

locking knob

Calibration

screw plug

Handle and

vertical bracket

1625i-English_Manuals 12/28/16 9:41 AM Page 5

6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Battery Installation

Note: Always check to be sure that the on/off switch is in the off

position before removing and replacing batteries.

Usage for Rechargeable (40-6532 & 40-6539) & Alkaline Battery Cases

1. Put 4 “C” alkaline batteries into the battery case according to the

polarity indication shown in the battery case.

2. Put the battery case on the instrument and tighten the locking screw.

3. If using the rechargeable (40-6532 & 40-6539) battery pack, put

the battery box on the instrument and tighten the locking screw.

Note (40-6532 & 40-6539):

• For the first two charges of a new rechargeable battery pack, it is

necessary to charge for 12-plus hours.

• The instrument will still work even if it is being charged with the

charger.

• Do not charge alkaline batteries.

• Used (discharged) batteries are hazardous waste and should be

disposed of properly.

1625i-English_Manuals 12/28/16 9:41 AM Page 6

7. Using the Product

Operating Panel

1. Power Key

• Press this key to turn on and off the power

2. Power LED

• When the LED is lit the unit is connected to the power

• When the LED is off the unit is not receiving power

• When the LED is flashing the battery is low

3. Scanning LED

• When the LED is lit the unit is in rotation mode

• When the LED is flashing the unit is in scan mode

4. Scan mode key

• With the first press of this button, the instrument

emits a short laser line.

• With a second press of this button, the instrument emits a longer

laser line.

•

With a third press of this button, the instrument emits a laser point.

Rotation speed

and scan keys

Scanning LED

High rotation

speed key

Power Key

Power LED

Scan mode key

1625i-English_Manuals 12/28/16 9:41 AM Page 7

5. High rotation speed key

Press this key, the instrument will rotate in its highest speed

6. Rotation speed and scan keys

In rotation mode

• Press the up arrow to increase rotation speed

• Press the down arrow to decrease rotation speed

In scan mode

• Press the up arrow to rotate the scan counterclockwise

• Press the down arrow to rotate the scan clockwise

Out of level alarm

Set the transportation locking knob to the unlocked/on position. Turn

the power on and the instrument will self-level. During the process

of self-leveling, if the instrument is tilted to exceed its self-leveling

range, it will stop rotating and the unit will give a sound alarm.

Transportation lock knob operation

When the lock knob is turned to “ON”, the compensator is unlocked.

When the lock knob is turned to “OFF”, the compensator is locked.

Usage for Horizontal Application

1. Put in the Ni-MH battery pack (40-6532 & 40-6539) or alkaline batteries,

or connect with 6.4V charger (40-6532 & 40-6539) through power jack.

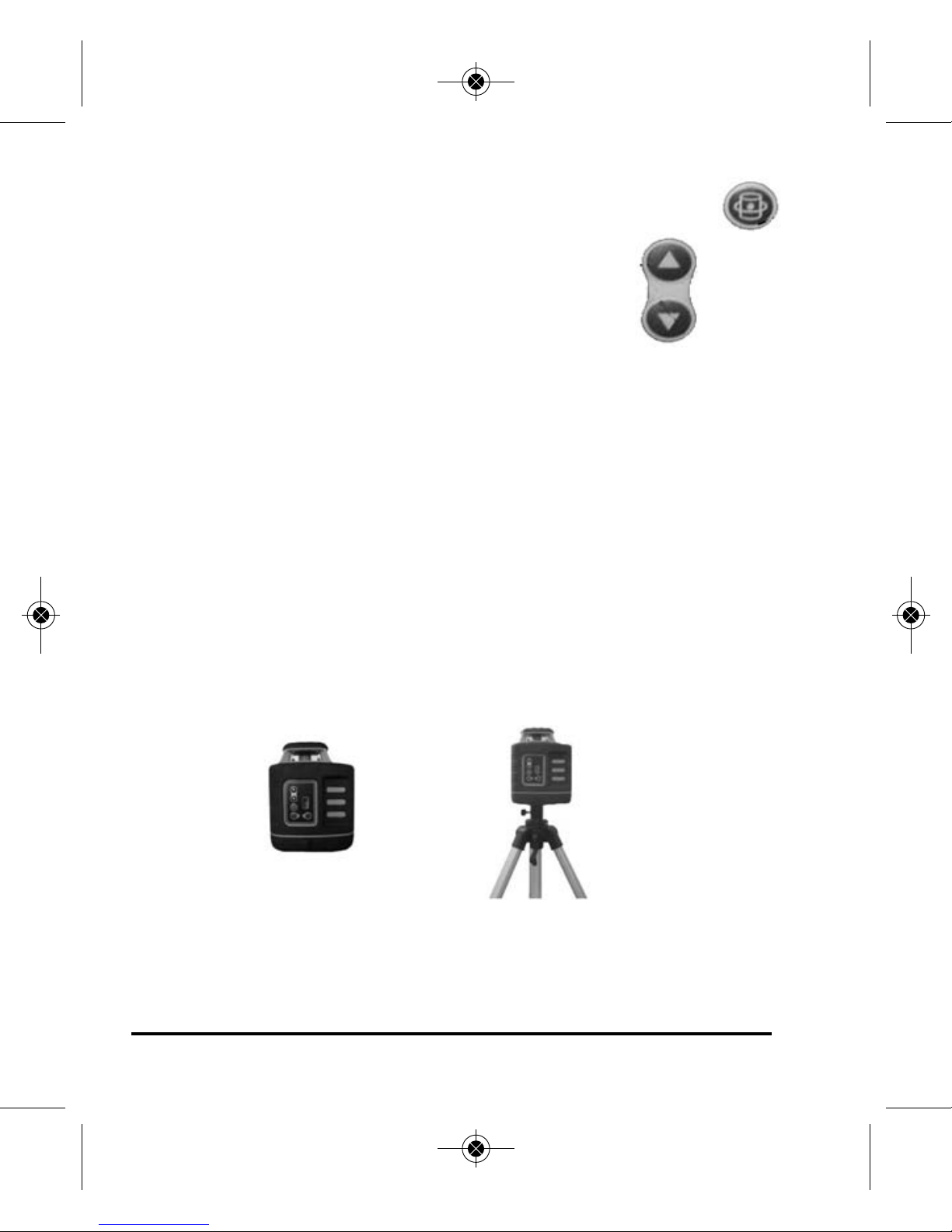

Use on a platform

Connected to a

5/8” x 11 tripod

1625i-English_Manuals 12/28/16 9:41 AM Page 8

2. Place the instrument on a platform or tripod, connect to the tripod

using the 5/8" thread at the bottom of laser.

Note: If instrument is inclined beyond its self-leveling range, it will

deliver an audible alarm. Re-position the instrument until level.

Rotate the transportation locking knob counter-clockwise to “ON”,

then turn power on. Press the keys on control panel or remote

control (40-6532 & 40-6539) to adjust to your desired working status.

4. After finishing operation or before moving the instrument, turn

power off and return locking knob to the “OFF” position.

Note: If transportation locking knob is not turned to the lock position

it will deliver an audible alarm when the unit is returned to its case.

It is important that the locking knob is turned to the locked

position prior to returning the unit to its case.

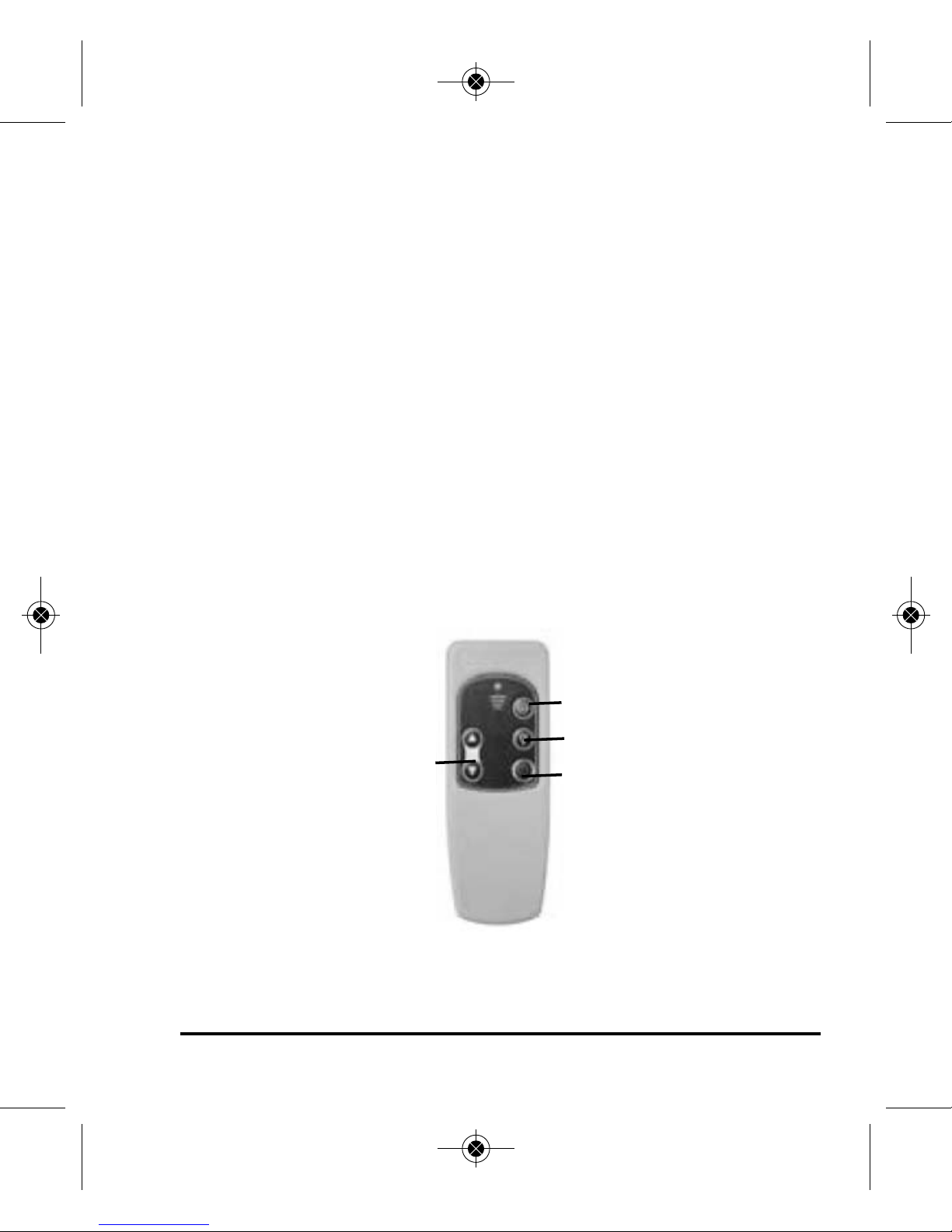

Note: Remote control operating panel is similar to laser operating panel

(40-6532 & 40-6539).

Power Key

(turns power off only)

Rotation

speed and

scan keys

Scan Key

High Rotation

Speed Key

1625i-English_Manuals 12/28/16 9:41 AM Page 9

Usage for vertical application

IMPORTANT: Keep the transportation “Locking Knob” in the

“Locked/Off” position.

1. Install batteries or battery pack.

2. Set the laser down on its vertical bracket.

3. Turn on the power by pressing the Power Key. The vertical vial will

now be backlit.

4. Turn the vertical “Adjusting Knob” until the vertical vial bubble is

centered.

5. Select the work state that you need by pressing the buttons on the

operating panel or remote control (40-6532 & 40-6539).

6. Power the instrument off when you finish work and keep the

transportation lock in the locked/off position.

Use on a platform

Connected to a

5/8” x 11 tripod

1625i-English_Manuals 12/28/16 9:41 AM Page 10
