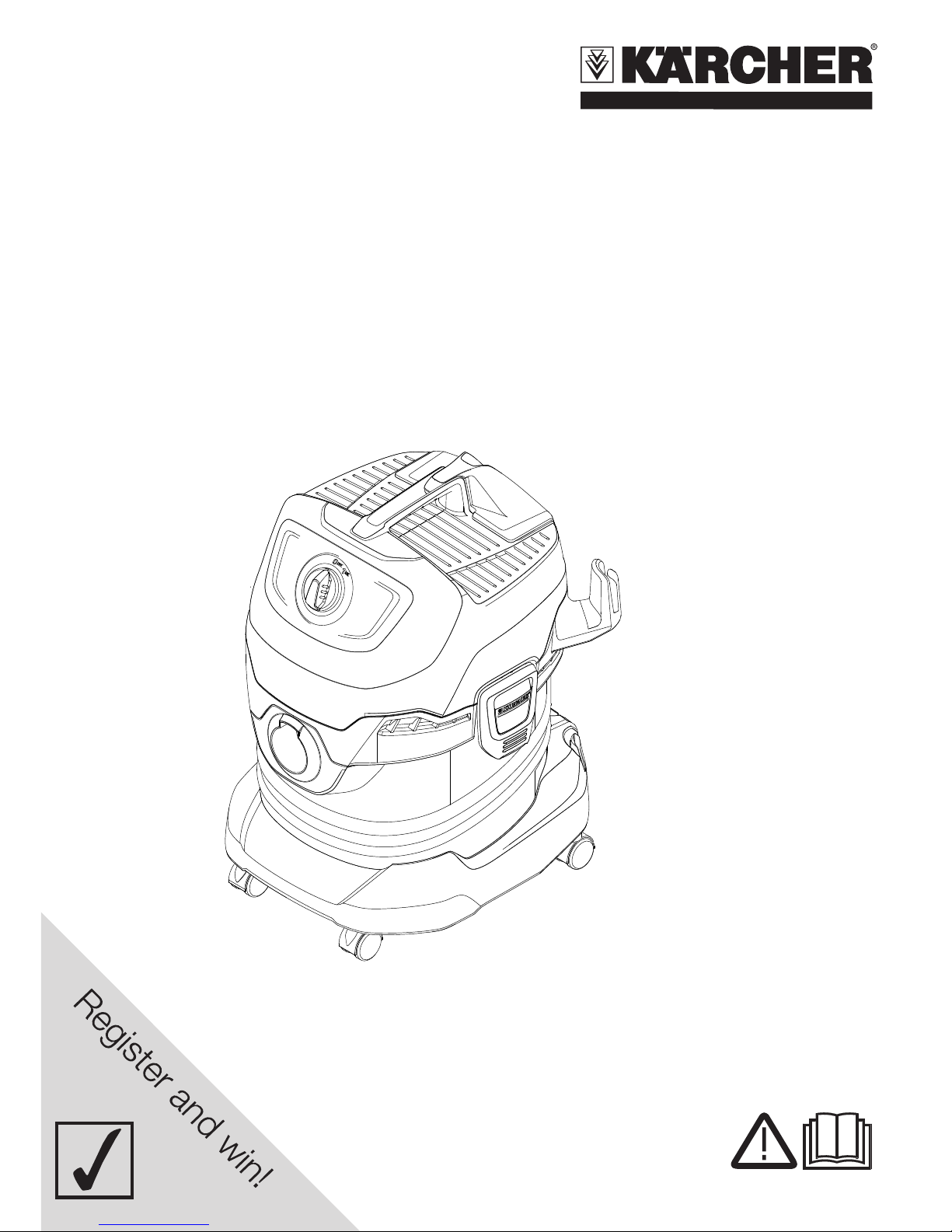

Kärcher MV 4 Premium Bedienungsanleitung

www.kaercher.com/register-and-win

59651790 10/13

MV 4

MV 4 Premium

Operating Instructions

Before first use of the unit

read these operating instructions

and act in accordance with them.

11 12

14 15

English 5

Dear Customer,

Please read and comply with

these original instructions

prior to the initial operation of your ap-

pliance and store them for later use or

subsequent owners.

In accordance with the descriptions

and the safety information in these op-

erating instructions the appliance is in-

tended for use as a multi-purpose vac-

uum cleaner.

This appliance has been designed for

use in private households and is not in-

tended for commercial use.

–Protect the unit from rain. Do not

store outside.

–This device may not be used to

suck in ash and soot.

Use the multi-purpose vacuum cleaner

only with:

–Original spare parts, accessories

and special accessories.

The manufacturer is not responsible

for any damages that may occur on ac-

count of improper use or wrong opera-

tions.

The packaging material can be

recycled. Please do not place the

packaging into the ordinary refuse for

disposal, but arrange for the proper re-

cycling.

Old appliances contain valuable

materials that can be recycled.

Please arrange for the proper re-

cycling of old appliances. Please dis-

pose your old appliances using appro-

priate collection systems.

The filter is made from environment-

friendly materials.

The filter can therefore be disposed off

through the normal household garbage

provided you have not sucked in sub-

stances that are not permitted to be

thrown into household garbage.

Notes about the ingredients

(REACH)

You will find current information about

the ingredients at:

www.kaercher.com/REACH

Our KÄRCHER branch will be pleased

to help you further in the case of ques-

tions or faults.

(See address on the reverse)

At the end of the operating instructions

you will find a selected list of spare

parts that are often required.

You can procure the spare parts and

the attachments from your dealer or

your KÄRCHER branch office.

Contents

General notes. . . . . . . . . . . . . . . . . .5

Safety instructions . . . . . . . . . . . . . .6

Description of the Appliance. . . . . . .7

Operation . . . . . . . . . . . . . . . . . . . . .9

Maintenance and care . . . . . . . . . .10

Troubleshooting . . . . . . . . . . . . . . .11

Technical specifications . . . . . . . . .12

General notes

Proper use

Environmental protection

Disposing the filter

Customer Service

Ordering spare parts and

special attachments

6 English

The terms of the guarantee applicable

in each country have been published

by our respective national distributors.

We will repair possible faults on your

unit free of charge within the warranty

period, insofar as the faults are caused

by material defects or defective work-

manship. Guarantee claims should be

addressed to your dealer or the near-

est authorized customer service cen-

tre, and supported by documentary ev-

idence of purchase.

–This appliance is not intended

for use by persons with limit-

ed physical, sensory or men-

tal capacities or lacking expe-

rience and/or skills, unless

such persons are accompa-

nied and supervised by a per-

son in charge of their safety

or they have received precise

instructions on the use of this

appliance and have under-

stood the resulting risks.

–Children may only use this

appliance if they are over the

age of 8 and supervised by a

person in charge of their safe-

ty, or if they have received in-

structions on the use of this

appliance and have under-

stood the resulting risks.

–Children must not play with

this appliance.

–Supervise children to prevent

them from playing with the

appliance.

–Cleaning and user mainte-

nance must not be performed

by children without supervi-

sion.

–Keep packaging film away

from children - risk of suffoca-

tion!

–Switch the appliance off after

every use and prior to every

cleaning/maintenance proce-

dure.

–Risk of fire. Do not vacuum up

any burning or glowing ob-

jects.

–The appliance may not be

used in areas where a risk of

explosion is present.

몇Electrical connection

The appliance may only be con-

nected to alternating current.

The voltage must correspond

with the type plate on the appli-

ance.

Risk of electric shock

Never touch the mains plug and

the socket with wet hands.

Do not pull the plug from the

socket by pulling on the con-

necting cable.

Check the power cord with

mains plug for damage before

every use. If the power cord is

damaged, please arrange im-

mediately for the exchange by

an authorized customer service

or a skilled electrician.

To avoid accidents due to elec-

trical faults we recommend the

use of sockets with a line-side

current-limiting circuit breaker

(max. 30 mA nominal tripping

current).

Warranty

Safety instructions

English 7

Warning

Certain materials may produce

explosive vapours or mixtures

when agitated by the suction air!

Never vacuum up the following

materials:

–Explosive or combustible

gases, liquids and dust parti-

cles (reactive dust particles)

–Reactive metal dust particles

(such as aluminium, magne-

sium, zinc) in combination

with highly alkaline or acidic

detergents

–Undiluted, strong acids and

alkalies

–Organic solvents (such as

petrol, paint thinners, ace-

tone, heating oil).

In addition, these substances

may cause the appliance materi-

als to corrode.

Danger

Immediate danger that can

cause severe injury or even

death.

몇Warning

Possible hazardous situation

that could lead to severe injury

or even death.

Caution

Possible hazardous situation

that could lead to mild injury to

persons or damage to property.

Illustrations on fold-out

page!

These operating instructions de-

scribe the multi-purpose vacuum

cleaners listed on the front cover.

The illustrations show the maxi-

mum equipment; depending on the

model, there are differences in

equipment and supplied accesso-

ries.

When unpacking the product, make

sure that no accessories are missing

and that none of the package contents

have been damaged. If you detect any

transport damages please contact your

dealer.

Illustration

To connect the suction hose during

vacuuming.

Illustration

Position I: Appliance is switched

on.

Position 0: Appliance is switched

off

To carry the appliance or to remove

the appliance head after unlocking.

Symbols in the operating

instructions

Description of the

Appliance

Suction hose connection

ON/OFF switch for appliance

Carrying handle

8 English

Illustration

In order to clean the filter, press the

release key, fold out and remove

the filter cartridge.

This accessory compartment allows

the storage of suction nozzles and the

power cable.

Illustration

To rest the floor nozzle during work

interruptions.

Illustration

Pull out to open, push in to lock.

Illustration

This accessory compartment al-

lows the storage of the suction

pipes or other accessories.

Illustration

The steering rollers are located in

the compartment when the appli-

ance is delivered. These must be

attached prior to starting up the ap-

pliance.

Caution

Always work with an inserted flat

pleated filter - during wet as well

as dry vacuum cleaning!

Illustration

Push the suction hose into the con-

nection on the appliance, it snaps in

place.

In order to disconnect it, push down

with your thumb and pull the suction

hose out.

Note: Accessories, such as suction

brushes (optional) can be directly at-

tached to the connecting piece and

thus connected to the suction hose.

For convenient working even in tight

spaces.

The removable handle can be attached

between the accessories and the suc-

tion hose if necessary.

See position 12.

Recommendation: In order to vacu-

um the floor, attach the handle to the

suction hose.

Filter cartridge and release key

Accessory compartment, hook

Parking position

Container closure

Accessory storage container

Steering roller

Flat fold filter

(already installed in the appli-

ance)

Suction hose with connecting

piece

English 9

Illustration

Connect the handle with the suction

hose until it snaps in place.

Illustration

To remove the handle from the suc-

tion hose, press the notch using

your thumb and pull off the handle.

Note: Due to removing the handle, ac-

cessories can be directly attached to

the suction hose.

See position 11.

Recommendation: In order to vacu-

um the floor, attach the handle to the

suction hose.

Illustration

Put both suction pipes together and

connect them with the handle.

When vacuuming dry dirt off the

floor, clip an insert with two brush

strips into the floor nozzle.

When vacuuming water off the

floor, clip an insert with two rubber

lips into the floor nozzle.

For edges, joints, heaters and hard

to reach locations.

Caution

Always work with an inserted flat

pleated filter - during wet as well

as dry vacuum cleaning!

Illustration

Remove the appliance head and

take the contents out of the contain-

er.

Turn the container, press in the

swivel casters in the openings at

the base of the container till the

end-point.

Insert and lock the appliance head.

Illustration

Connect accessories.

Illustration

Plug in the main plug.

Illustration

Turn on the machine.

Caution

Work with a dry flat pleated filter

only.

Check the filter for damage prior

to installation and replace as

necessary.

Vacuum cold ashes only when

using a pre-filter.

Order no. basic design: 2.863-139.0,

premium design: 2.863-161.0.

Removable handle

Suction tubes 2 x 0.5 m

Floor nozzle

(with inserts)

Crevice nozzle

Operation

Before Startup

Start up

Dry vacuum cleaning

10 English

For vacuuming up moisture or wet-

ness pay attention to the correct

floor nozzle insert and connect the

corresponding accessories.

몇Caution:

Do not use a filter bag!

Immediately switch the appliance off if

foam forms or liquids escape!

Immediately switch the appli-

ance off or pull the power plug if

foam forms or liquids escape!

Note: If the container is full, a float

closes the suction opening, and the ap-

pliance works at a higher speed.

Switch off the appliance immediately,

and empty the container.

Illustration

Turn off the appliance.

Illustration

Hook the floor nozzle into the park-

ing position.

Turn off the appliance and discon-

nect the mains plug.

Illustration

Remove the appliance head and

empty the reservoir filled with wet or

dry dirt.

Illustration

Store the accessories and the

mains cable on the appliance and

store the appliance in dry rooms.

Danger

Turn off the appliance and re-

move the mains plug prior to any

care and maintenance work.

Repair works may only be per-

formed by the authorised cus-

tomer service.

몇Warning

Do not use abrasives, glass or

universal cleaners! Never im-

merse the appliance in water.

Clean the appliance and accessory

parts made of plastic with a com-

mercial plastic cleaner.

If required, rinse the container and

accessories with water properly

and dry them before reuse.

Recommendation: Clean the filter

cartridge after every use.

Illustration

Unlock, fold out and remove the fil-

ter cartridge, empty dirt from the fil-

ter cartridge over a waste bin.

In order to clean the inserted flat

pleated filter, knock the filter car-

tridge against the edge of the waste

bin. It is not necessary to remove

the flat pleated filter from the filter

cartridge.

If necessary, clean the flat pleated

filter separately.

Illustration

Unlock, fold out and remove the fil-

ter cartridge.

Illustration

Remove the flat pleated filter from

the filter cartridge and tab it out.

When necessary, clean under run-

ning water only, do not wipe or

brush down.

Wet vacuum cleaning

Interrupting operation

Finish operation

Empty the container

Storing the appliance

Maintenance and care

Clean flat fold filter

Andere Handbücher für MV 4 Premium

Inhaltsverzeichnis

Andere Kärcher Staubsauger Handbücher

Kärcher

Kärcher NT 561 Eco Package Craftsmen Bedienungsanleitung

Kärcher

Kärcher WD 5.2xx M Bedienungsanleitung

Kärcher

Kärcher ESB 28 Bedienungsanleitung

Kärcher

Kärcher SV 1802 Bedienungsanleitung

Kärcher

Kärcher CV 38/2 Bedienungsanleitung

Kärcher

Kärcher 397 M plus Bedienungsanleitung

Kärcher

Kärcher A 2104 Bedienungsanleitung

Kärcher

Kärcher CVU 120V Bedienungsanleitung

Kärcher

Kärcher K 65 plus Bedienungsanleitung

Kärcher

Kärcher CV 30/1 Bedienungsanleitung

Kärcher

Kärcher DS 5600 Mediclean Bedienungsanleitung

Kärcher

Kärcher The Bee Bedienungsanleitung

Kärcher

Kärcher EWM 2 Bedienungsanleitung

Kärcher

Kärcher NT 65/2 Tact2 Tc Bedienungsanleitung

Kärcher

Kärcher EB 30/1 Bedienungsanleitung

Kärcher

Kärcher WD 2 Premium Bedienungsanleitung

Kärcher

Kärcher NT 45/1 Tact Bedienungsanleitung

Kärcher

Kärcher NT 72/2 ECO TC Bedienungsanleitung

Kärcher

Kärcher ProT 200 Bedienungsanleitung

Kärcher

Kärcher WV 60 plus Bedienungsanleitung

Kärcher

Kärcher SE 4002 Bedienungsanleitung

Kärcher

Kärcher A 2234 pt Bedienungsanleitung

Kärcher

Kärcher NT 35/1 Ap Te Bedienungsanleitung

Kärcher

Kärcher WV 50 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
