Labconco RapidStill I Bedienungsanleitung
RapidStill™I
Models
6500000
Copyright © 2017 Labconco Corporation. The information contained in this manual and the
accompanying products are copyrighted and all rights reserved by Labconco Corporation. Labconco
Corporation reserves the right to make periodic design changes without obligation to notify any
person or entity of such change.
Returned or Damaged Goods
Do not return goods without the prior authorization from Labconco. Unauthorized returns will not be
accepted. If your shipment was damaged in transit, you must file a claim directly with the freight
carrier. Labconco Corporation and its dealers are not responsible for shipping damages.
The United States Interstate Commerce Commission rules require that claims be filed with the
delivery carrier within fifteen (15) days of delivery.
Limitation of Liability
The disposal and/or emission of substances used in connection with this equipment may be governed
by various federal, state, or local regulations. All users of this equipment are required to become
familiar with any regulations that apply in the user’s area concerning the dumping of waste materials
in or upon water, land, or air and to comply with such regulations. Labconco Corporation is held
harmless with respect to user’s compliance with such regulations.
Contacting Labconco Corporation
If you have questions that are not addressed in this manual, or if you need technical assistance, contact
Labconco’s Customer Service Department or Labconco’s Product Service Department at 1-800-821-
5525 or 1-816-333-8811, between the hours of 7:30 a.m. and 5:30 p.m., Central Standard Time.
Part #6504000, Rev. P
ECO L123
Warranty
Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and
reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken
glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not
warranted. Excluded from warranty are products with improper installation, erratic electrical or utility
supply, unauthorized repair and products used with incompatible chemicals.
The warranty for the RapidStill I will expire one year from date of installation or two years from date of
shipment from Labconco, whichever is sooner. Warranty is non-transferable and only applies to the owner
(organization) of record.
Buyer is exclusively responsible for the set-up, installation, verification, decontamination or calibration of
equipment. This limited warranty covers parts and labor, but not transportation and insurance charges. If the
failure is determined to be covered under this warranty, the dealer or Labconco Corporation will authorize
repair or replacement of all defective parts to restore the unit to operation. Repairs may be completed by 3rd
party service agents approved by Labconco Corporation. Labconco Corporation reserves the rights to limit
this warranty based on a service agent’s travel, working hours, the site’s entry restrictions and unobstructed
access to serviceable components of the product.
Under no circumstances shall Labconco Corporation be liable for indirect, consequential, or special damages
of any kind. This warranty is exclusive and in lieu of all other warranties whether oral, or implied.
T
TA
AB
BL
LE
E
O
OF
F
C
CO
ON
NT
TE
EN
NT
TS
S
CHAPTER 1: INTRODUCTION 1
General Description 2
Performance 2
Component Identification 3
CHAPTER 2: INSTALLATION 5
Installation Set-up 5
Assembly 5
Initial Test 8
CHAPTER 3: NORMAL OPERATION 11
Samples Digested Utilizing Micro Digestor 11
Start-Up and Operation 11
Shutdown 13
Calculations 13
CHAPTER 4: ROUTINE MAINTENANCE 14
Glass Still (Replacement) 14
Stopcock 15
CHAPTER 5: REPLACEMENT PARTS 16
CHAPTER 6: WIRING DIAGRAM 17
Product Service 1-800-522-7658
1
C
Ch
ha
ap
pt
te
er
r
1
1:
:
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Thank you for displaying confidence in us by selecting a Labconco RapidStill I.
Our design engineers, assemblers and inspectors have utilized their skills and
years of experience to ensure that the Labconco RapidStill I meets our high
standards of quality and performance.
This manual should be read carefully by all the end users in
order to become familiar with the operation of the RapidStill I.
Recommendations are made within the manual to help you
obtain maximum performance and life from your product.
We have included sections on initial set up, operation, and
maintenance to provide you with all the tools necessary to
achieve maximum performance. If you have questions or
concerns, do not hesitate to call us at 1-800-821-5525 for
assistance.
WARNING: The disposal of substances used in connection with
this equipment may be governed by various federal, state or
local regulations. All users of this equipment are urged to
become familiar with any regulations that apply in the user’s
area concerning the dumping of waste materials in or upon
water, land or air and to comply with such regulations.
!
Chapter 1: Introduction
Product Service 1-800-522-7658
2
General Description
The Labconco RapidStill I is designed expressly for rapid, semi-automatic steam
distillation from sulfuric acid digest prepared from nitrogen-bearing materials
such as feeds, grains, soils, plant tissue, water effluent, organic waste food
products, etc. Sample digestions are accomplished utilizing either Labconco’s
Digestion Apparatus or Rapid Digestor units.
Performance
Your Labconco RapidStill I has been designed to accept digested samples up to
4 ml (maximum) equivalent of concentrated acid, and is capable of giving
reproducible results in ranges as low as 10 micrograms (gamma) #1% nitrogen.
The RapidStill I may also be utilized for other steam distillations that DO NOT
exceed the volume limitations of the units mixing chamber (approximately 50 to
55 ml).
5
6
7
10
9
8
4
Chapter 1: Introduction
Product Service 1-800-522-7658
3
Component Identification
(1) Power Switch Switches power to the Heater. When ideal Heat Control
setting is achieved, use this switch to turn Heater ON and OFF.
(2) Heat Control The electric immersion heater provides fast, efficient heat.
Steam generation starts very rapidly from a cold start. Control input to the
heater and steam output by adjusting this knob.
(3) Fill Valve The Fill Valve is opened only when filling Boiling Flask. Use
distilled water from the Water Bottle to keep water level in the steam
reservoir approximately 2/3 full during distillation.
(4) Aspirator Stopcock The unit has a built-in glass aspirator to purge spent
samples after determination. The water used for cooling of this condenser
is also used for aspirating. A twist of the Aspirator Stopcock draws the
sample and rinse water down the drain.
(5) Sample Addition Funnel Use this funnel to transfer digested sample to
the Mixing Chamber.
(6) Sample Addition Stopcock The upper PTFE stopcock that allows for
the addition of samples or pH controlling solutions.
(7) Mixing Chamber The inner bulb in the lower portion of the still where
the sample is mixed with appropriate solutions during the distillation.
(8) Cooling Water Connections Note the two barbed fittings extending
through the back of the housing. Connect the “IN” fitting to a cold water
source and the “OUT” fitting to a drain.
(9) Condenser Cold water flows through the outer wall of the tall column to
condense steam.
(10) Boiling Flask The round flask reservoir which contains distilled water to
be heated during the distillation.
(11) Flask Shelf Shelf is adjustable in height. Positioning the flask is
important to maintain relationship between the condenser outlet and liquid
level in the Receiving Flask.
(12) Heater Heater is energized when there is sufficient water in the Boiling
Flask. Heater may be unplugged from the housing if required.
(13) Water Bottle Use distilled water only in the still. Water Bottle is
squeezed to introduce water to the Boing Flask via the Fill Valve.
Chapter 1: Introduction
Product Service 1-800-522-7658
4
3
12
13
1
2
11
Product Service 1-800-522-7658
5
C
Ch
ha
ap
pt
te
er
r
2
2:
:
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
Your RapidStill I has been shipped to you in one carton. When unpacking, remove
the packing material carefully, checking all material for two separately packed
parts. The carton will contain:
Base Housing
Glass Still
Heater
Stainless Steel Flask Shelf
“U” Clamp (large) (1)
“U” Clamp (small) (2)
Clamp Nuts (6)
Fill Valve and Tube
Pinch Clamps (2)
Power Cord
NOTE: Plastic tubing and valve for connection of the condenser to water and drain
source is NOT included.
Inspect this material thoroughly prior to installation and report any damage that
may have occurred in transit.
Installation Set Up
Assembly
(1) Lay the Base Housing on its back and position the Glass Still assembly on
the console, as shown. Do not connect to electrical power source until set
up is complete.
Chapter 2: Installation
Product Service 1-800-522-7658
6
(2) Starting with the large U-clamp, place both the large and small U-clamps
around the glassware and through the brackets. Gently tighten the clamp
nuts so that the glassware is firmly held to the Base Housing.
(3) Carefully attach the condensing water tubing to the glass barb fittings. Do
not add clamps or any lubricant (other than water) to these connections.
Turn Base Housing upright.
(4) Locate the RapidStill I where there is convenient 115 volt outlet and
accessibility to cold tap water and drain.
Chapter 2: Installation
Product Service 1-800-522-7658
7

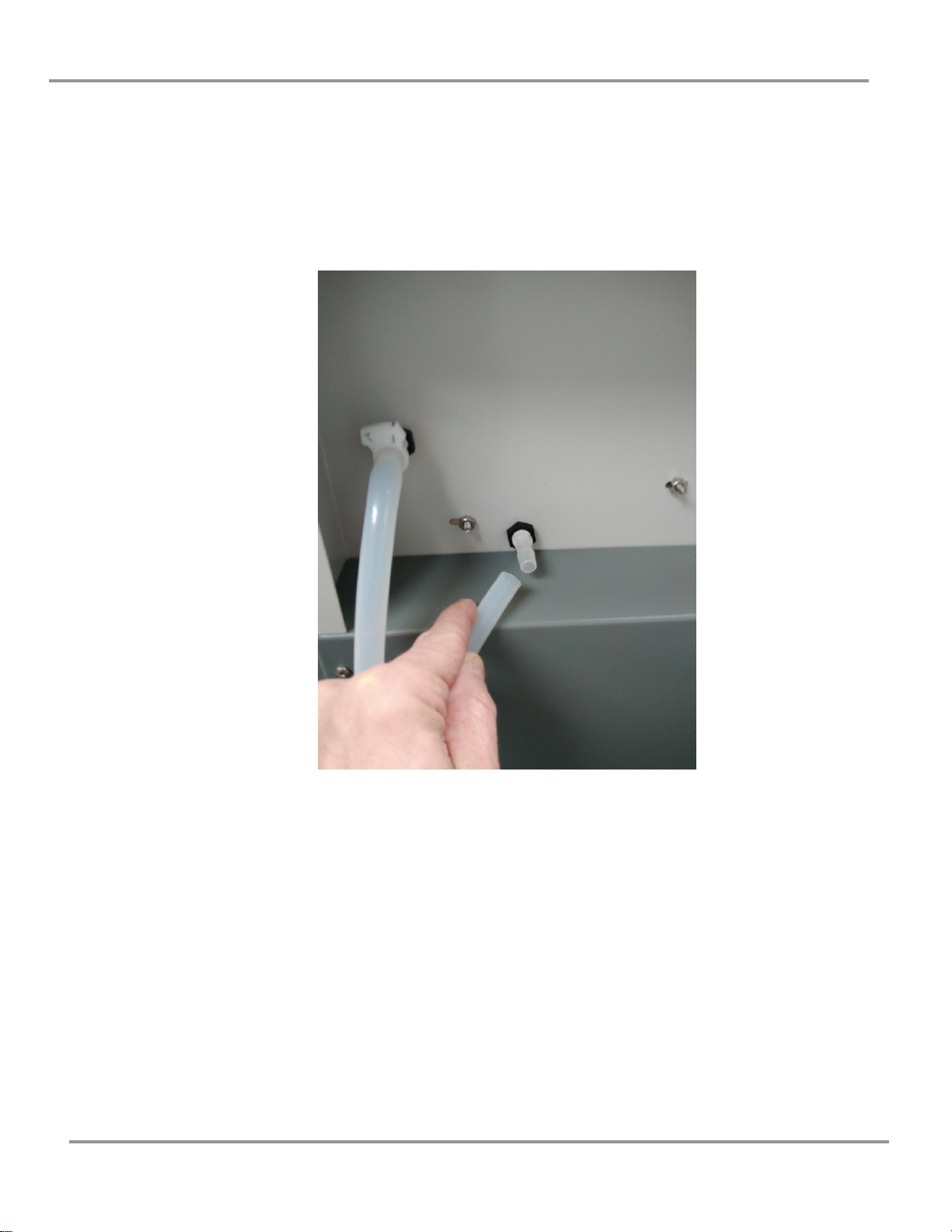

(5) Obtain several lengths of flexible plastic or silicone tubing (3/8" ID x 1/16"
wall). Tubing IS NOT furnished with the unit and may be obtained from
laboratory supply dealers. Connect tubing from the rear of the housing to a
drain or sink for effluent. Connect tubing for the inlet from the rear of the
housing to a cold water source (<25oC) with fine flow control through a
valve or faucet. Two pinch clamps have been provided. Check for leaks.
(6) Keep power OFF. Insert the heater element into the Boiling Flask and press
the stopper into the Flask opening firmly. Heater should not be in contact
with any of the glass. NOTE: This must be sealed for distillation. Plug the
Heater into the Base Housing connector.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Labconco Laborausrüstung Handbücher
Labconco
Labconco FreeZone 7750000 Bedienungsanleitung
Labconco
Labconco Protector Echo 180 Series Bedienungsanleitung
Labconco
Labconco Purifier Axiom 30441 Series Bedienungsanleitung
Labconco
Labconco 5530000 Bedienungsanleitung
Labconco
Labconco Protector Premier 10040 Series Bedienungsanleitung
Labconco
Labconco CentriVap 7812010 Bedienungsanleitung
Labconco
Labconco Axiom C1 Bedienungsanleitung
Labconco
Labconco Protector 1204 Series Bedienungsanleitung
Labconco
Labconco 5530000 Bedienungsanleitung
Labconco
Labconco CentriVap 78110-00 Bedienungsanleitung
Labconco
Labconco CApture 3420000 Bedienungsanleitung
Labconco
Labconco Purifier Logic+ 30132 Bedienungsanleitung
Labconco
Labconco CentriVap 73100 Series Bedienungsanleitung
Labconco
Labconco Protector 3390000 Bedienungsanleitung
Labconco
Labconco CentriVap DNA Systems Bedienungsanleitung
Labconco
Labconco FreeZone 6 Bedienungsanleitung
Labconco
Labconco Protector XStream 11041 Series Bedienungsanleitung
Labconco
Labconco Capture BT 31700-00 Bedienungsanleitung
Labconco
Labconco 44003 Series Bedienungsanleitung
Labconco
Labconco FreeZone Plus Bedienungsanleitung
Beliebte Laborausrüstung Handbücher anderer Marken
Agilent Technologies
Agilent Technologies 5800 ICP-OES Bedienungsanleitung
Endress+Hauser
Endress+Hauser Cleanfit CPA875 Bedienungsanleitung
NI
NI PXI-5422 Handbuch
Collomix
Collomix Aqix Bedienungsanleitung
SPEX SamplePrep
SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung
Ocean Insight
Ocean Insight FLAME-NIR+ Bedienungsanleitung
Parker
Parker ALIGN-MG-NA Bedienungsanleitung
BD
BD 644787 Bedienungsanleitung
DENTAURUM
DENTAURUM Compact Megaplus Bedienungsanleitung
Biuged Laboratory Instruments
Biuged Laboratory Instruments BGD 626 Bedienungsanleitung
VWR
VWR SAS Super IAQ Bedienungsanleitung
illumina
illumina MiSeqDx Bedienungsanleitung
