INSTALLATION INSTRUCTIONS FOR PART 95-3105

KIT FEATURES

• DDIN Head Unit Provision

• ISO Stacked Head Unit Provision

A) DDIN Brackets B) DDIN Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

95-3105

A

APPLICATIONS

SATURN

1995-99 ALL MODELS

B

• Phillips Screwdriver • Panel Removal Tool • Socket Wrench

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

HARNESS:

ANTENNA ADAPTER:

• 70-1858 - GM Harness 1988-2005

• 40-GM10 - GM Antenna Adapter 1998-up

95-3105 DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

1

Remove (2) pop-clips from the sides

of the radio trim bezel.

(Figure A)

2

SATURN (ALL MODELS) 1995-99

Unclip the radio trim bezel, discon-

nect the switch wiring and remove

the bezel.

(Figure A)

3

Remove (2) 7mm hex-head screws

securing the top of the factory head

unit and disconnect the wiring.

(Figure B)

4

A

B

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

1

A

Attach the Double DIN brackets to

the Double DIN trim plate. (Figure A)

2

Slide the Double DIN head unit or

stacked ISO head units into the

bracket/radio housing assembly and

secure the Double DIN head unit or

stacked ISO head units to the

assembly using the screws supplied

with the radio. (Figure B)

3

Reassemble dash in reverse order of

disassembly.

4

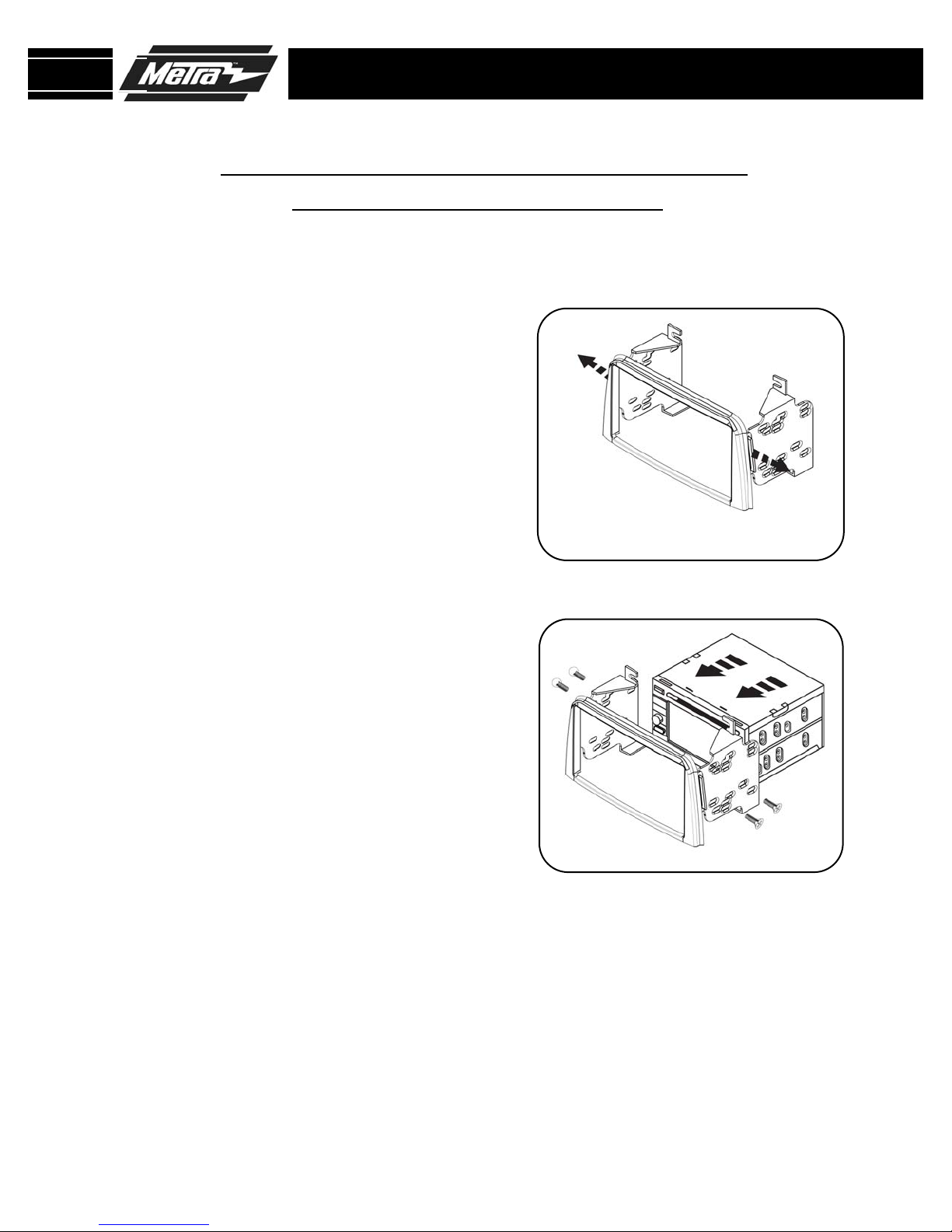

DOUBLE DIN / STACKED ISO DIN

HEAD UNIT PROVISION

B

95-3105

KIT ASSEMBLY

METRA ACCESSORIES STEREO DASH KITS
