Metra Electronics 99-5716 Bedienungsanleitung

KIT COMPONENTS

KIT FEATURES

ISO-DIN

head unit

provisions

Incorporates

factory climate

controls into

installation

APPLICATIONS

CAR PAGE

FORD

Taurus 2000-2003..................................................1-3

MERCURY

Sable 2000-2003.....................................................1-3

TOOLS REQUIRED

Torx-head screwdriver

86-5618 - Head unit

removal keys

99-5716

INSTALLATION

INSTRUCTIONS

Open the trunk, remove (4) pop-clips from the driver's side trunk liner and remove the liner.

(see Fig. A). Locate the factory tuner on the wall of the trunk and disconnect the speaker and

antenna plugs (it is NOT necessary to remove the tuner). (see Fig. B). Plug the 70-5715 into

the unit speaker plug and the antenna extension lead into the unit antenna plug. Slide the

extension harness through the space in the back seat between the seat back and seat bottom.

Unclip the rocker trim, tuck the extension harness under the carpet and stretch the harness to

the back of the dash. (Replace the rocker trim when completed). Splice the speaker leads on

the extension harness into the rear of the aftermarket head unit. Plug the factory wiring

harnesses into the switch connectors (previously mounted in step #2) and audio connectors

on the back of the Integrated Mounting Kit.

(located under

the rear deck)

Re-connect the battery terminal and test the unit, climate controls and rear defroster for proper

operation. Snap the Integrated Mounting Kit assembly into the sub-dash.

Fig. A

Fig. B

ISO Faceplate

ISO Brackets

(2) #8 x 3/8"

Phillips Pan-head Screws

Integrated

Mounting Kit

1-800-221-0932 www.metraonline.com

rev. 03/08/07 INST99-5716

Extension

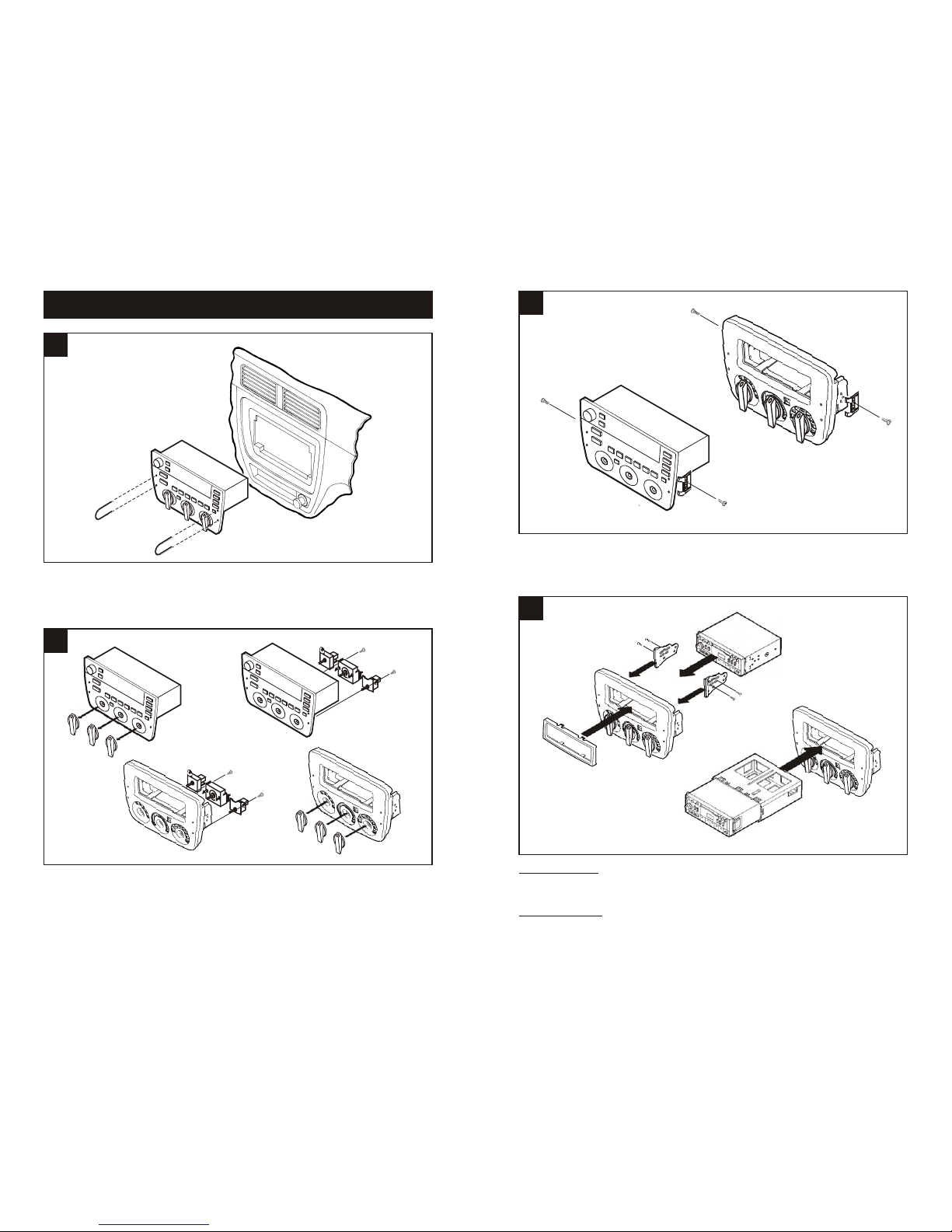

Turn the factory climate control dials into a vertical position and pull the dials off. (see Fig. A).

Remove (2) 5/16" hex-head screws securing the temperature and fan control switches and

remove the switches. Unclip the climate control switch and remove the switch. (see Fig. B).

Mount the switches to the back of the Integrated Mounting Kit with (2) #8 x 3/8" Phillips Pan-

head Screws supplied. (see Fig. C). Holding the climate control dials in a vertical position,

insert the dials onto the posts of the mounted switches and secure. (see Fig. D)

ALL VEHICLES

Fig. A

Fig. B

Fig. C

Remove (2) torx-head screws securing the mounting clips to the sides of the factory

radio/climate control panel and remove the clips. (see Fig. A). Mount the clips to the

Integrated Mounting Kit with the same torx-head screws. (see Fig. B)

Fig. B

Disconnect the negative battery terminal to prevent an accidental short circuit. Using Metra's

86-5618, pull the factory radio/climate control panel from the dash. Disconnect the audio

system connectors, blower motor switch connector, vacuum hose harness, a/c damper door

switch connector, and potentiometer connector. Remove the panel.

Fig. D

ISO HEAD UNITS: Snap the ISO Faceplate into the radio opening. Attach the ISO Brackets

to the inner lip of the radio opening. Slide the head unit into the radio opening, align the holes in

the head unit with the holes in the ISO Brackets and mount the unit to the brackets with the

screws supplied with the unit. (see Fig.A).

DIN HEAD UNITS: Slide the DIN cage into the Integrated Mounting Kit and secure by

bending the metal locking tabs down. Slide the aftermarket head unit into the cage and

secure. (see Fig. B)

Fig. A
