INSTALLATION INSTRUCTIONS FOR PART 99-9107B

•(2) 86-9001 Head Unit Removal Tools • Small Flat Blade Screwdriver • Phillips Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

APPLICATIONS

Audi A4 / S4

2002-2008

•DIN Head Unit Provision with Pocket

•ISO DIN Head Unit Provision with Pocket

•Double DIN Head Unit Provision

•Painted Matte Blackto Match Factory

•A) Radio Housing • B) Pocket • C) Trim Plate • D) ISO Brackets • E) Double DIN Trim Plate

•F) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

99-9107B

(With Symphony Radio)

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

• 70-1787 - VW / Audi Harness 1993-up

Antenna Adapter:

• 40-VW10 - Euro Antenna Adapter 1986-up

Dash Disassembly

-Audi A4 / S4 2002-2008 w/Symphony Radio . . . . . . . . . . . . . . 1

Kit Assembly

-DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . 2

-ISO DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . 3

-Double DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . 4

Final Assembly .....................................5

TABLE OF CONTENTS

99-9107B

NOWLEDGE IS

OWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP certified

technicians..

AUDI A4 / S4 2002-2008 W/SYMPHONY RADIO

SAT

TAPE SCAN

RDS

TONE

LOAD

99-9107B

Disconnect the wiring.

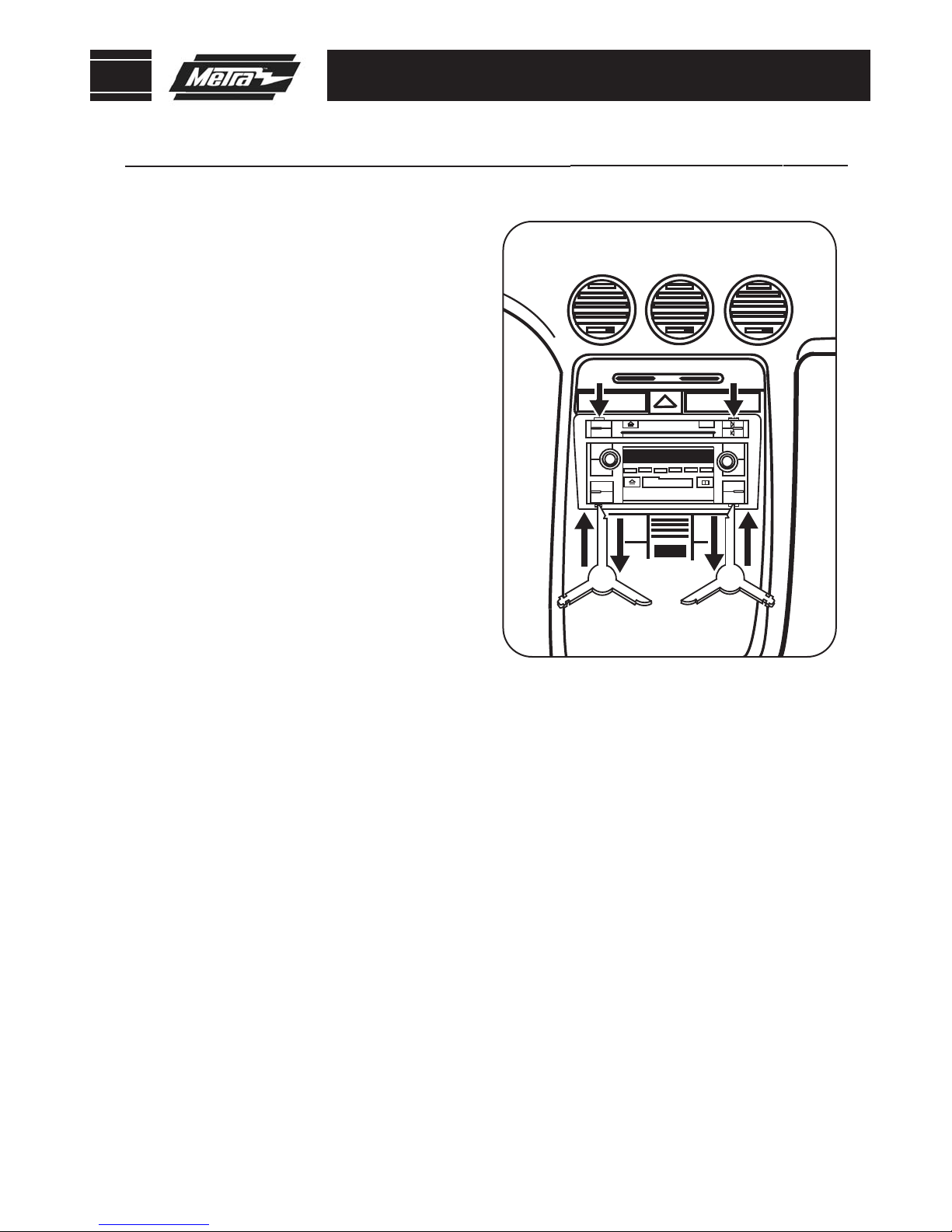

Insert Metra’s 86-9001 into the

slots in the factory head unit and

pull the unit out.

(Figure A)

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

DASH DISASSEMBLY

99-9107B KIT ASSEMBLY

Snap the pocket into the Radio

Housing until secure.

(Figure C)

Snap

the DIN cage into the Radio

Housing and secure by bending

the metal locking tabs down.

(Figure A)

Slide the aftermarket radio into the

cage and secure.

(Figure B)

Snap radio assembly into factory

radio opening.

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from

Metra or AXXESS. Re-connect the

negative battery terminal and test

the unit for proper operation.

DIN HEAD UNIT PROVISION WITH POCKET

NOTE: Once the dash kit is snapped

in, it cannot be removed without

dash panel removal

99-9107B KIT ASSEMBLY

Slide the head unit into the radio

opening until the slide clips

engage. (Figure B)

Mount the ISO Brackets to the

head unit with the screws sup-

plied with the unit. (Figure A)

Snap the pocket into the Radio

Housing. (Figure C)

Snap the ISO Trim Plate into the

Radio Housing. (Figure B)

Snap the radio assembly into the

factory radio opening.

Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapter

from Metra or AXXESS. Re-con-

nect the negative battery terminal

and test the unit for proper opera-

tion.

ISO DIN HEAD UNIT PROVISION

NOTE: Once the dash kit is snapped

in, it cannot be removed without

dash panel removal

99-9107B KIT ASSEMBLY

Snap the DDIN brackets to the

inside edge of the radio housing.

(Figure B)

Cut and remove center divider

from radio housing. (Figure A)

Snap the DDIN trim-plate onto the

housing/radio assembly. (Figure C)

Slide the DDIN radio unit into the

DDIN bracket/radio housing

assembly and secure the unit to

the kit using the screws supplied

with the head unit. (Figure C)

Snap radio assembly into factory

radio opening.

Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapter

from Metra or AXXESS. Re-con-

nect the negative battery terminal

and test the unit for proper opera-

tion.

DOUBLE DIN HEAD UNIT PROVISION

NOTE: Once the dash kit is snapped

in, it cannot be removed without

dash panel removal

NOTES

99-9107B

99-9107B INSTRUCTIONS

1-800-221-0932 www.metraonline.com
