Metra Electronics 95-7322 Bedienungsanleitung

INSTALLATION INSTRUCTIONS FOR PART 95-7322

95-7322

APPLICATIONS

Hyundai Azera

2006-2010

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Units Provision

A) Double Din Trim Plate • B) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

1-800-221-0932

www.metraonline.com

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

•70-1004 - Hyundai/KIA harness 2004-up

•70-7303 - Hyundai/KIA harness 2009

Antenna Adapter:

•40-KI10 KIA antenna adapter 2007-up

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver

Dash Disassembly

HyundaiAzera2006-10.......................

. . . . . . 1,2

Kit Assembly

-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

-Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Final Assembly ........................................... 5

TABLE OF CONTENTS

95-7322

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake

steps towardabetter tomorrow.

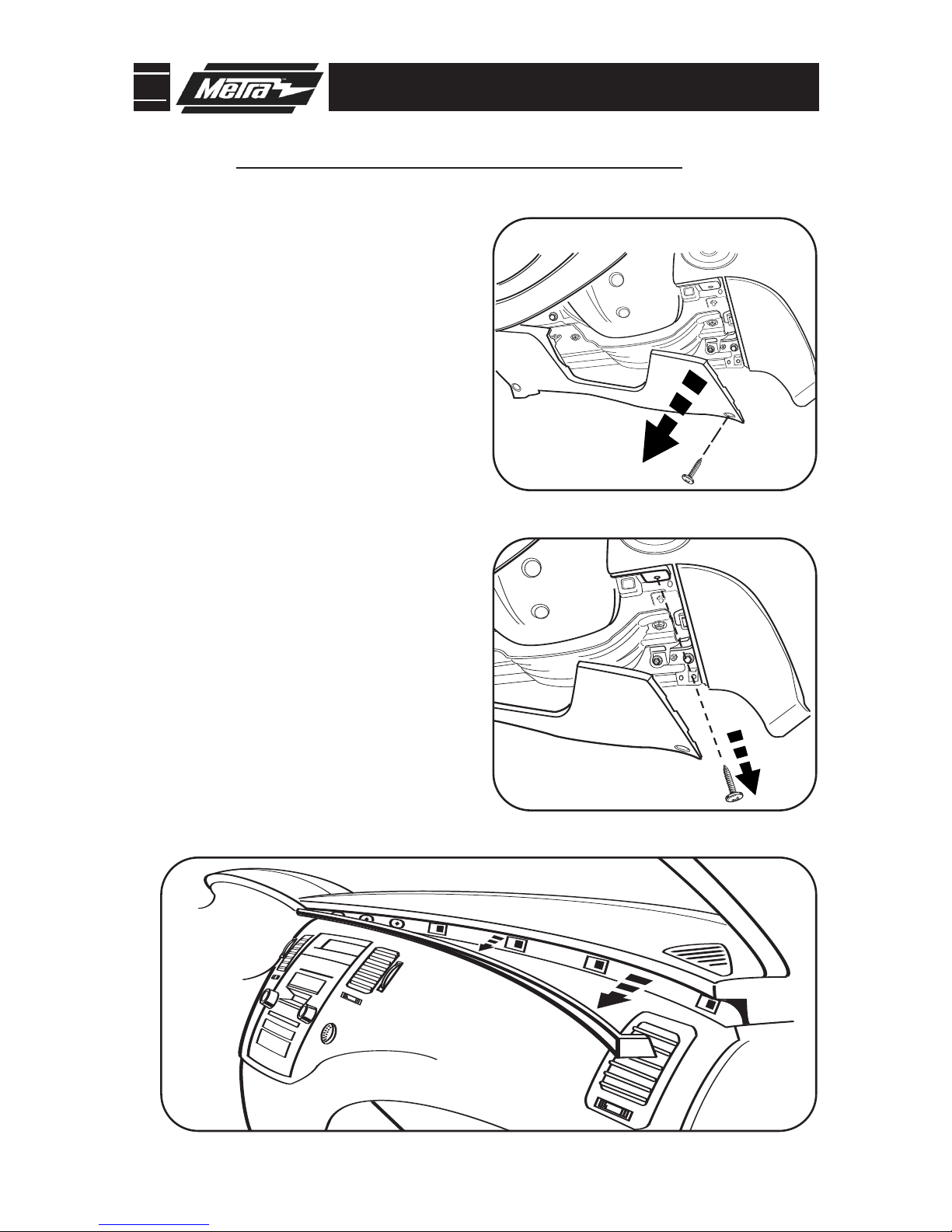

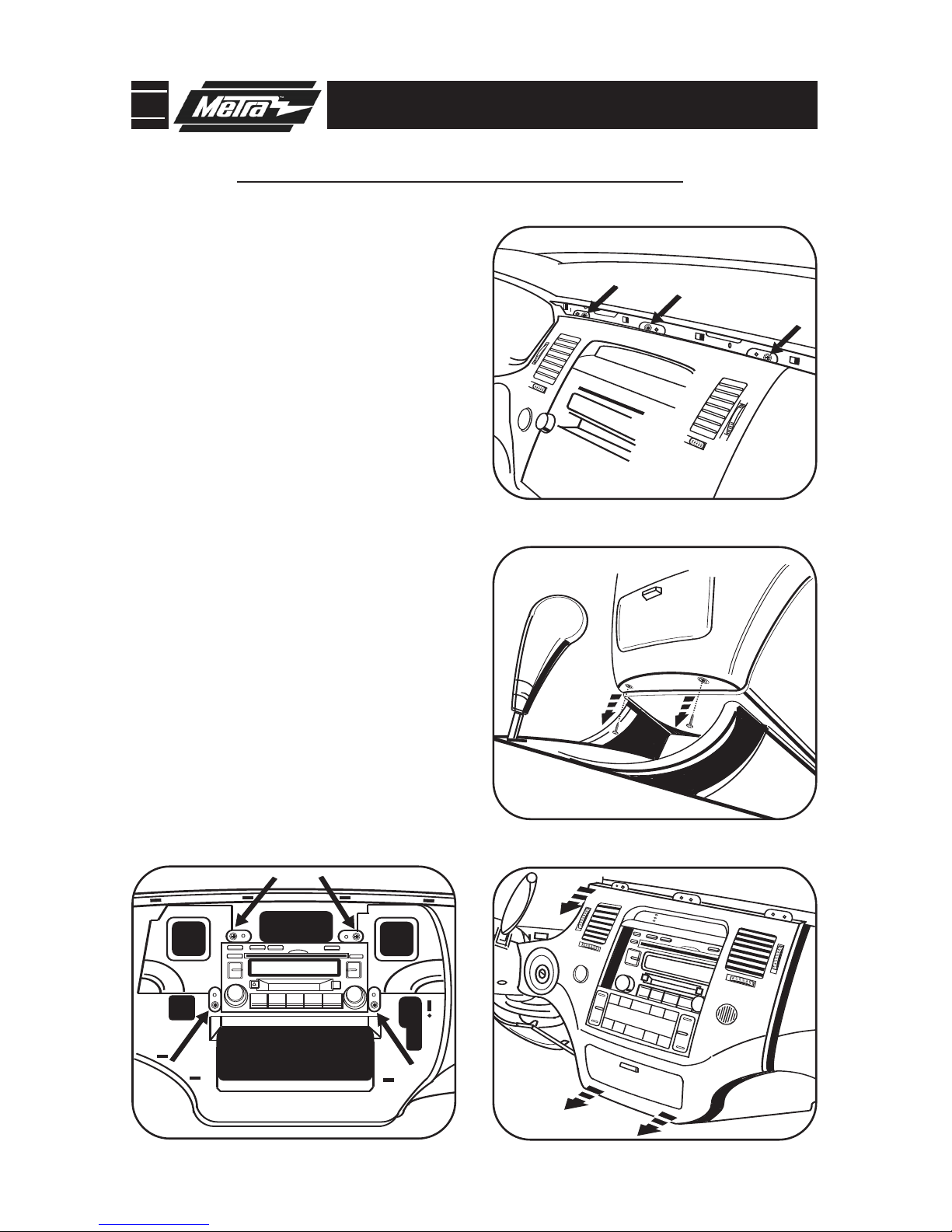

95-7322 DASH DISASSEMBLY

HYUNDAI AZERA 2006-2010

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (1) Phillips head screw from

bottom right hand corner then unclip

and let the panel below the steering

column hang. (

Figure A)

Remove (1) Phillips screw from the

lower left side of the radio panel

behind panel removed in step 2.

(Figure B)

Unclip and remove the trim panel

above the radio that extends across

the dash to the passenger side.

(Figure C)

95-7322 DASH DISASSEMBLY

HYUNDAI AZERA 2006-2010

Remove (3) Phillips screws from the

top of the radio trim panel.

(Figure D)

Remove (2) Phillips screws from

under radio trim panel.

(Figure E)

Unclip and remove the entire trim

panel surrounding the radio.

(Figure F)

Remove (4) Phillips screws securing

the radio. Unplug and remove radio.

(Figure G)

Continue to kit assembly.

TEMP

MODE A/C

OFF

AUTODUAL

PAS S

95-7322 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure A)

Slide the Double DIN radio into the

bracket/trim plate assembly and

secure the radio to the assembly

using the screws supplied with the

radio.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

95-7322 KIT ASSEMBLY

STACKED ISO UNITS PROVISION

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure A)

Slide the stacked ISO units into the

bracket/radio housing assembly and

secure the units to the kit using the

screws supplied with the units.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

95-7322 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-7322 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
