Metra Electronics 108-GM3B Bedienungsanleitung

INSTALLATION INSTRUCTIONS

108-GM3B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

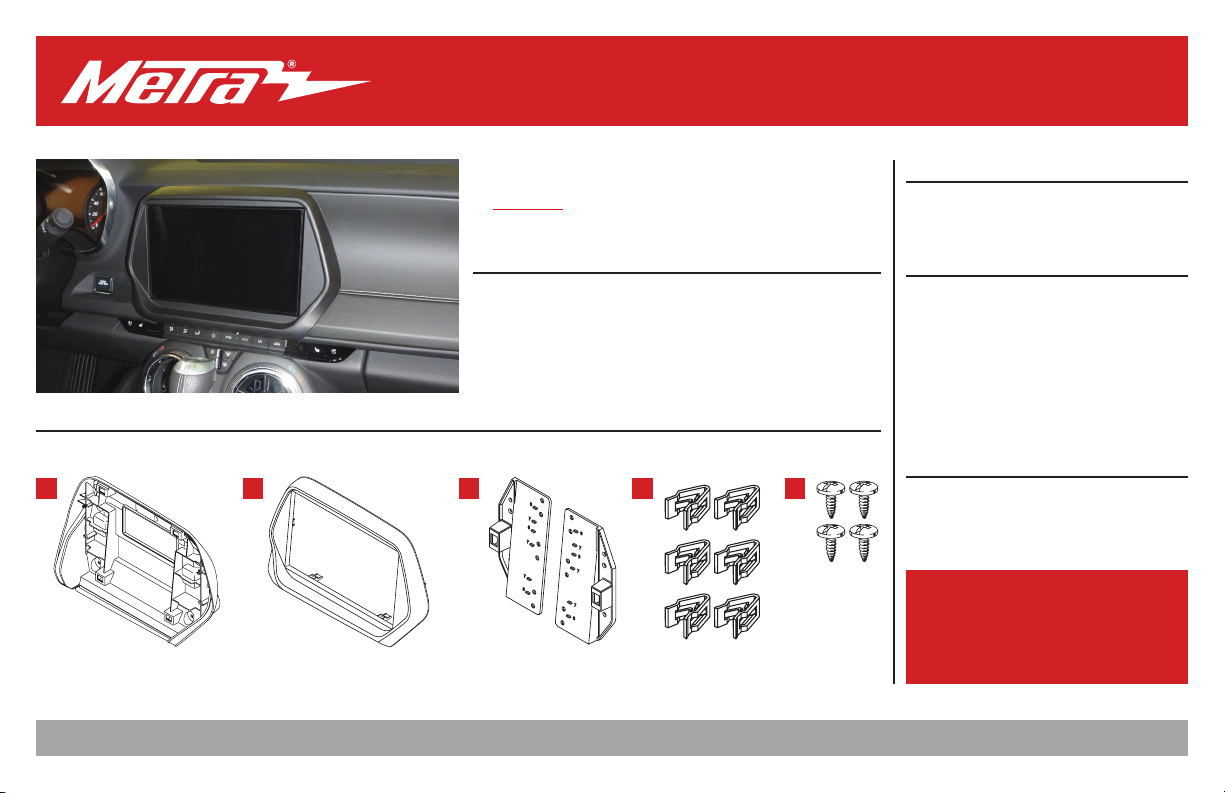

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Painted scratch resistant matte black to match the factory ﬁnish

KIT COMPONENTS

•A) Display screen housing • B) Display screen trim bezel • C) Display screen brackets • D) Panel clips (6) • E) Phillips screws (4)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TABLE OF CONTENTS

Dash Disassembly ................................................... 2

Kit Assembly .............................................................3

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Refer to axxessinterfaces.com for

wiring harness options

Antenna Adapter: 40-EU55 (sold separately)

Steering Wheel Control Interface: ASWC-1

(sold separately)

RGB Extension Cable: Pioneer part # CD-RGB150E

(not sold by Metra)

A B C D E

Chevrolet Camaro 2016-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

1.800.221.0932

MetraOnline.com

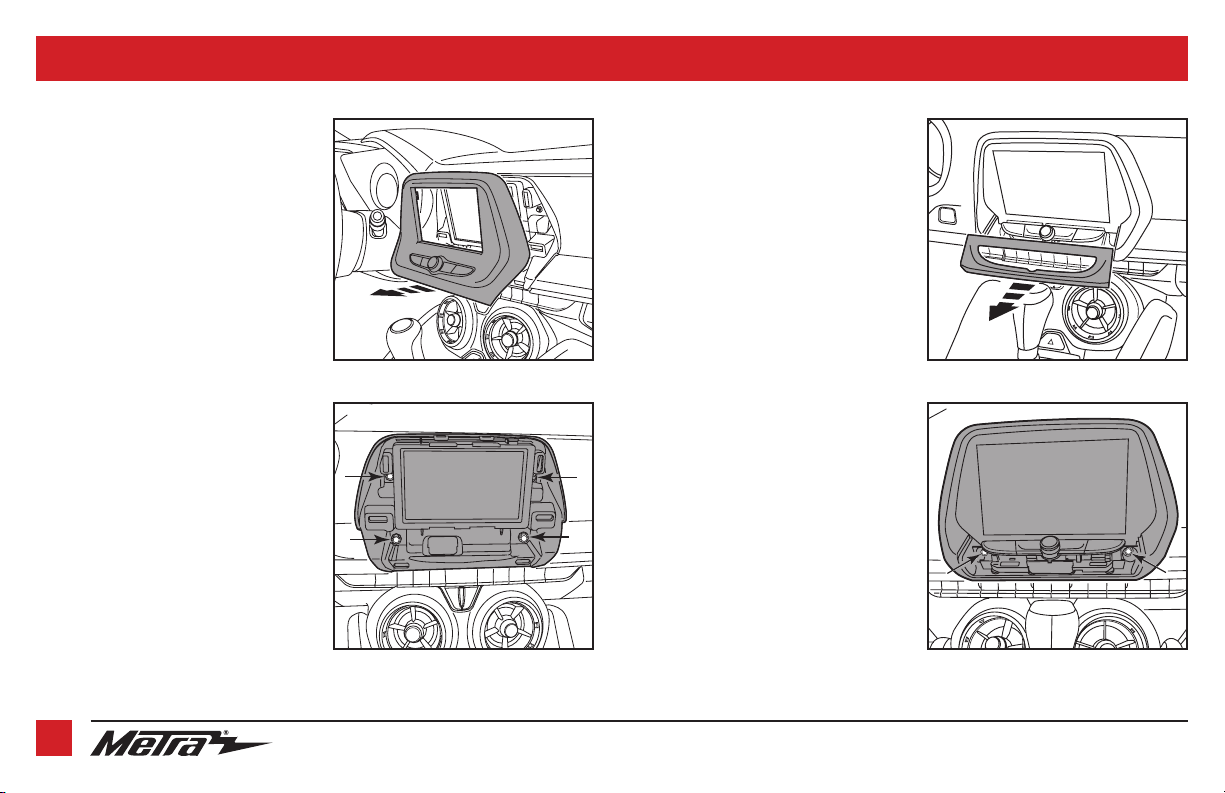

DASH DISASSEMBLY

Models equipped with a 7-inch

touchscreen radio:

1. Unclip, unplug, and remove the radio

control trim panel surrounding the radio.

(Figure A)

2. Remove (4) 9/32” screws securing the

radio, then unplug and remove.

(Figure B)

(Figure A) (Figure C)

(Figure B) (Figure D)

Models equipped with an 8-inch

touchscreen radio:

1. Unclip and remove the trim surrounding

the radio controls. (Figure C)

2. Remove (2) 9/32” screws securing the

radio, then unplug and remove.

(Figure D)

Continue to Kit Assembly

REV. 1/21/2020 INST108-GM3B 3

1. Secure the display screen housing to the

dash using the factory hardware.

(Figure A)

Note: For vehicles equipped with an

8-inch touchscreen radio, remove (2)

9/32” screws from the dash beforehand.

2. Remove the locator pins stamped “7”

from the display screen brackets. Using

the holes stamped “8”, secure the

display screen to the brackets using (6)

screws supplied with the radio.

(Figure B)

Note: Reference the installation manual

provided with the radio for which

hardware to use. The display screen and

radio chassis use two different types

of screws.

3. Find a suitable location for the radio

chassis. Route the RGB extension cable

from the radio chassis to the display

screen, then connect it to the

display screen.

KIT ASSEMBLY

(Figure A) (Figure C)

(Figure B) (Figure D)

4. Secure the assembly to the display

screen housing using (4) Phillips screws

provided. (Figure C)

5. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio assembly. Metra recommends

using the proper mating adapter from

Metra and/ or Axxess. Test the radio for

proper operation.

6. Attach (6) panel clips provided onto the

display screen trim bezel, then clip the

bezel over the radio to complete the

installation. (Figure D)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

108-GM3B

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 1-800-253-TECH, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.
