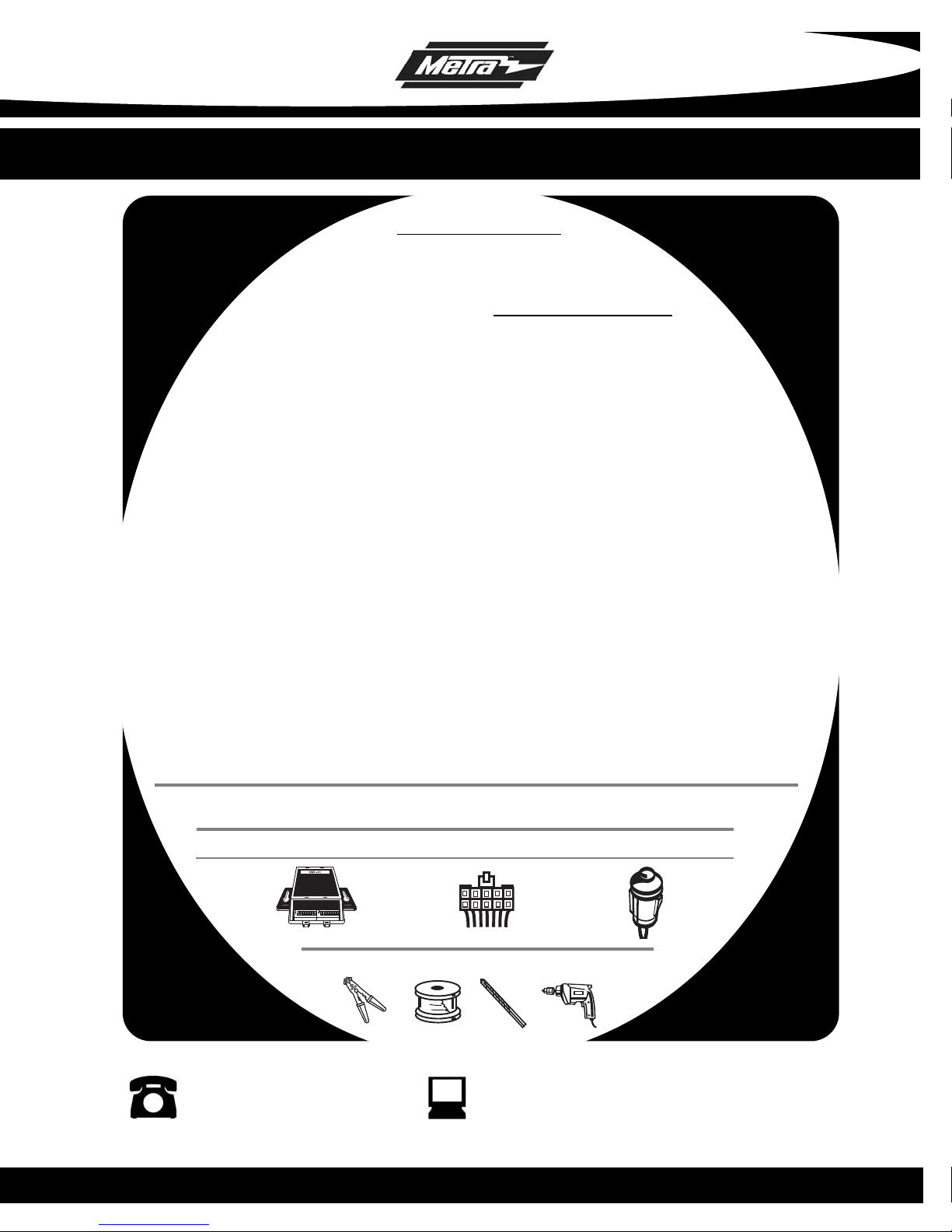

INSTALLATION INSTRUCTIONS FOR PART SWC-01

Wire strippers - Tape - 5/16” Drill Bit - Drill

1-800-221-0932 www.metraonline.com

RADIO APPLICATIONS

KIT COMPONENTS:

A) SWC-01 B) 10 Way Wire Harness C) Infrared LED with Harness

CAR RADIO

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Alpine, Clarion, Denon, Eclipse, JVC

Kenwood, Panasonic, Pioneer, Pioneer2, Sony

VEHICLE APPLICATIONS

Buick

Century 1998-2003

Century 2004-2005

Lesabre 1998-1999

Park Ave. 1998-2005

Rainier 2004-2005

Rendezvous 2002-2005

Regal 1998-2003

Regal 2004

Riviera 1998-1999

Skylark 1998

Cadillac

Catera 1997-2001

CTS 2003-2005

Deville 1997-2005

Eldorado 1997-2002

Escalade 2002

Escalade 2003-2005

Seville 1997-2004

SRX 2004-2005

XLR 2004-2005

Chevrolet

Avalanche 2002

Avalanche 2003-2005

Blazer 1999-2002

Blazer 2003-2005

Camaro 2000-2002

Equinox 2005

Impala 2000-2005

Lumina 1998-1999

Malibu 2004-2005

Monte Carlo 1998-1999

Monta Carlo 2000-2005

Chevrolet

S10 1999-2002

S10 2003-2004

Silverado 2001-2002

Silverado 2003-2005

SSR 2003-2005

Suburban 2001-2002

Suburban 2003-2005

Tahoe 2001-2002

Tahoe 2003-2005

Trailblazer 2002-2005

Venture 1998-1999

Venture 2000-2005

GMC

Envoy 1999-2001

Envoy 2002-2005

Jimmy 1999-2002

Jimmy 2003

Sierra 2001-2002

Sierra 2003-2005

Sonoma 1999-2002

Sonoma 2003-2004

Yukon 2001-2002

Yukon 2003-2005

KIT FEATURES: The SWC-01 is designed to retain the factory steering wheel controls that are normally

lost when replacing the original factory radio with an aftermarket radio.

Hummer

H2 2003-2005

Isuzu

Ascender 2005

Oldsmobile

Alero 1999-2000

Alero 2001-2004

Aurora 1996-1999

Bravada 1999-2001

Bravada 2002-2004

Oldsmobile

Eighty-Eight 1998-1999

Intrigue 1998-2001

Intrigue 2002

LSS 1998

Silhouette 1998-1999

Silhouette 2000-2004

Pontiac

Aztek 2001-2005

Bonneville 1998-1999

Firebird 1998-2002

G6 2005

Grand Am 1998-2000

Grand Am 2001-2005

Grand Prix 1999-2003

GTO2004-2005

Montana 1999

Montana 2000-2005

Ford

Crown Victoria 1998-

2002

Excursion 1998-2003

Excursion 2004

Expedition 1998-2003

Expedition 2004

Explorer 1998-2004

F150 2004

Focus 2002

Freestar 2004

Thunderbird 2002

Windstar 1999-2002

SWC-01

TOOLS REQUIRED:

Lincoln

Aviator 2000

Continental 1998-2002

LS 2000-2002

Navigator 1999-2003

Town Car 1998-2002

Mercury

Grand Marquis 1998-2002

Marauder 2003

Mountaineer 1999-2001

Mountaineer 2002-2003

Villager 1999-2002

Chrysler

300M 2001

300M 2002-2004

Sebring 2001

Sebring 2002-2004

Dodge

Caravan 2001

Caravan 2002-2004

Dakota 2001

Dakota 2002-2003

Durango 2001

Durango 2002-2003

Dodge

Intrepid 2001

Intrepid 2002-2004

Ram 2002-2004

Stratus 2001

Stratus 2002-2004

Jeep

Grand Cherokee 1999

Grand Cherokee 2000-2001

Grand Cherokee 2002-2004

Liberty 2002-2004

SWC-01

1-800-221-0932 www.metraonline.com

SWC-01

-Wiring the SWC-01 ---------------------------------------------------------- 1

-Radio DIP Switch Settings---------------------------------------- 2

-Vehicle Applications--------------------------------------------------------- 3

-20 - Way GM Plug -----------------------------------------------------------3

-24 - Way GM Plug------------------------------------------------------ 4,5,6

-32 - Way GM Plug---------------------------------------------------------7,8

-22 - Way Chrysler Plug------------------------------------------------------9

-2- Way Chrysler Plug------------------------------------------------------10

-20 - Way Ford Plug ---------------------------------------------------------11

-24 - Way Ford Plug ---------------------------------------------------------12

-17 - Way Ford Plug ---------------------------------------------------------13

-16 and 20 - Way VW Plugs ------------------------------------------------14

-Mounting the Infrared L.E.D.----------------------------------------------15

-Final Testing -----------------------------------------------------------------16

TABLE OF CONTENTS

SWC-01

Wiring The SWC-01

Red (+) wire: connect this wire to a fused 12 volt accessory wire

Black (-) wire: connect this wire to the vehicles chassis ground

Green wire: steering wheel control wire for resistive type systems (see applications)

Pink wire: steering wheel control wire for Data type systems (see applications)

Radio DIP Switch Settings

If you look at the DIP switches on SWC-01 you will see that they are separated into 2

groups of 8 DIP switches each. One side is labeled RADIO and the other side is

labeled CAR. The chart below will show the DIP switch settings for the RADIO side.

The CAR side will be listed with each individual vehicle inside this manual.

CAR RADIO

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

CAR RADIO

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Refer to Vehicle Chart to select the proper dip switch position and move

switch "up" or "down" with a small screwdriver to select vehicle model,

radio brand, and external CD changer or external tuner/XM if present.

Example above represents a Chevrolet Suburban 2004-2005 with Sony radio

and no external CD changer or external tuner/XM present.

• * Note: Do NOT plug in wiring harness into the SWC-01 until all DIP switch settings are set.

SWC-01

Locate the radio you are installing and set the DIP switches according to the chart

below:

Radio Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8

Alpine up up down up up up up up

Clarion down down up up up up up up

Denon down up down up up up up up

Eclipse up up up down up up up up

JVC down up down up up up up up

Kenwood up up up up up up up up

Panasonic up down down up up up up up

Pioneer* down up up up up up * *

Pioneer2* down down down up up up * *

Sony up down up up up up up up

• * Note: For Pioneer radios installed with a Pioneer CD Changer or Satellite tuner use the following DIP switch

settings:

Without cd changer or satellite tuner – Switch 7 up, Switch 8 up

With cd changer only– Switch 7 up, Switch 8 down

With satellite tuner only– Switch 7 down, Switch 8 up

With cd changer and satellite tuner – Switch 7 down, Switch 8 down

Radio DIP Switch Settings

SWC-01

Vehicle Applications

Each application will have a connector view of the plug that is in the vehicle along

with the wire color and location. The CAR DIP switch settings for the vehicles will

also be listed along with any other action required to finish the wiring in the vehicle.

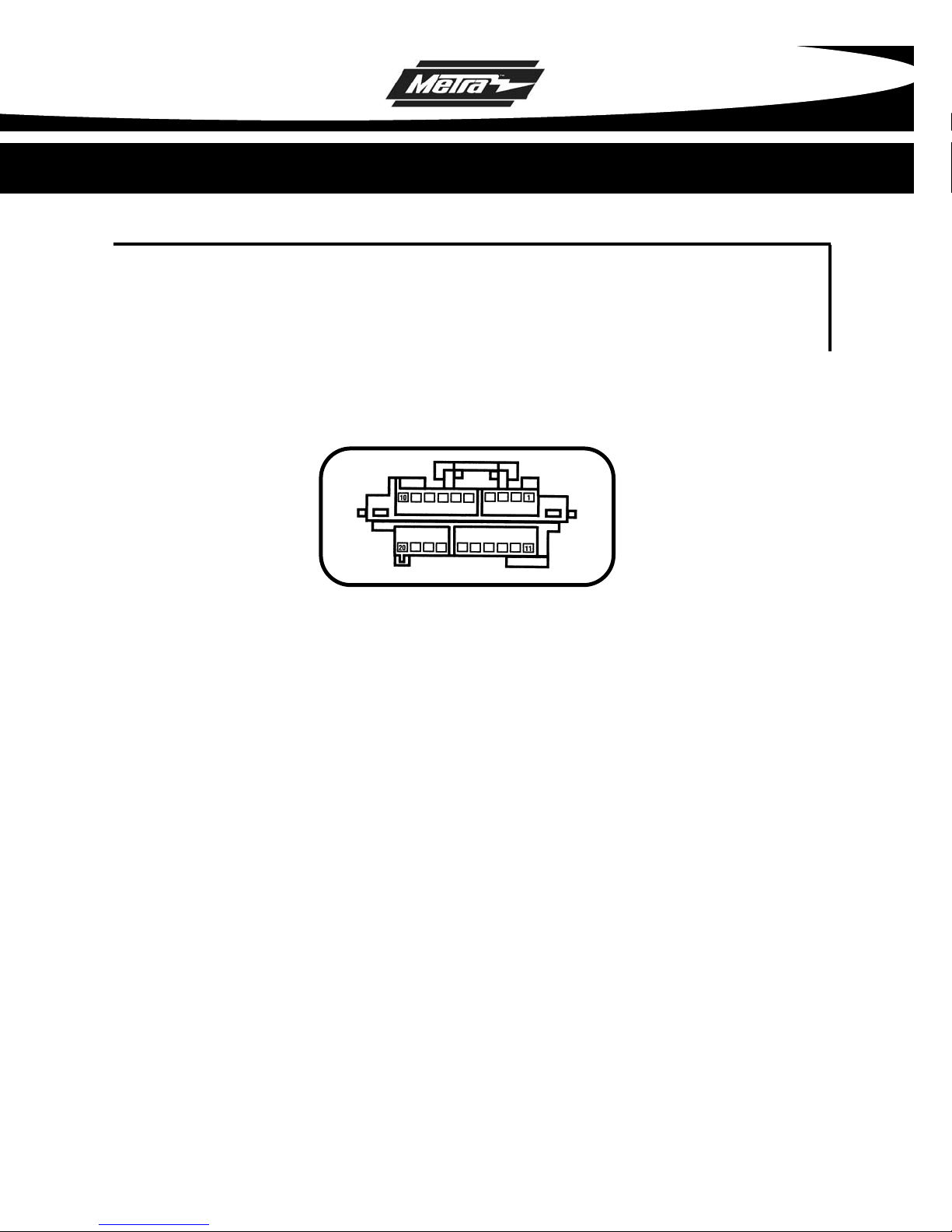

20 - Way GM Plug

Year Make Model Pin Wire Color

Location

2002 Cadillac Escalade 14 Dk. Blue

2002 Chevy Avalanche 14 Dk. Blue

1999-02 Chevy Blazer 14 Dk. Blue

2000-02 Chevy Camaro 14 Dk. Blue

1999-02 Chevy S10 14 Dk. Blue

2001-02 Chevy Silverado 14 Dk. Blue

2001-02 Chevy Suburban 14 Dk. Blue

2001-02 Chevy Tahoe 14 Dk. Blue

1998-99 Chevy Venture 14 Dk. Blue

1999-01 GMC Envoy 14 Dk. Blue

1999-02 GMC Jimmy 14 Dk. Blue

2001 GMC Sierra 14 Dk. Blue

1999-02 GMC Sonoma 14 Dk. Blue

2001-02 GMC Yukon 14 Dk. Blue

1998-99 Oldsmobile Silhouette 14 Dk. Blue

1998-02 Pontiac Firebird 14 Dk. Blue

1999-03 Pontiac Grand Prix 14 Dk. Blue

1999 Pontiac Montana 14 Dk. Blue

1998-99 Chevy Lumina 14 Lt. Green

1998-99 Chevy Monte Carlo 14 Lt. Green

1998-99 Pontiac Bonneville 14 Lt. Green

1998-00 Pontiac Grand Am 14 Lt. Green

24 - Way GM Plug

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP

Switch settings as follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Up Down Up Up Up Down Up Up

SWC-01

(GM Continued From Previous Page)

Year Make Model Pin Wire Additional Wiring Needed

Location Color

2002-05 Buick Rendezvous A7 Dk. Blue Connect A6, Purple, to a 12 volt

accessory wire

2003-05 Chevy Blazer A7 Dk. Blue Connect A6, Dk. Green, to chassis

ground

2000-05 Chevy Impala A7 Dk. Blue Connect A6, Pink, to chassis ground

2000-05 Chevy Monte Carlo A7 Dk. Blue Connect A6, Pink, to chassis ground

2003-04 Chevy S10 A7 Dk. Blue Connect A6, Dk. Green, to chassis

ground

2003 GMC Jimmy A7 Dk. Blue Connect A6, Dk. Green, to chassis

ground

2002 Oldsmobile Intrigue A7 Dk. Blue Connect A6, Purple, to chassis ground

2005 Pontiac G6 A9 Dk. Blue Connect A10, White/Black, to

chassis ground

2001-04 Oldsmobile Alero A7 Lt. green Connect A6, Pink, to chassis ground

2001-05 Pontiac Grand Am A7 Lt. green Connect A6, Pink, to chassis ground

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP

Switch settings as follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Down Down Up Up Up Down Up Up

Year Make Model Pin Wire Additional Wiring Needed

Location Color

2000-05 Chevy Venture A7 Dk. Blue Connect A6, Pink, to a 12 volt accessory wire

2000-04 Oldsmobile Silhouette A7 Dk. Blue Connect A6, Pink, to a 12 volt accessory wire

2001-05 Pontiac Aztek A7 Dk. Blue Connect A6, Purple, to a 12 volt accessory wire

2000-05 Pontiac Montana A7 Dk. Blue Connect A6, Pink, to a 12 volt accessory wire

2003-04 GMC Sonoma A7 Dk. Blue Connect A6, Dk. Green, to chassis ground

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP Switch settings as

follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Up Down Up Up Up Down Up Up

Year Make Model Pin Wire Additional Wiring Needed

Location Color

2004-05 Buick CenturyA7 Dk. Blue Connect A6, Purple, to chassis ground

2004 Buick Regal A7 Dk. Blue Connect A6, Purple, to chassis ground

2005 Chevy Equinox A9 Dk. Blue Connect A10, White/Black, to chassis ground

2004-05 Chevy Malibu A9 Dk. Blue Connect A10, White/Black, to chassis ground

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP Switch settings as fol-

lows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Down Down Down Up Up Down Up Up

Year Make Model Pin Wire

Location Color

2004-05 Buick Rainier A1 Orange

For the vehicles listed above use the Pink wire on the SWC-01 and set the CAR DIP Switch settings as follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Down Up Down Up Up Down Up Up

(GM Continued From Previous Page)

SWC-01

Year Make Model Pin Wire

Location Color

2003-05 Cadillac Escalade A1 Orange

2003-05 Chevy Avalanche A1 Orange

2003-05 Chevy Silverado A1 Orange

2003-05 Chevy SSR A1 Orange

2003-05 Chevy Suburban A1 Orange

2003-05 Chevy Tahoe A1 Orange

2002-05 Chevy Trailblazer A1 Orange

2002-05 GMC Envoy A1 Orange

2003-05 GMC Sierra A1 Orange

2003-05 GMC Yukon A1 Orange

2003-05 Hummer H2 A1 Orange

2005 Isuzu Ascender A1 Orange

2002-04 Oldsmobile Bravada A1 Orange

For the vehicles listed above use the Pink wire on the SWC-01 and set the CAR DIP Switch settings as

follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Down Up Up Up Up Down Up Up

(GM Continued From Previous Page)

SWC-01

32 - Way GM Plug

Year Make Model Pin Wire

Location Color

1996-99 Oldsmobile Aurora E5 Lt. Green

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP

Switch settings as follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Down Up Up Down Up Down Up Up

Year Make Model Pin Wire

Location Color

1998-99 Oldsmobile Eighty-Eight E5 Lt. Green

1998 Oldsmobile LSS E5 Lt. Green

For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP

Switch settings as follows:

Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8

Up Down Up Down Up Down Up Up

Year Make Model Pin Wire

Location Color

1998-99 Buick Riviera E5 Lt. Green

1998-05 Buick Park Ave. E5 Lt. Green

1998-99 Buick Lesabre E5 or E6 Lt. Green

1998-03 Buick Century E6 Dk. Blue

1998-03 Buick Regal E6 Dk. Blue

Inhaltsverzeichnis

Andere Metra Electronics Autozubehör Handbücher

Metra Electronics

Metra Electronics GMOS-06 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-6506 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7804B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3010S Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7810B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7861 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8712 Bedienungsanleitung

Metra Electronics

Metra Electronics JP-1014 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7313 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7892 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7378B Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7339S Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7298B Bedienungsanleitung

Metra Electronics

Metra Electronics 70-9800 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-6547B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7318 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7319 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9302 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5850B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9000 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7417 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3023HG Bedienungsanleitung

Metra Electronics

Metra Electronics KIA OPTIMA 99-7324 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8205 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
