KIT COMPONENTS

Shaft

Supports

(2) #10

Phillips Screws

99-3100

AW-310SA

INSTALLATION

INSTRUCTIONS

APPLICATIONS

CAR PAGE

SATURN

(All models) 1995-99...............................................1-2

TOOLS REQUIRED

Adjustable wrench

Socket wrench

Phillips screwdriver

KIT FEATURES

Shaft and

DIN unit

provisions

Radio Housing

rev. 290601

1-800-221-0932 www.metraonline.com

© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION

2

1

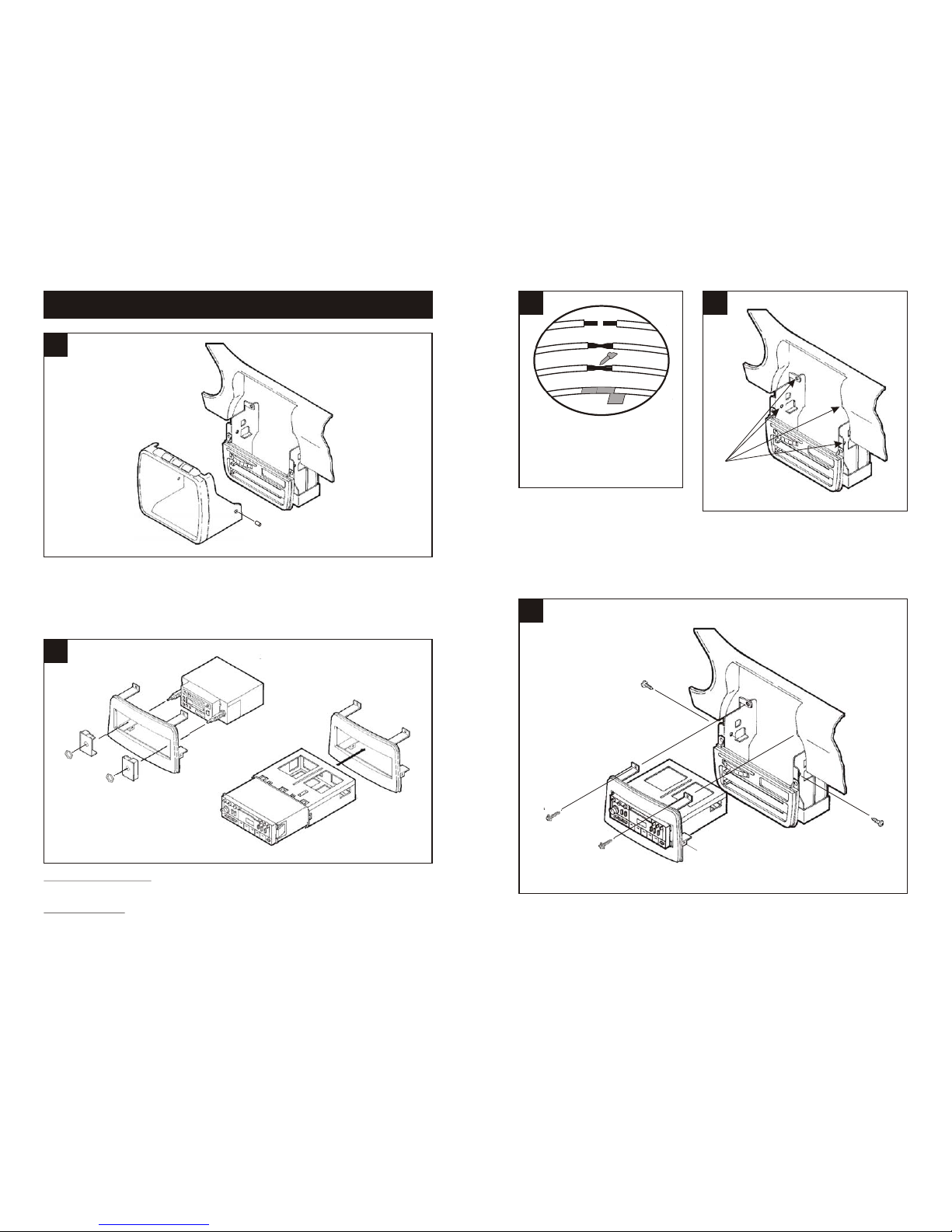

ALL VEHICLES

Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2)

pop-clips from the sides of the radio trim bezel. Unclip the radio trim bezel, disconnect the

switch wiring and remove the bezel. Remove (2) 7mm hex-head screws securing the top of

the factory head unit and disconnect the wiring.

2-SHAFT HEAD UNITS: Snap the Shaft Supports into the Radio Housing. Slide the

aftermarket head unit into the kit and secure with shaft nuts. (see Fig. A)

DIN HEAD UNITS: Slide the DIN cage into the kit and secure by bending the metal locking

tabs down. Slide the aftermarket head unit into the cage until secure. (see Fig. B)

1

Fig. B

2

5

Fig. A

3 4

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Locate the (4) mounting locations in the sub-

dash.

Re-connect the battery terminal and test the unit for proper operation. Mount the head uni t/kit

assembly to the sub-dash with (2) 7mm hex-head screws previously removed in step #1 ("A")

and (2) #10 Phillips screws supplied ("B").

A

B

C

D

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

"A"

"B"

"B"

"A"
