INSTALLATION INSTRUCTIONS FOR PART 99-7867

99-7867

KIT FEATURES

•DIN Radio Provision

•ISO Radio Provision

A) Radio Housing • B) ISO Trim Plate • C) ISO Brackets

KIT COMPONENTS

•Phillips Screwdriver • Panel Removal Tool

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

Acura RSX

2002-2006

Dash Disassembly

-AcuraRSX2002-2006 ............................................1

Kit Preparation .................................................2

Kit Assembly

-DINRadioProvision .............................................3

-ISO Radio Provision . . . . ........ .................................3

Final Assembly ..........................................4

TABLE OF CONTENTS

99-7867

*Note:

Refer also to the instructions included with the aftermarket radio.

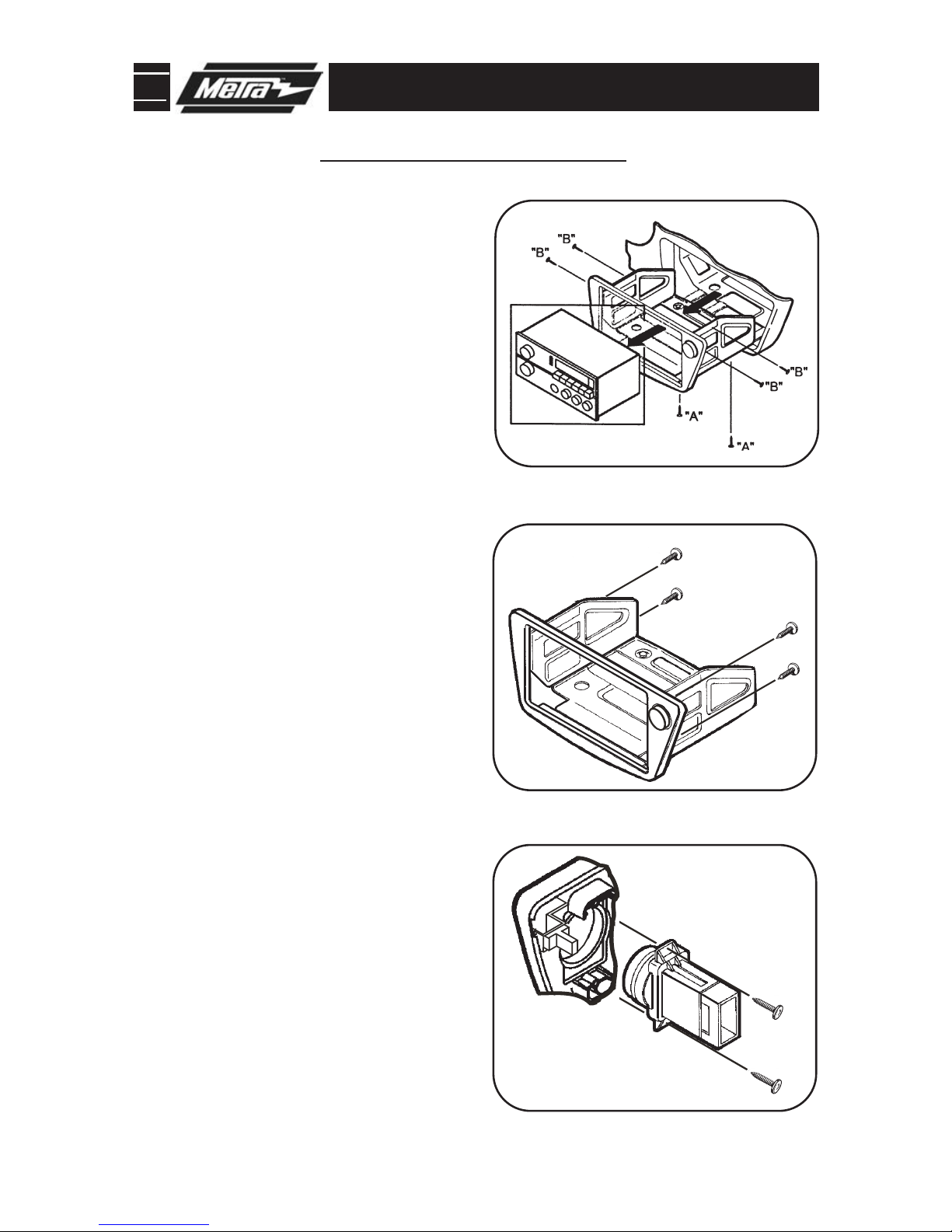

99-7867 DASH DISASSEMBLY

ACURA RSX 2002-2006

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip the power outlet panel and

remove (2) Phillips screws exposed

facing up.

(“A” in Figure A)

Unclip the radio trim panel assembly

(including the head unit and the haz-

ard switch) then unplug and remove

the assembly. (

Figure A)

Remove (4) Phillips screws securing

the factory head unit to the bracket

assembly and remove the unit.

(“B” in Figure A)

"C"

"C" "C"

"C"

"D"

If a factory pocket is present,

remove (4) Phillips screws securing

the pocket to the bracket assembly

and remove.

Remove (4) Phillips screws securing

the bracket assembly to the back of

the radio trim bezel and remove the

bezel. (Retain the bracket assembly

and screws to be reinstalled into the

double DIN trim plate during kit

assembly).

(“C” in Figure B)

Remove (2) Phillips screws securing

the hazard switch to the back of the

radio trim panel and remove the

switch. (Retain the switch and screws

to be reinstalled into the double DIN

trim plate during kit assembly).

(“D” in Figure C)

Continue to kit assembly.

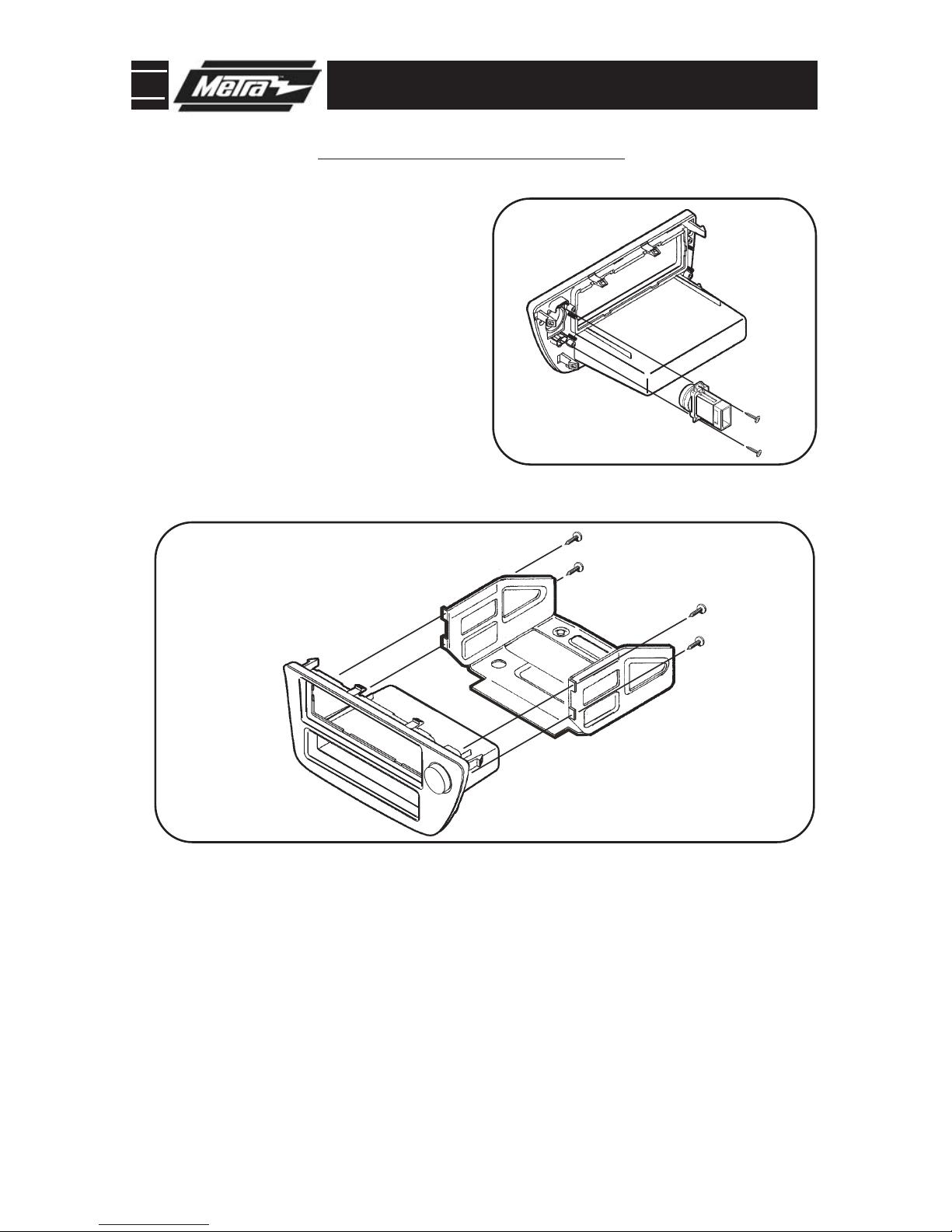

99-7867 KIT PREPARATION

ACURA RSX 2002-2006

Mount the hazard switch to the back

of the radio housing with (2) Phillips

screws previously removed in Step 7

of the disassembly. (

Figure A)

Mount the factory bracket assembly

to the back of the radio housing with

(4) Phillip screws previously removed

in Step 6 of the disassembly.

(Figure B)

Continue to kit assembly.

99-7867 KIT ASSEMBLY

DIN RADIO PROVISION

Slide the DIN cage into the radio hous-

ing and secureby bending the metal

locking tabs outward.

(Figure A)

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure A)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Mount the ISO brackets to the radio

using the screws supplied with the

radio.

(Figure A)

Slide the radio into the radio housing

until the ISO brackets snap into place.

(Figure A)

Snap the trim plate onto the front of

the radio housing.

(Figure A)

ISO RADIO PROVISION

99-7867 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’sspecifications.

99-7867

NOTES

99-7867 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
