CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

99-6520B

U.S. Patent # D755,778 D768,126

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Included interface retains factory screen

• Painted matte black to match factory ﬁnish

Note:

Does not retain sound from “Driver Convenience Group”

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) A/C button housing • D) Pocket • E) Console bracket • F) (6) #8 x 3/8” Phillips pan-head screws

• G) (2) Panel clips • H) Climate extension harness (not shown) • I) Axxess interface and harness (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation .......................................................4

Kit Assembly

– ISO DIN radio provision with pocket .................5

– ISO DDIN radio provision ....................................5

Axxess interface installation .............................6-11

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Interface and harnesses included

Antenna Adapter: 40-EU10 (sold separately)

Steering Wheel Control Interface: ASWC-1

(sold separately)

Dodge Journey 2011-up*

*Visit MetraOnline.com for up-to-date vehicle speciﬁc applications.

F G

B C D E

1.800.221.0932

MetraOnline.com

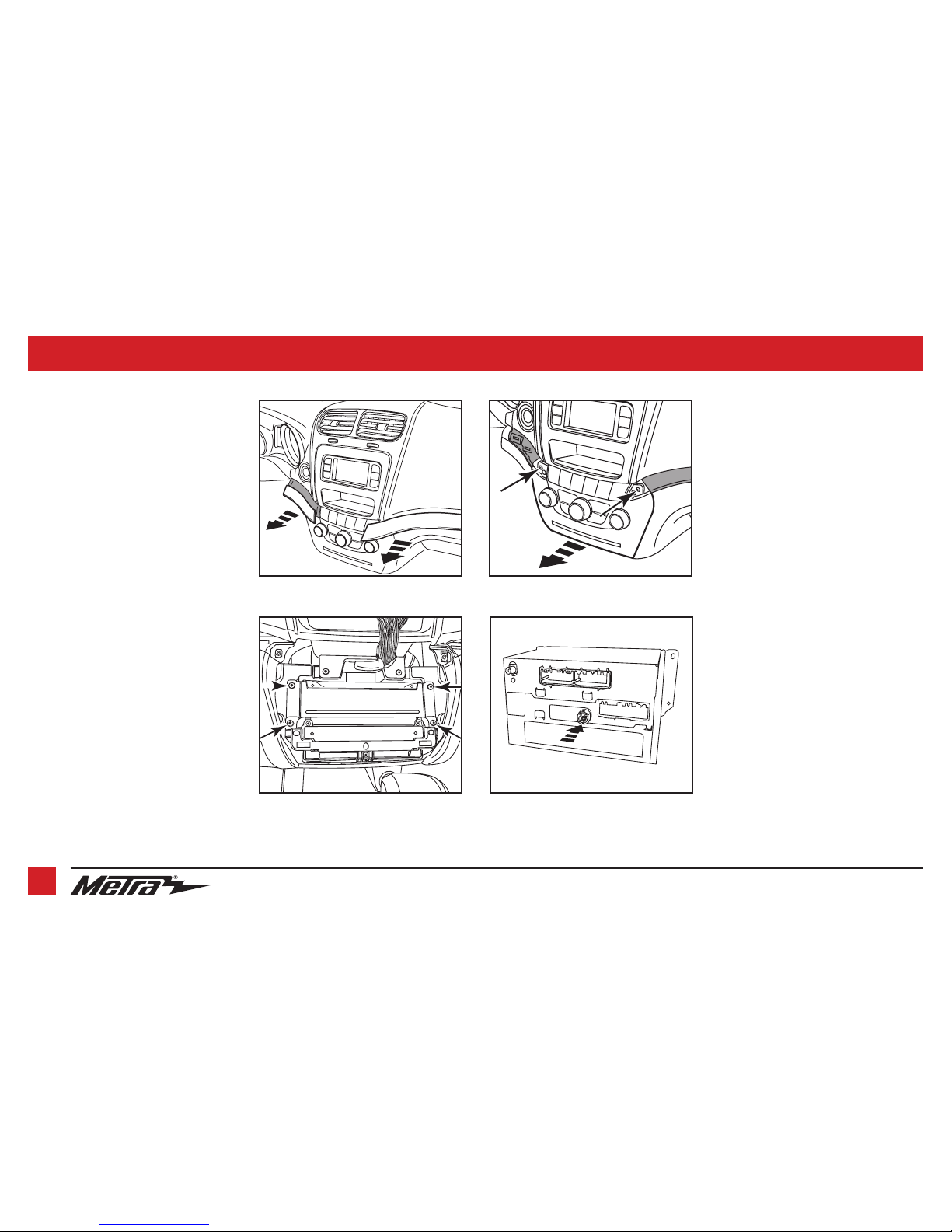

1. Unclip and remove the trim panel along

the top of the glove box over to the

passenger side a/c vent. (Figure A)

Unclip and remove the small trim panel to

the left of the hazard button. (Figure A)

3. Remove (2) Phillips screws securing the

climate/radio panel, then unclip, unplug

and remove the panel. (Figure B)

Note: A climate extension harness is

provided to extend this harness lower

in the center console where the climate

will be relocated to.

Remove (4) Phillips screws securing the

radio chassis. Slide the chassis out, then

unplug and remove the chassis. (Figure C)

Note: The white 4-pin harness will be

reused in Kit Assembly. (Figure D)

Continued on the next page

DASH DISASSEMBLY

(Figure A)

(Figure C) (Figure D)

(Figure B)

REV. 8/10/2018 INST99-6520B 3

DASH DISASSEMBLY (CONT)

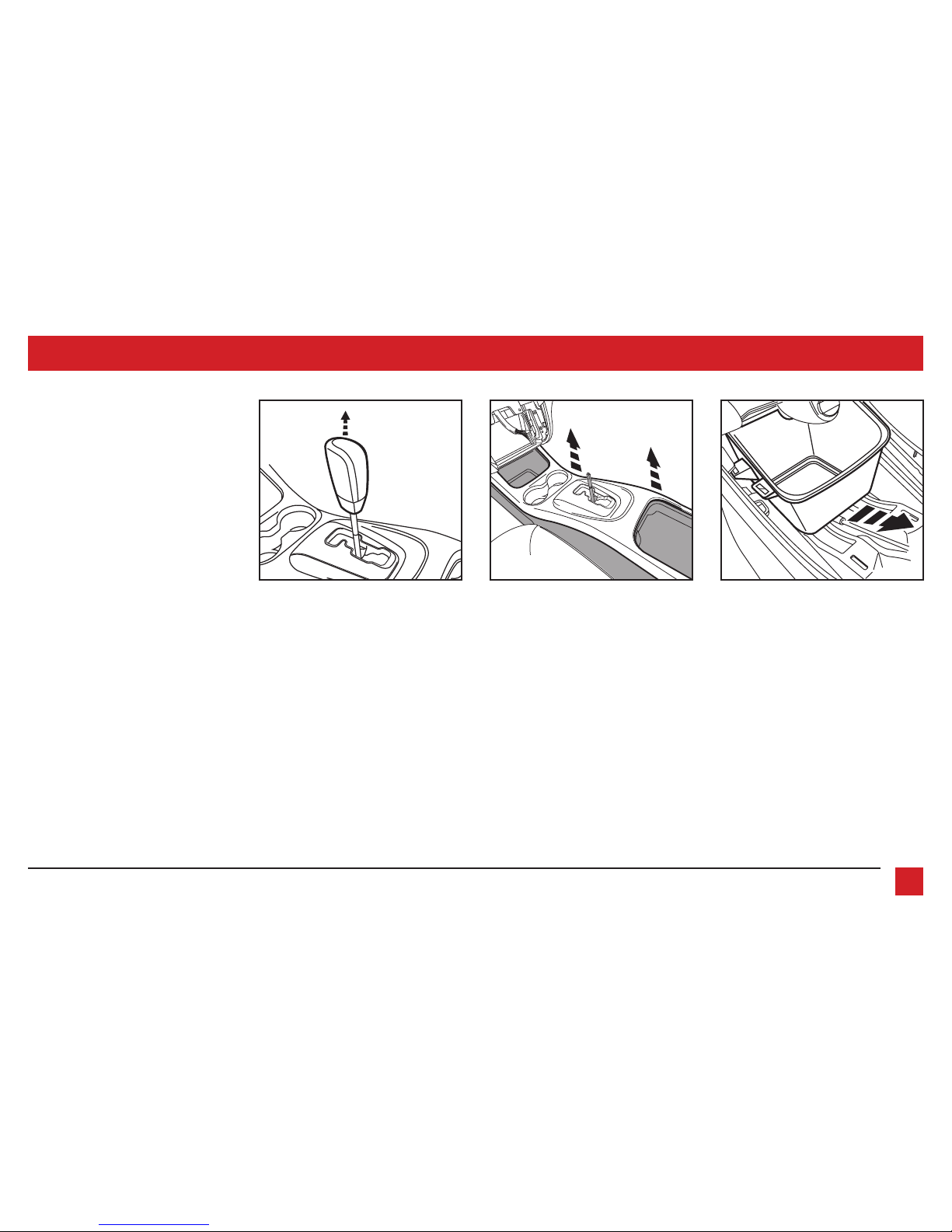

5. Pull up on shift knob to remove.

(Figure D).

6. Unclip and remove the shifter trim panel

including the cup holders from the top

of the center console. (Figure E)

7. Push down and then pull back and out

on the pocket in the front of the console.

Note:

You may need to pull the console

side panels outward at the same time as

pulling out on pocket.

(Figure F)

8. Remove the (2) metal panel clips on the

front side of the pocket and save for

Kit Preparation.

Continue to Kit Preparation

(Figure D) (Figure F)(Figure E)

1.800.221.0932

MetraOnline.com

KIT PREPARATION

1. Attach the

console bracket

to the back

of the

A/C button housing

using (4) of

the provided #8 x 3/8” Phillips screws.

(Figure A)

2. Install the (2) metal panel clips saved

from the pocket disassembly onto the

console bracket

. (Figure A)

3. Using the

climate extension harness

provided, connect the A/C button

housing assembly to the factory wiring

harness in the vehicle.

4. Secure the

A/C button housing

into the

pocket space in the front of the center

console. (Figure B)

Continue to Kit Assembly

(Figure A) (Figure B)

REV. 8/10/2018 INST99-6520B 5

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Secure the

radio brackets

to the

pocket

using the (2) #8 x 3/8” Phillips screws

provided. (Figure A)

Note: Pins on brackets will align with

front mounting hole of pocket.

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio into the bracket/pocket

assembly, then secure it to the assembly

using the screws supplied with the

radio. (Figure B)

Continue to Axxess Interface Installation

ISO DDIN radio provision

1. Break the small locating pin from the

inside surface of each bracket.

(Figure A)

2. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

Continue to Axxess Interface Installation

(Figure A) (Figure A)

(Figure B)

Remove pin

1.800.221.0932

MetraOnline.com

AXXESS INTERFACE INSTALLATION

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Used in ampliﬁed and non-ampliﬁed systems

• Provides NAV outputs (parking brake, reverse, V.S.S.)

• Prewired ASWC-1 harness (ASWC-1 sold separately)

• Retains balance and fade

• Ability to add an aftermarket backup camera or additional video input

• Retains the factory display screen

• Micro “B” USB updatable

Note:

Does not retain sound from “Driver Convenience Group”

Connections .............................................................................................................................................. 7

Installation ...............................................................................................................................................8

Programming ...........................................................................................................................................8

Final assembly .........................................................................................................................................8

Audio level adjustment ...........................................................................................................................8

Screen operation ......................................................................................................................................9

Video option screen ............................................................................................................................... 10

Updating .................................................................................................................................................. 11

INTERFACE FEATURES TABLE OF CONTENTS

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Tape • Wire cutter • Zip ties • Small ﬂat-blade screwdriver

TOOLS REQUIRED

• Axxess interface

• 16-pin harness with stripped leads

• 6520 harness

INTERFACE COMPONENTS

Continued on the next page

REV. 8/10/2018 INST99-6520B 7

CONNECTIONS

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

Note: If also installing an ASWC-1 (sold separately), there will be a Red wire on the 6520

harness to connect as well.

• Connect the Orange/White wire to the illumination wire, if applicable.

• If the vehicles equipped with a factory ampliﬁer, connect the Blue/White wire to the amp

turn-on wire.

The following (3) wires are for aftermarket multimedia/navigation radios that require these wires:

• Connect the Blue/Pink wire to the speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire.

• Tape off and disregard the following (9) wires, they will not be used in this application:

Brown, White, White/Black, Gray, Gray/Black, Purple, Purple/Black, Green, Green/Black.

From the 6520 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

• Tape off and disregard the following (4) wires, they will not be used in this application:

Purple, Purple/Black, Green, Green/Black

• Disregard the Yellow RCA jack labeled (1), it will not be used in this application.

• Connect the Yellow RCA jack labeled (2) to either an aftermarket backup camera, or an AUX

video input.

12-pin pre-wired ASWC-1 harness:

This harness is to be used along with the ASWC-1 (sold separately) to retain steering wheel

audio controls. If the ASWC-1 is not being used, disregard this harness. If it is to be used,

please refer to the ASWC-1 instructions for radio connections and programming. Disregard

the harness that comes with the ASWC-1.

1.800.221.0932

MetraOnline.com

Attention!

For models with a 8-inch screen, update the interface via the Axxess Updater available

at axxessinterfaces.com. Select “8-inch screen” once prompted to. Instructions to update the

interface are available at the end of this instruction booklet

With the key in the off position:

1. Connect the 16-pin harness with stripped leads, and the 6520 harness, into the interface.

2. Connect the factory “White” 4-pin harness removed in step 4 of Dash Disassembly to the

“Black” connector from the interface.

Note: The display screen will not function without this connection.

3. Connect the 6520 harness to the wiring harness in the vehicle.

4. Locate the factory antenna connector in the dash and complete all necessary connections to

the radio. Metra recommends using the proper mating adapter from Metra.

Note: If an ASWC-1 (sold separately) will be used, do not connect it until the interface is

programmed and fully functional.

1. When the interface ﬁrst boots up, the factory screen will go through a boot up sequence for

a few moments. Do not touch any controls during this process.

2. Test all functions of the installation for proper operation, before reassembling the dash. For

ampliﬁed models, also refer to the “Audio Level Adjustment” section.

For models

with

a factory ampliﬁer:

1. With the vehicle and radio turned on, turn the volume up 3/4 of the way.

2. With a small ﬂat-blade screwdriver, adjust the potentiometer clockwise to raise the audio

level; counterclockwise to lower the audio level.

3. Once at a desired level, audio level adjustment is complete.

1. Secure the completed assembly to the dash using the factory hardware.

2. Attach the (2)

panel clips

provided to the 99-6520B

radio trim panel

, then reassemble the

dash in reverse order of disassembly using the 99-6520B panel.

INSTALLATION FINAL ASSEMBLY

PROGRAMMING

AUDIO LEVEL ADJUSTMENT

REV. 8/10/2018 INST99-6520B 9

1. Radio button – Show the current time

2. Player button – Not used in this application

3. Climate button – Takes you to the climate screen

4. Setting button – Takes you to the setting screen

5. More button – Shows the outside temperature and current time

6. Screen Off – Turns the display off

SCREEN OPERATION

1.800.221.0932

MetraOnline.com

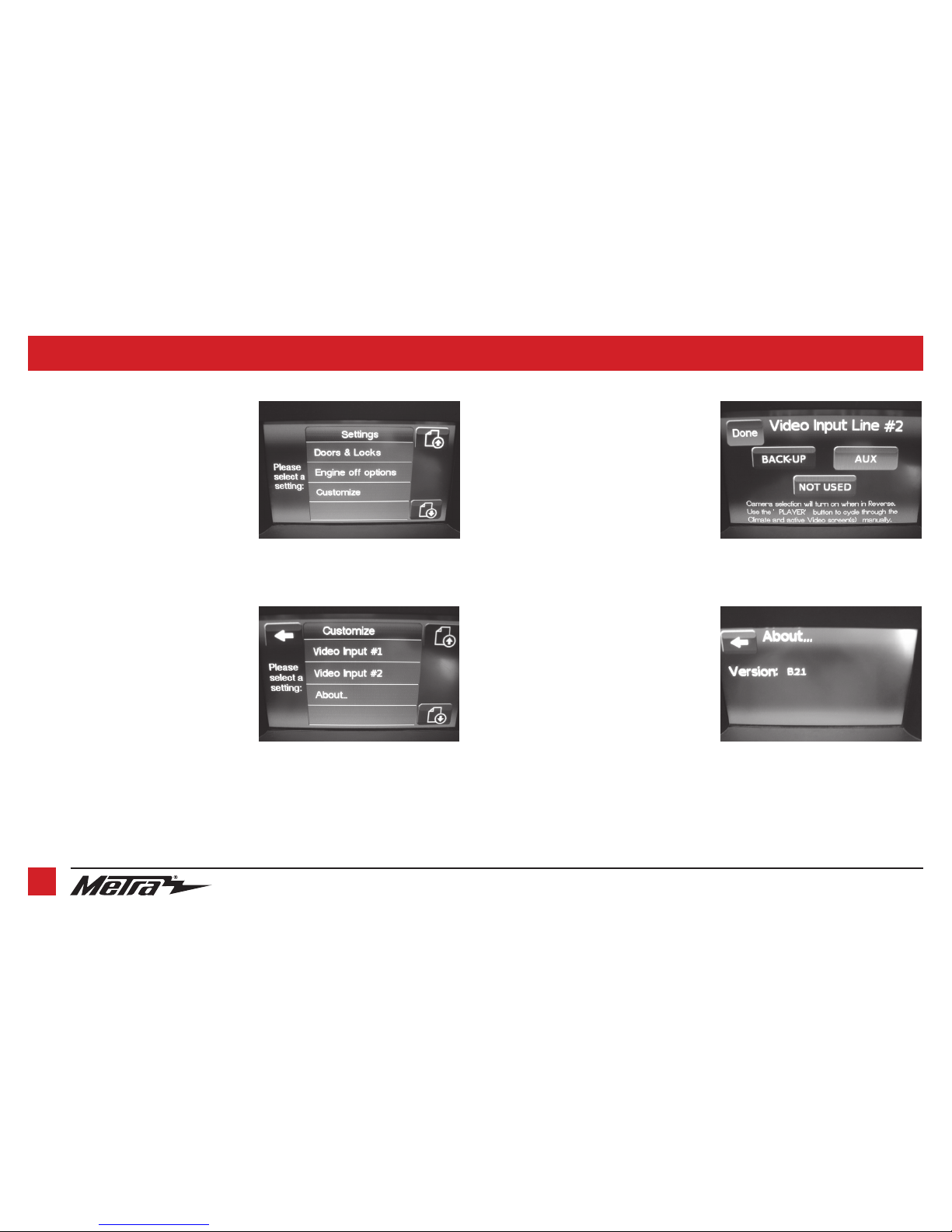

VIDEO OPTION SCREEN

1. Once in the setting screen, scroll down

to the Customize button. Pressing the

button will take you to the video option

screen. (Figure A)

2. From here select Video 2, then select an

option for the video input: AUX Video,

Backup Camera, Not Used. (Figure B)

3. After you have made your selection, tap

the “Done” button located on the upper

left hand corner of the screen to exit.

4. The About button will display the

current software of the kit, and also the

VIN of the vehicle.

Note:

The Backup camera input is controlled

by data and will activate when you put the

vehicle in reverse.

Note:

AUX video is controlled by data and

will only work while the vehicle is in park.

(Figure A) (Figure C)

(Figure B) (Figure D)

Inhaltsverzeichnis

Sprachen:

Andere Metra Electronics Autozubehör Handbücher

Metra Electronics

Metra Electronics 99-1008 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8903B Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7504 Bedienungsanleitung

Metra Electronics

Metra Electronics LEXUS 99-8151 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7393B Bedienungsanleitung

Metra Electronics

Metra Electronics 70-7306 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7952 Bedienungsanleitung

Metra Electronics

Metra Electronics 70-6506 Bedienungsanleitung

Metra Electronics

Metra Electronics TE-RVMCBT Bedienungsanleitung

Metra Electronics

Metra Electronics 88-00-2020 Bedienungsanleitung

Metra Electronics

Metra Electronics 71-1729 Gebrauchsanweisung

Metra Electronics

Metra Electronics 95-7018 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-8166G Bedienungsanleitung

Metra Electronics

Metra Electronics 99-5841B Bedienungsanleitung

Metra Electronics

Metra Electronics 70-6522 Bedienungsanleitung

Metra Electronics

Metra Electronics Saddle Tramp BC-DSPX-HD2 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3527 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-2009 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7328 Bedienungsanleitung

Metra Electronics

Metra Electronics 98-7499 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-9616B Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7321 Bedienungsanleitung

Metra Electronics

Metra Electronics AW-200GM Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7314 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
