INSTALLATION INSTRUCTIONS FOR PART 99-7326

99-7326

KIT FEATURES

•DIN Radio Provision with Pocket

•ISO Radio Provision with Pocket

A) Radio Housing B) ISO Brackets C) Trim Plate

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

APPLICATIONS

Hyundai Elantra 2007-2010

(US Model Only)

(Non Radio Delete)

(Non Touring Model)

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

•70-1004 - Hyundai 2006-up /KIA harness 2004-up

•70-7303 - Hyundai/KIA harness 2009

Antenna Adapter:

•40-KI11 - KIA antenna adapter 2007-up

TOOLS REQUIRED:

Dash Disassembly

-HyundaiElantra2007-2010........................................1

Kit Assembly

-DINRadioProvisionwithPocket ..................................2

-ISORadioProvisionwithPocket...................................3

Final Assembly ..........................................4

TABLE OF CONTENTS

99-7326

*Note:

Refer also to the instructions included with the aftermarket radio.

99-7326 DASH DISASSEMBLY

HYUNDAI ELANTRA 2007-2010

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

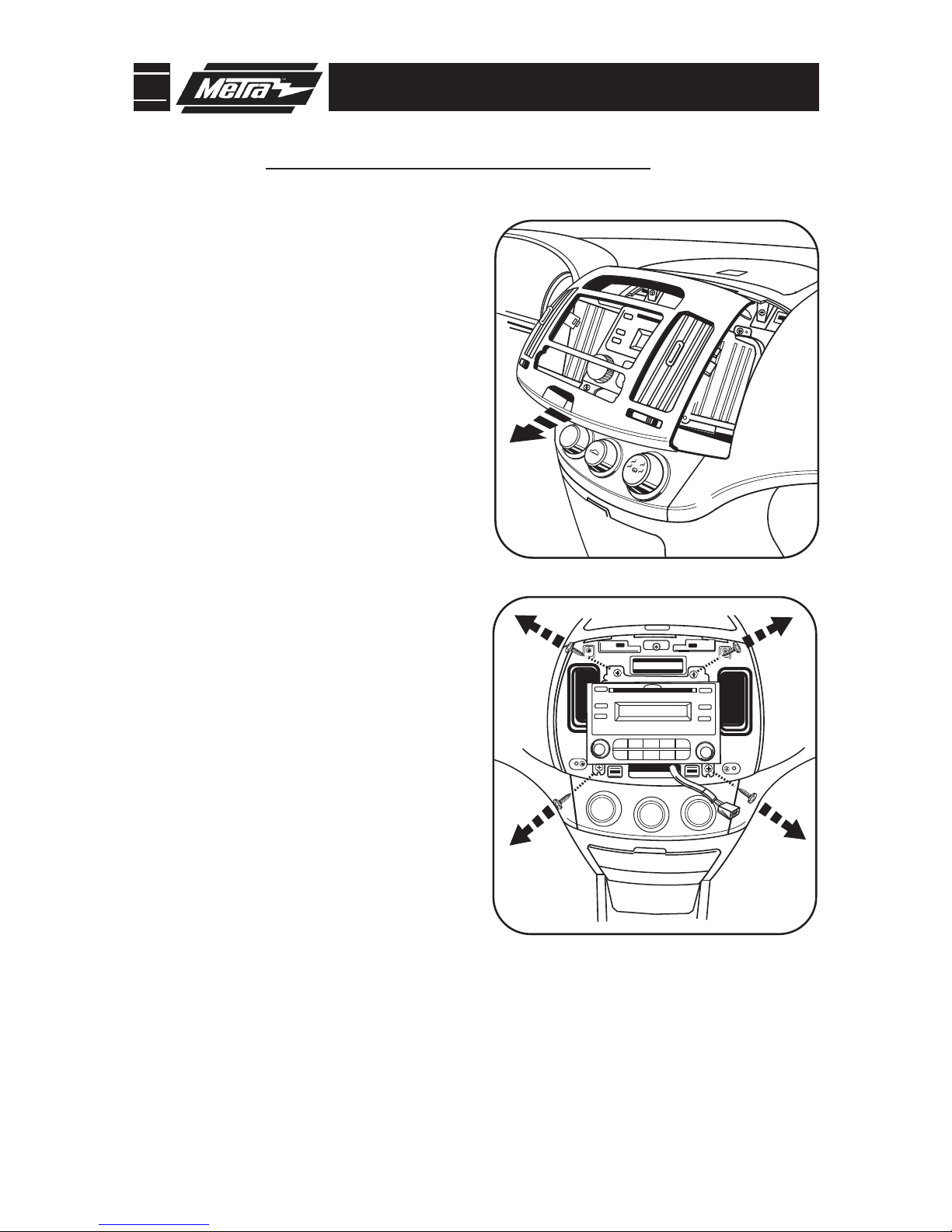

Unclip and remove the panel sur-

rounding the radio including the a/c

vents and hazard button.

(Figure A)

Remove (4) Phillips screws to remove

radio.

Continue to kit assembly.

A/C

99-7326 KIT ASSEMBLY

DIN RADIO PROVISION WITH POCKET

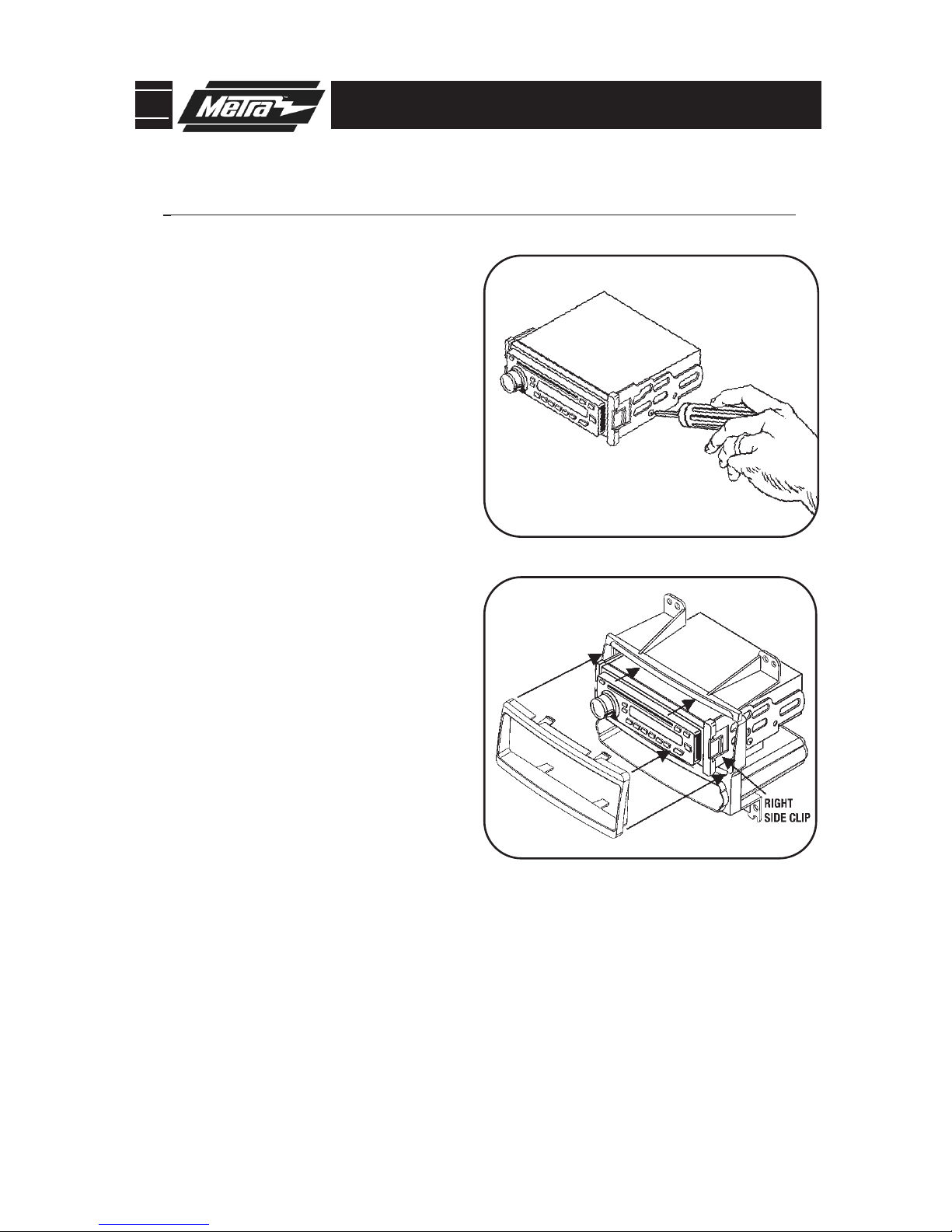

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

Snap the trim plate into the Radio

Housing.

(Figure B)

Note: The trim plate supplied with the

99-7326 is required for a complete

installation. ISO mounting may be pre-

ferrred as it is easier than DIN mount-

ing and using this trim plate.

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

99-7326 KIT ASSEMBLY

ISO RADIO PROVISION WITH POCKET

Slide the radio into the radio opening

until the side clips snap into place.

(Figure B)

Snap the trim plate onto the front of

the Radio Housing.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Mount the ISO Brackets to the after-

market radio using the screws sup-

plied with the radio.

(Figure A)

99-7326 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative batteryterminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of anyunused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

99-7326

NOTES

99-7326 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
